Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly

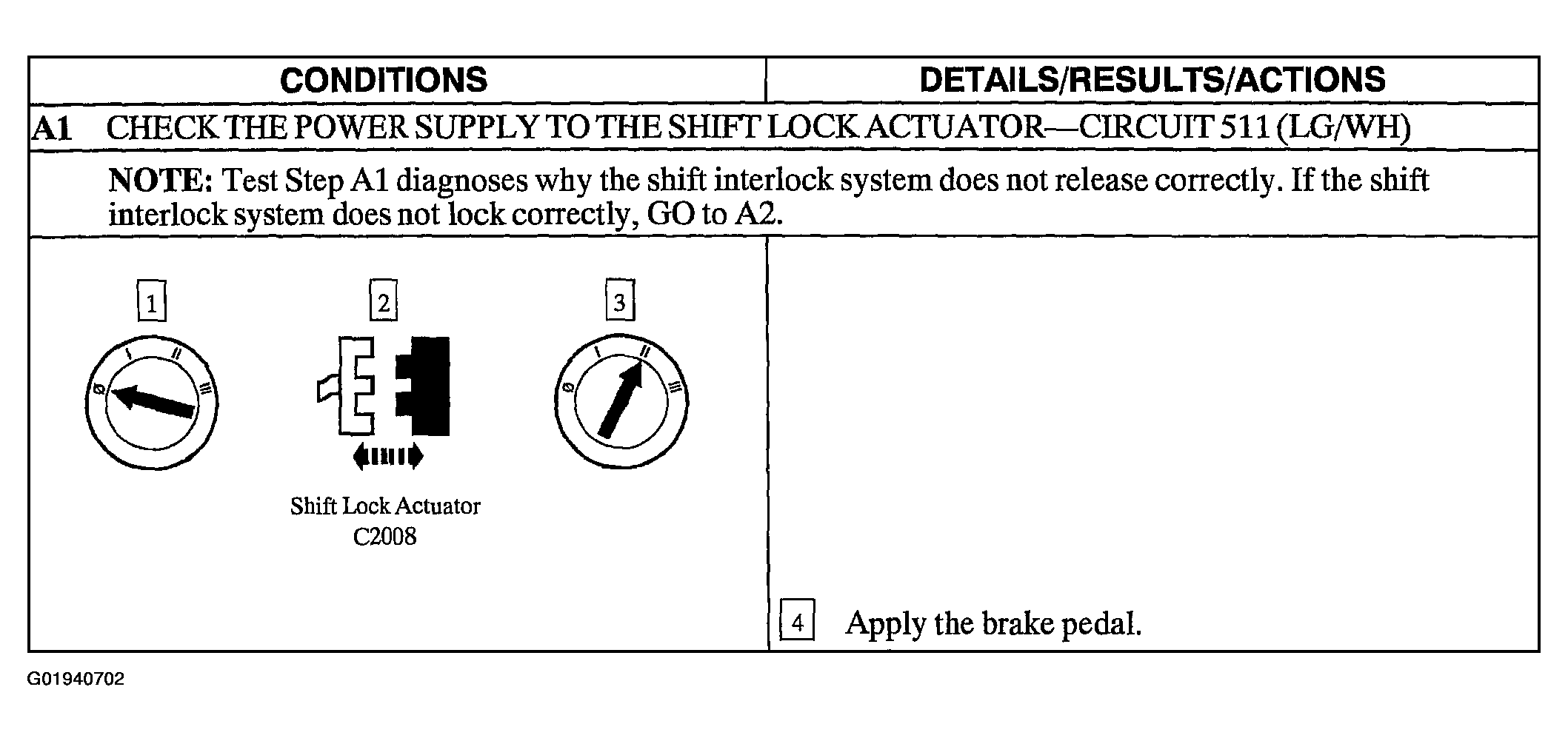

Fig 1: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly (Step A1)
G01940702Courtesy of FORD MOTOR CO.

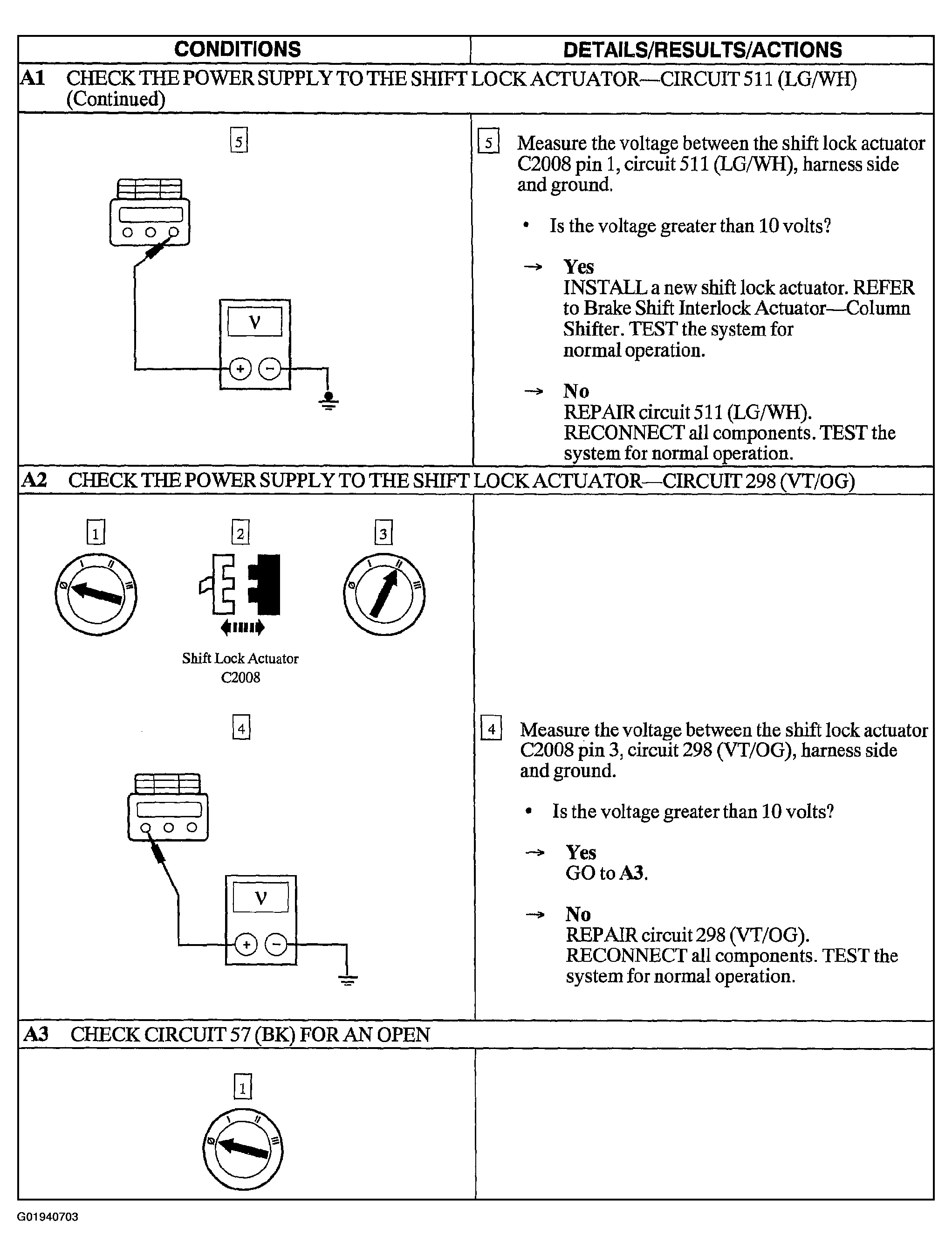

Fig 2: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly (Steps A1 Cont.-A3)
G01940703Courtesy of FORD MOTOR CO.

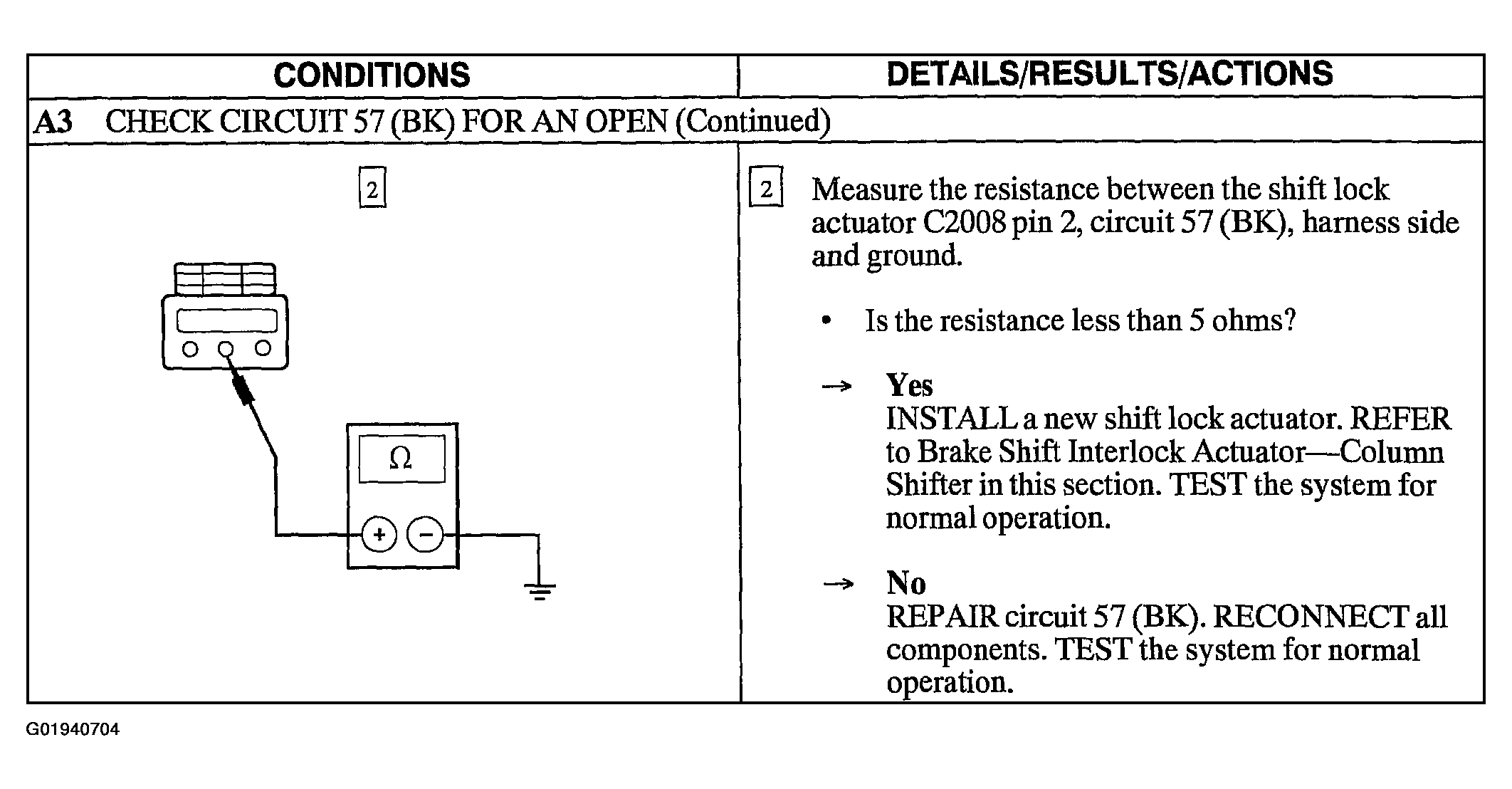

Fig 3: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly (Step A3 Cont.)
G01940704Courtesy of FORD MOTOR CO.
