Pinpoint Test B: The Shift Control Is Out Of Correct Gear Relationship

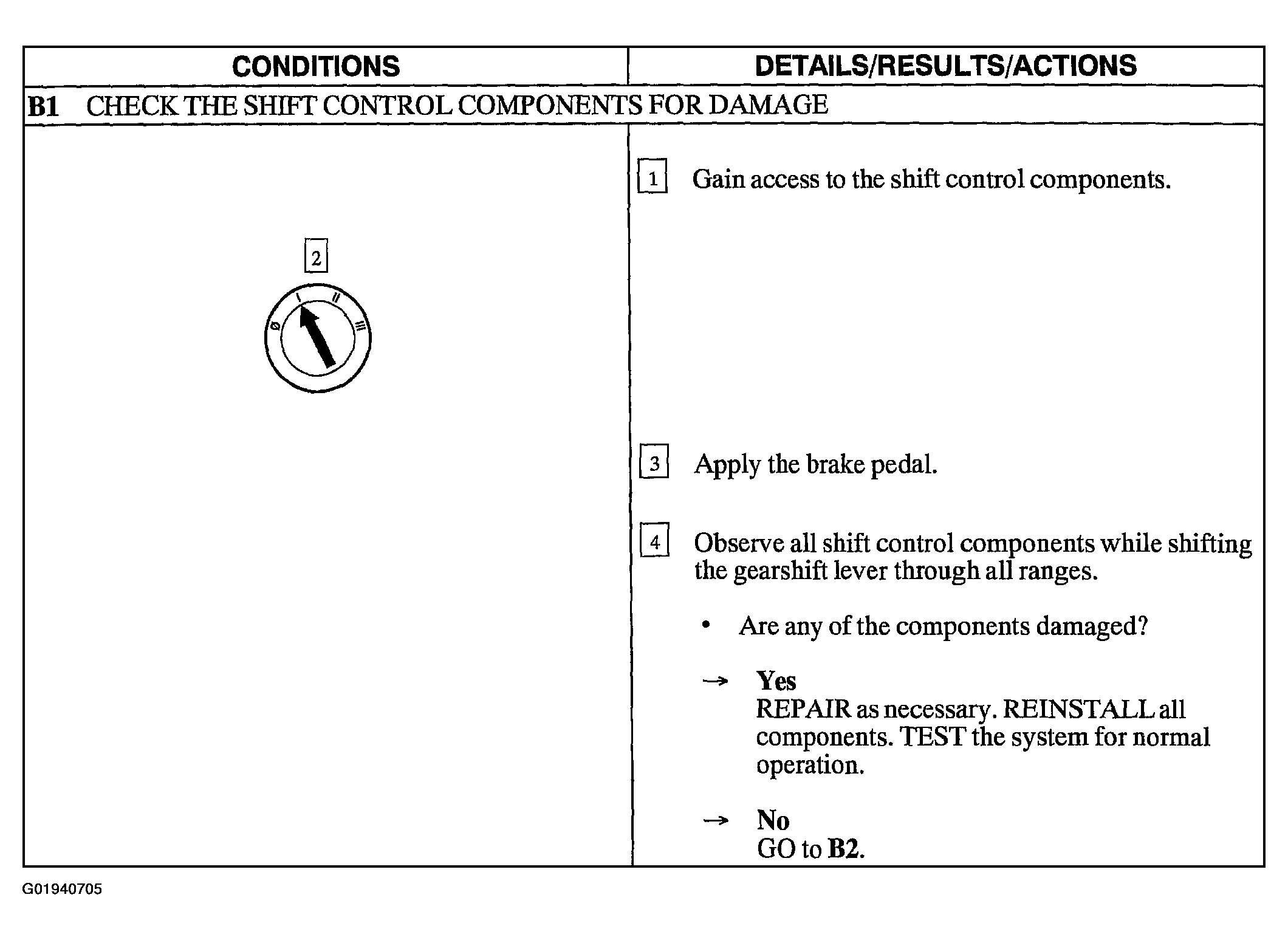

Fig 1: Pinpoint Test B: The Shift Control Is Out Of Correct Gear Relationship (Step B1)

Courtesy of FORD MOTOR CO.

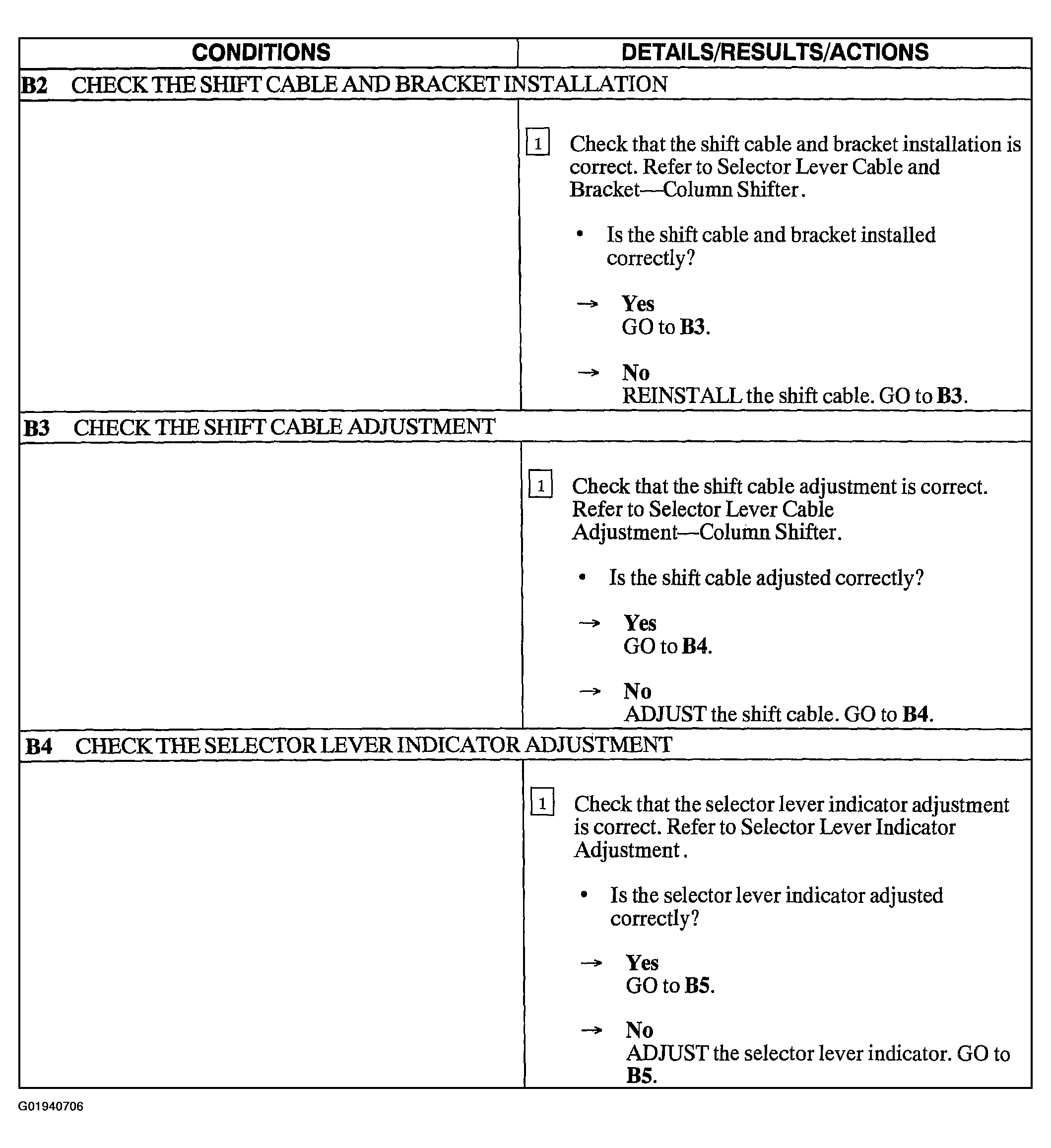

Fig 2: Pinpoint Test B: The Shift Control Is Out Of Correct Gear Relationship (Steps B2-B4)

Courtesy of FORD MOTOR CO.

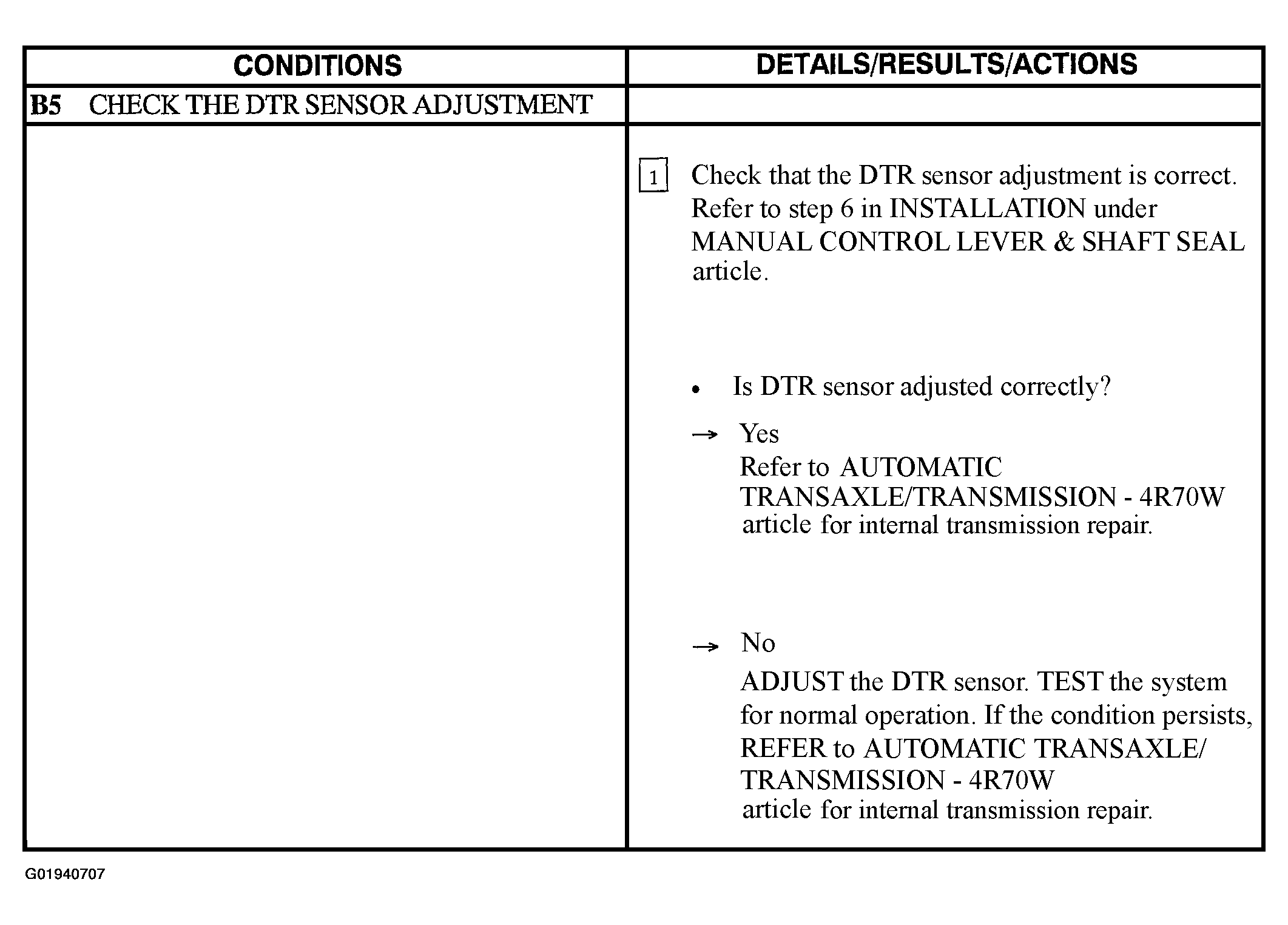

Fig 3: Pinpoint Test B: The Shift Control Is Out Of Correct Gear Relationship (Step B5)

Courtesy of FORD MOTOR CO.
