Pinpoint Test C: The Control Linkage Is Binding

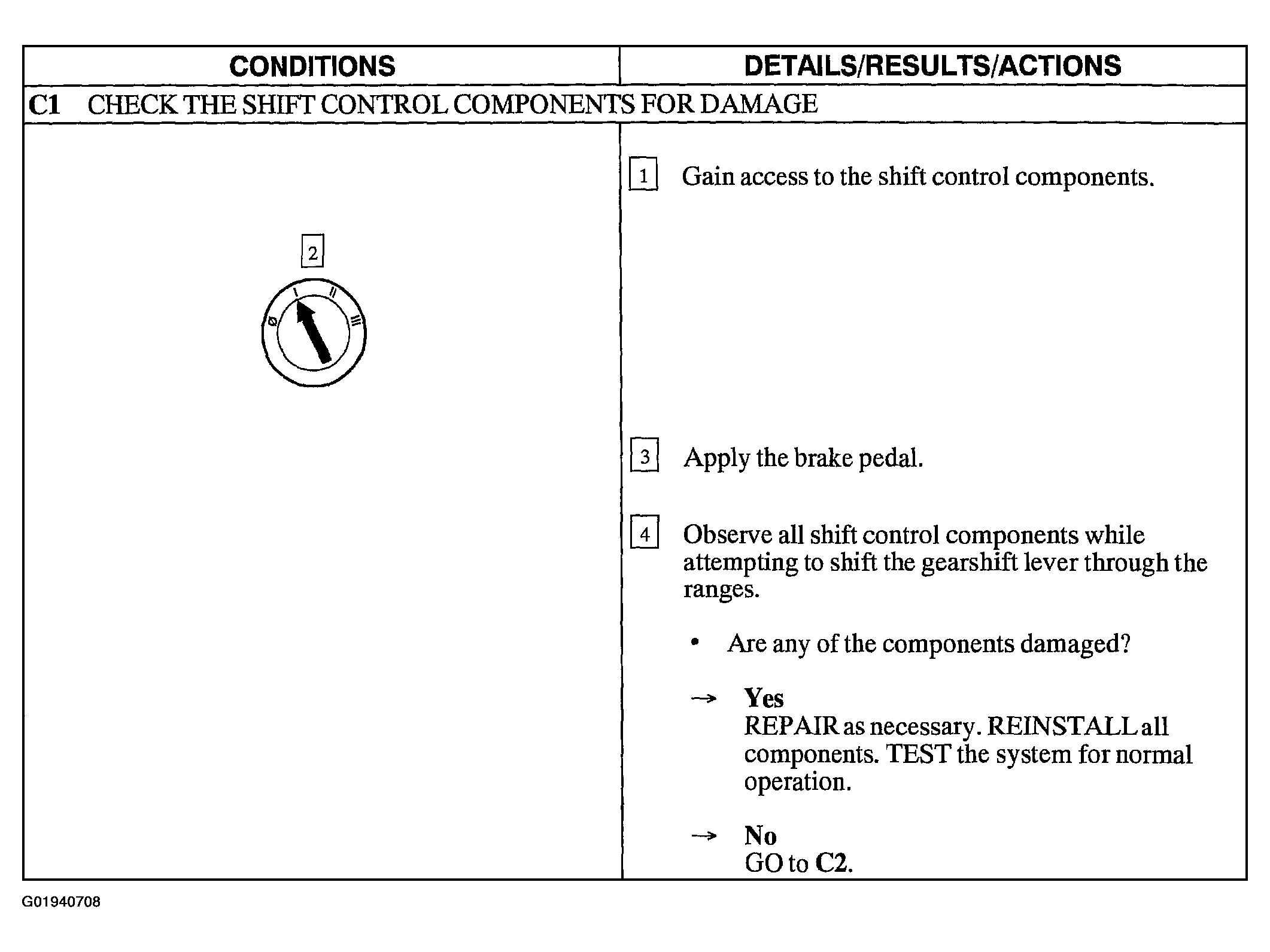

Fig 1: Pinpoint Test C: The Control Linkage Is Binding (Step C1)

Courtesy of FORD MOTOR CO.

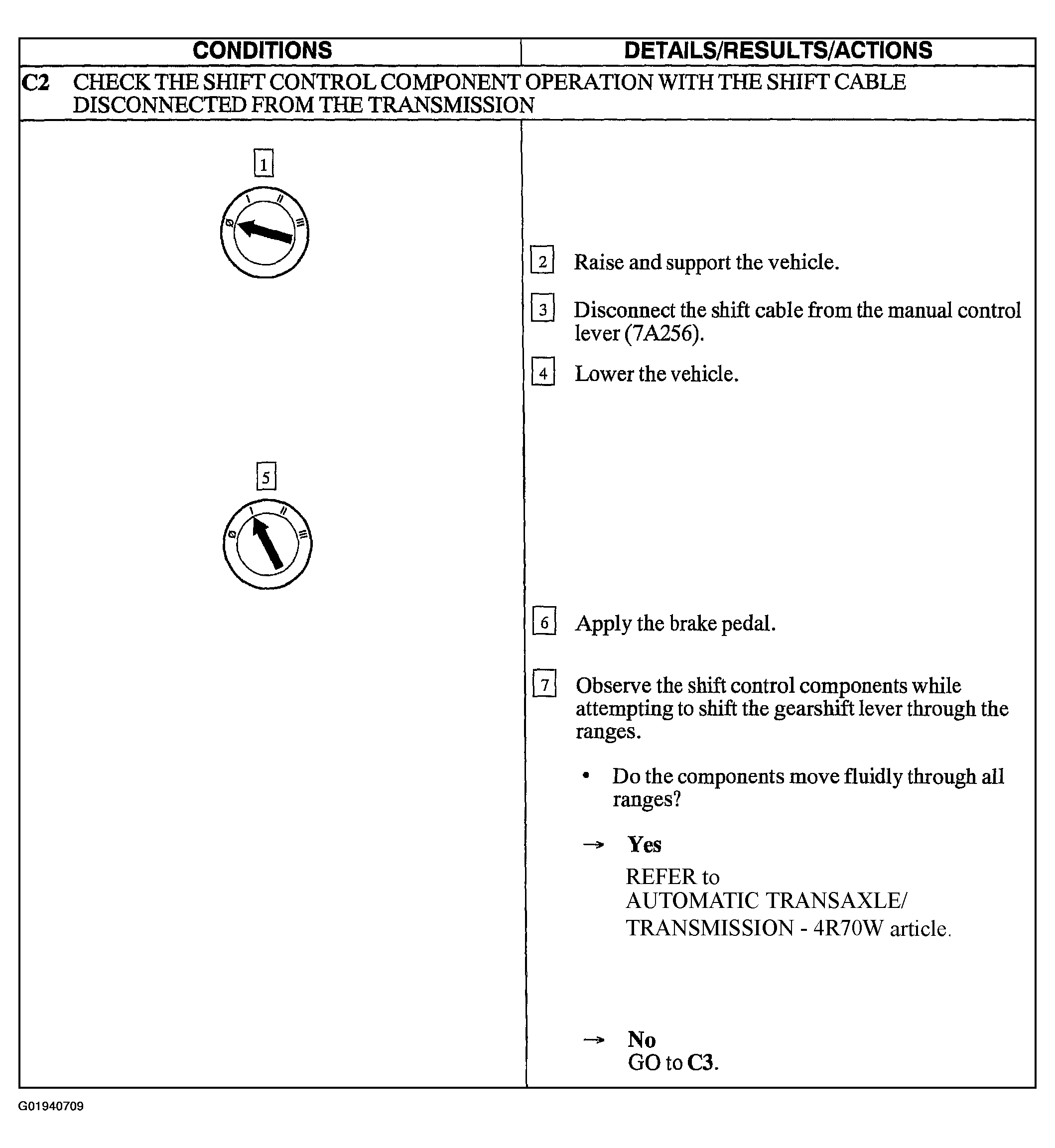

Fig 2: Pinpoint Test C: The Control Linkage Is Binding (Step C2)

Courtesy of FORD MOTOR CO.

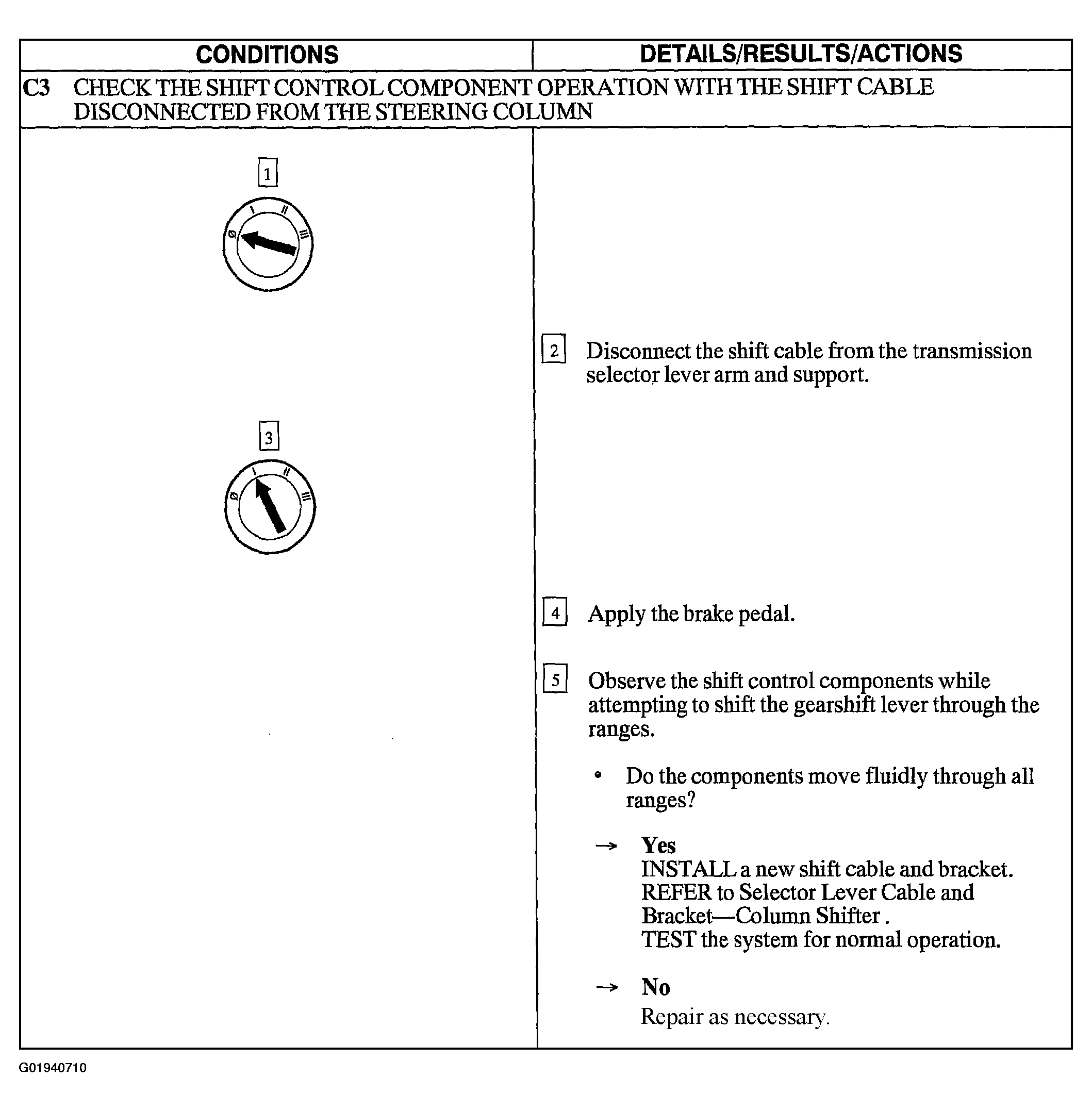

Fig 3: Pinpoint Test C: The Control Linkage Is Binding (Step C3)

Courtesy of FORD MOTOR CO.
