Pinpoint Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly

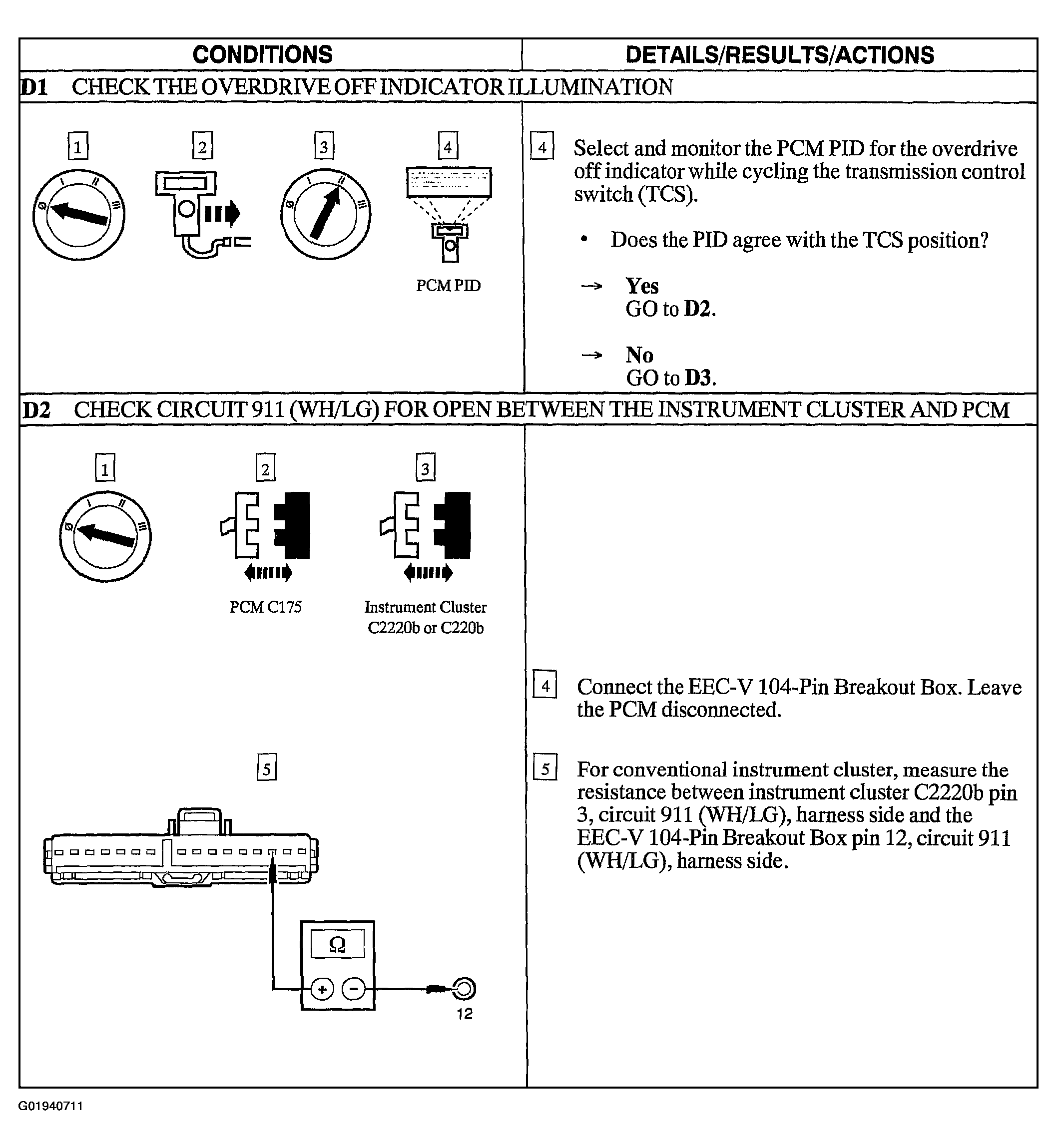

Fig 1: Pinpoint Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly (Steps D1-D2)

Courtesy of FORD MOTOR CO.

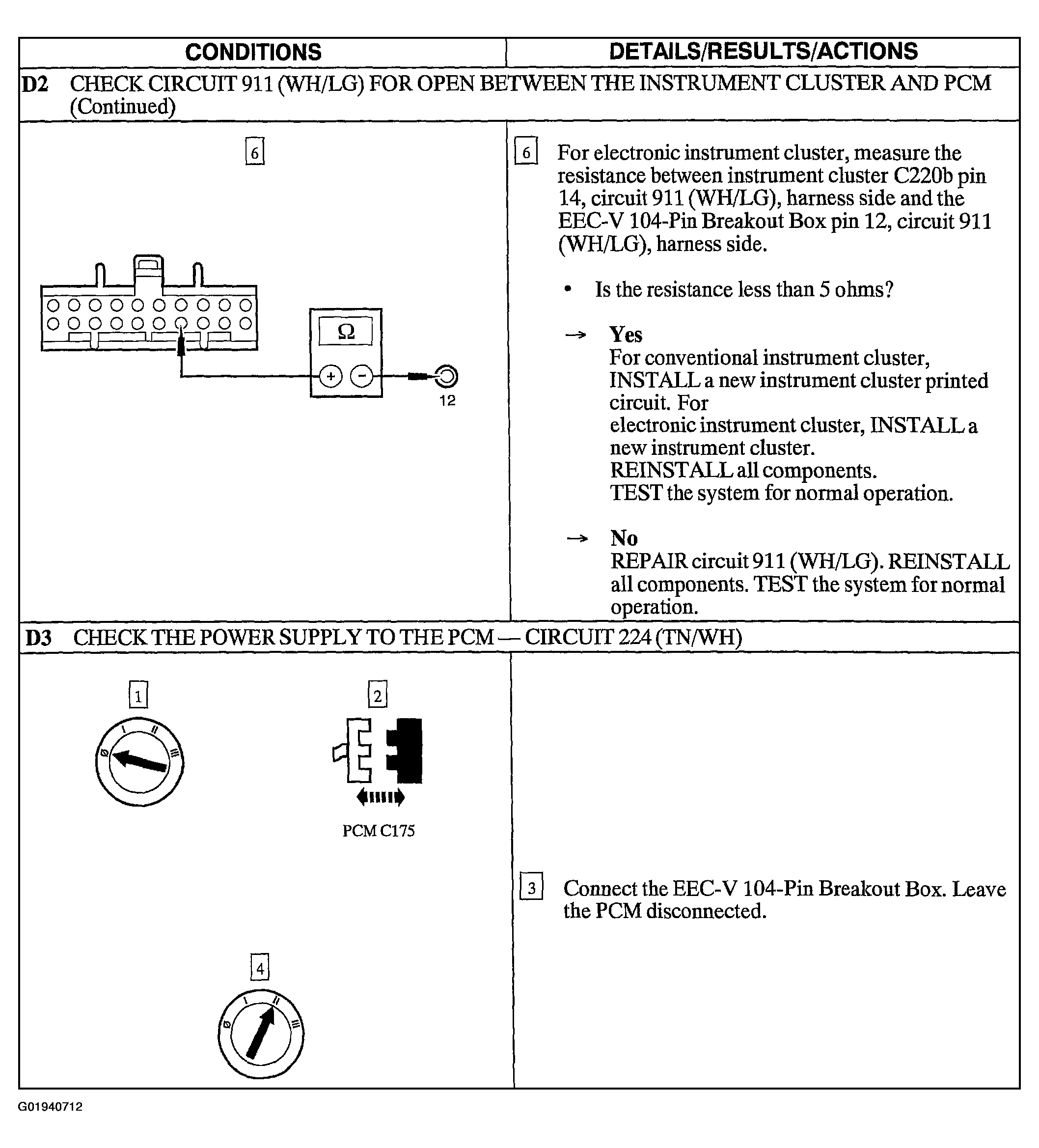

Fig 2: Pinpoint Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly (Steps D2 Cont.-D3)

Courtesy of FORD MOTOR CO.

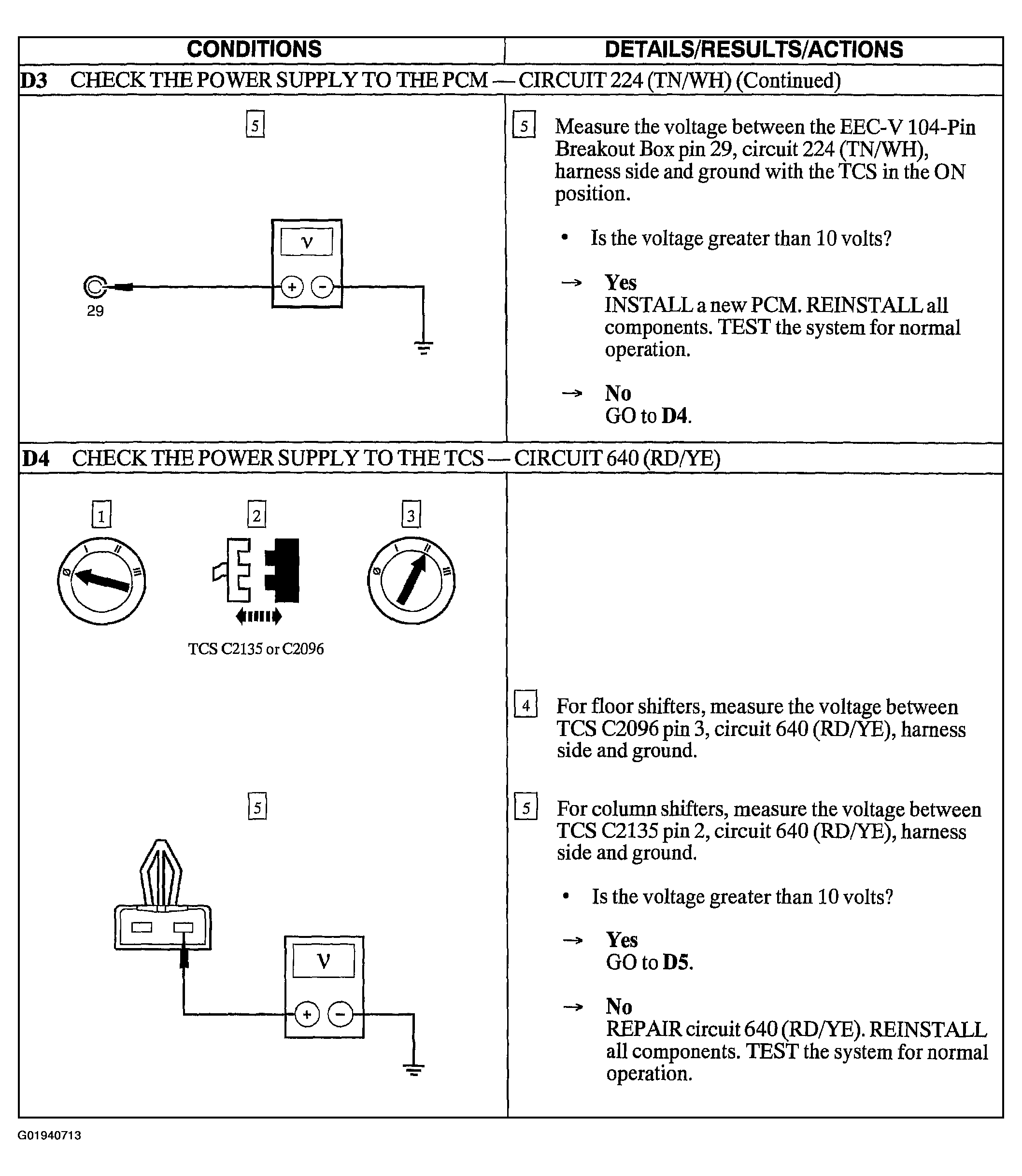

Fig 3: Pinpoint Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly (Steps D3 Cont.-D4)

Courtesy of FORD MOTOR CO.

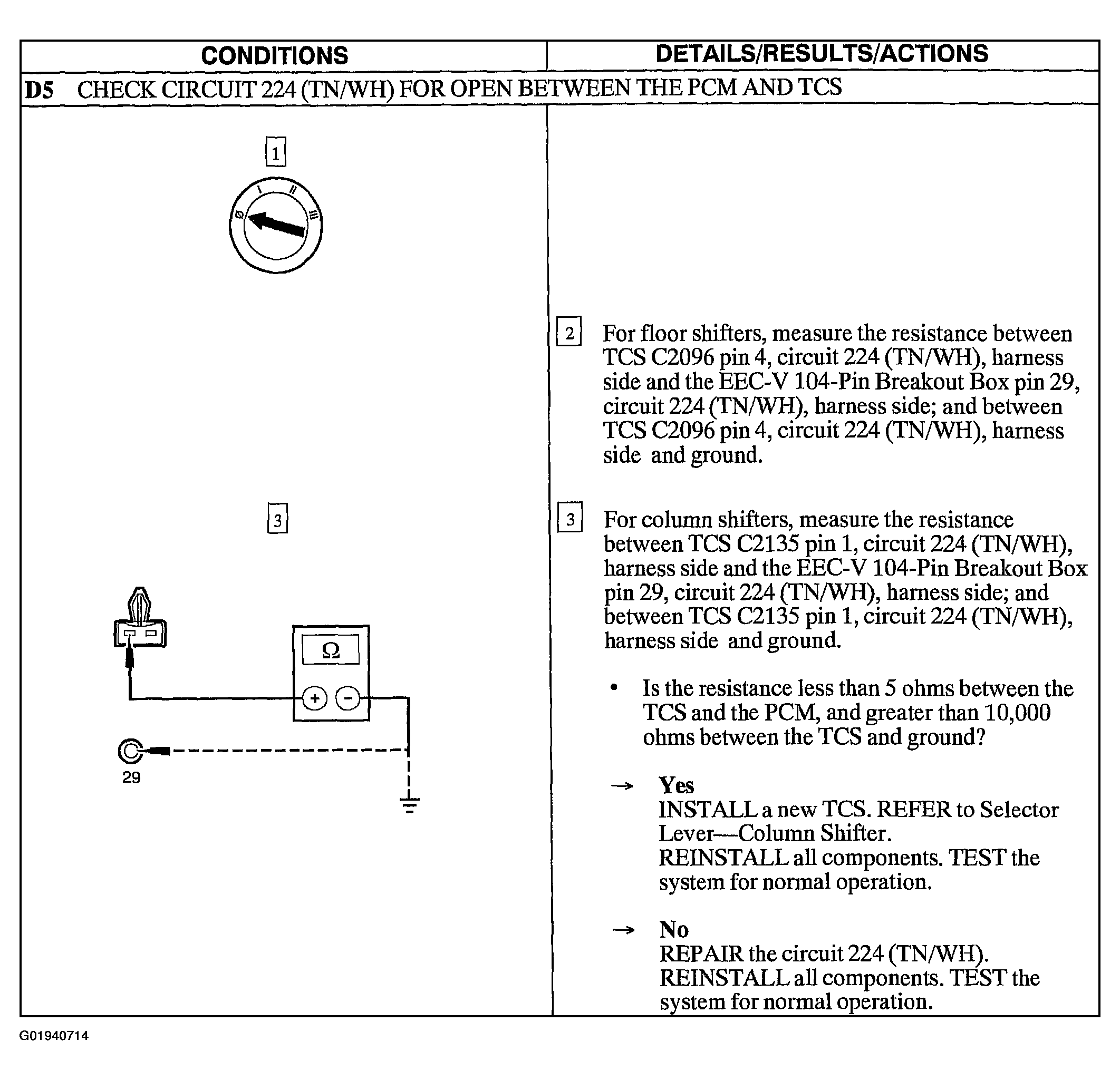

Fig 4: Pinpoint Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly (Step D5)

Courtesy of FORD MOTOR CO.
