Pinpoint Test E: The Transmission Control Indicator Lamp (TCIL) Is Illuminated Continuously

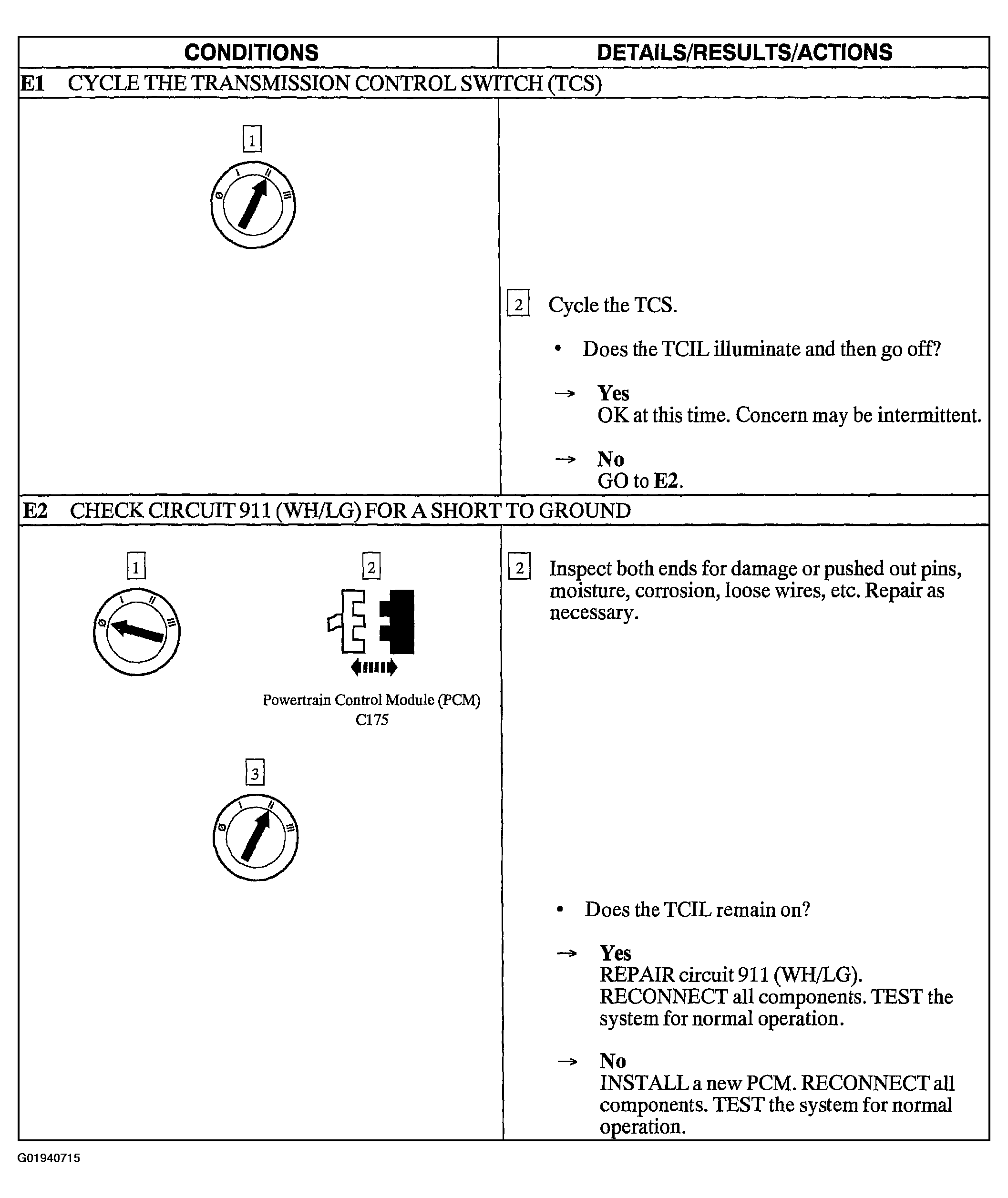

Fig 1: Pinpoint Test E: The Transmission Control Indicator Lamp (TCIL) Is Illuminated Continuously (Step E1-E2)
G01940715Courtesy of FORD MOTOR CO.
