Pinpoint Test F: The Shift Interlock System Does Not Release/Lock Correctly - Floor Shift

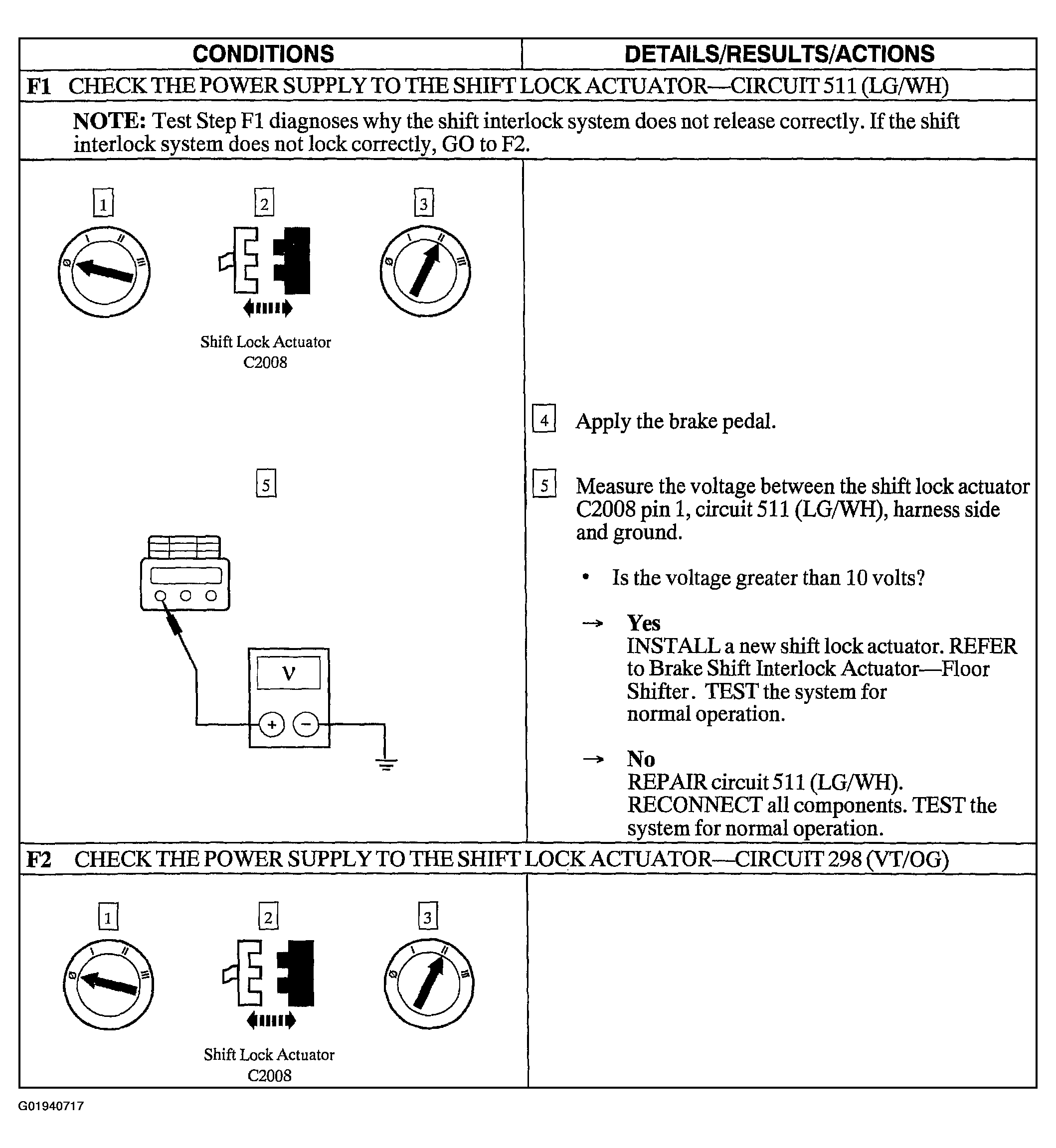

Fig 1: Pinpoint Test F: The Shift Interlock System Does Not Release/Lock Correctly - Floor Shift (Steps F1-F2)
G01940717Courtesy of FORD MOTOR CO.

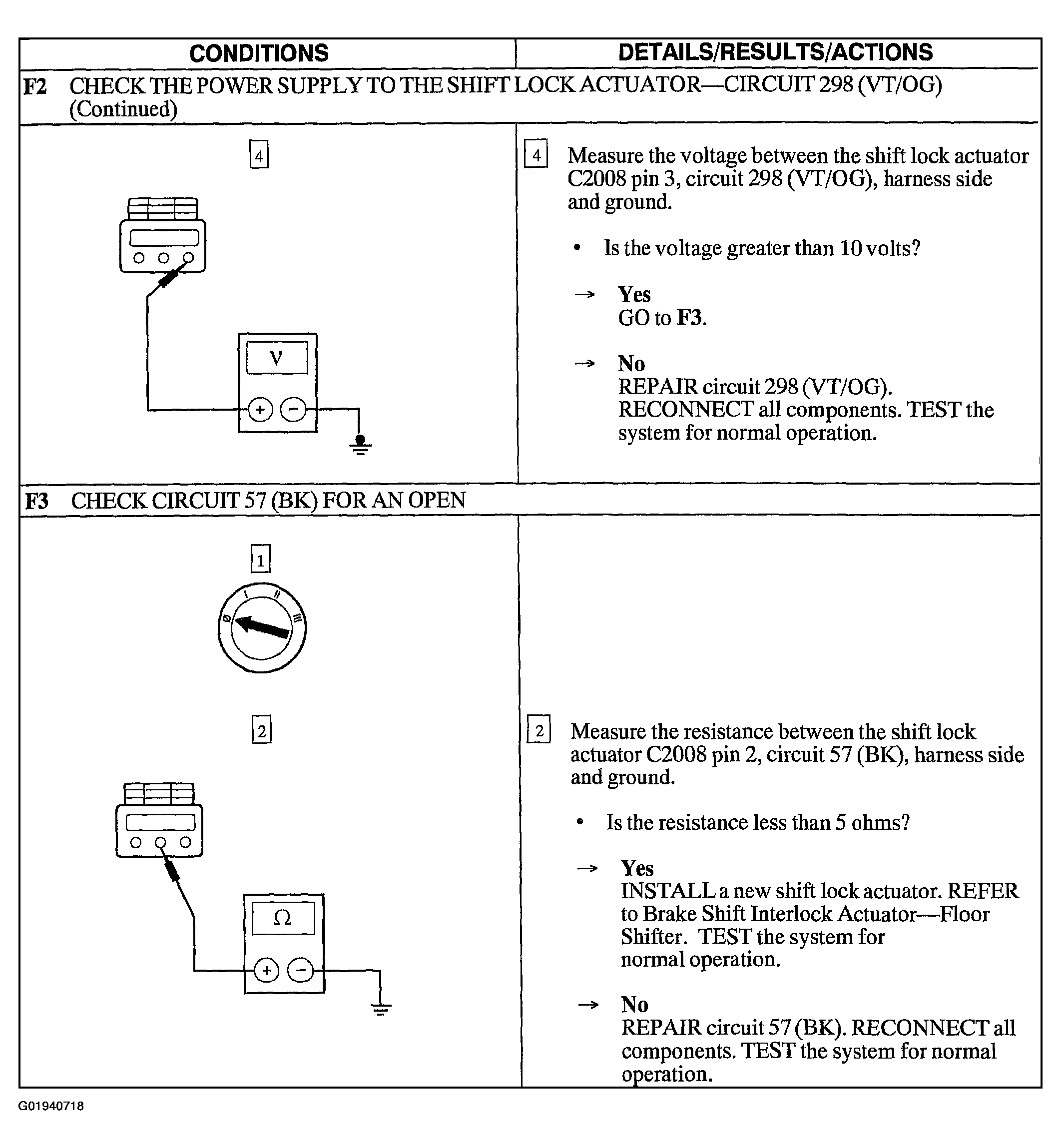

Fig 2: Pinpoint Test F: The Shift Interlock System Does Not Release/Lock Correctly - Floor Shift (Steps F2 Cont.-F3)
G01940718Courtesy of FORD MOTOR CO.
