Pinpoint Test G: The Shift Control Is Out Of Correct Gear Relationship - Floor Shift

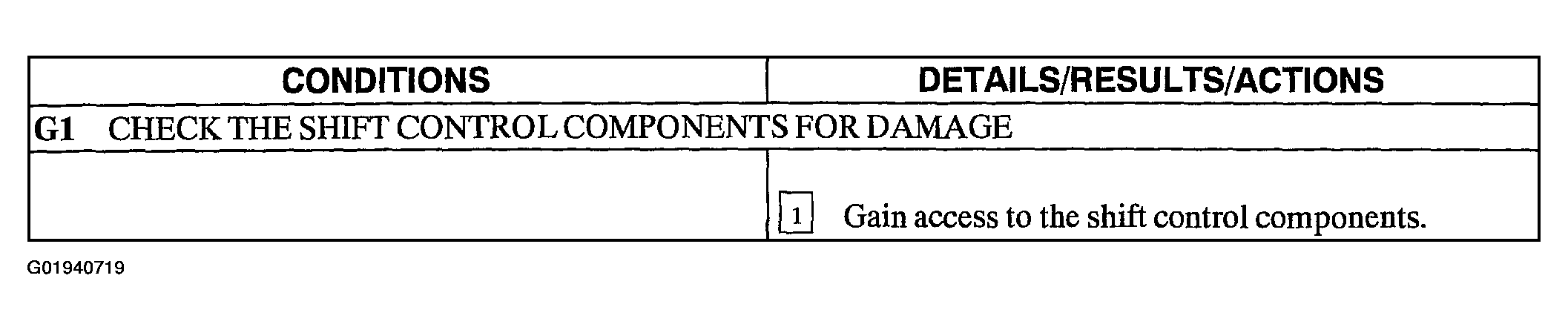

Fig 1: Pinpoint Test G: The Shift Control Is Out Of Correct Gear Relationship - Floor Shift (Step G1)

Courtesy of FORD MOTOR CO.

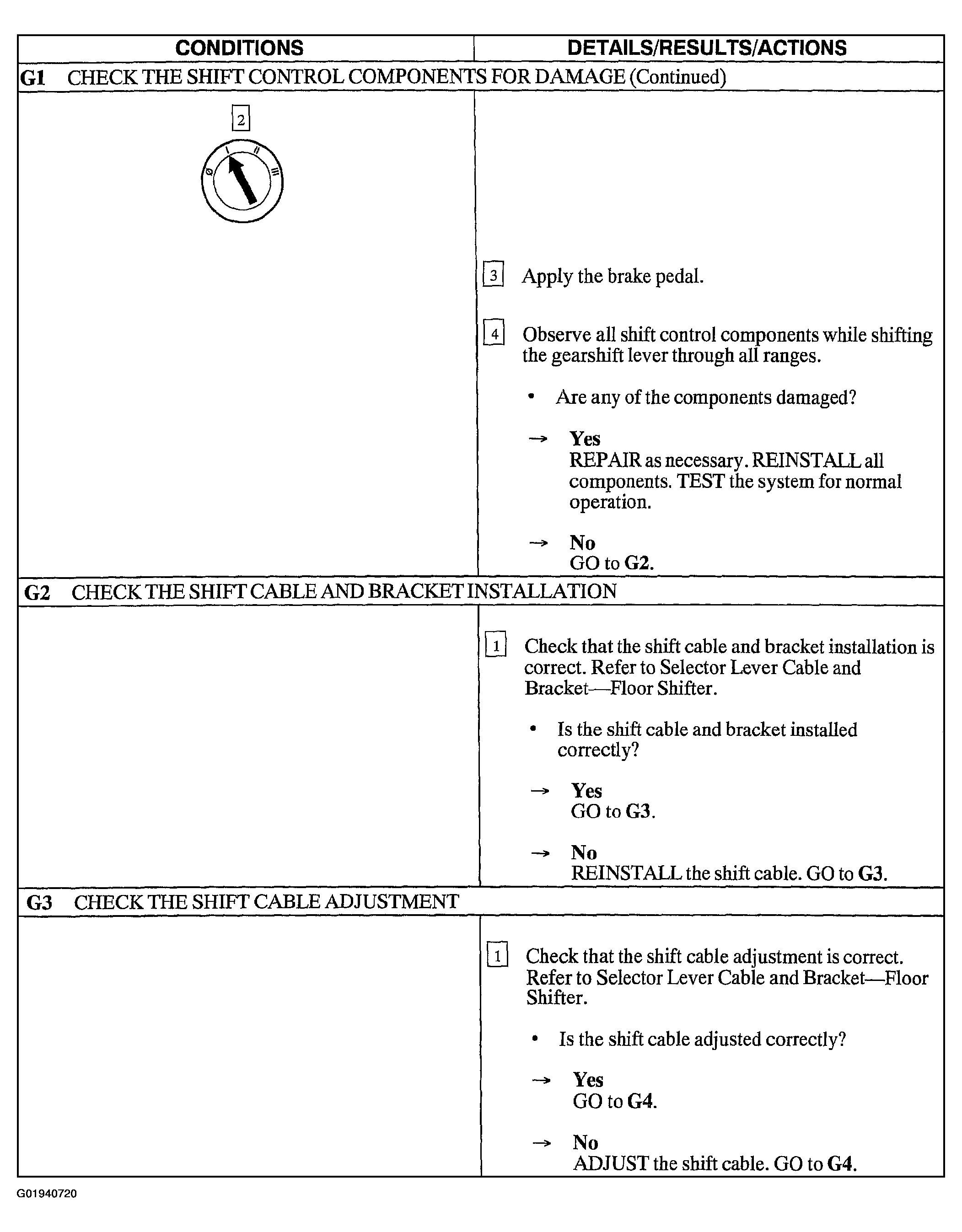

Fig 2: Pinpoint Test G: The Shift Control Is Out Of Correct Gear Relationship - Floor Shift (Steps G1 Cont.-G3)

Courtesy of FORD MOTOR CO.

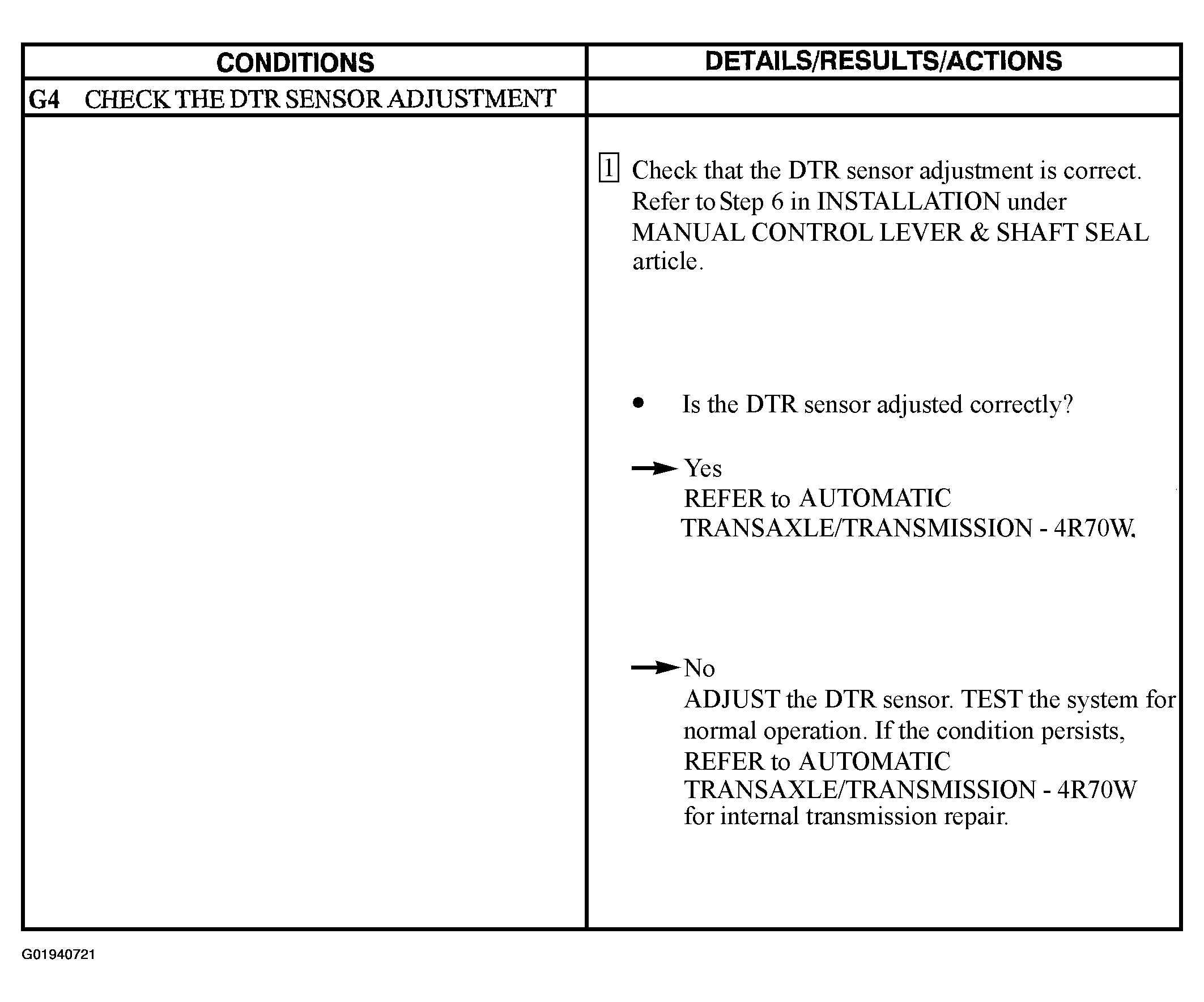

Fig 3: Pinpoint Test G: The Shift Control Is Out Of Correct Gear Relationship - Floor Shift (Step G4)

Courtesy of FORD MOTOR CO.
