Pinpoint Test H: The Control Linkage Is Binding - Floor Shift

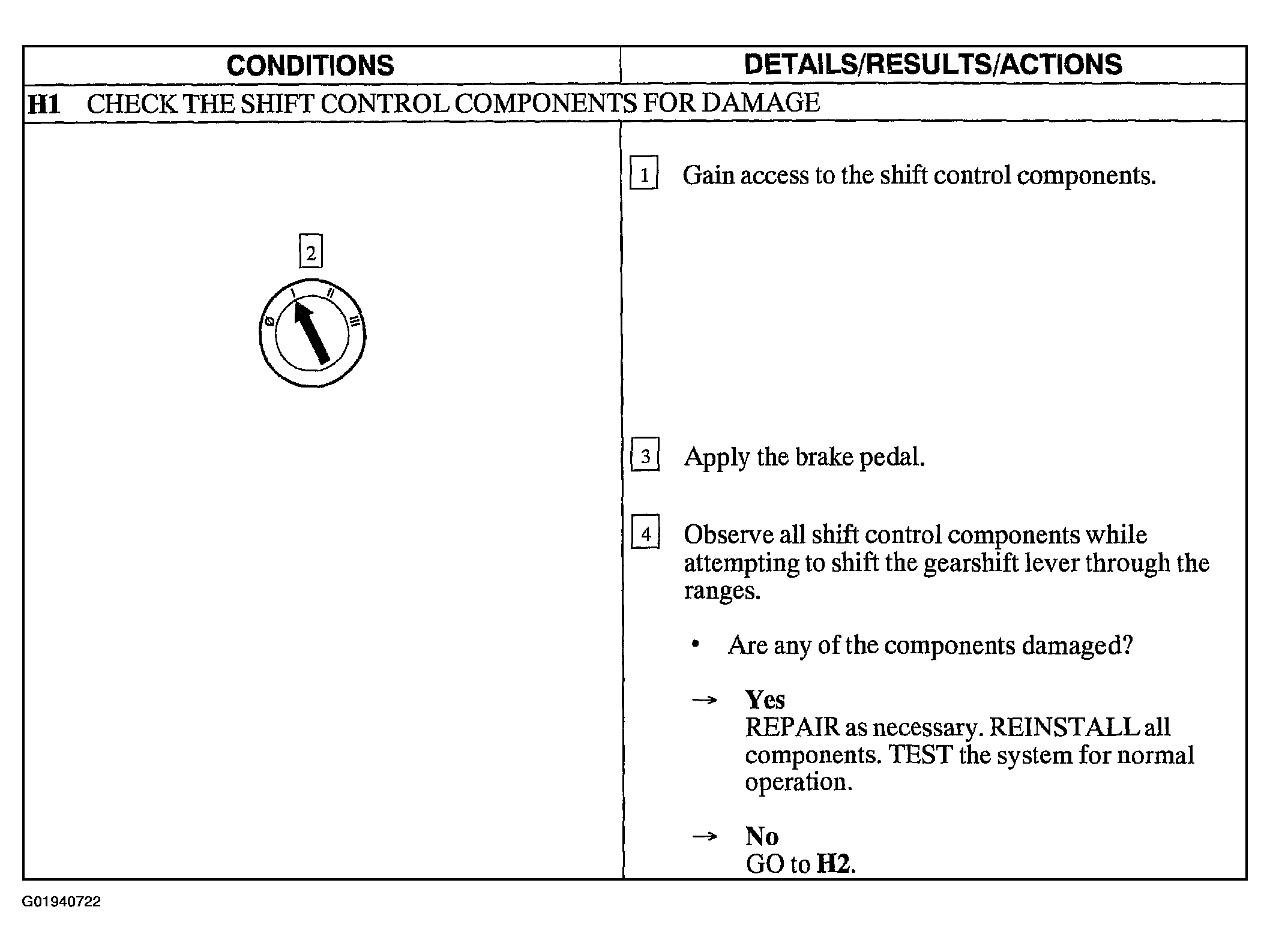

Fig 1: Pinpoint Test H: The Control Linkage Is Binding - Floor Shift (Step H1)

Courtesy of FORD MOTOR CO.

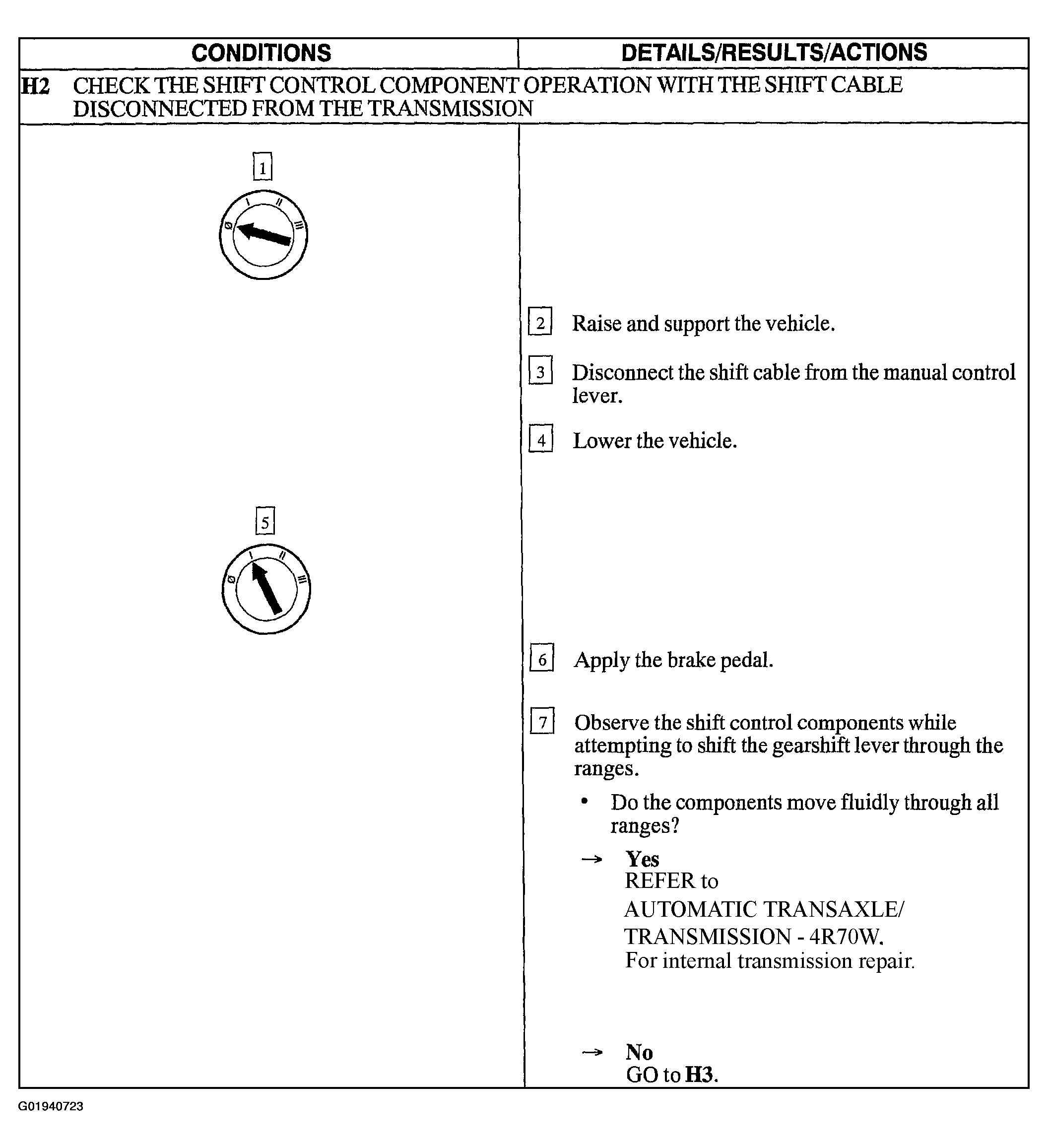

Fig 2: Pinpoint Test H: The Control Linkage Is Binding - Floor Shift (Step H2)

Courtesy of FORD MOTOR CO.

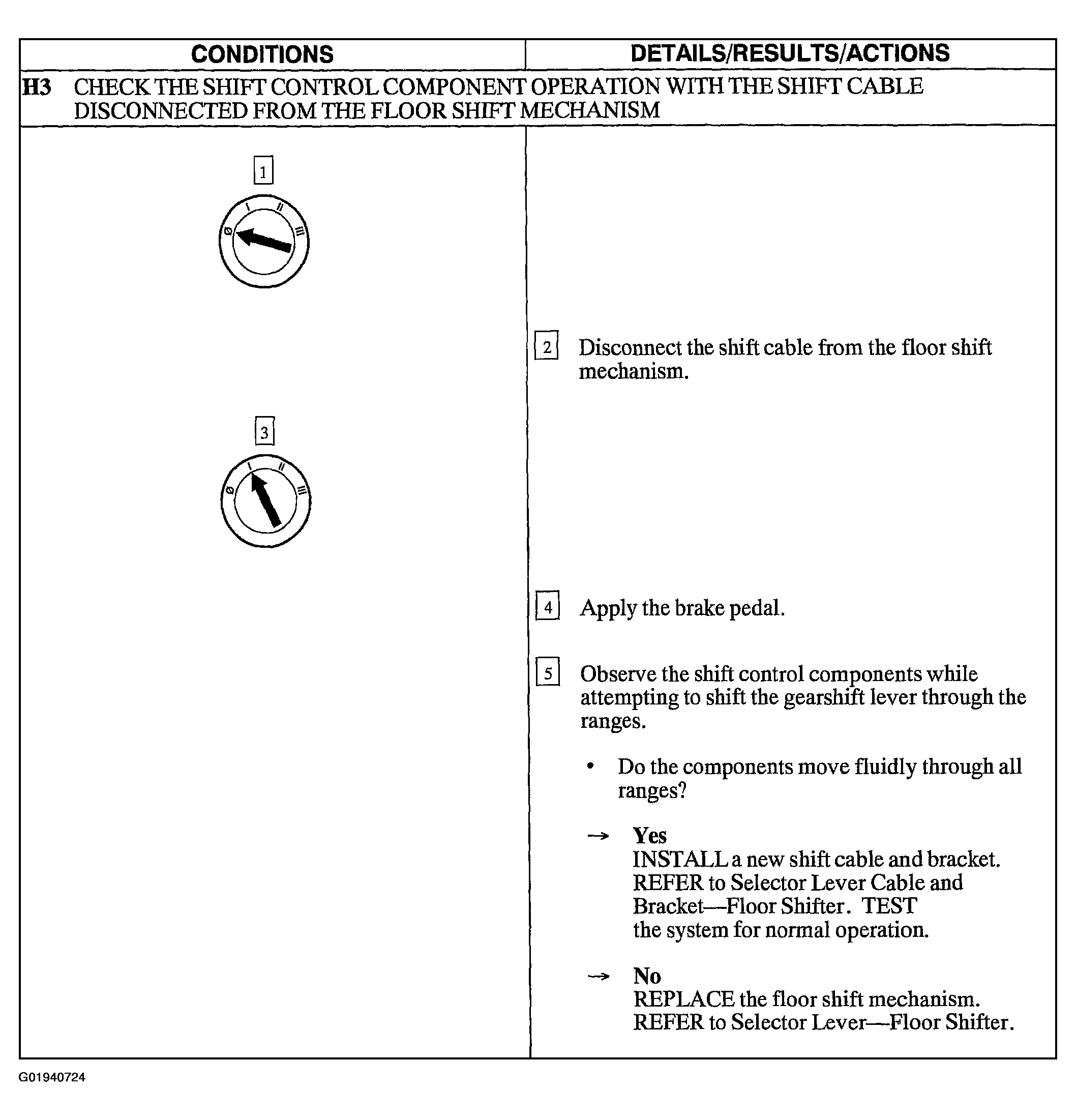

Fig 3: Pinpoint Test H: The Control Linkage Is Binding - Floor Shift (Step H3)

Courtesy of FORD MOTOR CO.
