Pinpoint Test I: The Transmission Control Switch (TCS) Does Not Operate Correctly - Floor Shift

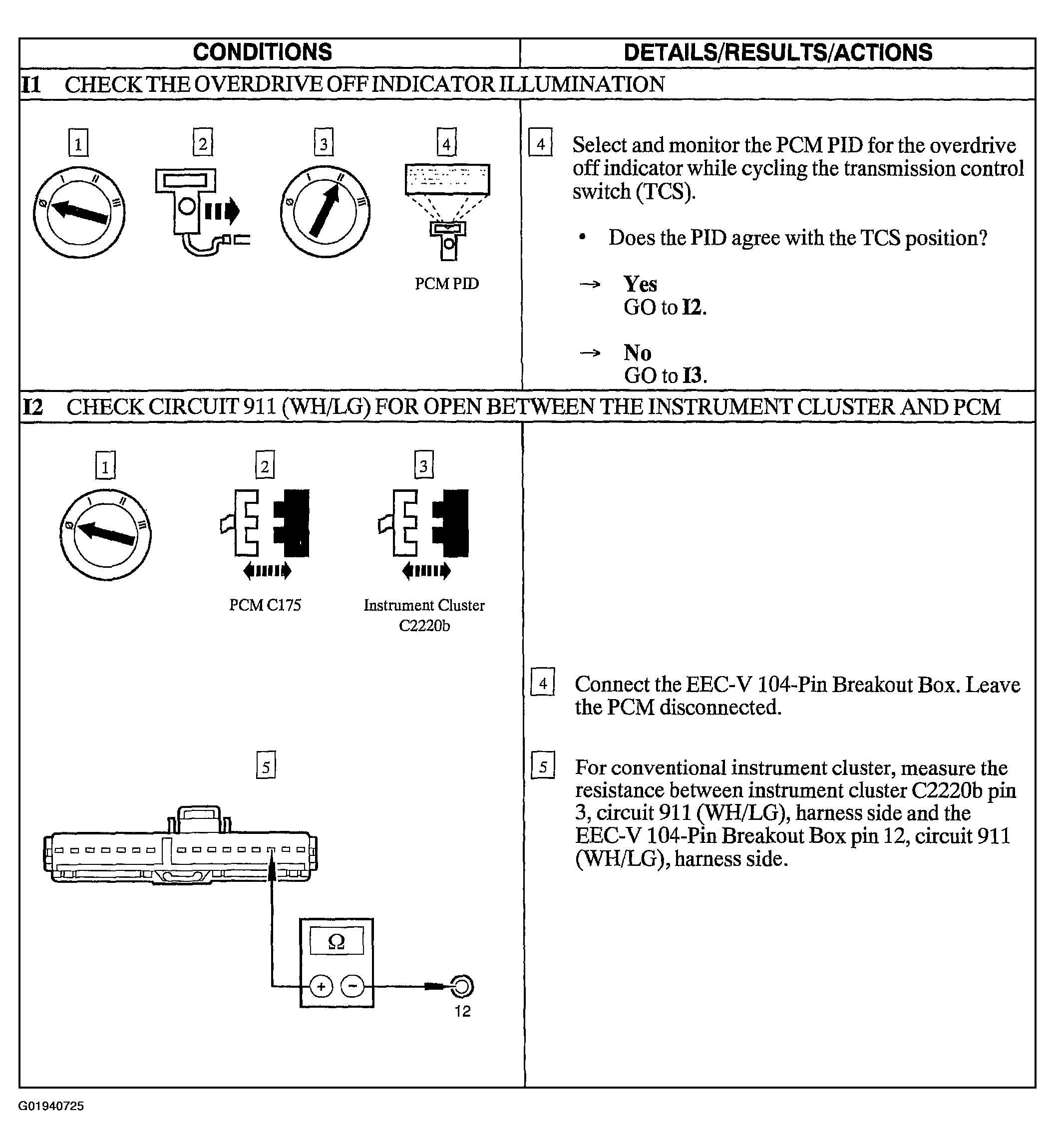

Fig 1: Pinpoint Test I: The Transmission Control Switch (TCS) Does Not Operate Correctly - Floor Shift (Steps I1-I2)

Courtesy of FORD MOTOR CO.

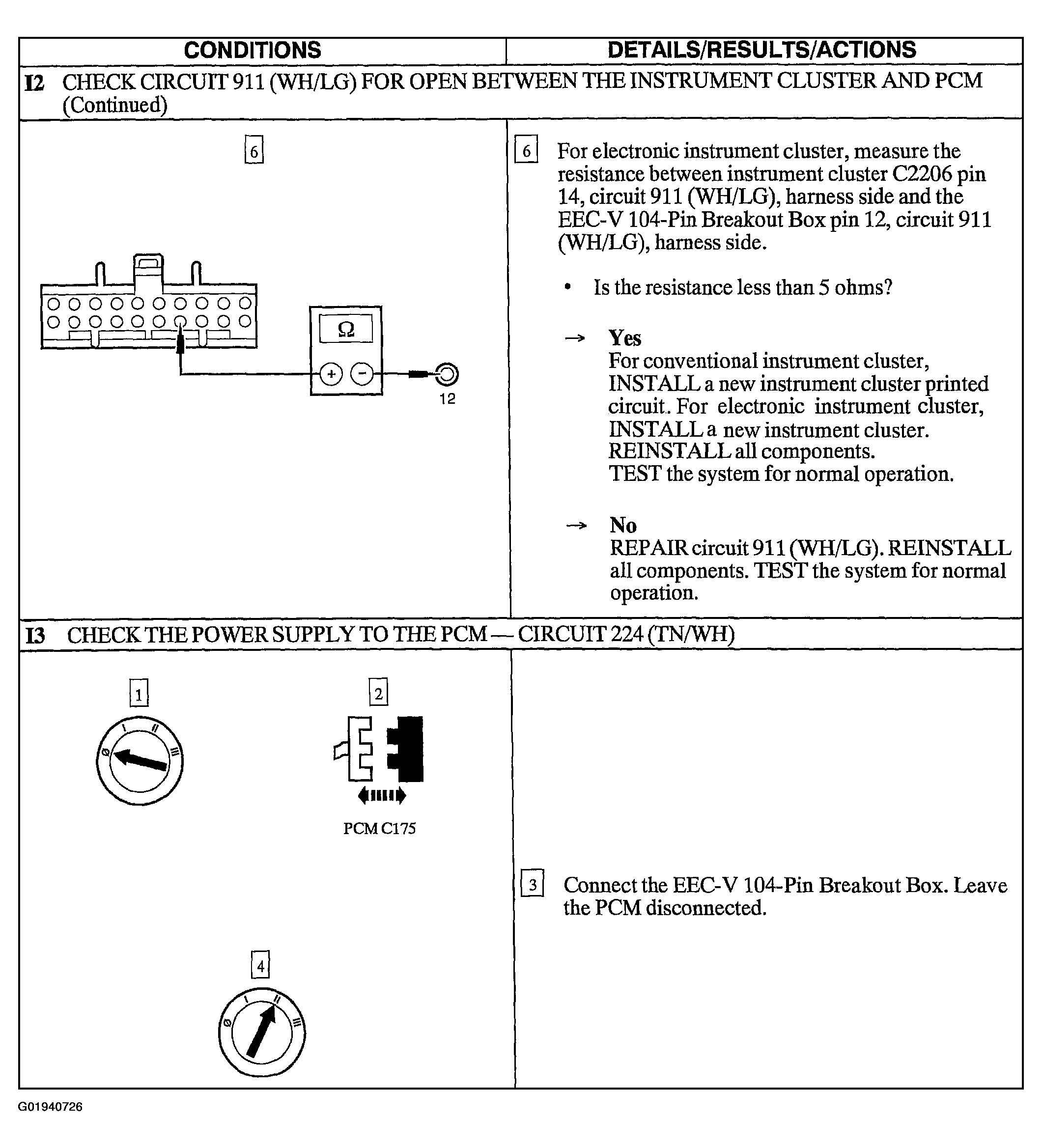

Fig 2: Pinpoint Test I: The Transmission Control Switch (TCS) Does Not Operate Correctly - Floor Shift (Steps I2 Cont.-I3)

Courtesy of FORD MOTOR CO.

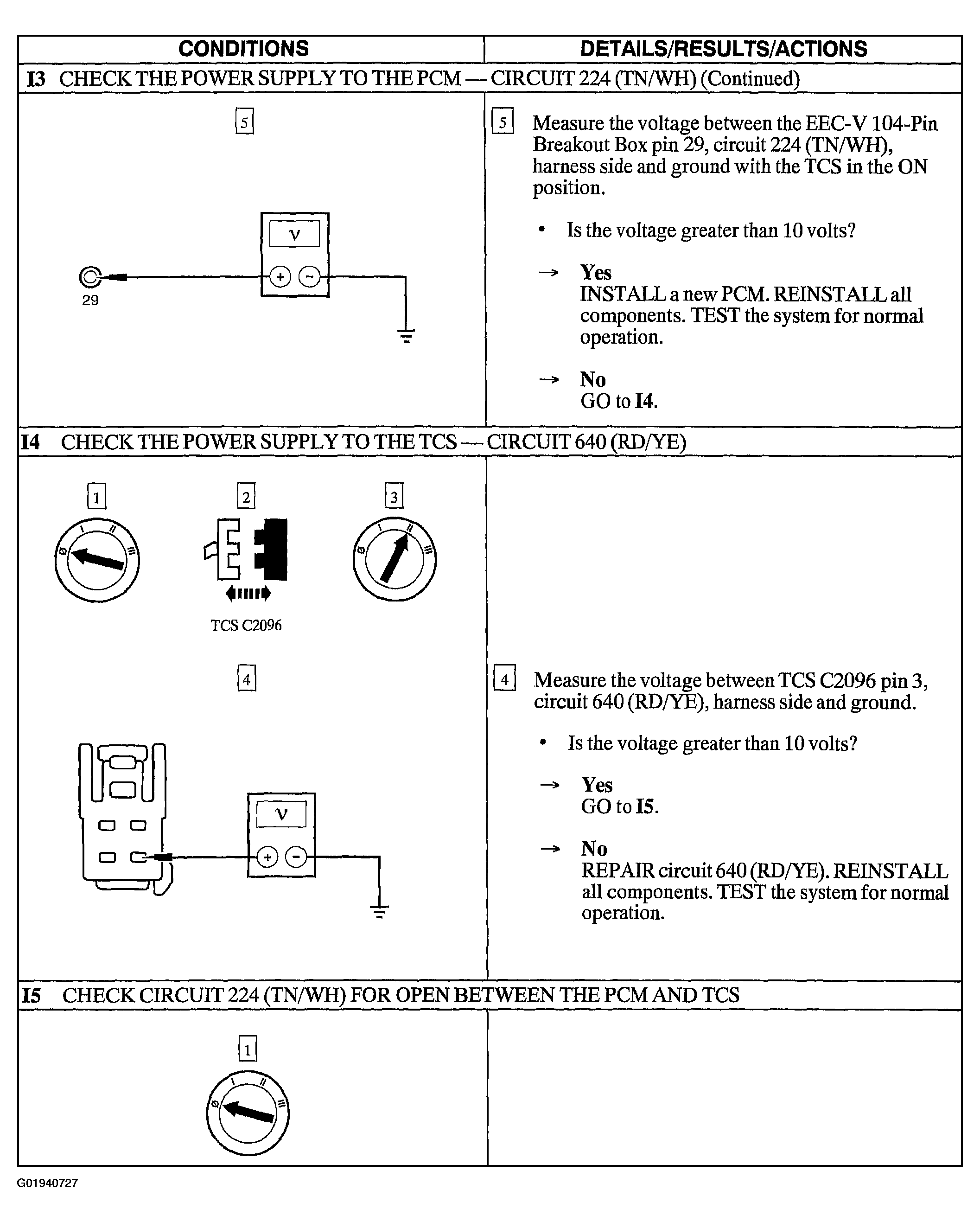

Fig 3: Pinpoint Test I: The Transmission Control Switch (TCS) Does Not Operate Correctly - Floor Shift (Steps I3 Cont.-I5

Courtesy of FORD MOTOR CO.

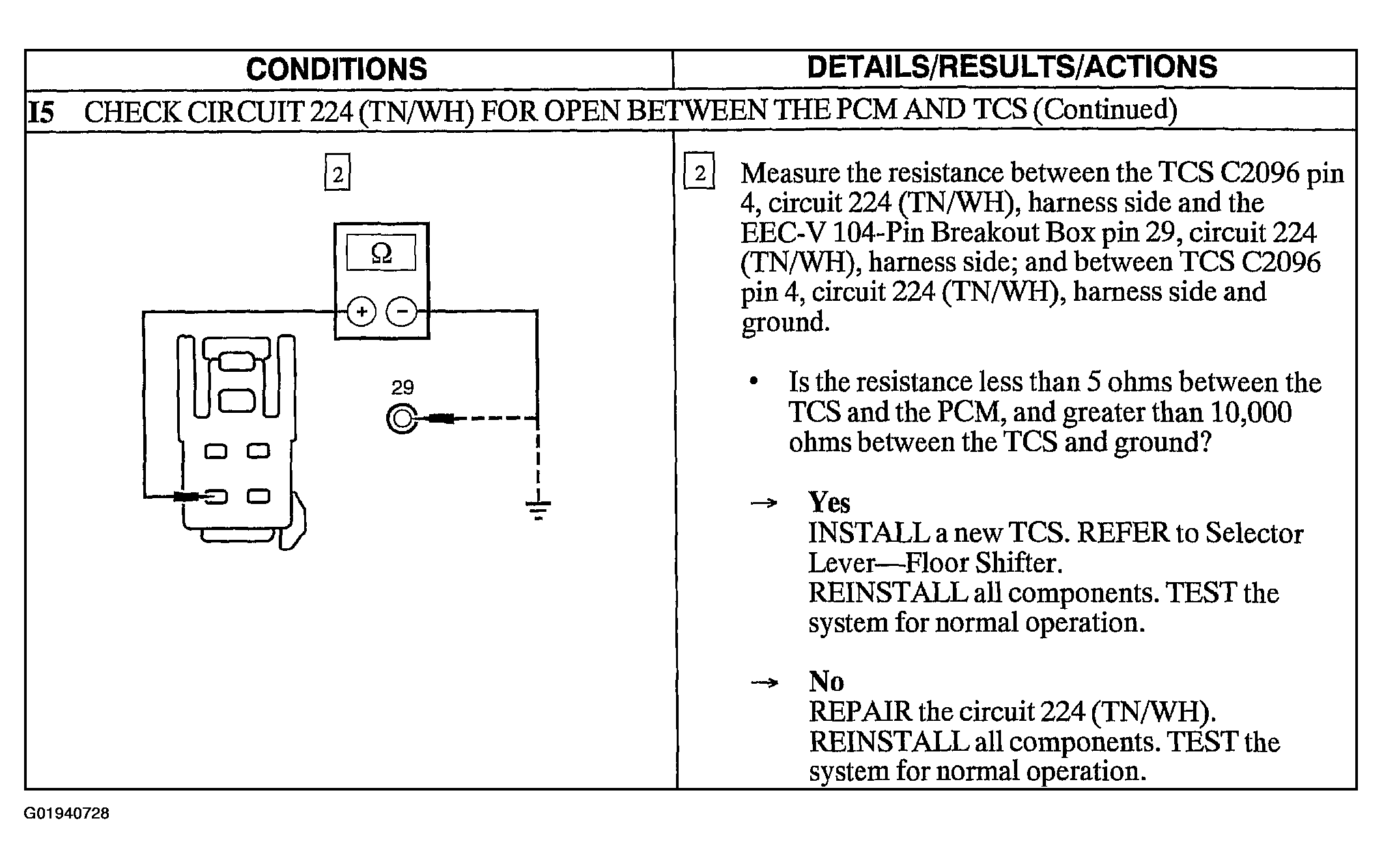

Fig 4: Pinpoint Test I: The Transmission Control Switch (TCS) Does Not Operate Correctly - Floor Shift (Step I5)

Courtesy of FORD MOTOR CO.
