Pinpoint Test J: The Transmission Control Indicator Lamp (TCIL) Is Illuminated Continuously - Floor Shift

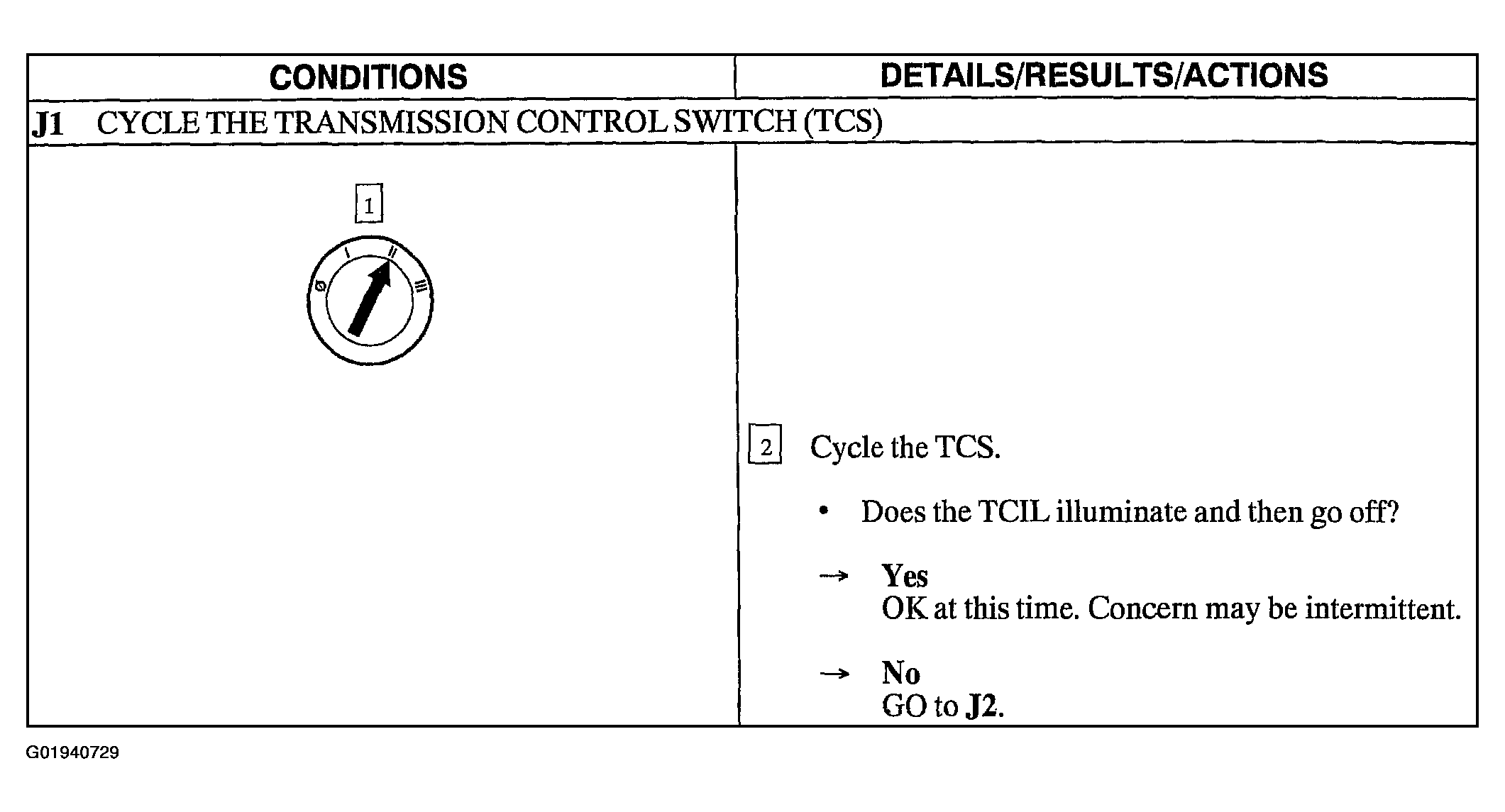

Fig 1: Pinpoint Test J: The Transmission Control Indicator Lamp (TCIL) Is Illuminated Continuously - Floor Shift (Step J1)
G01940729Courtesy of FORD MOTOR CO.

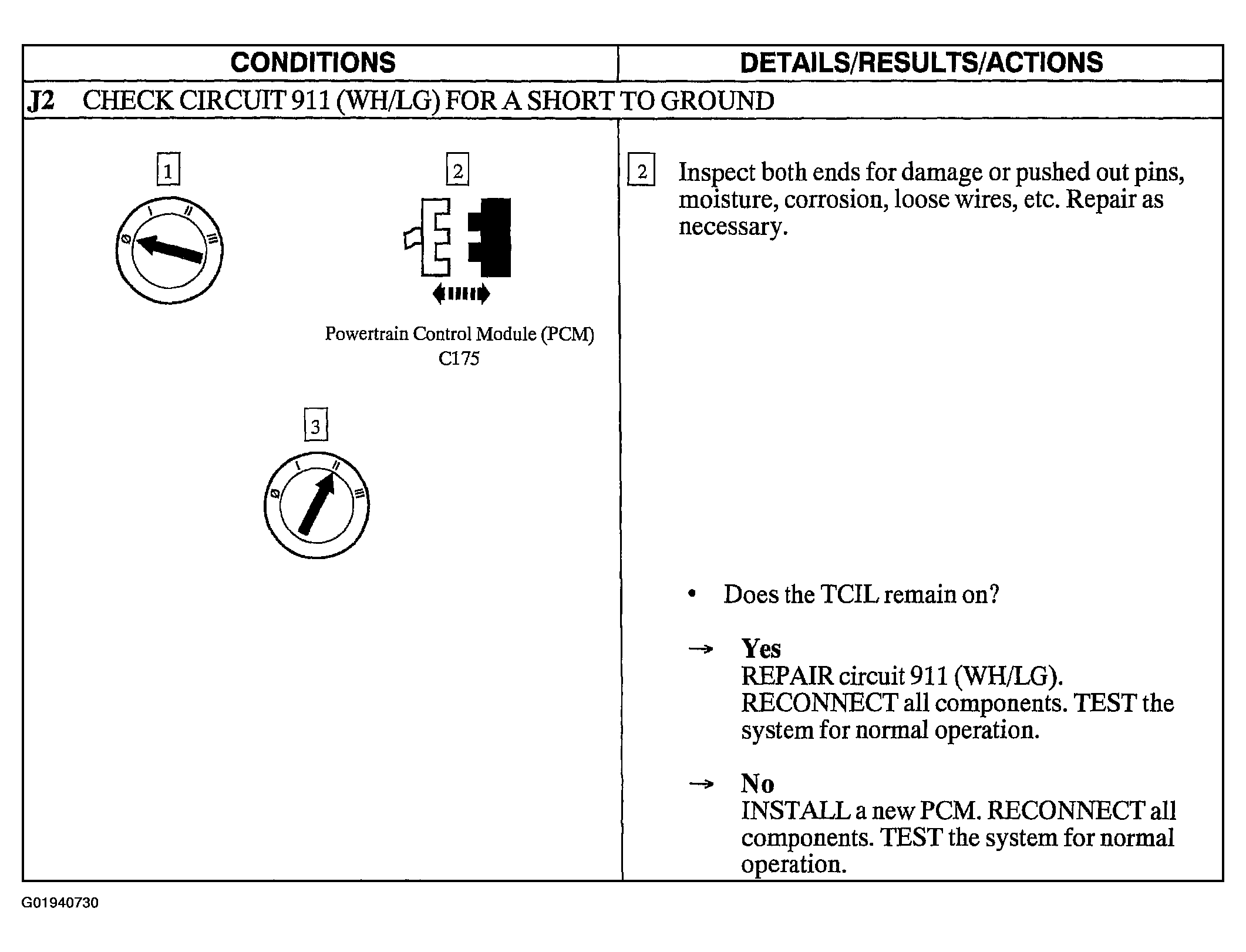

Fig 2: Pinpoint Test J: The Transmission Control Indicator Lamp (TCIL) Is Illuminated Continuously - Floor Shift (Step J2)
G01940730Courtesy of FORD MOTOR CO.
