Removal & Installation

WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
The side air bag sensors are located at or near the base of the B-pillar.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

Disconnect the battery ground cable. Wait at least one minute before proceeding with the procedure to allow the backup power supply to deplete its energy. For additional information, refer to BATTERY, MOUNTING & CABLES .
Remove the lower steering column opening finish panel.

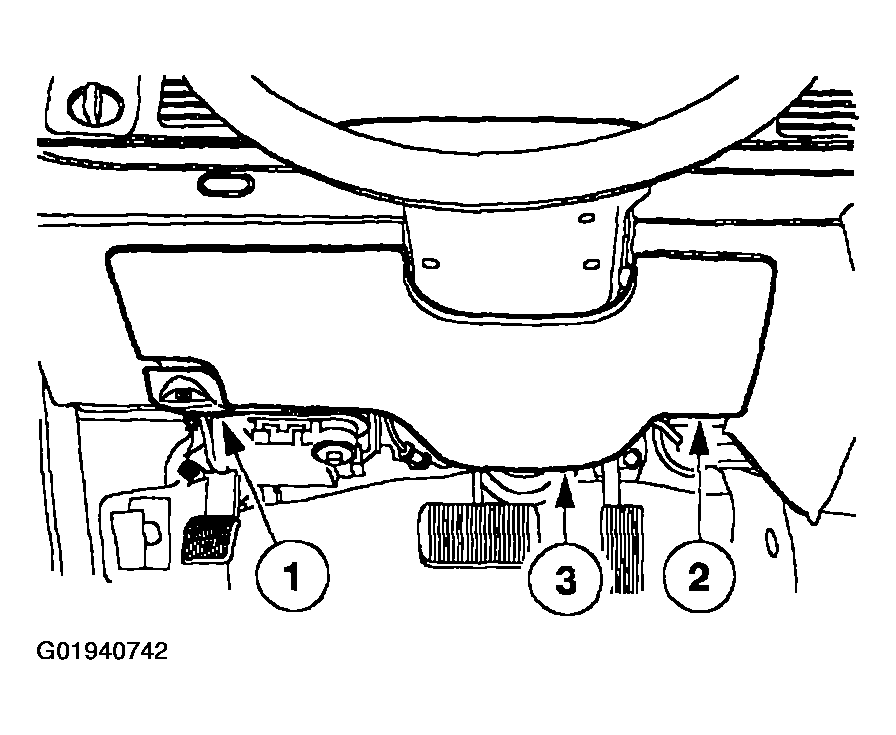

1. Remove the screw and position the parking brake release handle out of the way.
2. Remove the screw from the lower steering column opening finish panel.
3. Pull outward to release the retaining clips and remove the lower steering column opening finish panel.
Fig 1: Identifying Lower Steering Column Opening Finish Panel & Parking Brake Release Handle
Courtesy of FORD MOTOR CO.

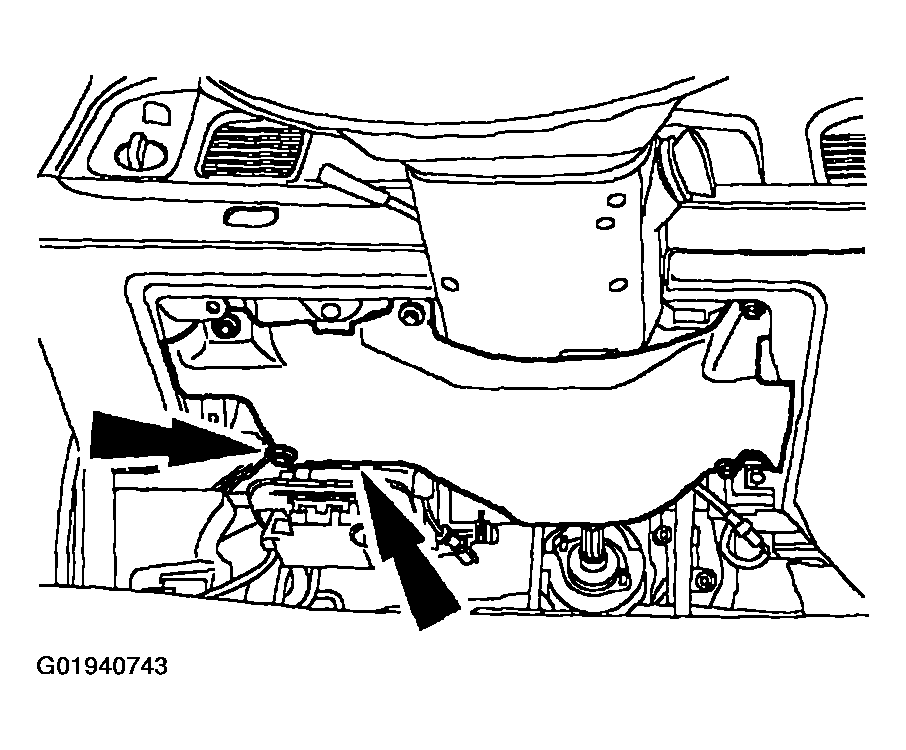

Remove the five screws and the lower steering column opening finish panel reinforcement.

Fig 2: Identifying Lower Steering Column Opening Finish Panel Reinforcement
Courtesy of FORD MOTOR CO.

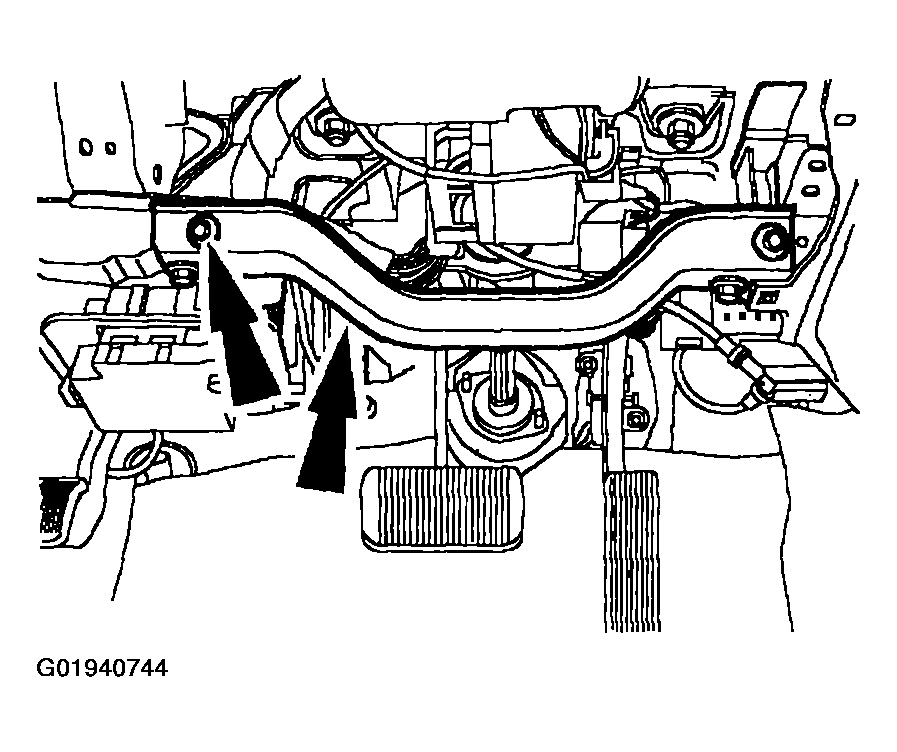

Remove the four screws and the instrument panel reinforcement brace.

Fig 3: Identifying Instrument Panel Reinforcement Brace
Courtesy of FORD MOTOR CO.

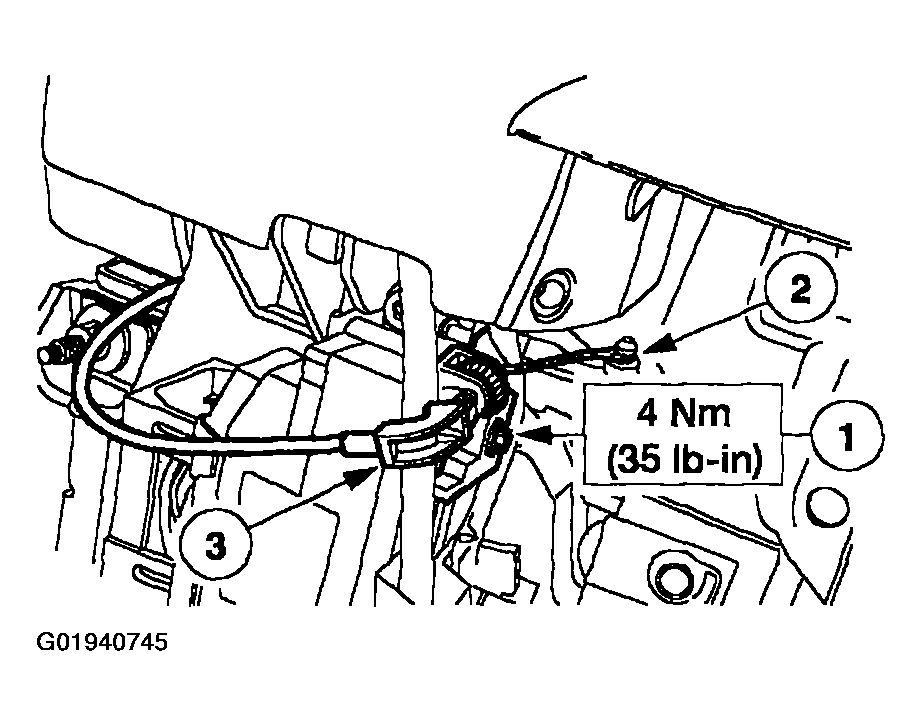

Position the selector lever indicator cable aside.
1. Loosen the screw.
2. Disconnect the cable.
3. Position the selector lever indicator cable aside.
Fig 4: Identifying Selector Lever Indicator Cable
Courtesy of FORD MOTOR CO.

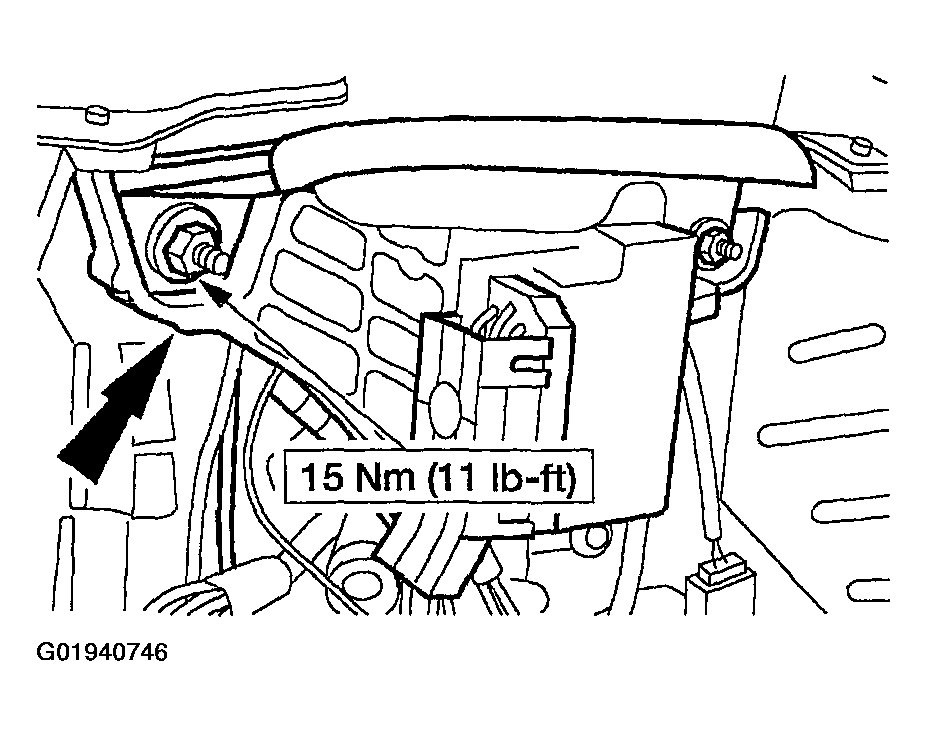

Remove the four nuts and lower the steering column.

Fig 5: Identifying Steering Column Nuts
Courtesy of FORD MOTOR CO.

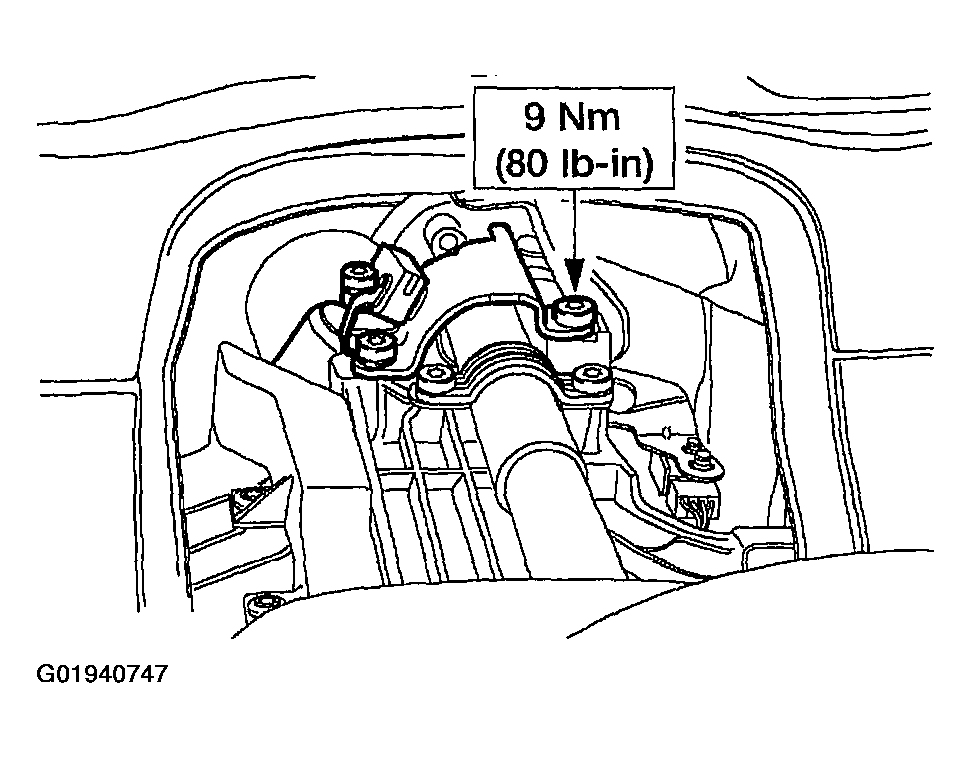

Remove the three bolts and separate the shift lock actuator (3F752) and the transmission shift selector position insert (7A216) from the steering column.

Fig 6: Identifying Shift Lock Actuator (3F752) & Transmission Shift Selector Position Insert (7A216)-To-steering Column Bolts
Courtesy of FORD MOTOR CO.

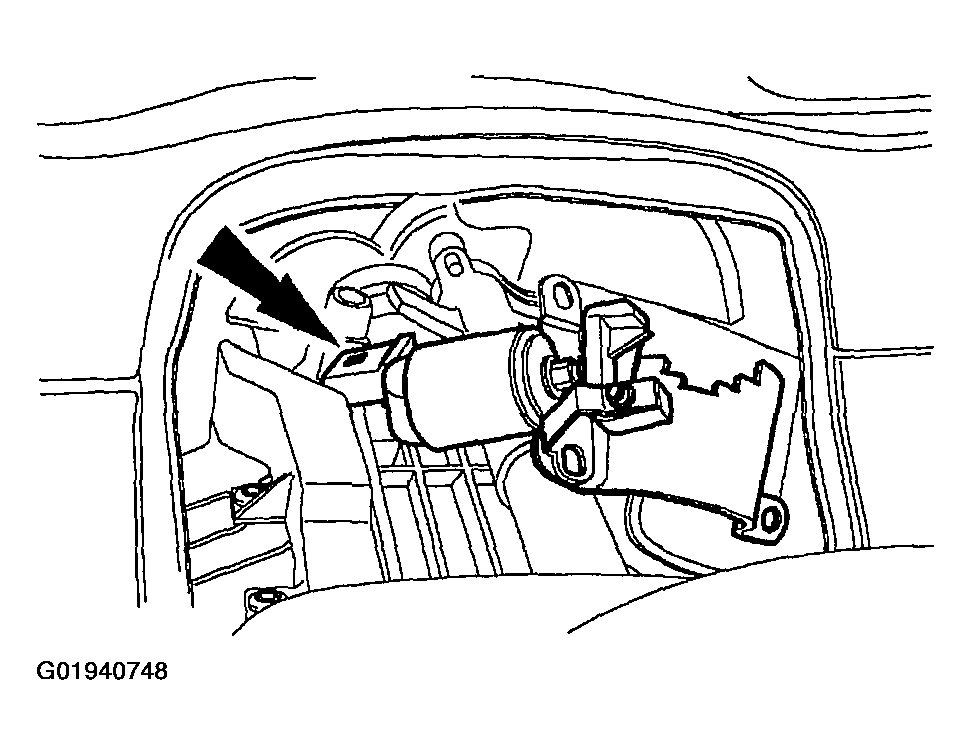

Disconnect the electrical connector and remove the shift lock actuator and the transmission shift selector position insert.

Fig 7: Identifying Transmission Shift Selector Position Insert
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
