Removal & Installation

    WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
    The side air bag sensors are located at or near the base of the B-pillar.
    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
  1. Disconnect the battery ground cable. Wait at least one minute before proceeding with the procedure to allow the backup power supply to deplete its energy. For additional information, refer to BATTERY, MOUNTING & CABLES .
  2. Remove the instrument panel finish panel and disconnect the electrical connector.

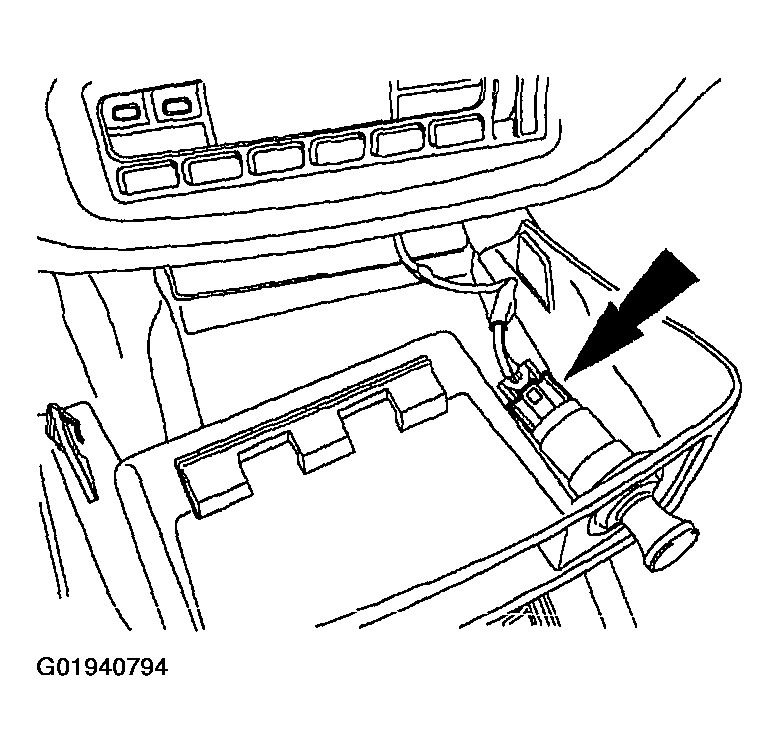

    Fig 1: Identifying Cigar Lighter Electrical Connector
    G01940794Courtesy of FORD MOTOR CO.
  3. Lift the console finish panel and remove.

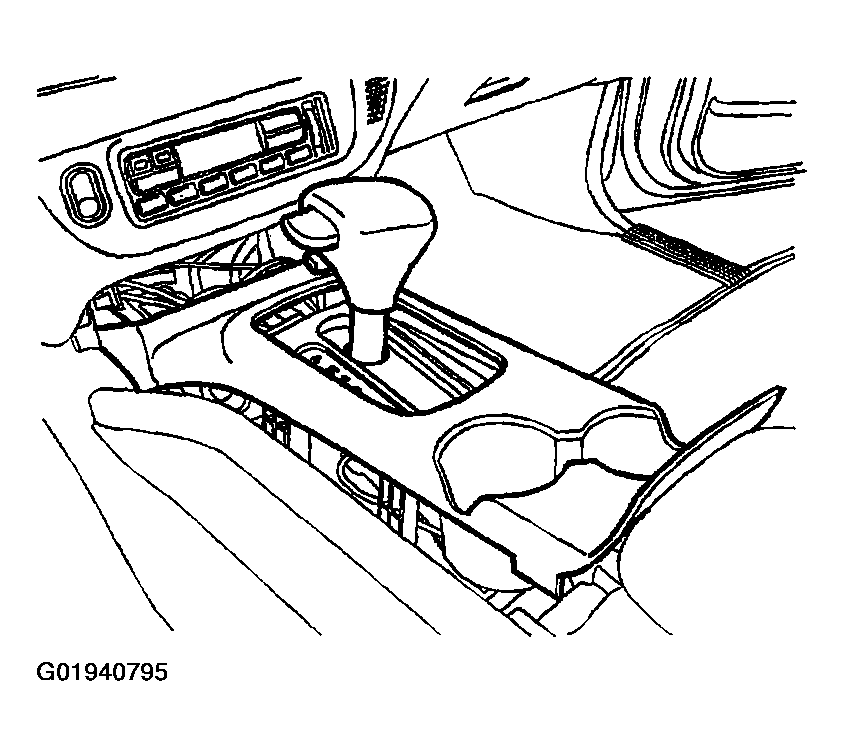

    Fig 2: Identifying Console Finish Panel
    G01940795Courtesy of FORD MOTOR CO.
  4. Push shift handle bezel down and disconnect TCS harness.

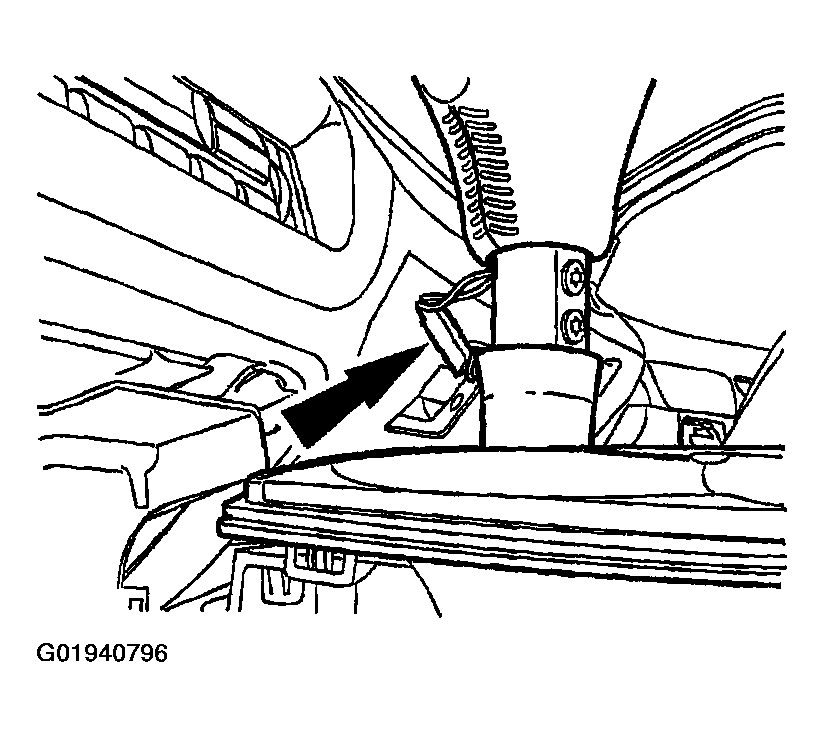

    Fig 3: Identifying TCS Harness
    G01940796Courtesy of FORD MOTOR CO.
  5. Remove the two shift handle retaining screws and remove the shift handle.

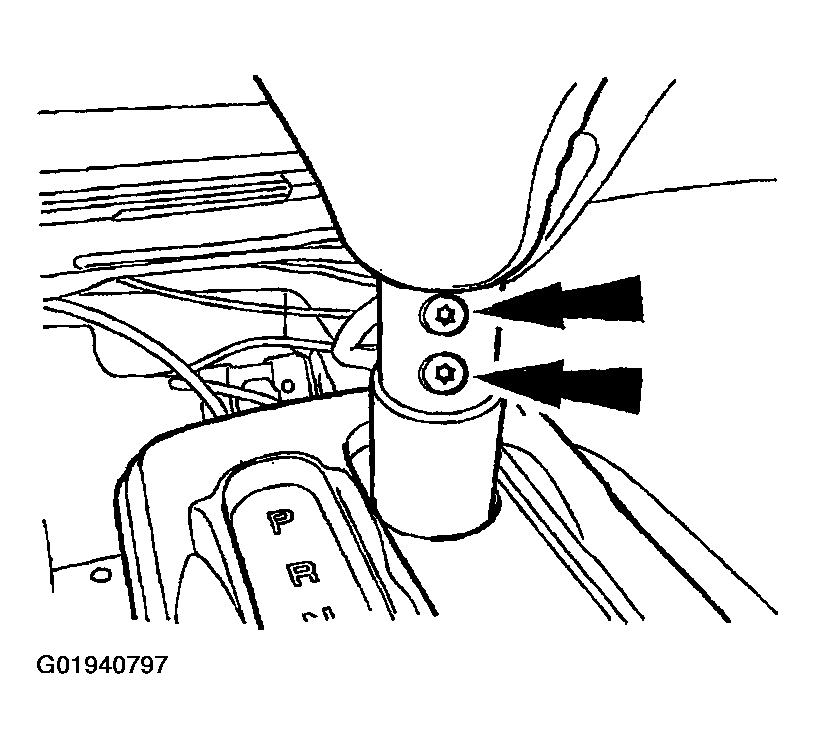

    Fig 4: Identifying Shift Handle Retaining Screws
    G01940797Courtesy of FORD MOTOR CO.
  6. Lift the indicator bezel and remove the bulb.

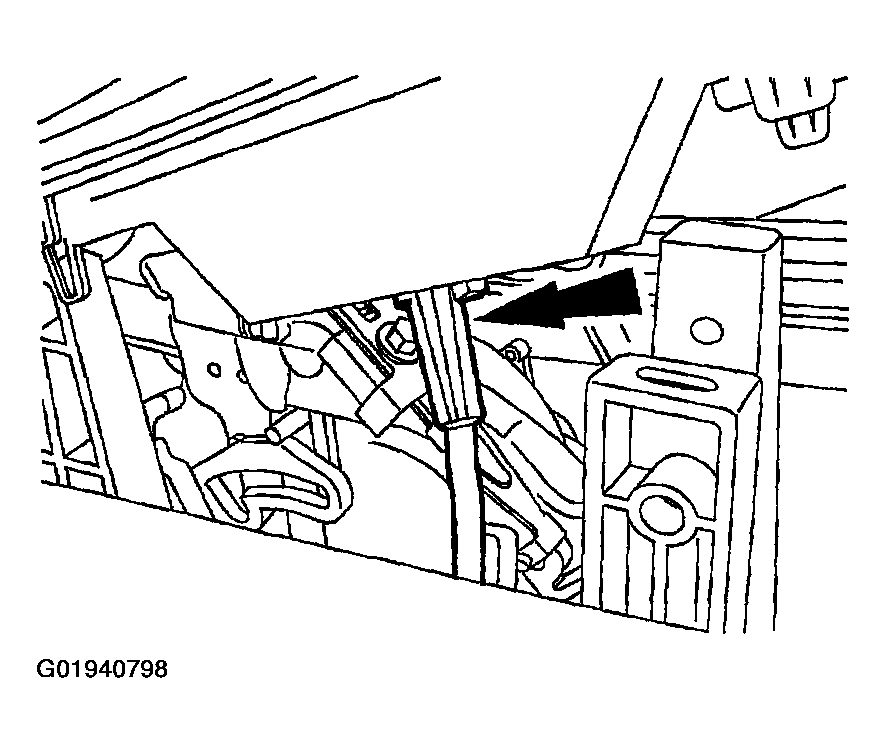

    Fig 5: Identifying Indicator Bezel Bulb Harness
    G01940798Courtesy of FORD MOTOR CO.
  7. Release the interlock cable housing clip and disconnect the interlock cable.

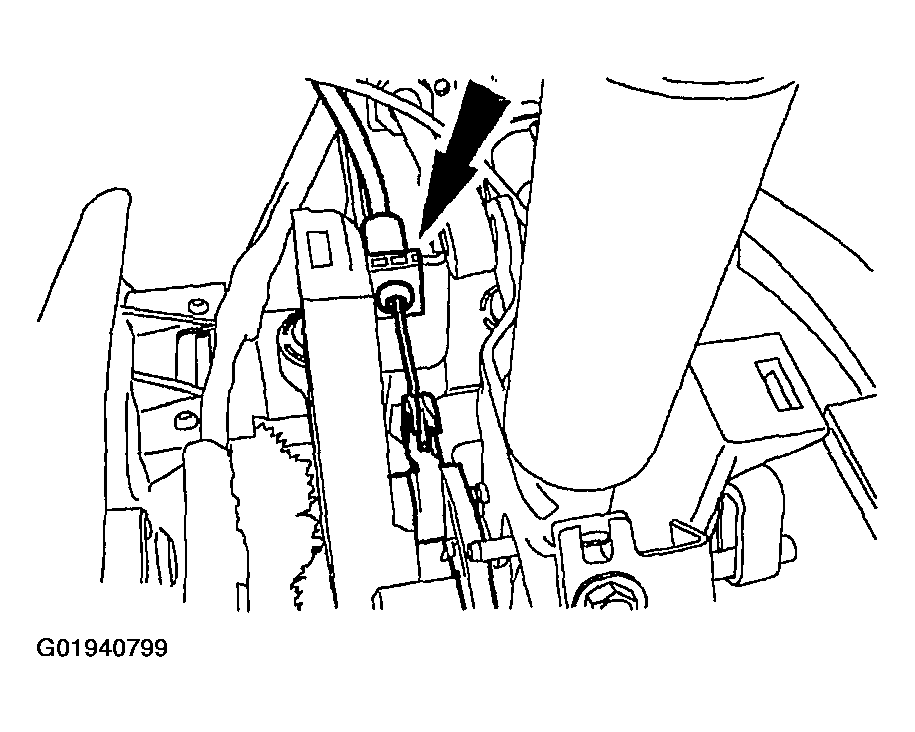

    Fig 6: Identifying Interlock Cable Housing Clip
    G01940799Courtesy of FORD MOTOR CO.
  8. Disconnect the shift cable from the shifter assembly.

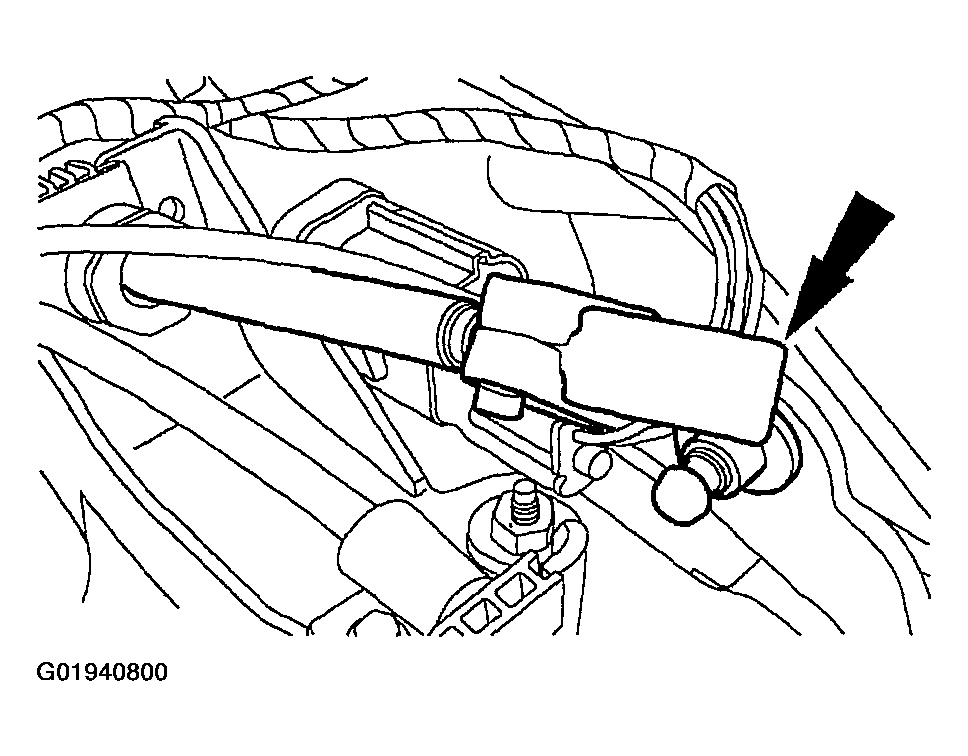

    Fig 7: Identifying Shift Cable
    G01940800Courtesy of FORD MOTOR CO.
  9. Release the shift cable housing clip from the shifter assembly.

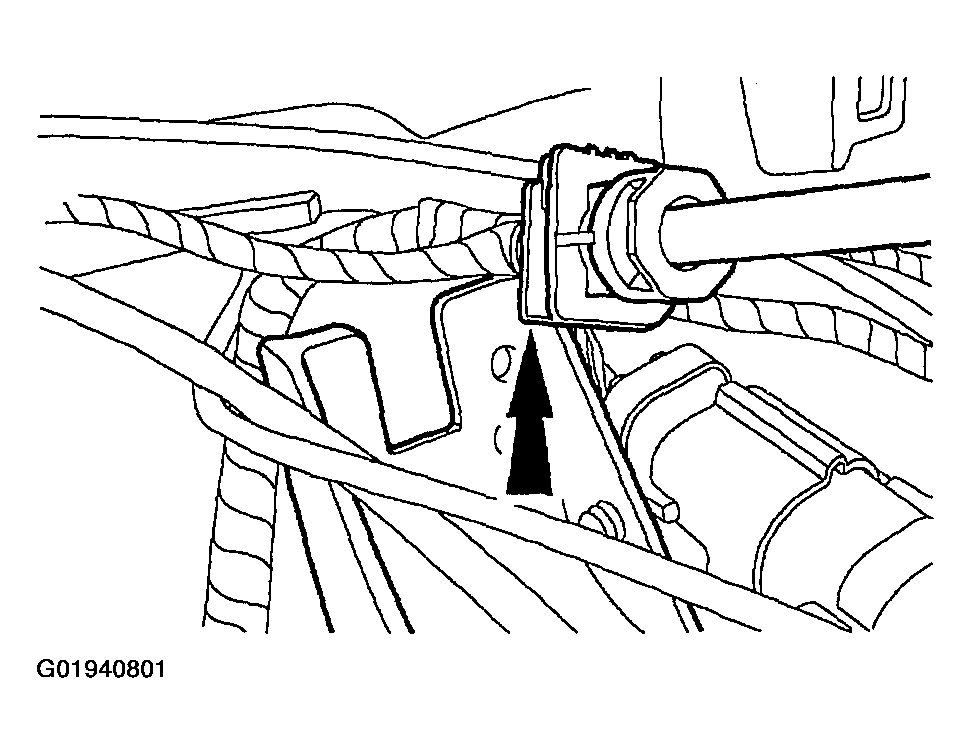

    Fig 8: Identifying Shift Cable Housing Clip
    G01940801Courtesy of FORD MOTOR CO.
  10. Release the electrical connector push pin retainer from the shifter assembly.

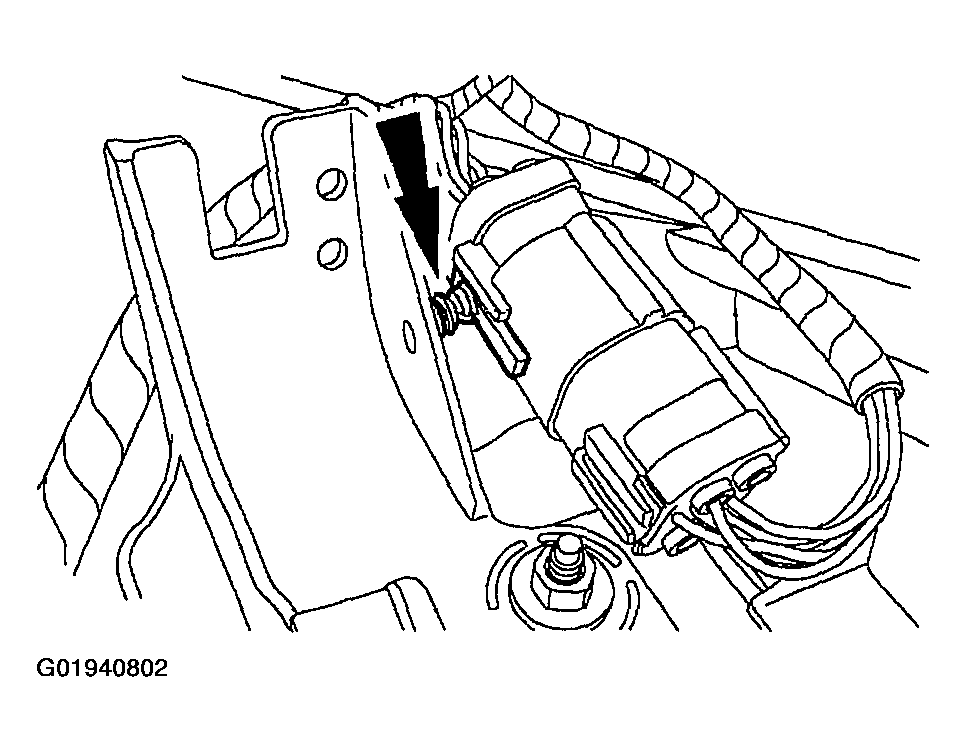

    Fig 9: Identifying Electrical Connector Push Pin Retainer
    G01940802Courtesy of FORD MOTOR CO.
  11. Disconnect the electrical connector.

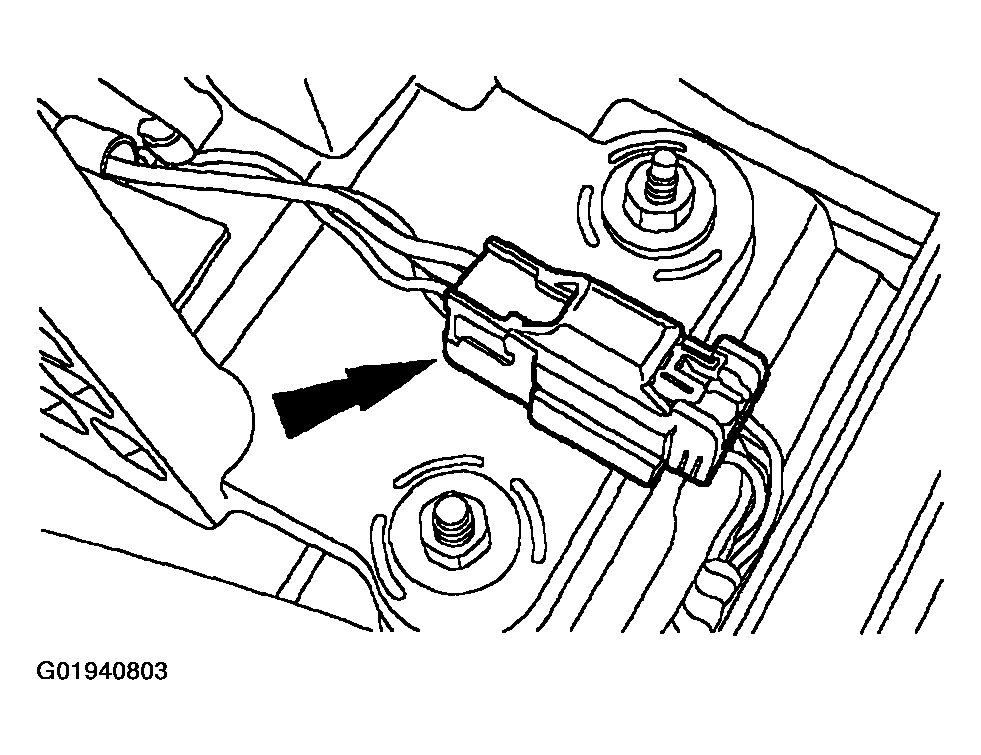

    Fig 10: Identifying Electrical Connector
    G01940803Courtesy of FORD MOTOR CO.
  12. Disconnect the vacuum harness from the parking brake release mechanism.

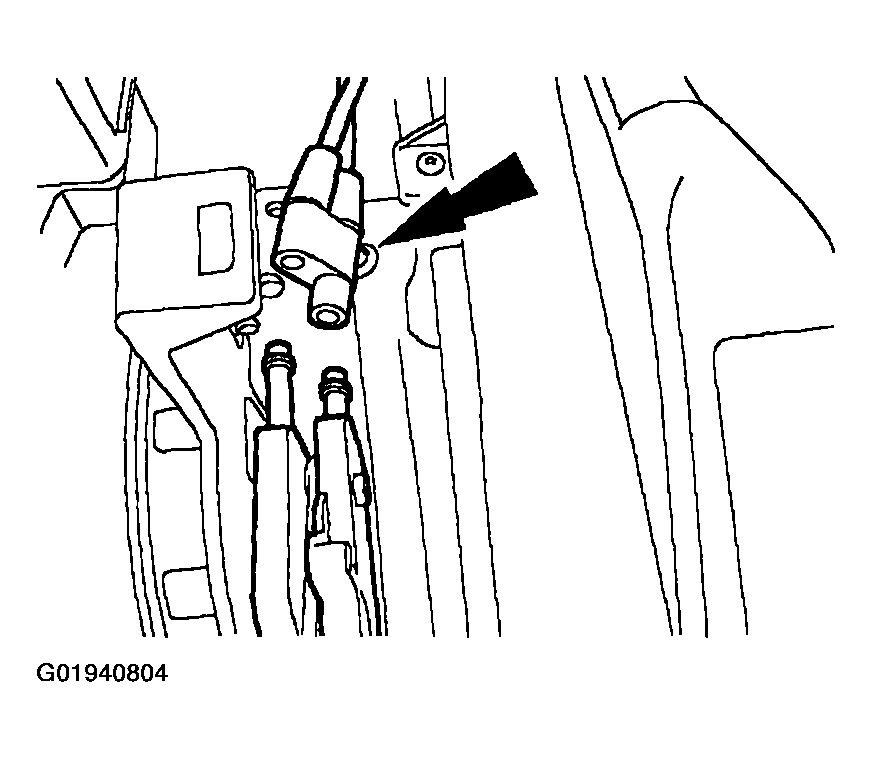

    Fig 11: Identifying Parking Brake Release Mechanism Vacuum Harness
    G01940804Courtesy of FORD MOTOR CO.
  13. Remove four nuts retaining shifter mechanism to floor and remove the shifter.

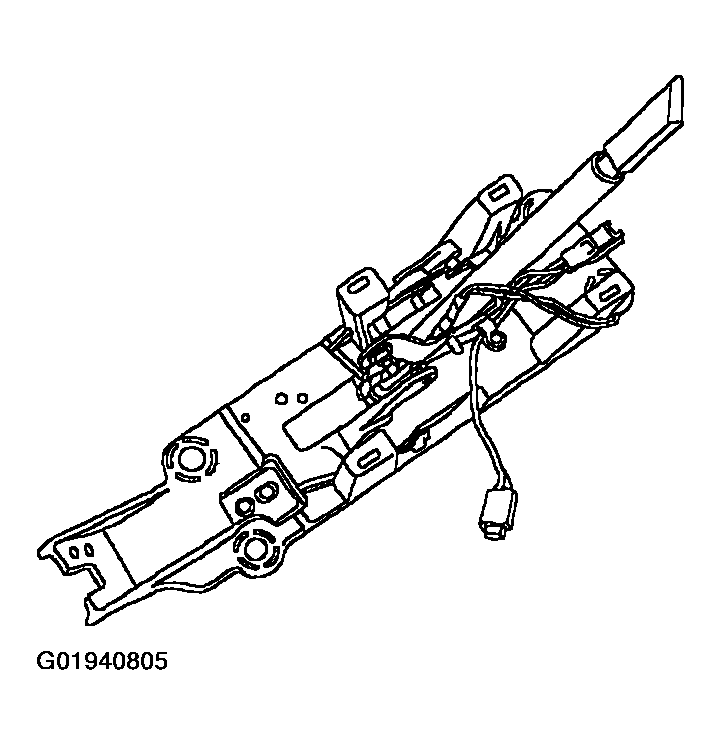

    Fig 12: Identifying Shifter Mechanism
    G01940805Courtesy of FORD MOTOR CO.
  14. To install, reverse the removal procedure.
