Removal & Installation

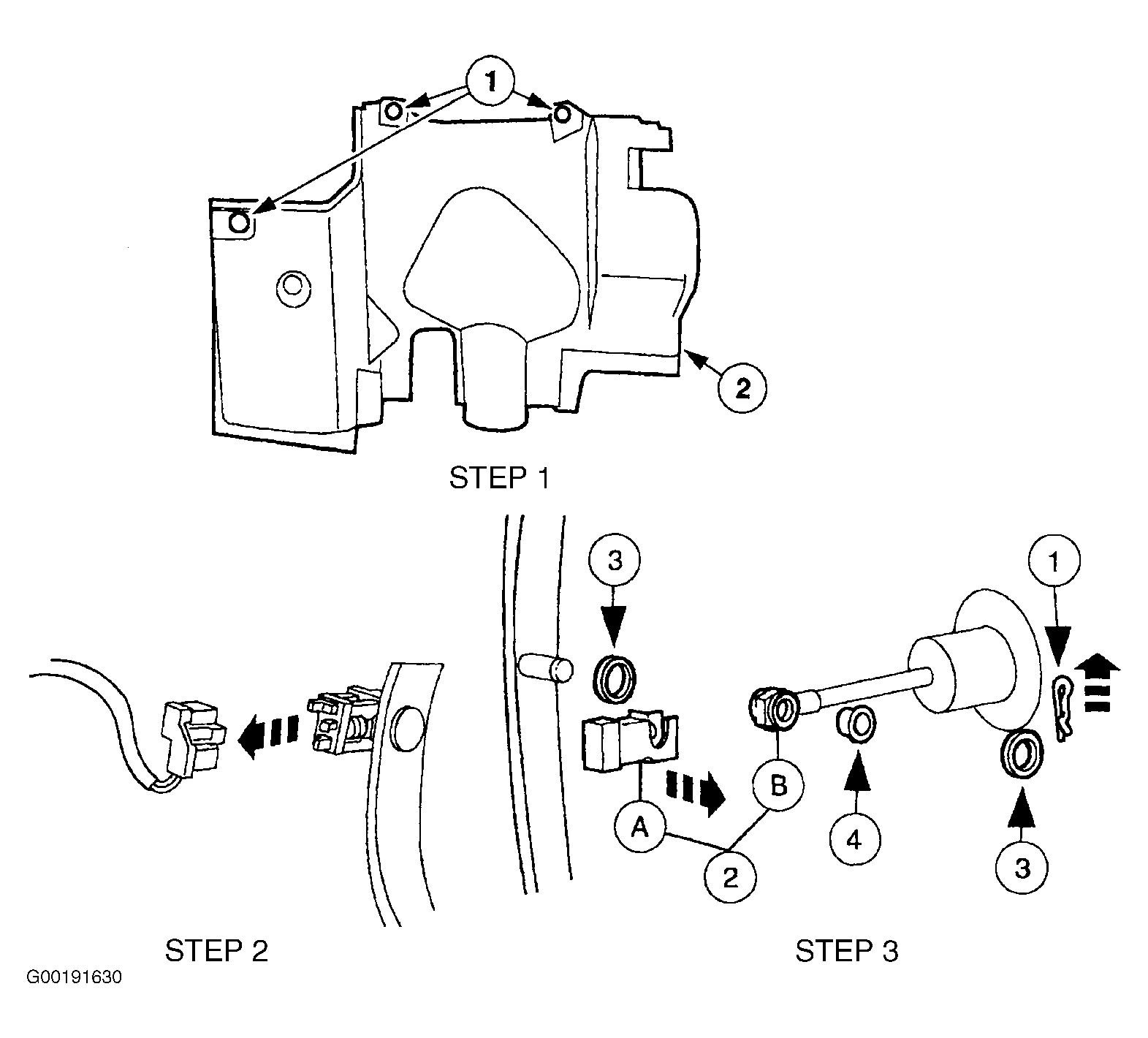

Disconnect negative battery cable. Remove pin-type retainers from driver's side lower instrument panel insulator. Disconnect courtesy lamp and remove lower instrument panel insulator. See STEP 1 in Fig 1. Disconnect Brake Pedal Position (BPP) switch harness connector. See STEP 2 in Fig 1. Remove self-locking pin. Remove (A) BPP switch from (B) brake master cylinder push rod. Remove brake master cylinder push rod spacer. Remove brake master cylinder push rod bushing and remove BPP switch. See STEP 3 in Fig 1. To install, reverse removal procedure.
