Pinpoint Test FT: Function Tests

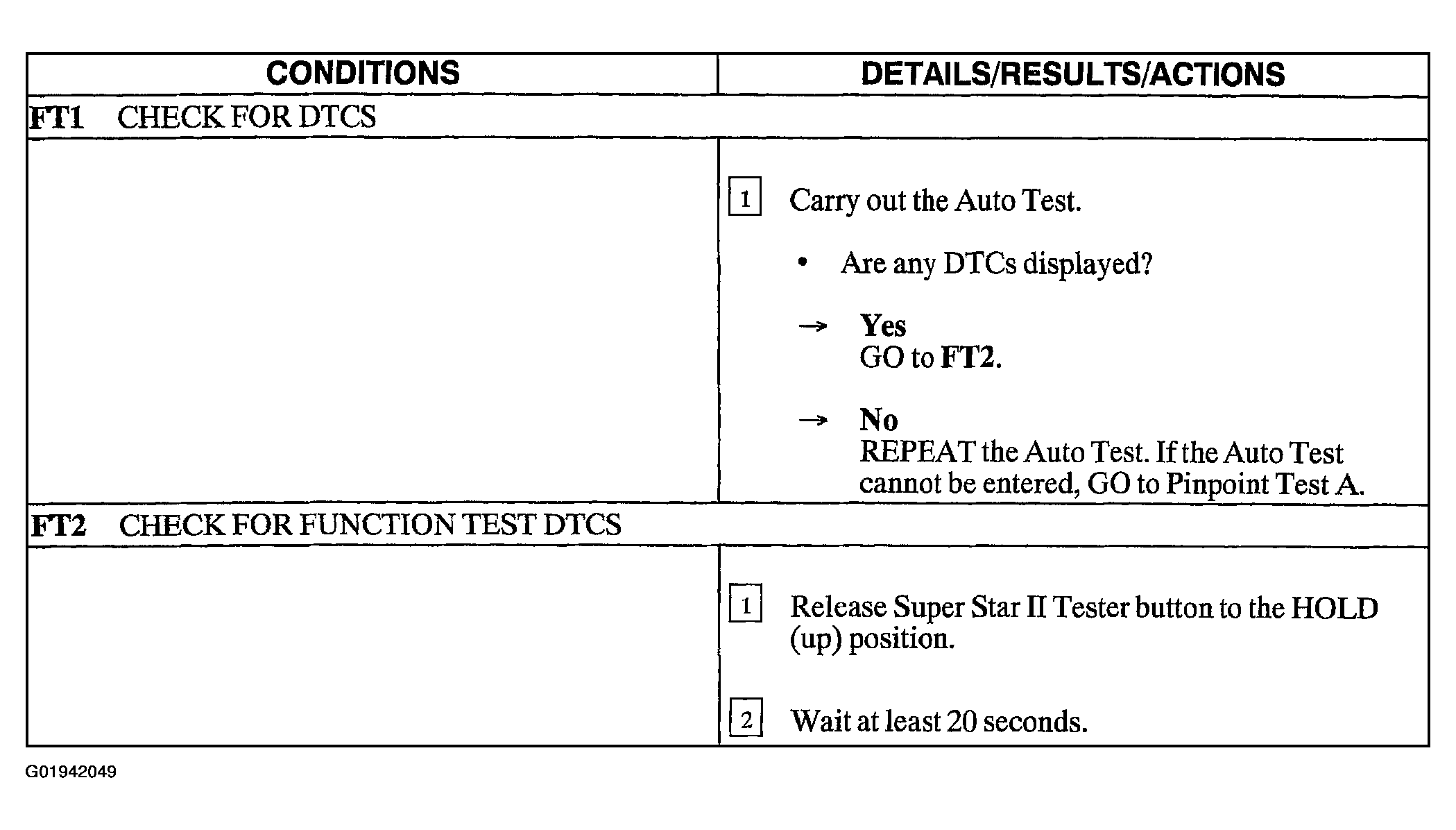

Fig 1: Pinpoint Test FT: Function Tests (Steps FT1-FT2)
G01942049Courtesy of FORD MOTOR CO.

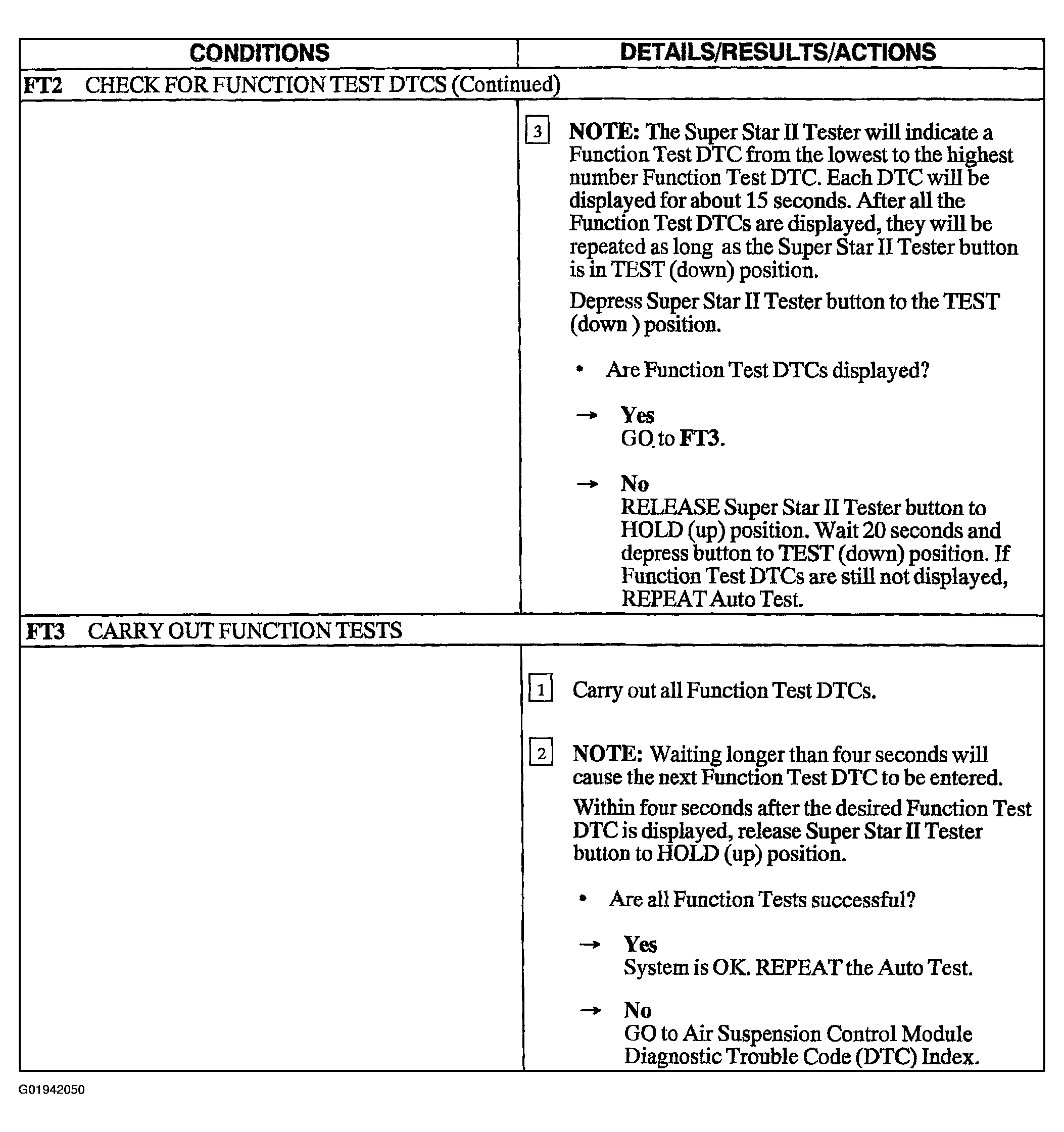

Fig 2: Pinpoint Test FT: Function Tests (Steps FT2 Cont.-FT3)
G01942050Courtesy of FORD MOTOR CO.
