Pinpoint Test C: Auto Test

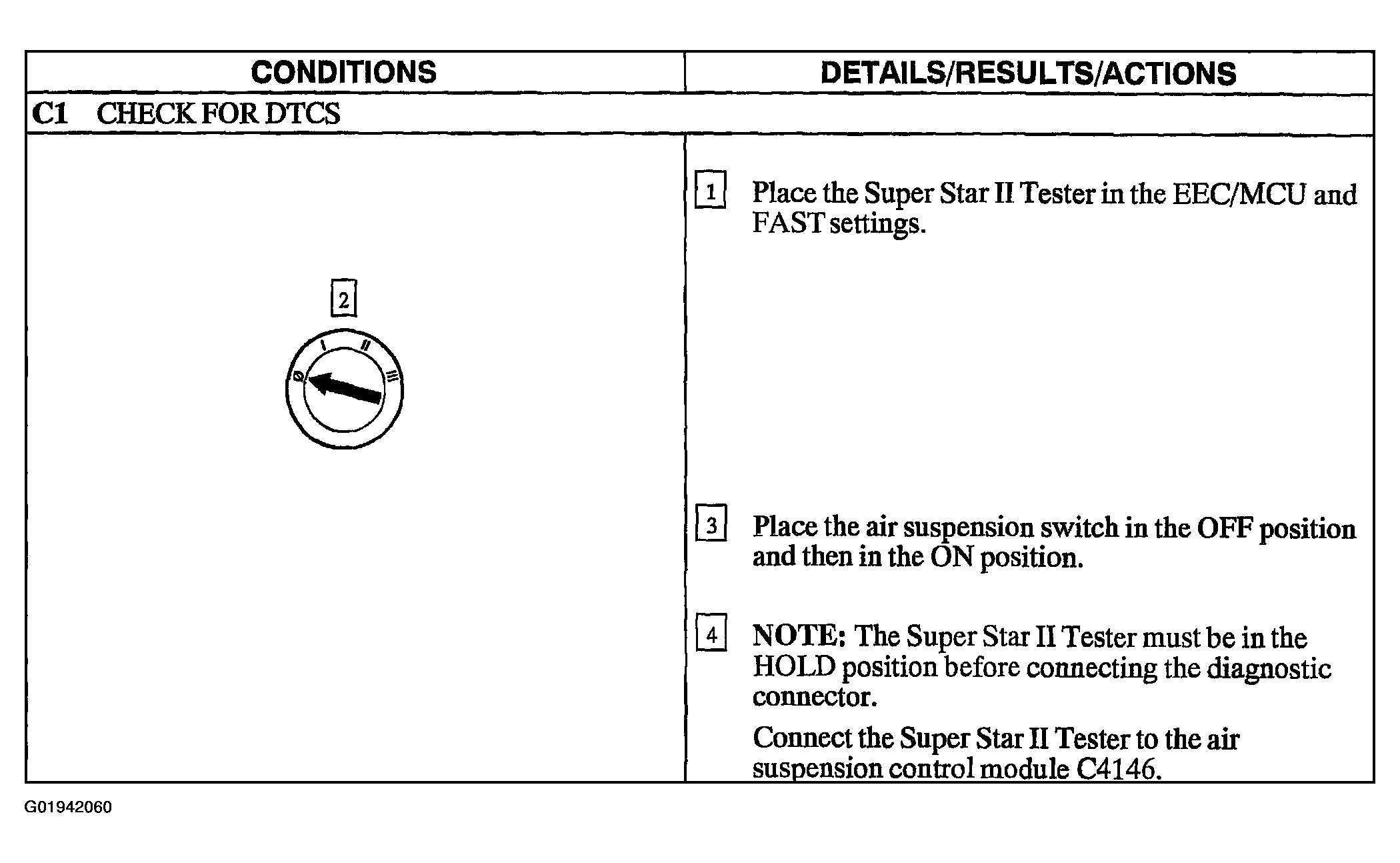

Fig 1: Pinpoint Test C: Auto Test (Step C1)
G01942060Courtesy of FORD MOTOR CO.

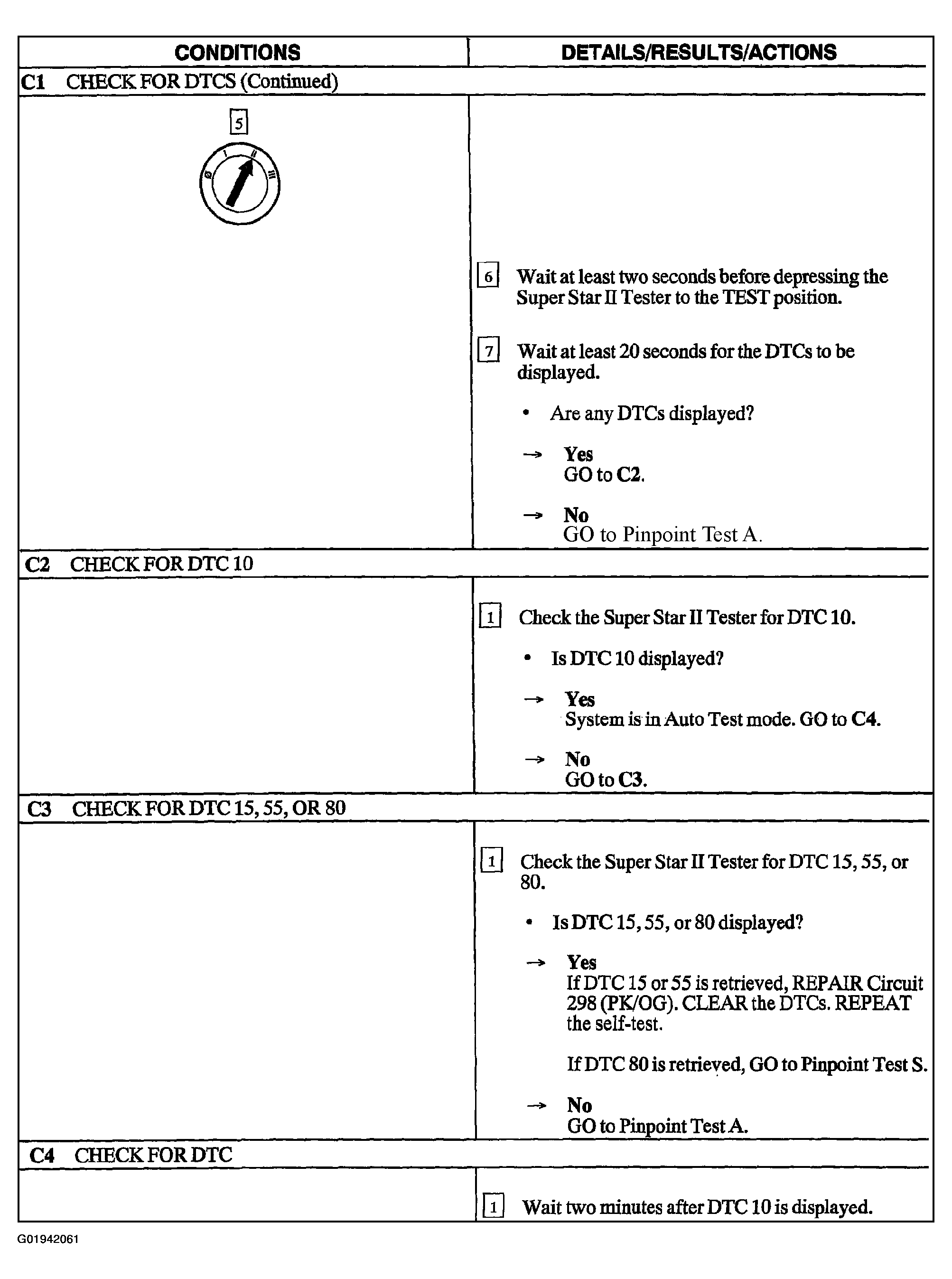

Fig 2: Pinpoint Test C: Auto Test (Steps C1 Cont.-C4)
G01942061Courtesy of FORD MOTOR CO.

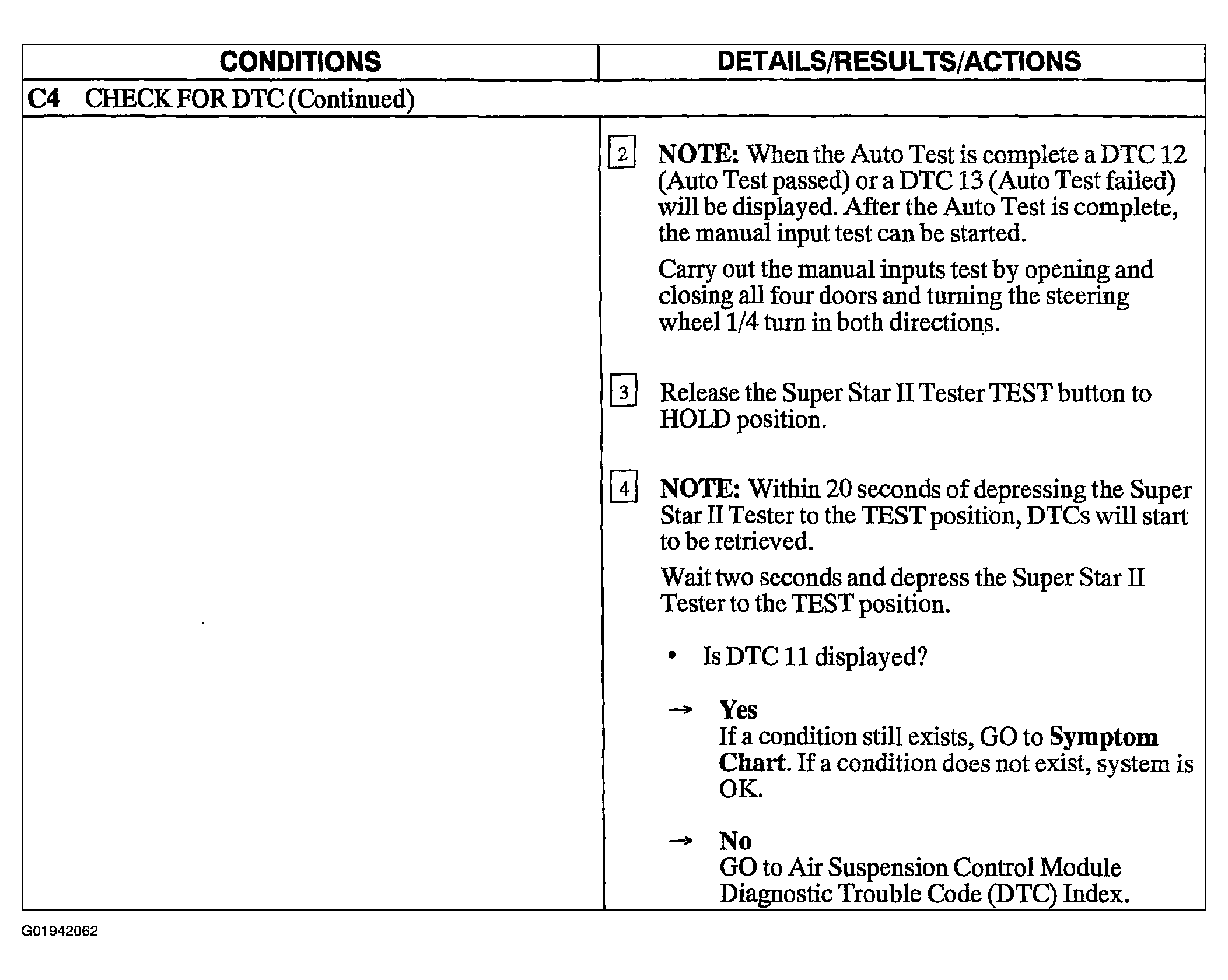

Fig 3: Pinpoint Test C: Auto Test (Step C4)
G01942062Courtesy of FORD MOTOR CO.
