Pinpoint Test D: DTC 39, Compressor Relay Control Circuit Short To Power
Pinpoint Test D: DTC 39, Compressor Relay Control Circuit Short To Power

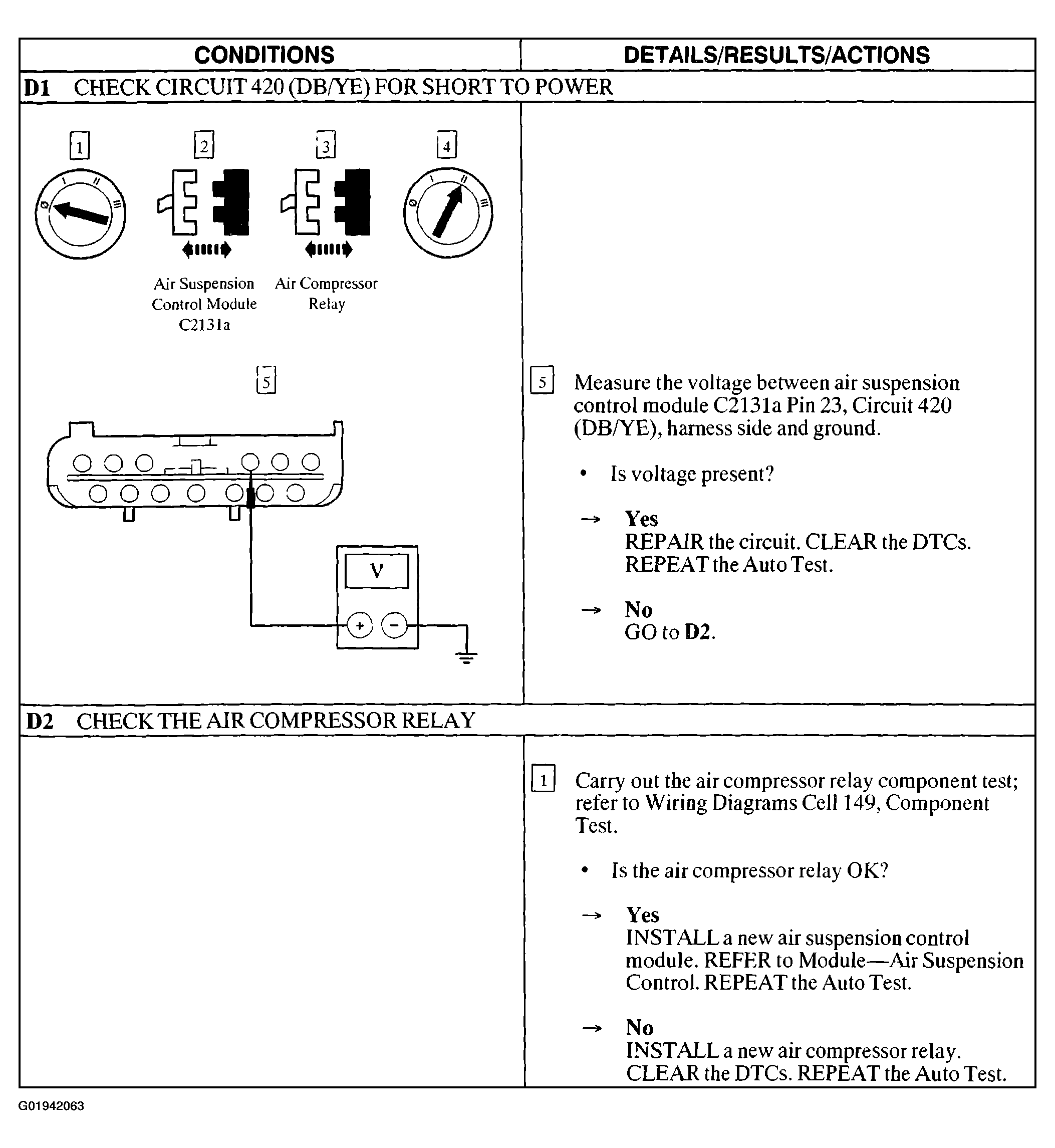

Fig 1: Pinpoint Test D: DTC 39, Compressor Relay Control Circuit Short To Power (Steps D1-D2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
