Pinpoint Test F: DTC 42, Air Spring Solenoid Circuit Short To Ground

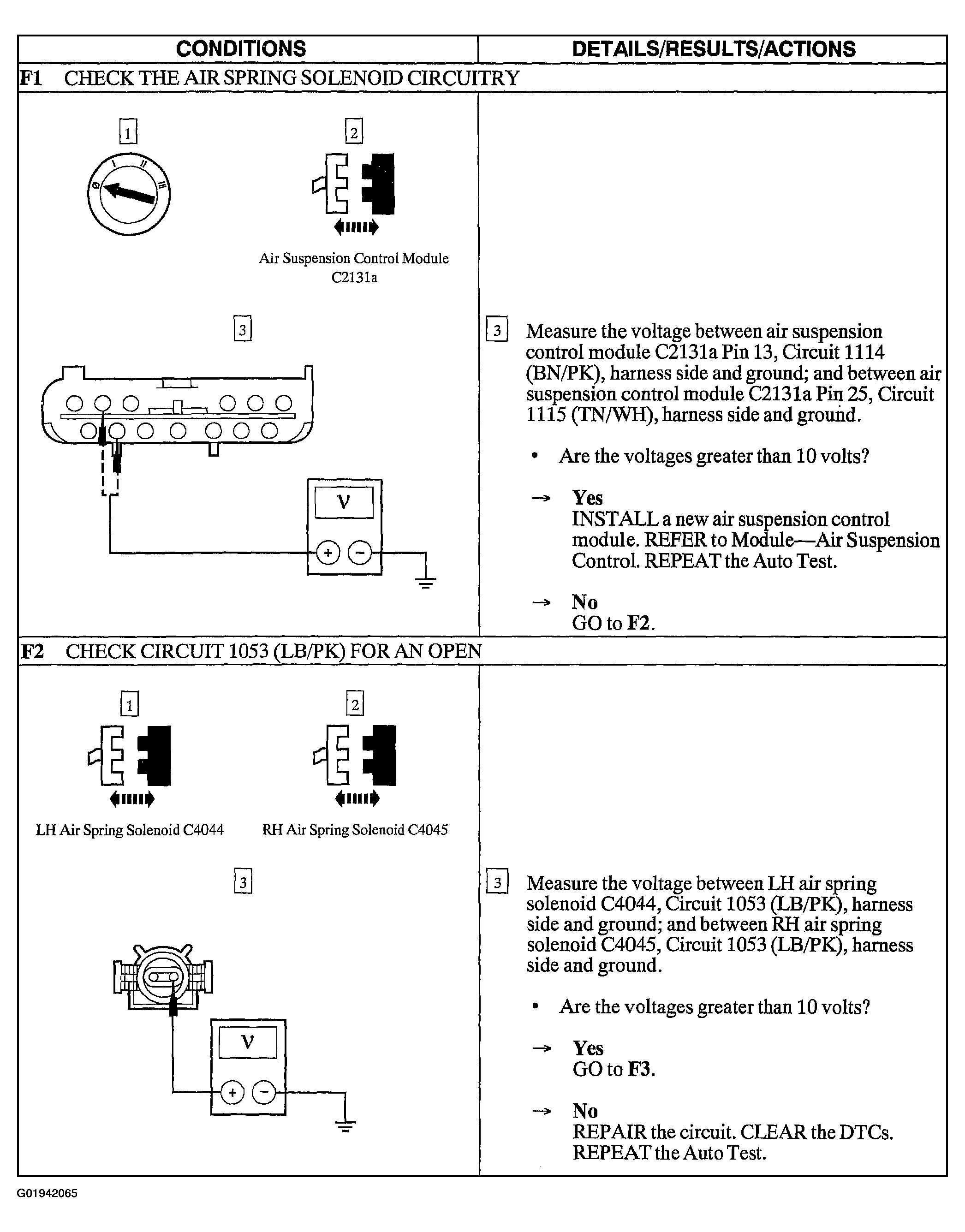

Fig 1: Pinpoint Test F: DTC 42, Air Spring Solenoid Circuit Short To Ground (Steps F1-F2)

Courtesy of FORD MOTOR CO.

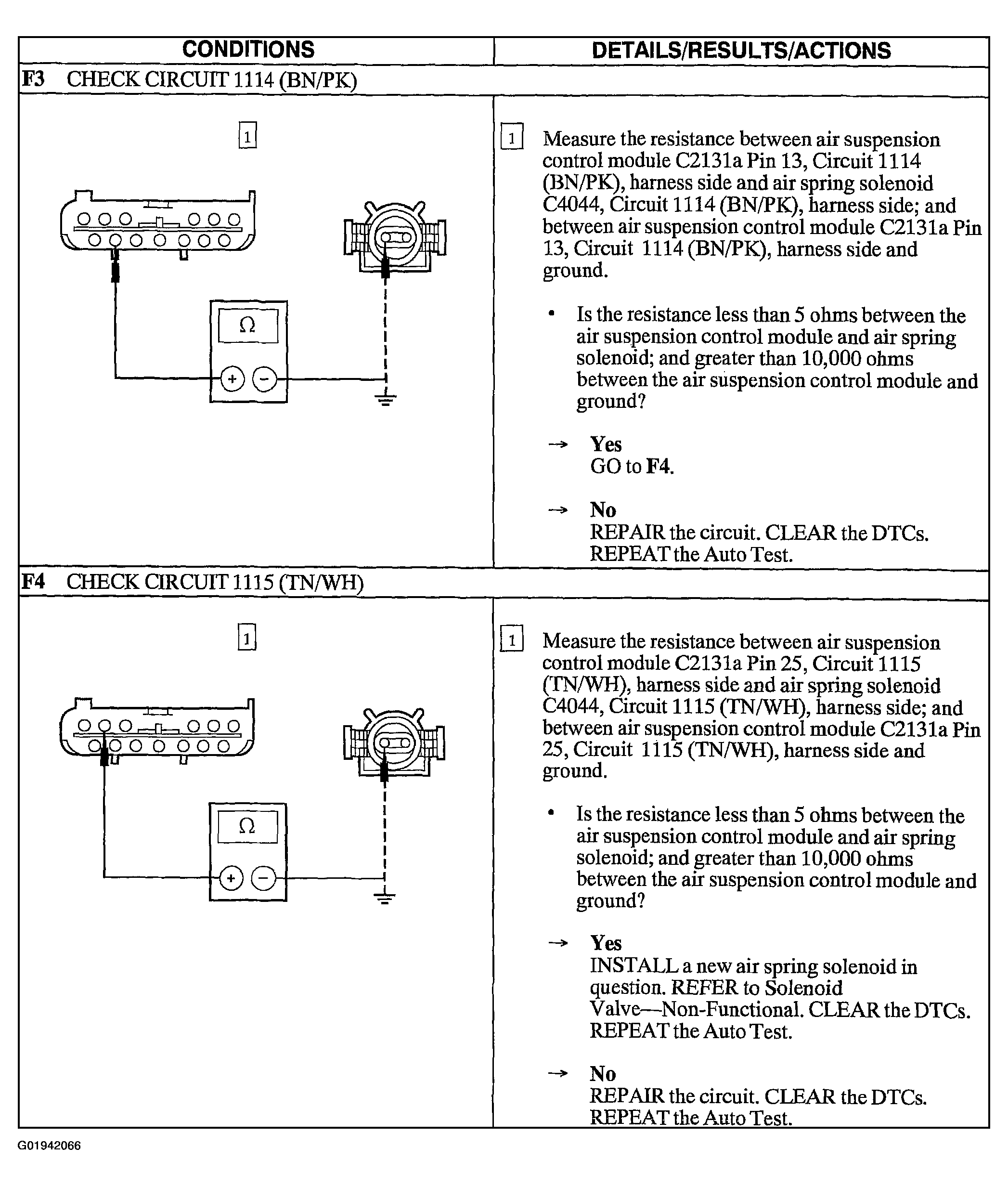

Fig 2: Pinpoint Test F: DTC 42, Air Spring Solenoid Circuit Short To Ground (Steps F3-F4)

Courtesy of FORD MOTOR CO.
