Pinpoint Test K: DTC 51, Unable To Detect Lowering Of Rear

NOTE: Repair all other DTCs first.

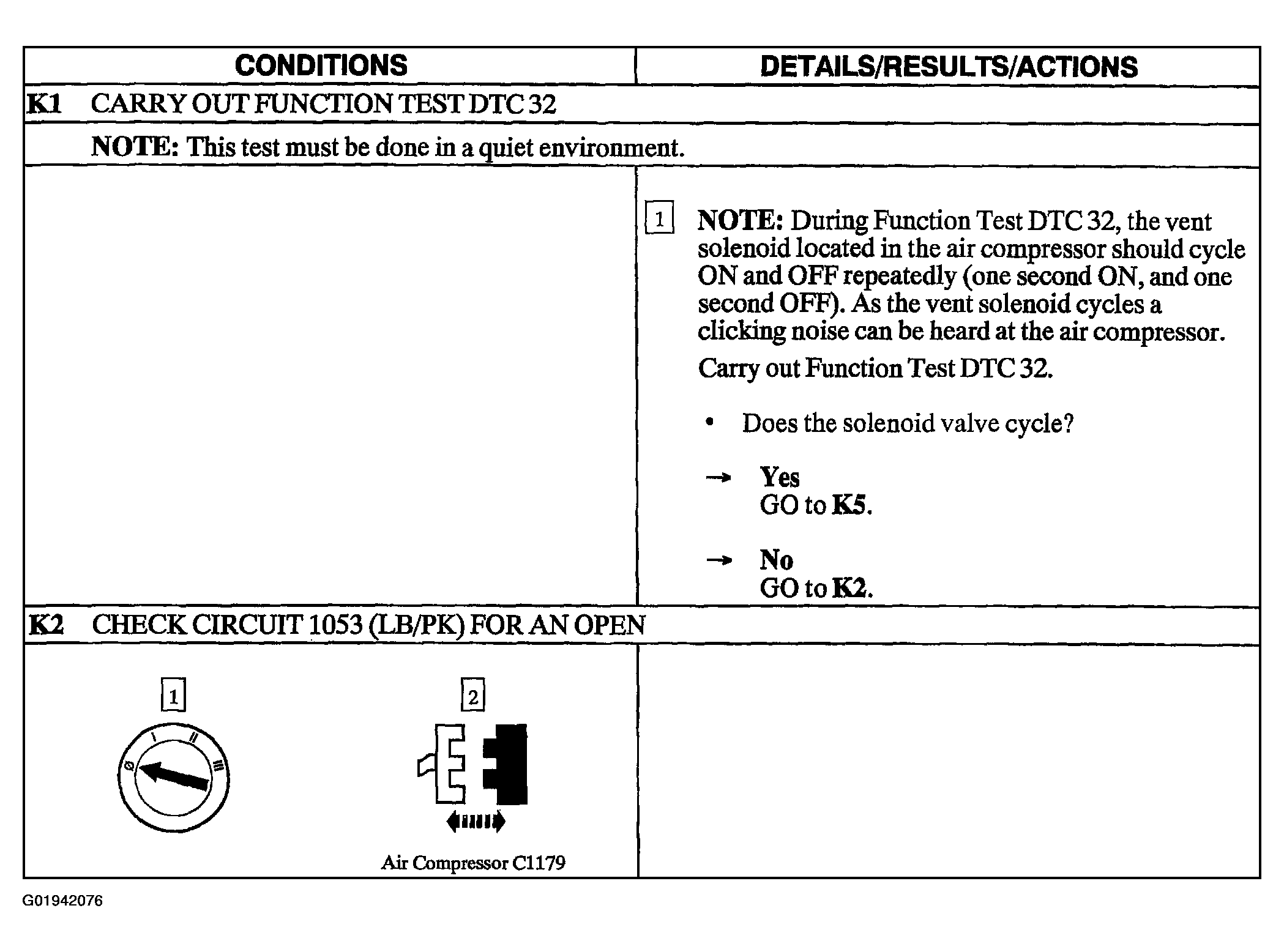

Fig 1: Pinpoint Test K: DTC 51, Unable To Detect Lowering Of Rear (Steps K1-K2)

Courtesy of FORD MOTOR CO.

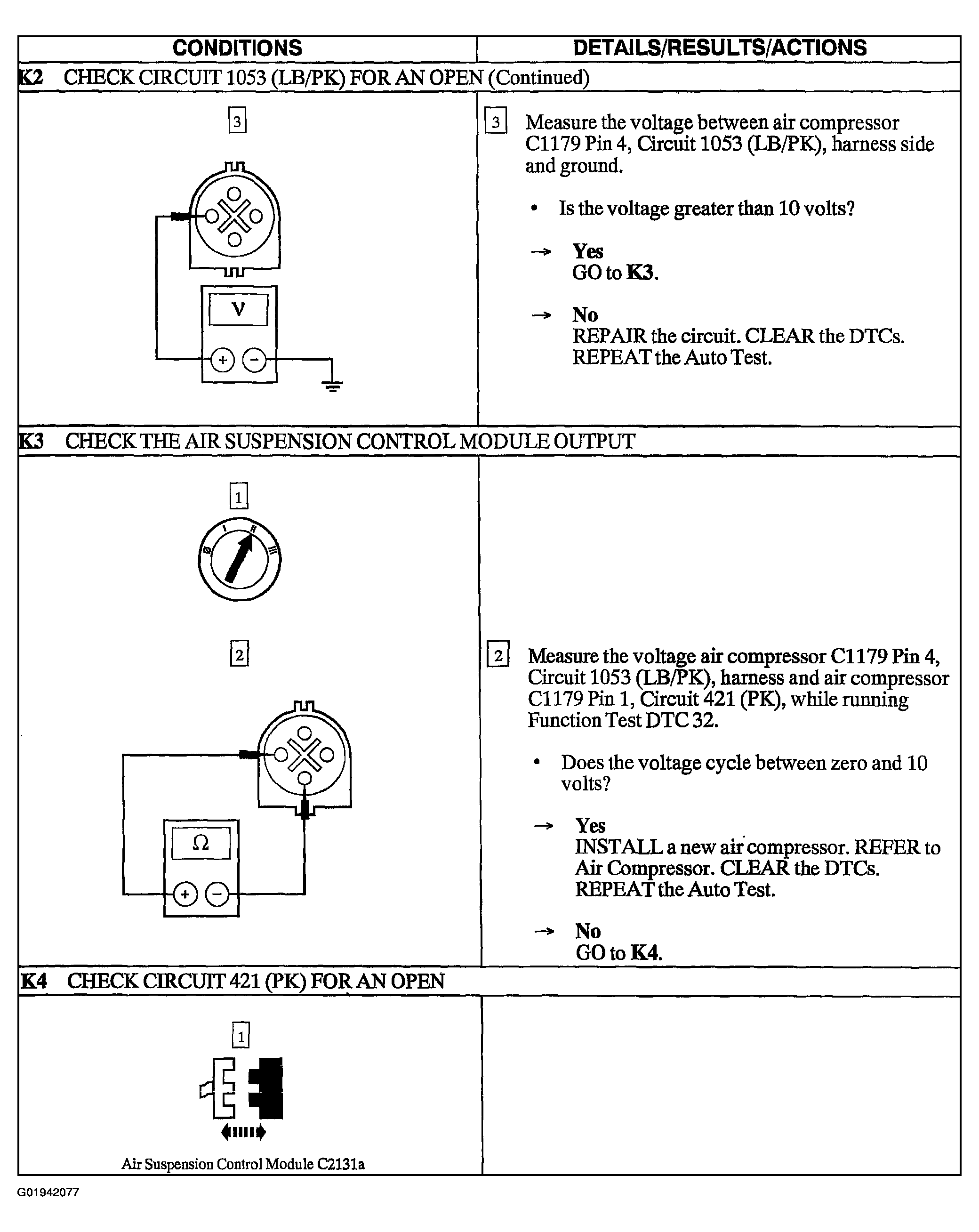

Fig 2: Pinpoint Test K: DTC 51, Unable To Detect Lowering Of Rear (Steps K2 Cont.-K4)

Courtesy of FORD MOTOR CO.

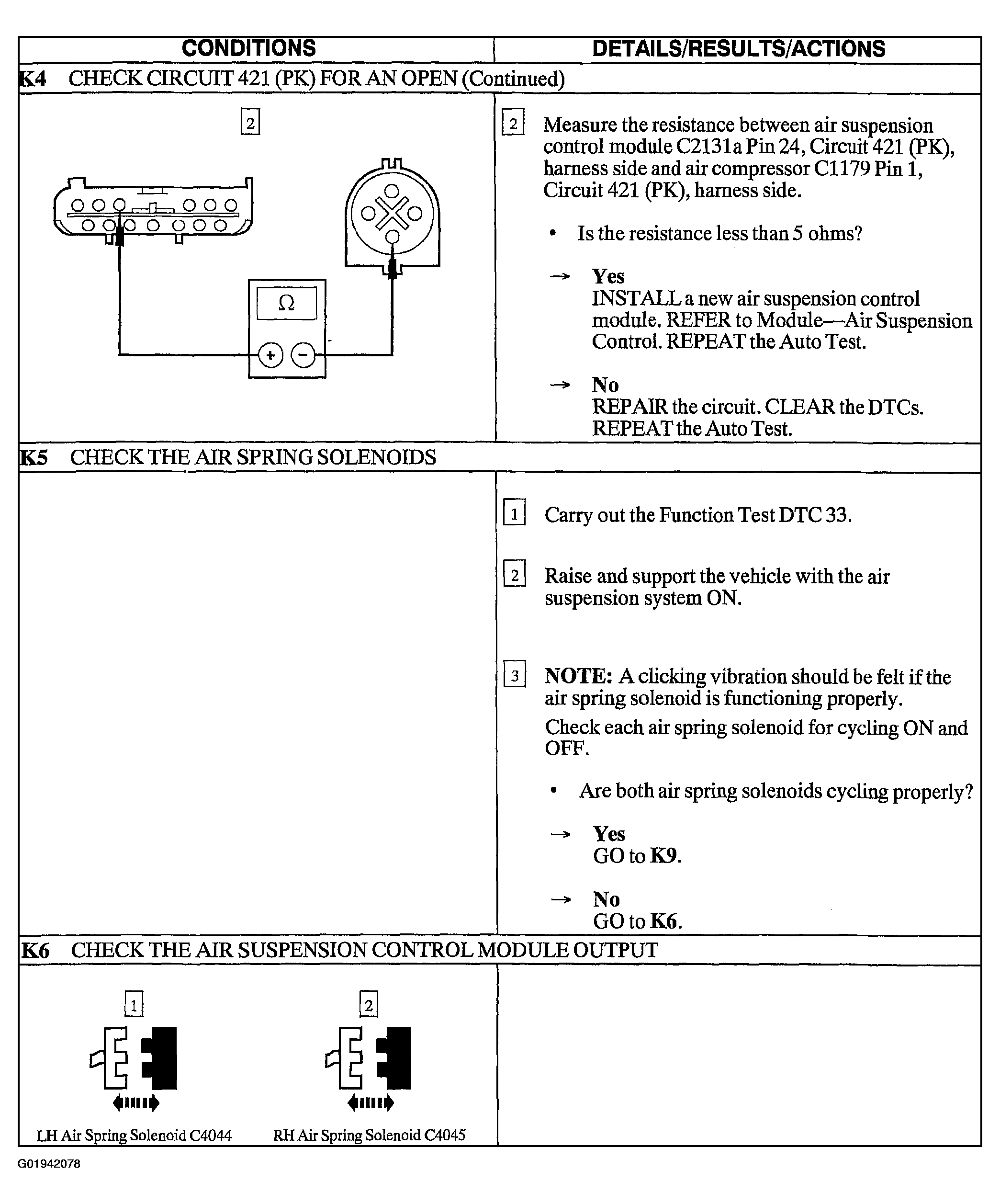

Fig 3: Pinpoint Test K: DTC 51, Unable To Detect Lowering Of Rear (Steps K4 Cont.-K6)

Courtesy of FORD MOTOR CO.

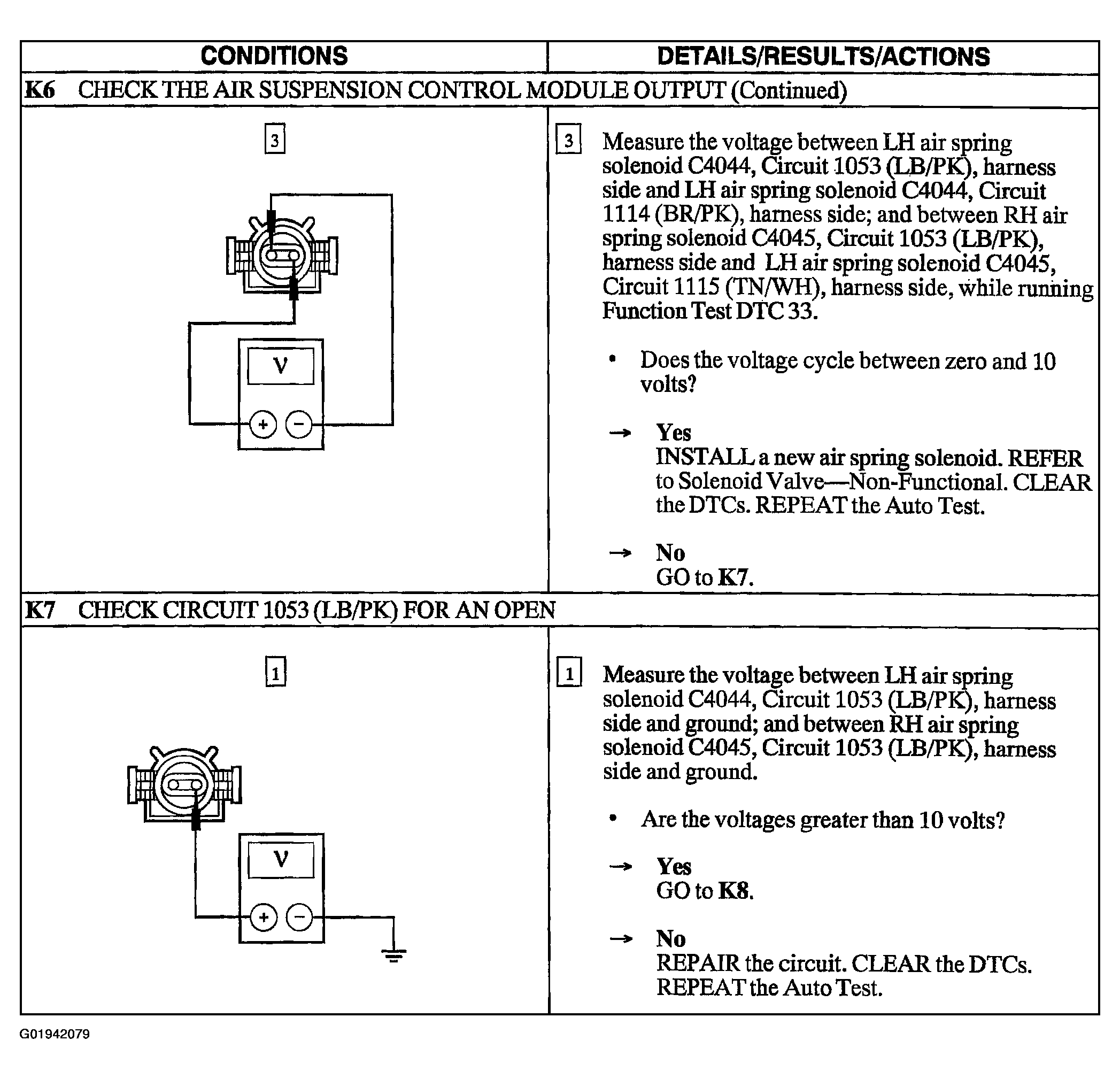

Fig 4: Pinpoint Test K: DTC 51, Unable To Detect Lowering Of Rear (Steps K6 Cont.-K7)

Courtesy of FORD MOTOR CO.

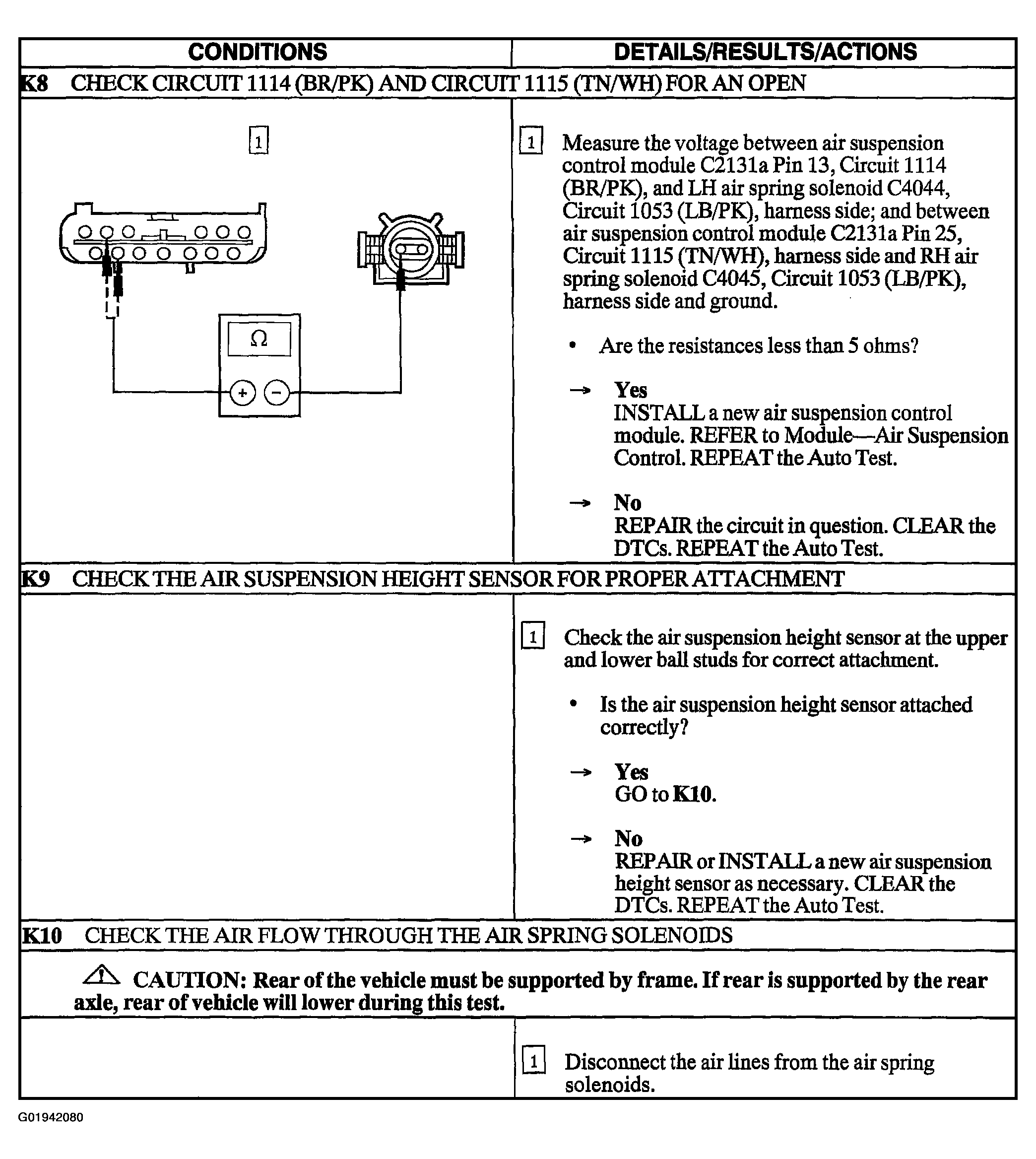

Fig 5: Pinpoint Test K: DTC 51, Unable To Detect Lowering Of Rear (Steps K8-K10)

Courtesy of FORD MOTOR CO.

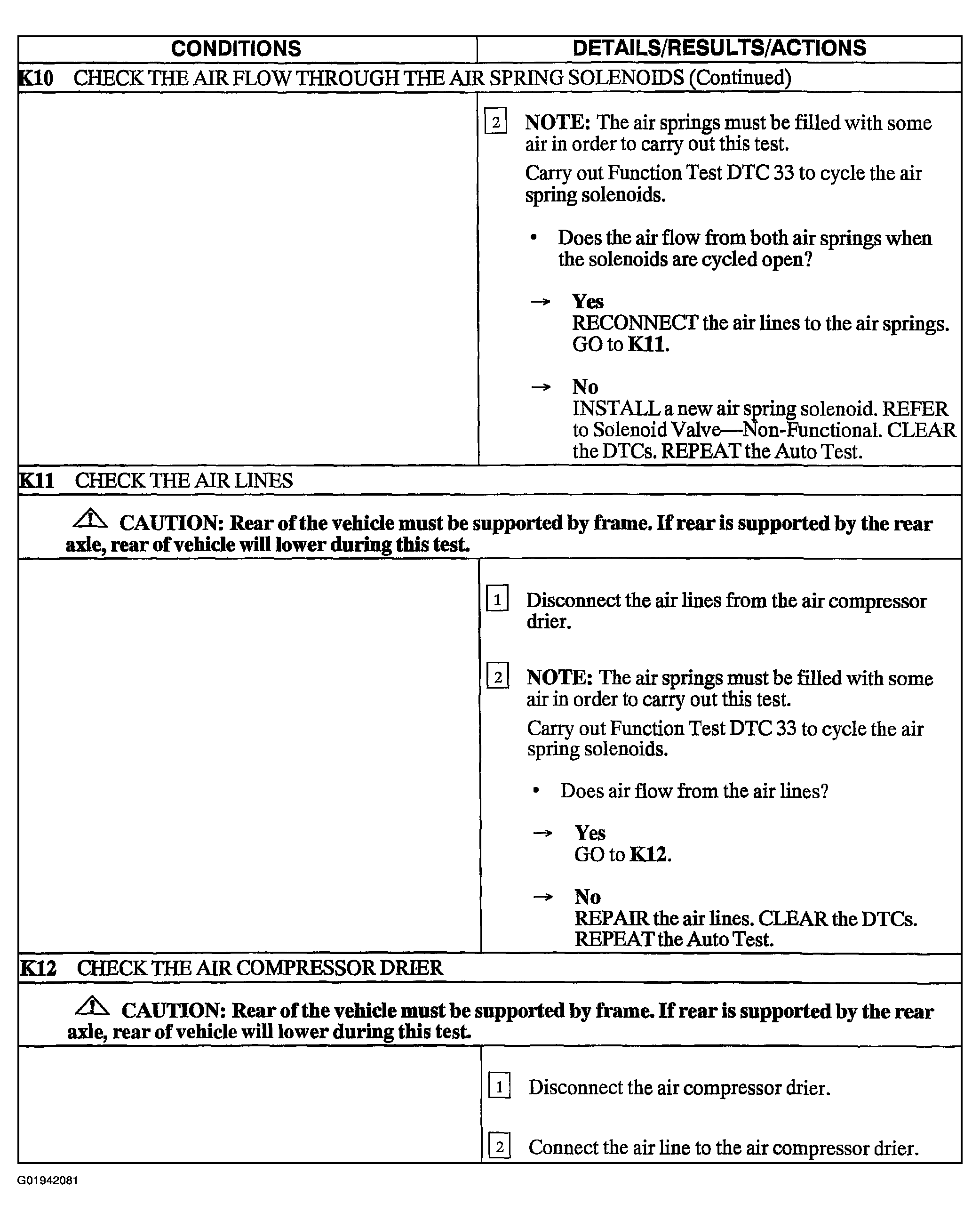

Fig 6: Pinpoint Test K: DTC 51, Unable To Detect Lowering Of Rear (Steps K10 Cont.-K12)

Courtesy of FORD MOTOR CO.

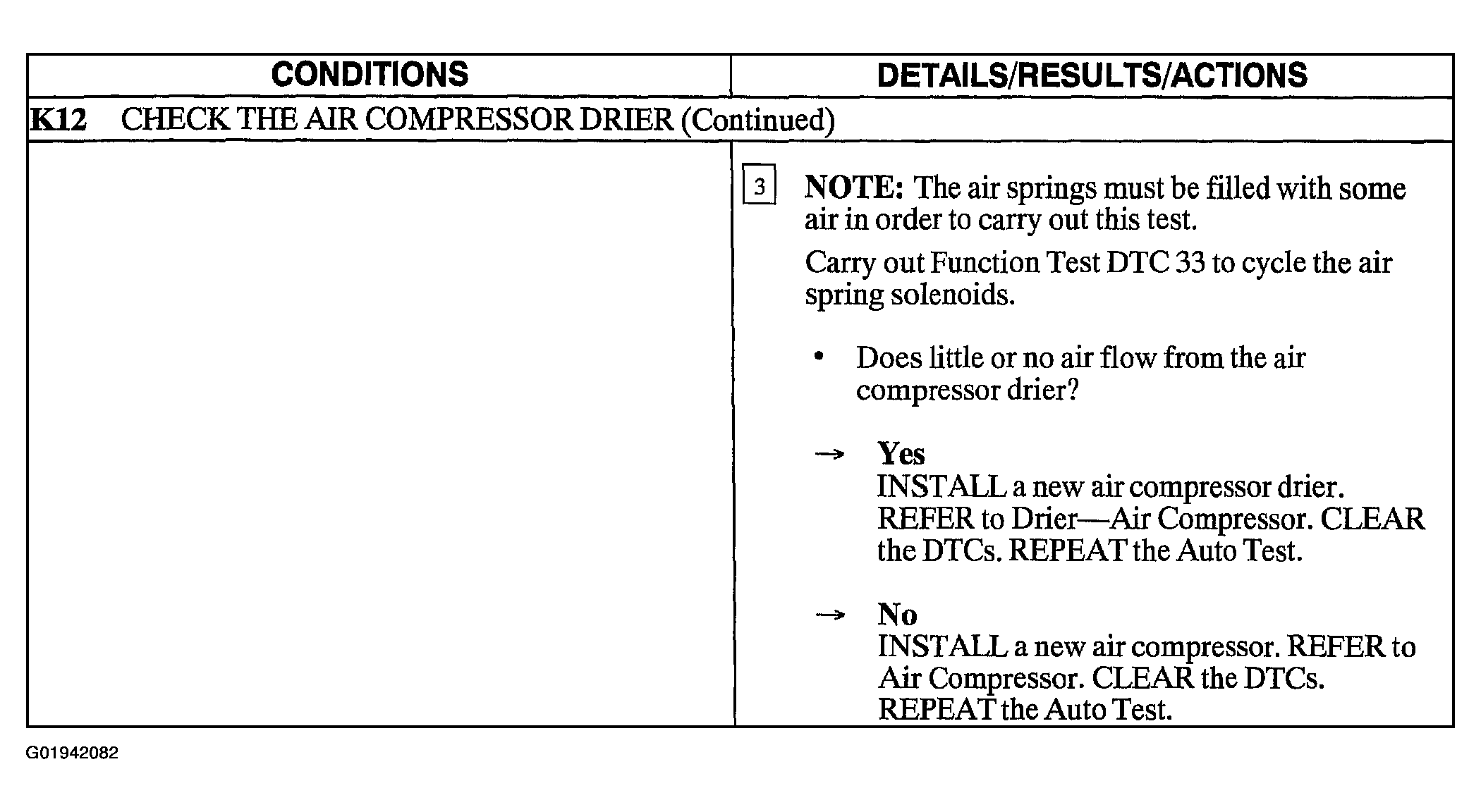

Fig 7: Pinpoint Test K: DTC 51, Unable To Detect Lowering Of Rear (Step K12 Cont.)

Courtesy of FORD MOTOR CO.
