Pinpoint Test Q: DTC 71, Air Suspension Height Sensor Circuit Open

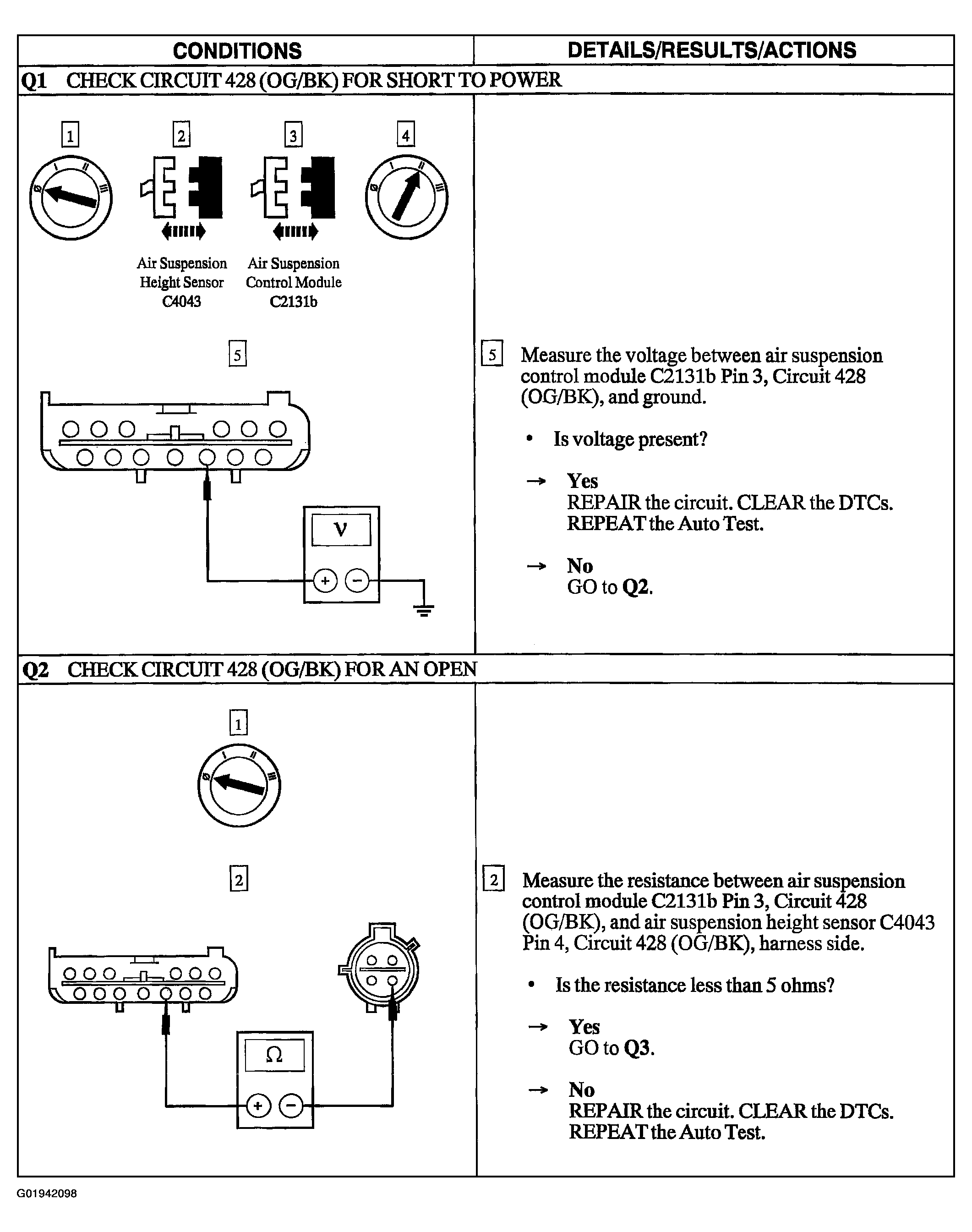

Fig 1: Pinpoint Test Q: DTC 71, Air Suspension Height Sensor Circuit Open (Steps Q1-Q2)

Courtesy of FORD MOTOR CO.

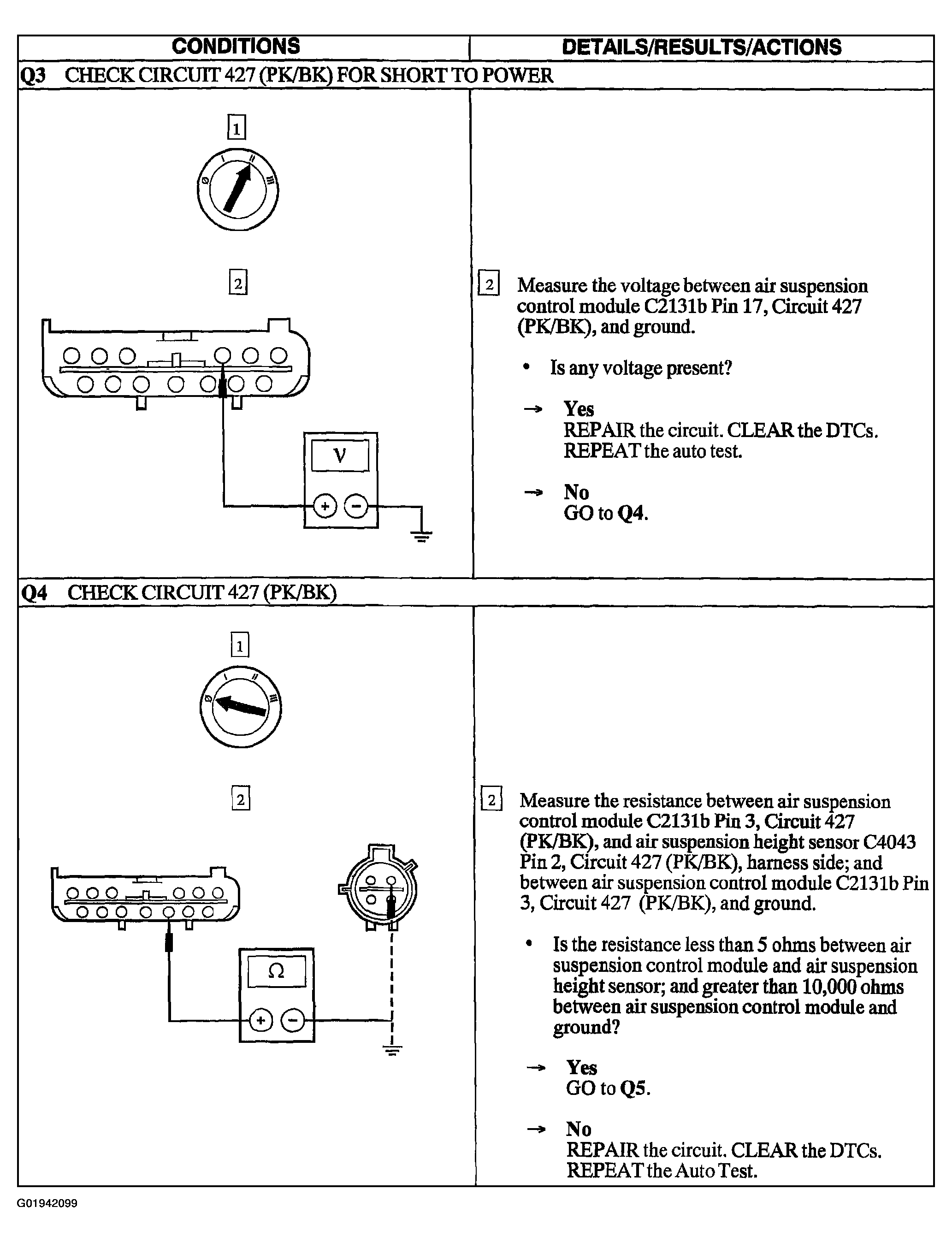

Fig 2: Pinpoint Test Q: DTC 71, Air Suspension Height Sensor Circuit Open (Steps Q3-Q4)

Courtesy of FORD MOTOR CO.

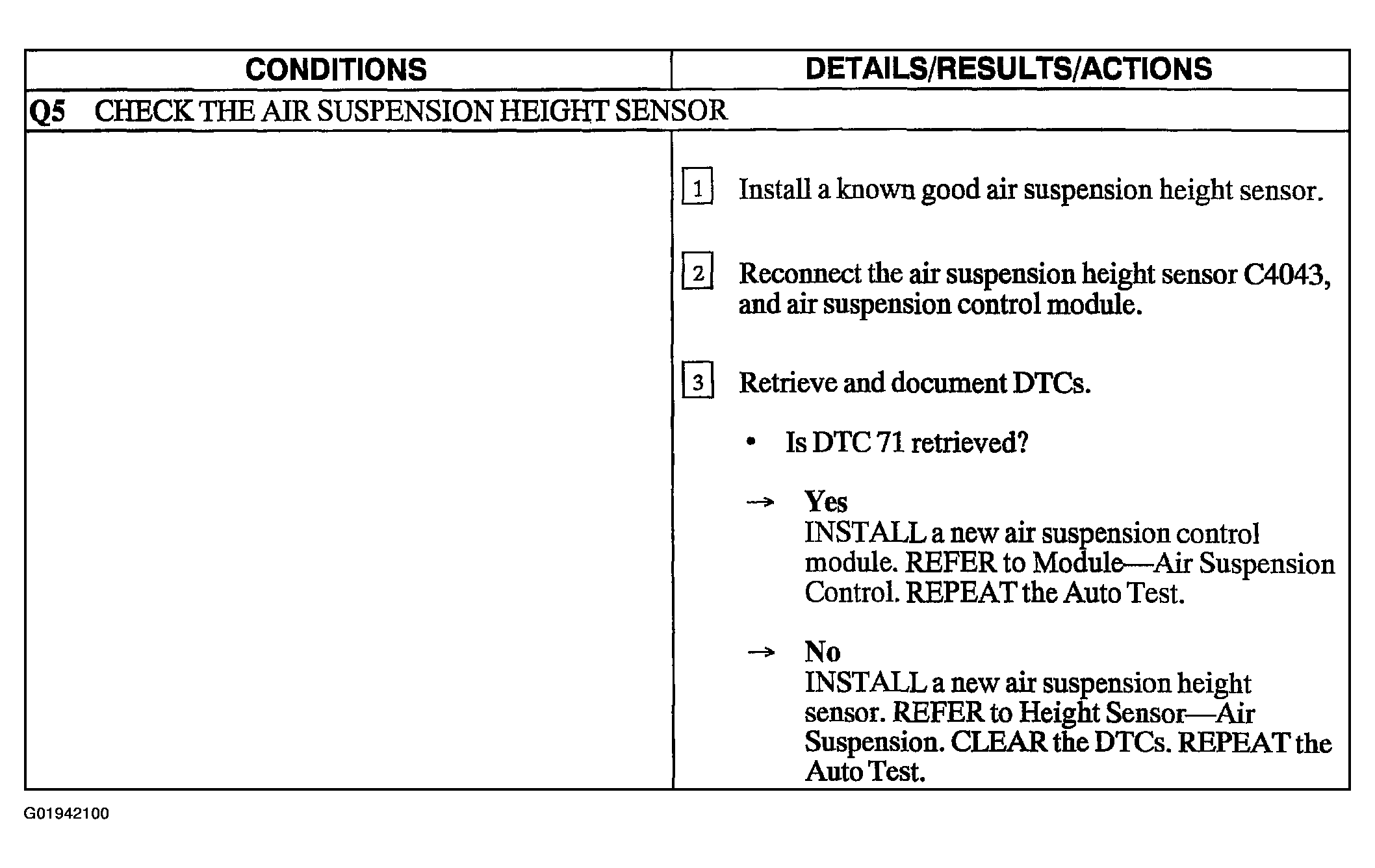

Fig 3: Pinpoint Test Q: DTC 71, Air Suspension Height Sensor Circuit Open (Step Q5)

Courtesy of FORD MOTOR CO.
