Pinpoint Test R: DTC 72, Did Not Detect Four Open Or Closed Door Signals

Fig 1: Pinpoint Test R: DTC 72, Did Not Detect Four Open Or Closed Door Signals (Step R1)

Courtesy of FORD MOTOR CO.

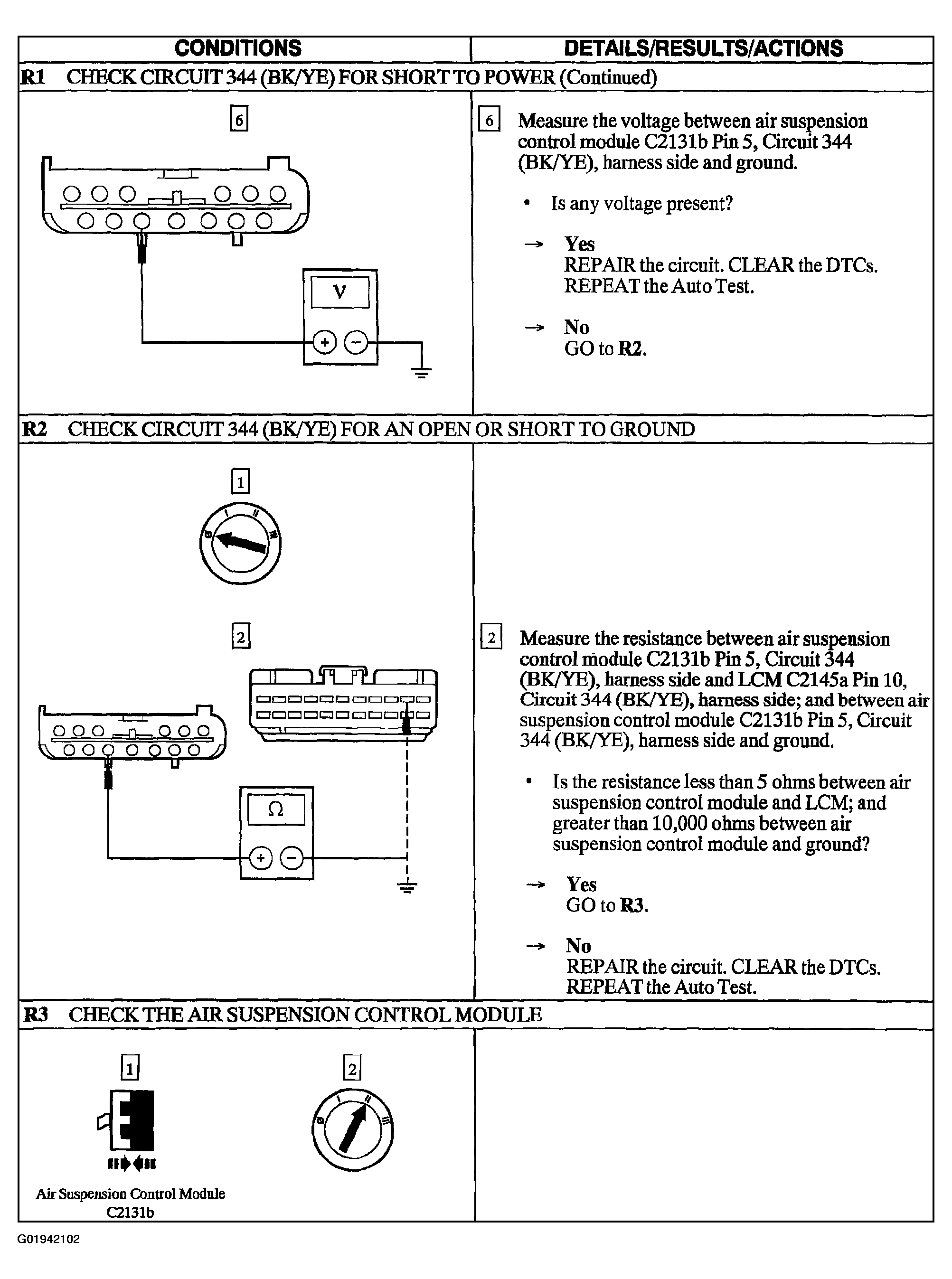

Fig 2: Pinpoint Test R: DTC 72, Did Not Detect Four Open Or Closed Door Signals (Steps R1 Cont.-R3)

Courtesy of FORD MOTOR CO.

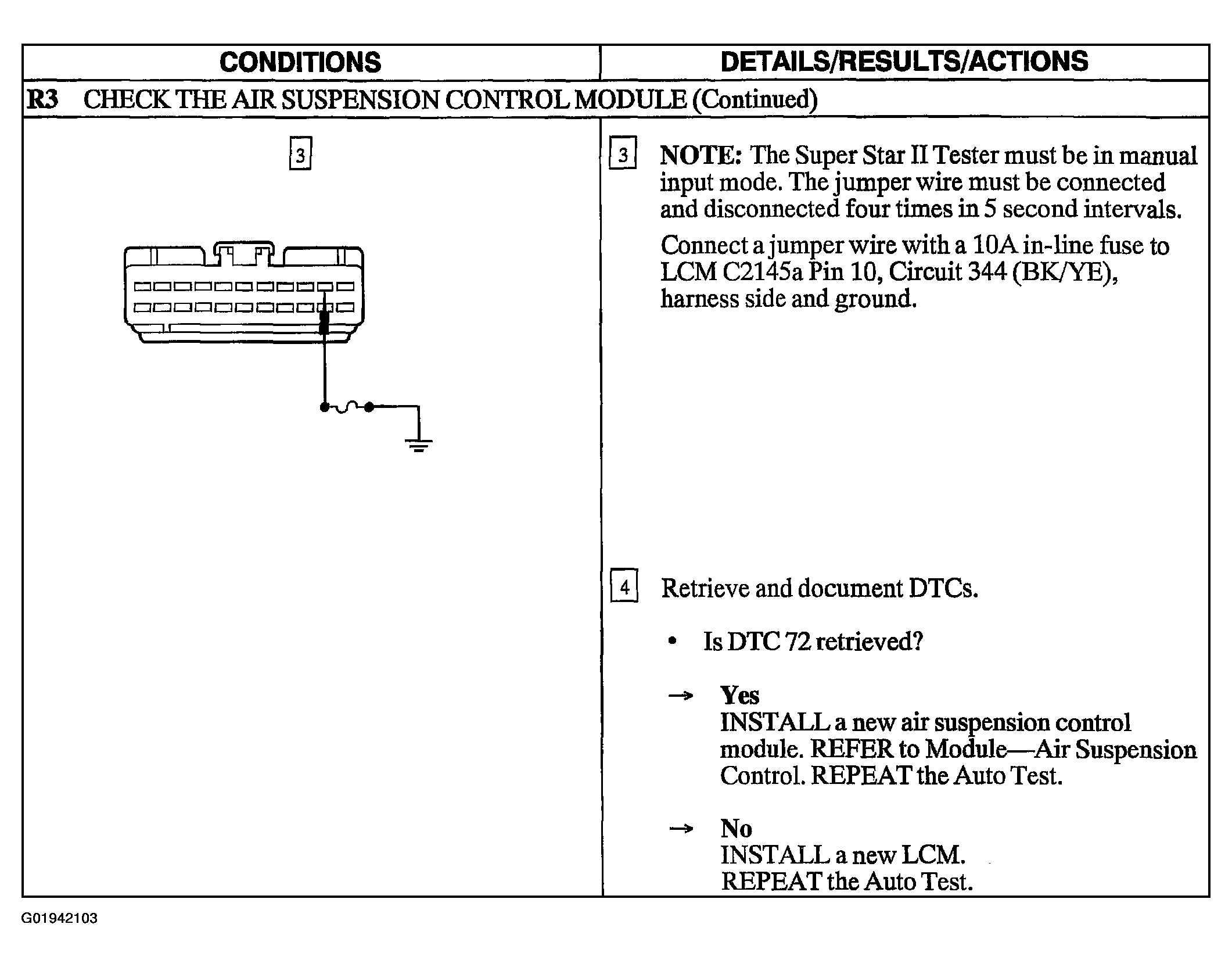

Fig 3: Pinpoint Test R: DTC 72, Did Not Detect Four Open Or Closed Door Signals (Step R3 Cont.)

Courtesy of FORD MOTOR CO.
