Pinpoint Test S: DTC 80, Battery Voltage High Or Low

NOTE: A recent jump start may cause these DTCs to set.

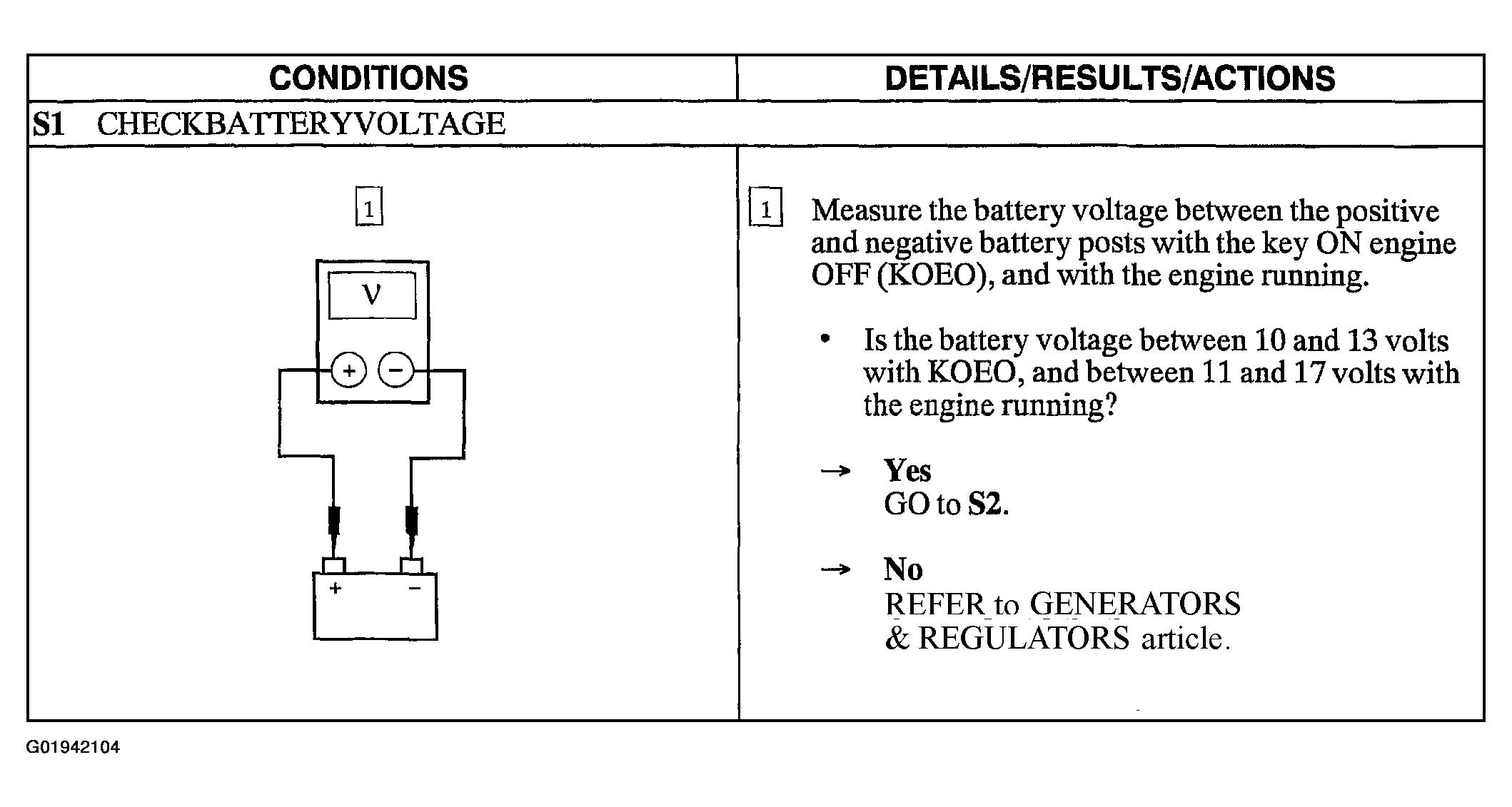

Fig 1: Pinpoint Test S: DTC 80, Battery Voltage High Or Low (Step S1)

Courtesy of FORD MOTOR CO.

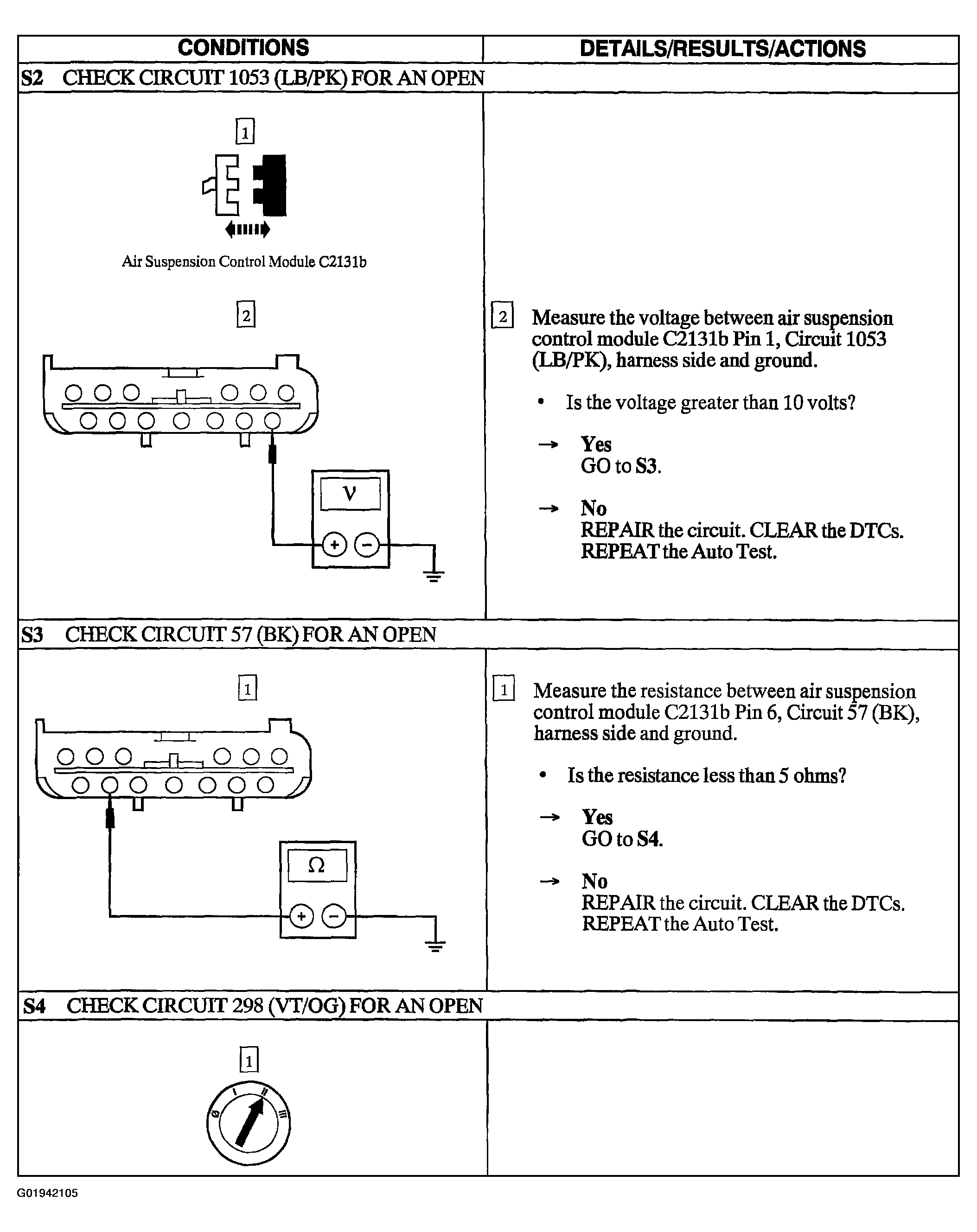

Fig 2: Pinpoint Test S: DTC 80, Battery Voltage High Or Low (Steps S2-S4)

Courtesy of FORD MOTOR CO.

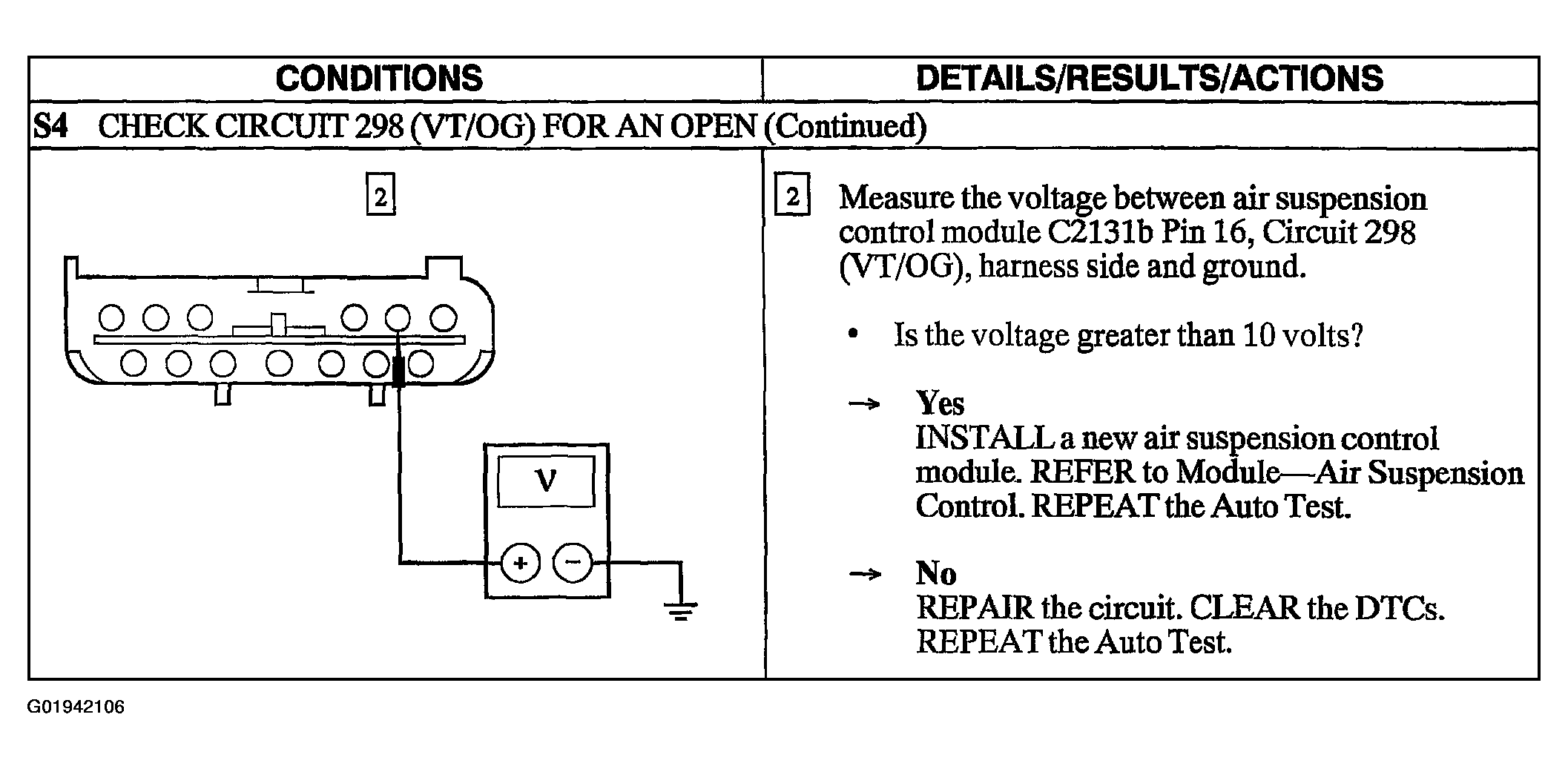

Fig 3: Pinpoint Test S: DTC 80, Battery Voltage High Or Low (Step S4)

Courtesy of FORD MOTOR CO.
