Switch - Air Suspension: Removal

WARNING: Before performing maintenance on any air suspension components, disconnect the power to the system by turning off the air suspension switch located on the LH side of the luggage compartment to prevent vehicle damage or personal injury.

Turn the air suspension switch off.
Disconnect the battery ground cable (14301).
Peel back the luggage compartment trim.
1. Remove the pushpins.
2. Peel back the luggage compartment trim.

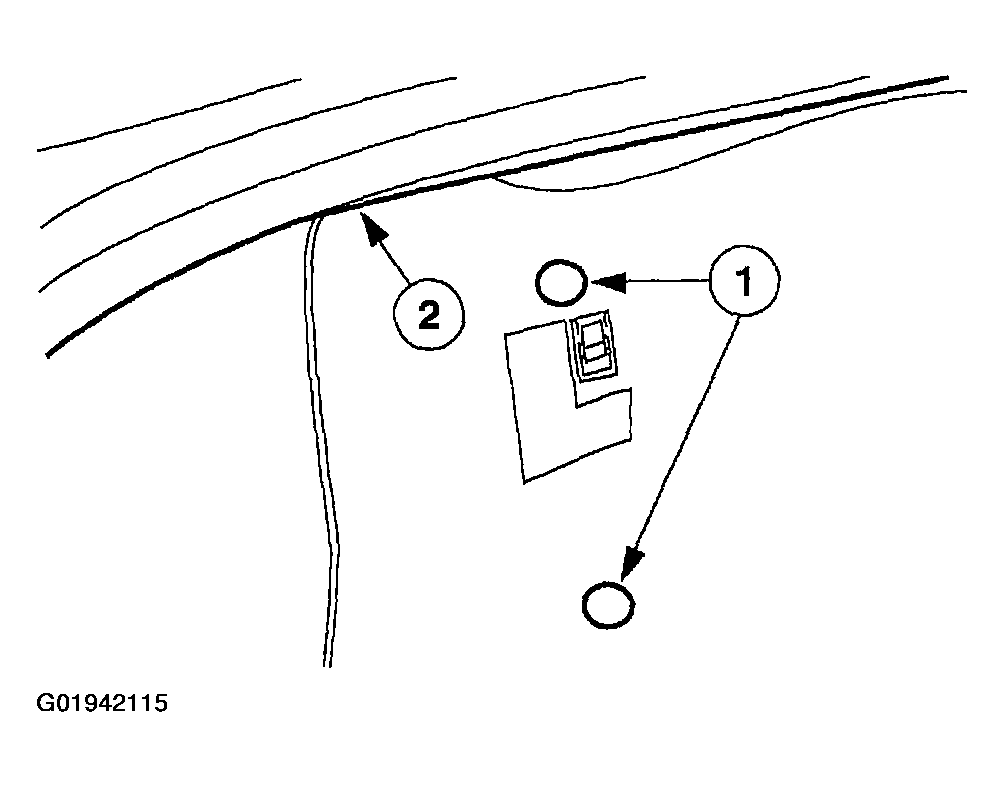

Fig 1: Identifying Pushpins & Luggage Compartment Trim
Courtesy of FORD MOTOR CO.
Remove the air suspension switch.
1. From behind the quarter panel reinforcement, depress the clips.
2. Remove the air suspension switch.

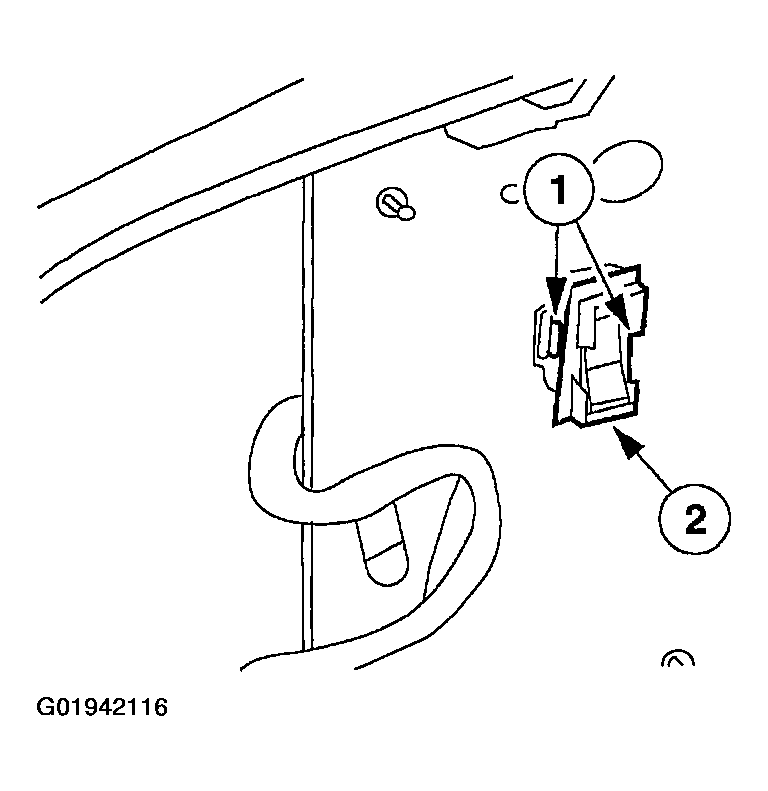

Fig 2: Identifying Air Suspension Switch Clips & Switch
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector.

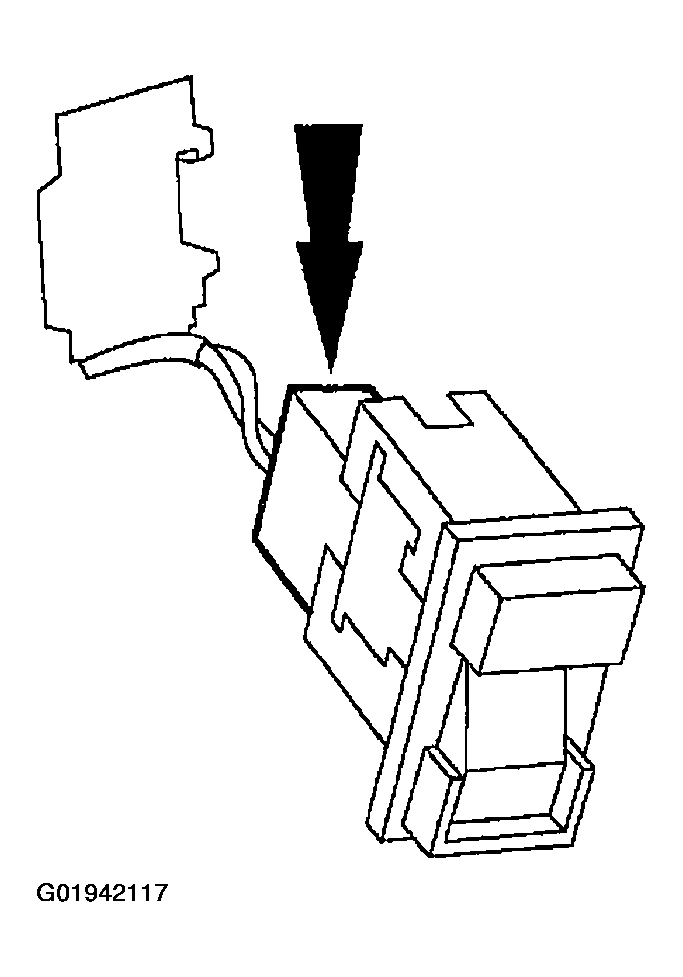

Fig 3: Identifying Air Suspension Switch Electrical Connector
Courtesy of FORD MOTOR CO.
