Drier - Air Compressor: Installation

NOTE: Inspect the O-ring for damage and replace as necessary. Lubricate the solenoid seal area with Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331A or equivalent meeting Ford specification ESE-M1C171-A.

NOTE: When installing the air lines, make sure the white air line is fully inserted into the fitting for correct installation.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

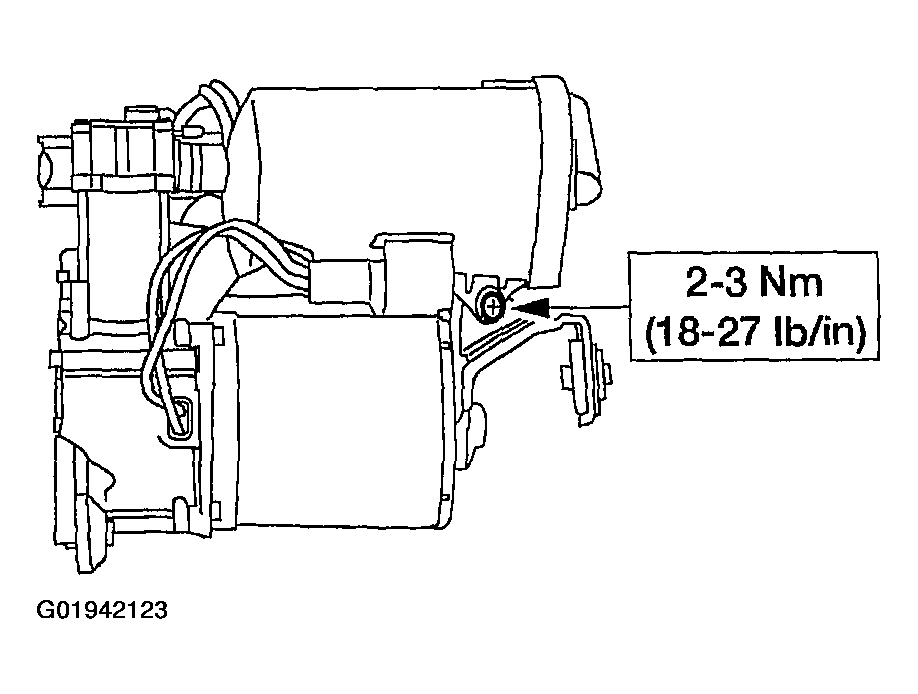

Fig 1: Tightening Air Compressor Drier Screw

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
