Solenoid Valve - Functional: Installation

    NOTE: Check the solenoid valve O-rings for abrasion or cuts. Replace O-rings as required using air spring connector repair kit (5B321).
    NOTE: Lightly apply Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-A or equivalent meeting Ford specification ESE-M1C171-A to the O-rings.

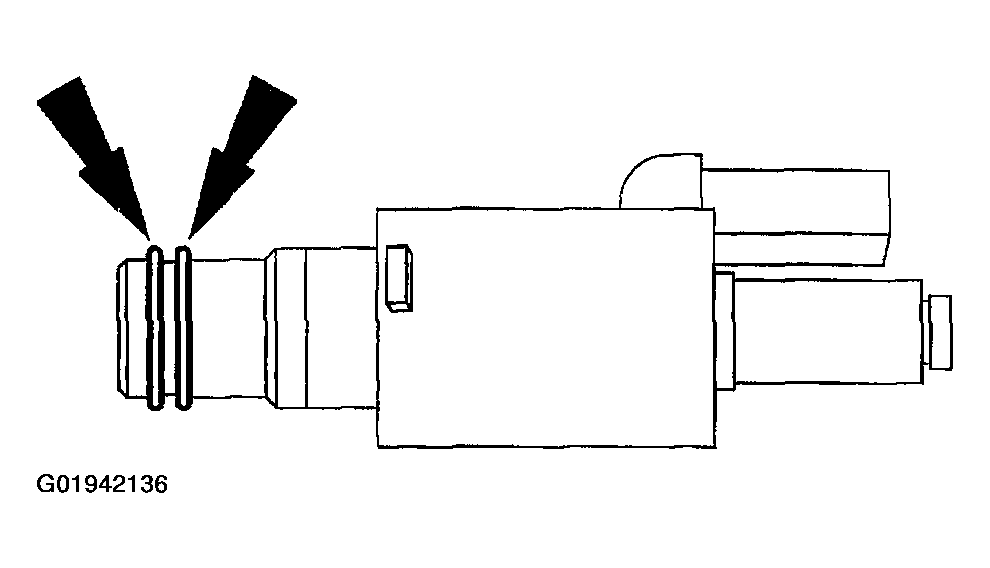

    Fig 1: Identifying Solenoid Valve O-Rings
    G01942136Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
