Removal & Installation

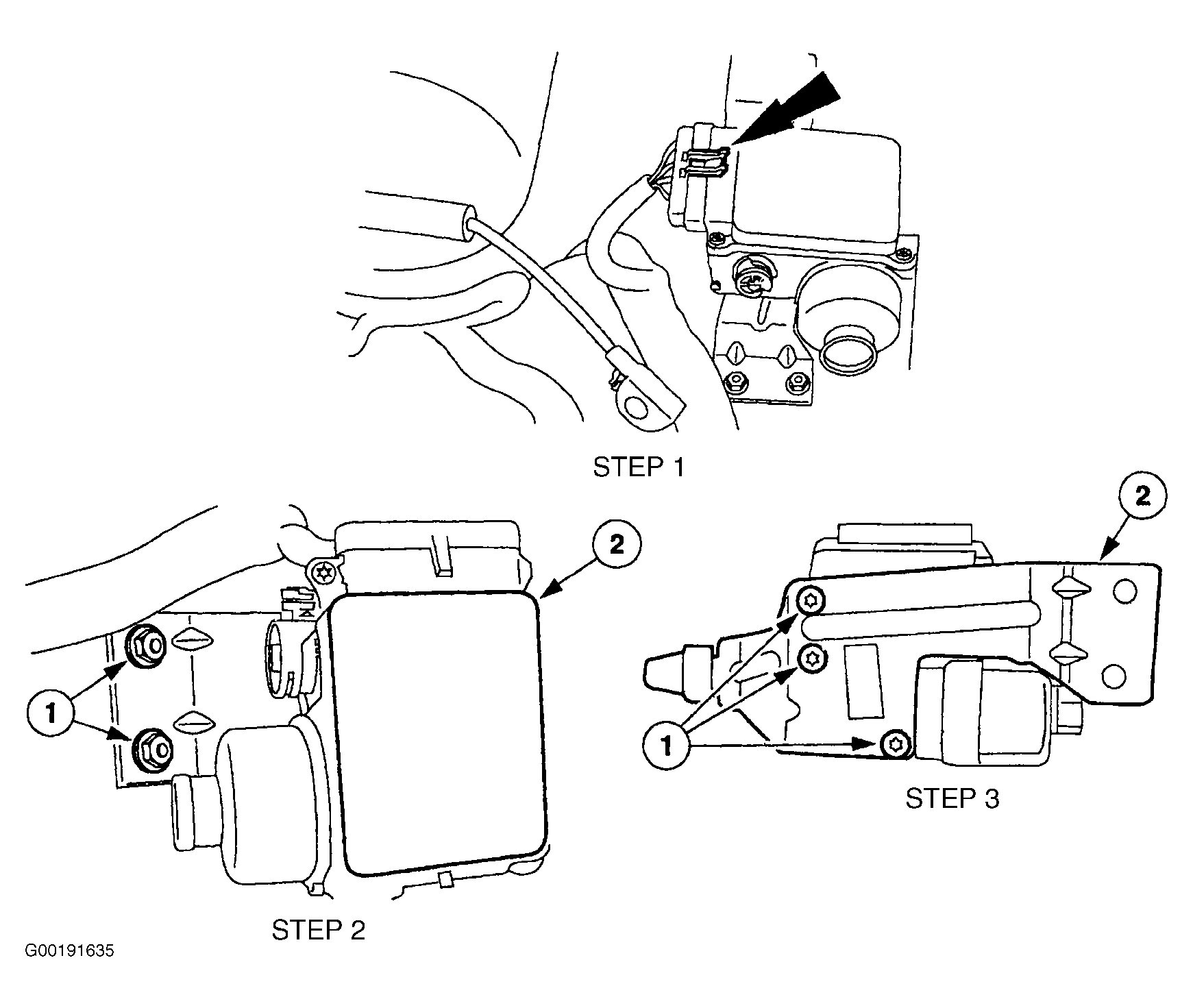

Remove cruise control servo/actuator cable. See CRUISE CONTROL CABLE . Disconnect cruise control servo/actuator harness connector. See STEP 1 in Fig 1. Remove cruise control servo/actuator bolts and remove cruise control servo/actuator and bracket assembly from fenderwell. See STEP 2 in Fig 1. Remove cruise control servo/actuator bracket screws and remove bracket from cruise control servo/actuator. See STEP 3 in Fig 1. To install, reverse removal procedure. Tighten bracket screws and bolts to specification. See TORQUE SPECIFICATIONS .
