Removal & Installation

Raise and support vehicle. Disconnect Vehicle Speed Sensor (VSS) harness connector (located at left rear of transmission tail housing). Remove VSS mounting bolt and remove VSS. See Fig 1. To install, reverse removal procedure.

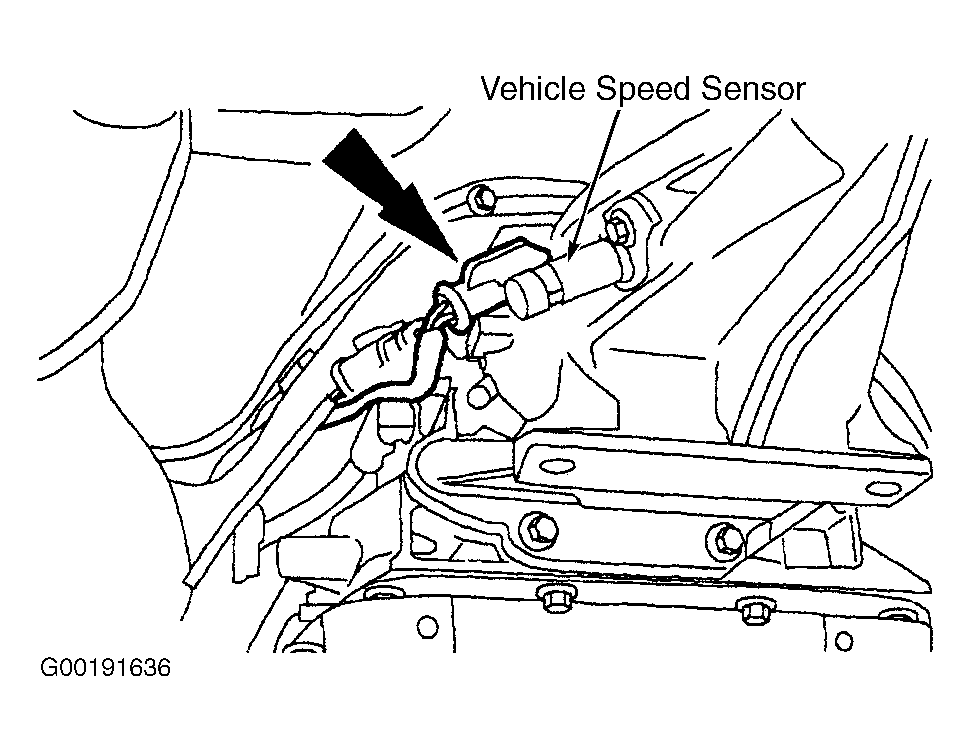

Fig 1: Removing & Installing Vehicle Speed Sensor

Courtesy of FORD MOTOR CO.
