Removal & Installation

Disconnect negative battery cable. Disconnect Anti-Lock Brake Control Module (ABCM) harness connectors. See STEP 1 in Fig 1. Remove ABCM-to-Hydraulic Control Unit (HCU) screws and remove ABCM. See STEP 2 in Fig 1. To install, reverse removal procedure.

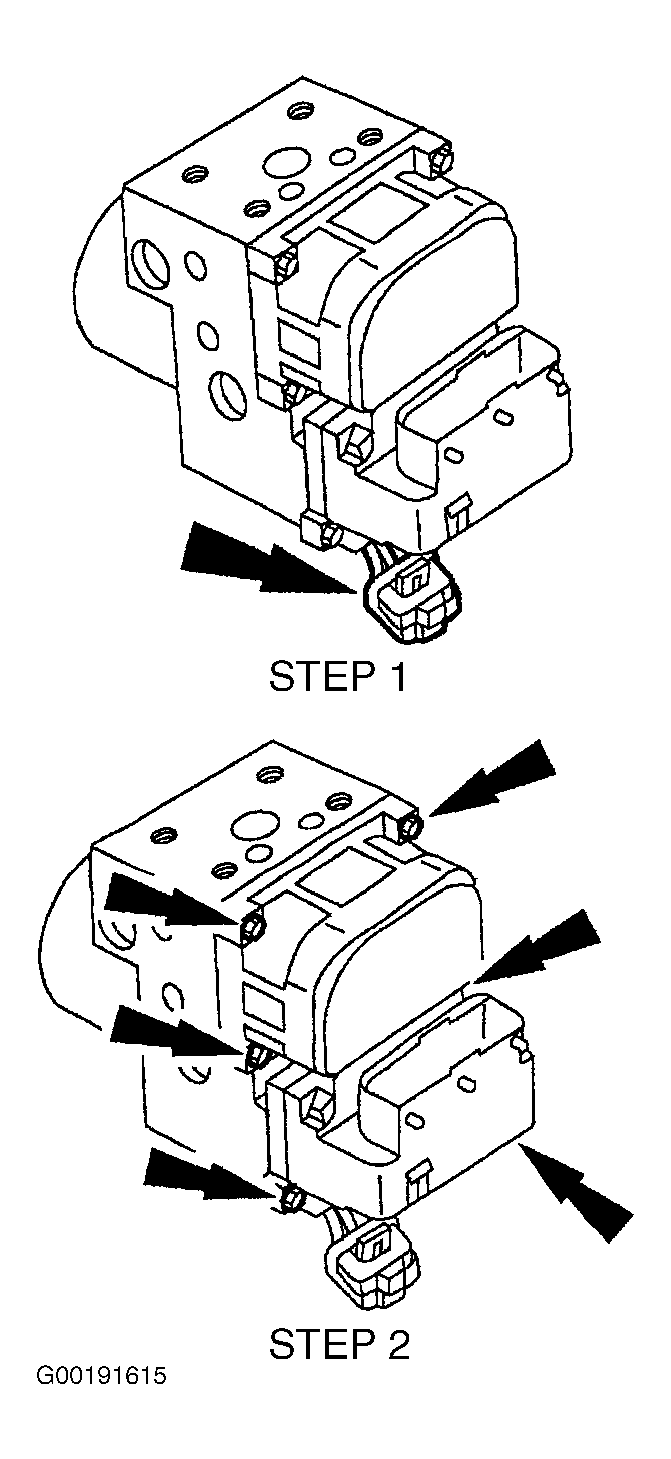

Fig 1: Removing & Installing Anti-Lock Brake Control Module
G00191615Courtesy of FORD MOTOR CO.
