Front Crankshaft Seal: Service and Repair

Crankshaft Front Oil Seal

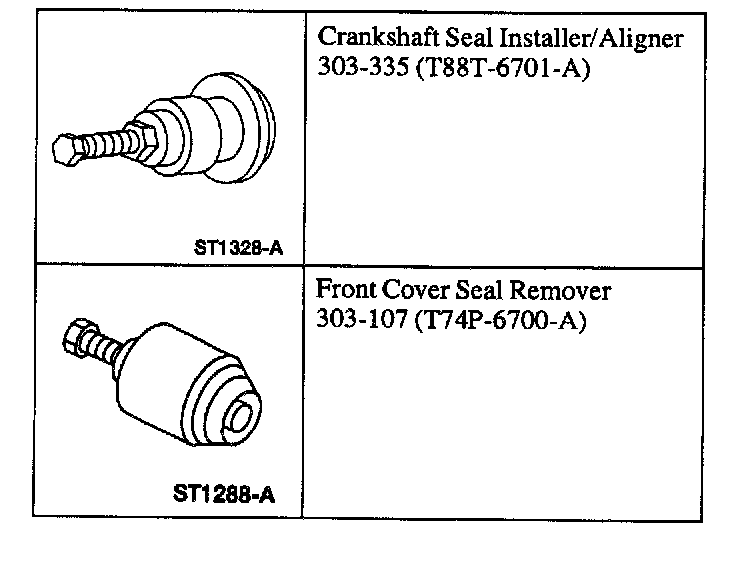

Special Tool(s)

Removal
1. Remove the crankshaft pulley.

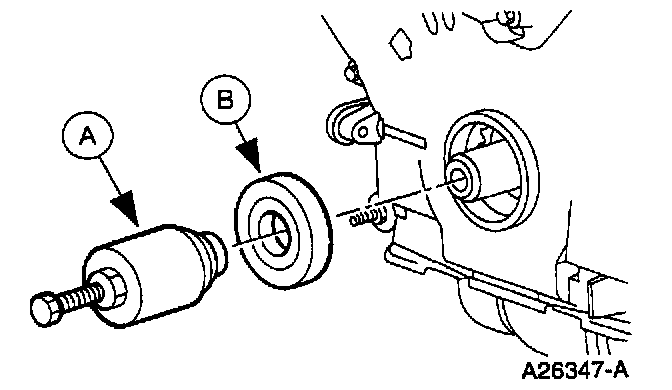

2. Use the (A) Front Cover Seal Remover to remove the (B) front cover seal.

Installation

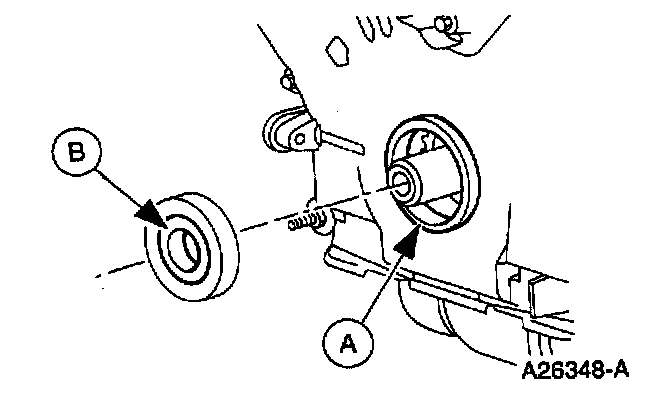

1. Lubricate the (A) engine front cover and the (B) front oil seal inner lip with clean engine oil.

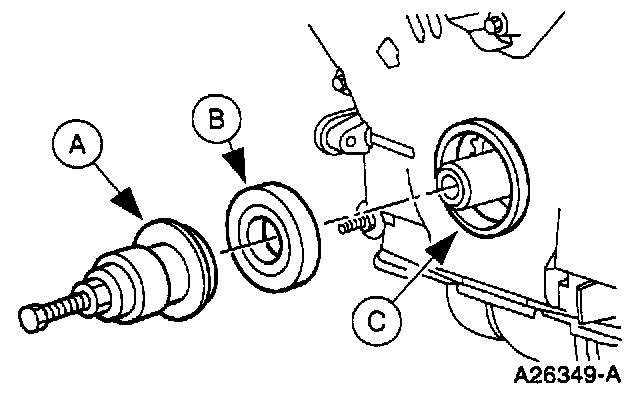

2. Use the (A) Crankshaft Seal Replacer/Cover Aligner to install the (B) crankshaft front seal into the (C) engine front cover.
3. Install the crankshaft pulley.
