Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

Removal and Installation
1. Remove the exhaust manifold.

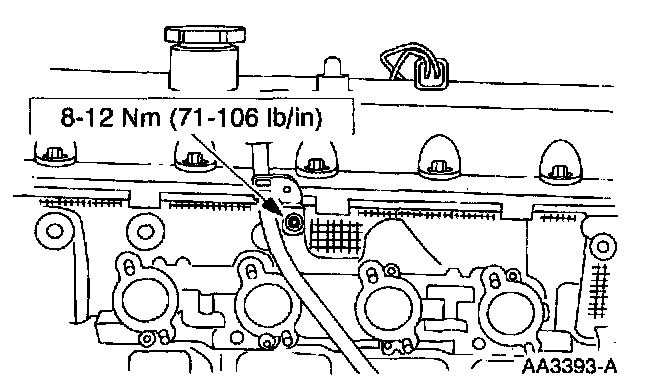

2. Remove the oil level indicator tube.
- Remove the bolt.
- Remove the tube.

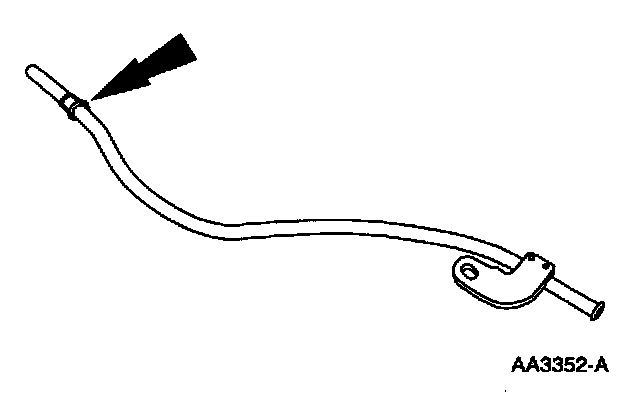

3. Inspect the O-ring seal.





4. To install, reverse the removal procedure.
