Idler Pulley: Service and Repair

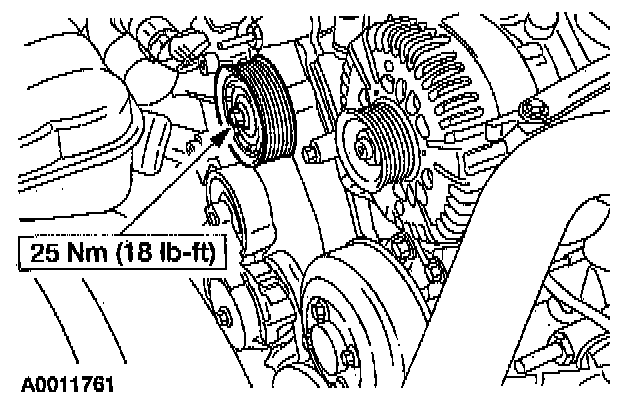

Belt Idler Pulley

Removal and Installation
1. Remove the drive belt.
2. Remove the bolt and the belt idler pulley.
3. To install, reverse the removal procedure.
