LH

Engine Mount-LH

Removal and Installation
1. Remove the oil level indicator tube.
2. Suitably support the engine.

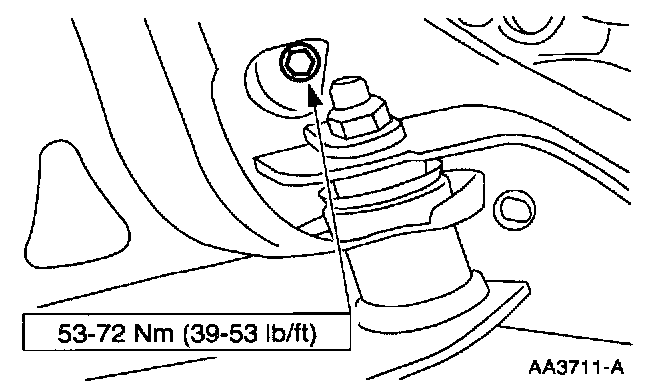

3. Remove the three bolts.

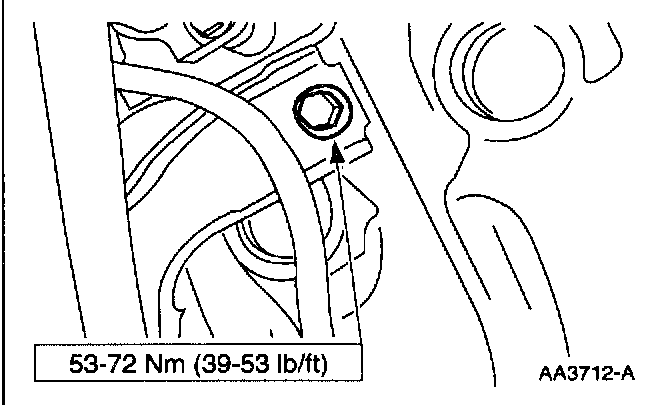

4. Remove the three bolts.








5. To install, reverse the removal procedure.
