Drive Belt Tensioner: Service and Repair

Belt Tensioner

Removal
1. Remove the drive belt.

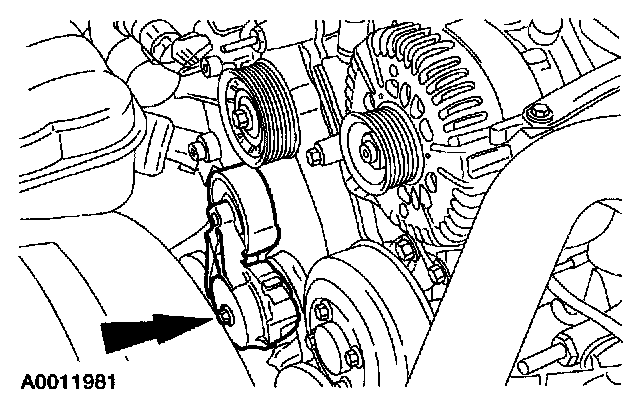

2. Remove the bolt and the belt tensioner.

Installation





1. Install the belt tensioner.
Tighten the bolt in two stages:
- Stage 1: Tighten to 10 Nm (89 inch lbs.).
- Stage 2: Tighten an additional 90°.
2. Install the drive belt.
