Engine Block Heater: Service and Repair

Block Heater

Removal and Installation
1. Drain the cooling system.
2. Raise the vehicle.

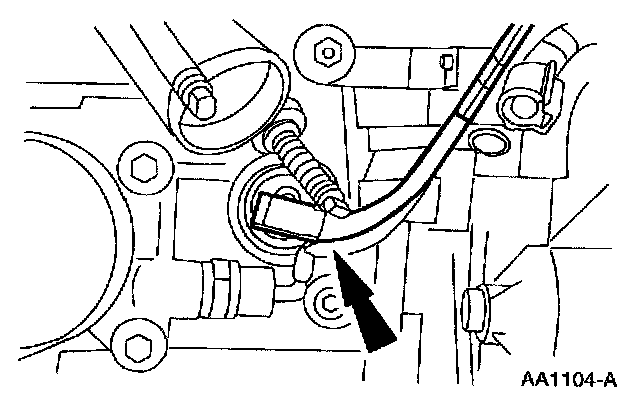

3. Disconnect the block heater power cable from the block heater.

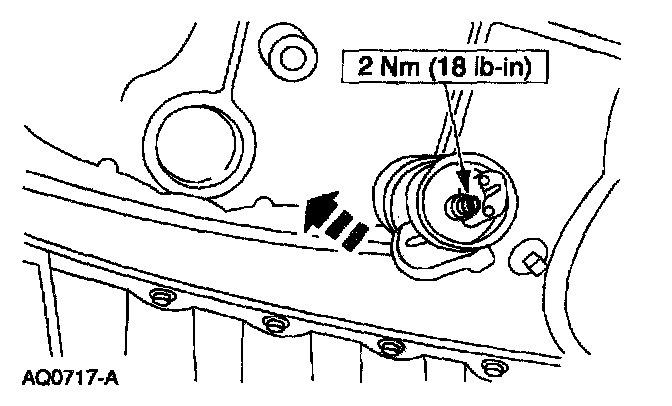

4. CAUTION: Do not loosen the block heater retaining screw more than necessary for removal.

Remove the block heater.

5. CAUTION: Make sure the power cable is routed and secured away from rotating or hot components or damage to the cable may occur.

To install, reverse the removal procedure.
