Line - Evaporator to Compressor Suction

REMOVAL

NOTE: Replacement of the suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

1. Recover the refrigerant.







2. Disconnect the evaporator to compressor suction line spring lock coupling from the suction accumulator.

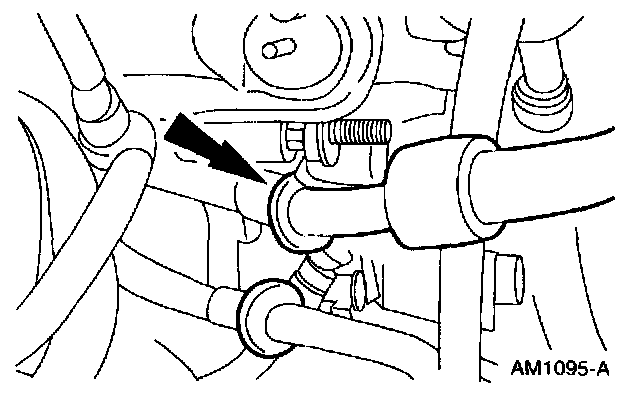

3. Disconnect the evaporator to compressor suction line spring lock coupling from the compressor manifold and tube assembly and remove the evaporator to compressor suction line.

INSTALLATION
1. To install, reverse the removal procedure.
- Lubricate the refrigerant system with the correct amount of clean PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.
- Install new O-ring seals lubricated in clean PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.

2. Evacuate, leak test, and charge the refrigerant system.
