Line - Condenser to Evaporator

REMOVAL
1. Recover the refrigerant.

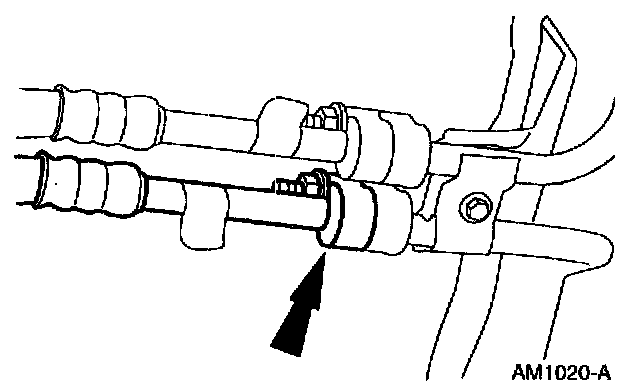

2. Disconnect the condenser to evaporator tube from the A/C evaporator core. Refer to the spring lock coupling disconnect and connect procedure.







3. Disconnect the condenser to evaporator tube from the A/C condenser core and remove the condenser to evaporator tube.

INSTALLATION







1. To install, reverse the removal procedure.
- Lubricate the O-ring seal with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.
