Home >> Ford >> 2002 >> Crown Victoria V8-4.6L VIN W >> Repair and Diagnosis >> Maintenance >> Drive Belt >> Locations

Drive Belt: Locations

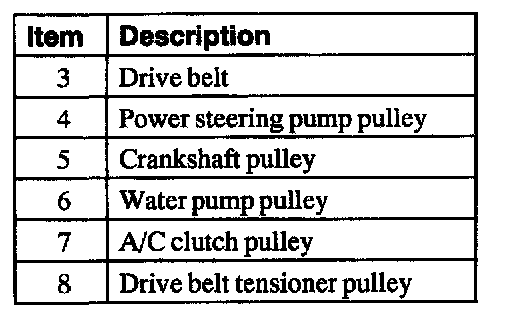

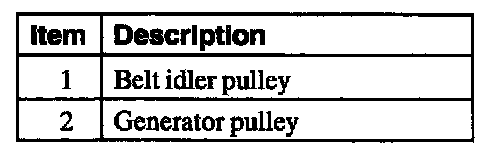

Part 1 of 3





Part 2 of 3





Part 3 of 3

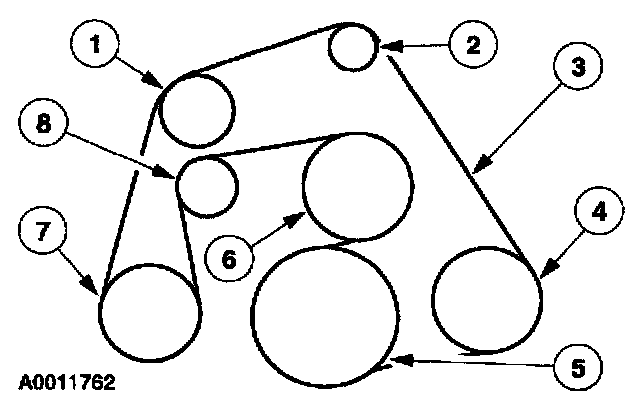

Accessory Drive
