Diagnostic Trouble Code Tests and Associated Procedures

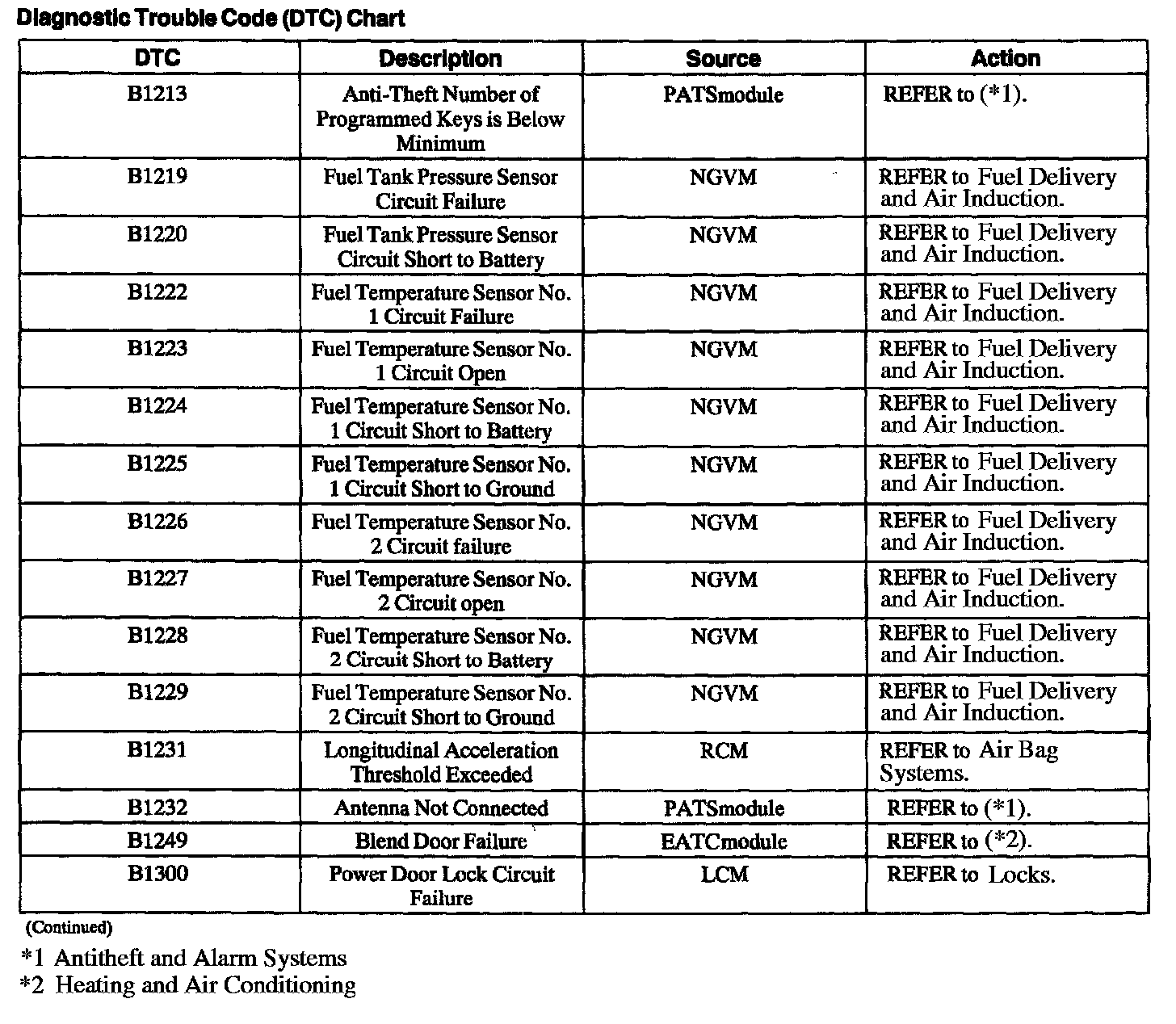

DTC Chart B1213 - B1300:

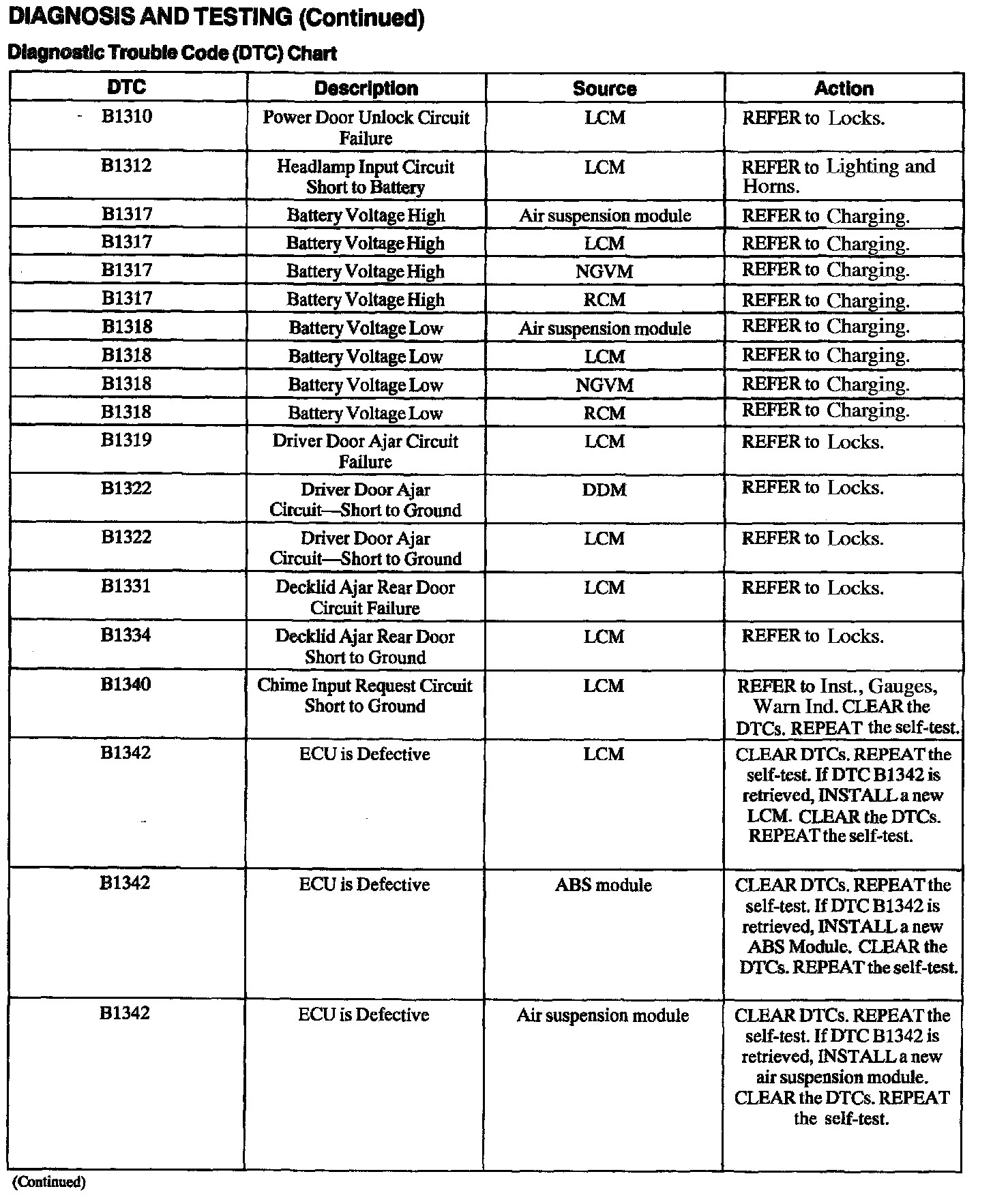

DTC Chart B1310 - B1342:

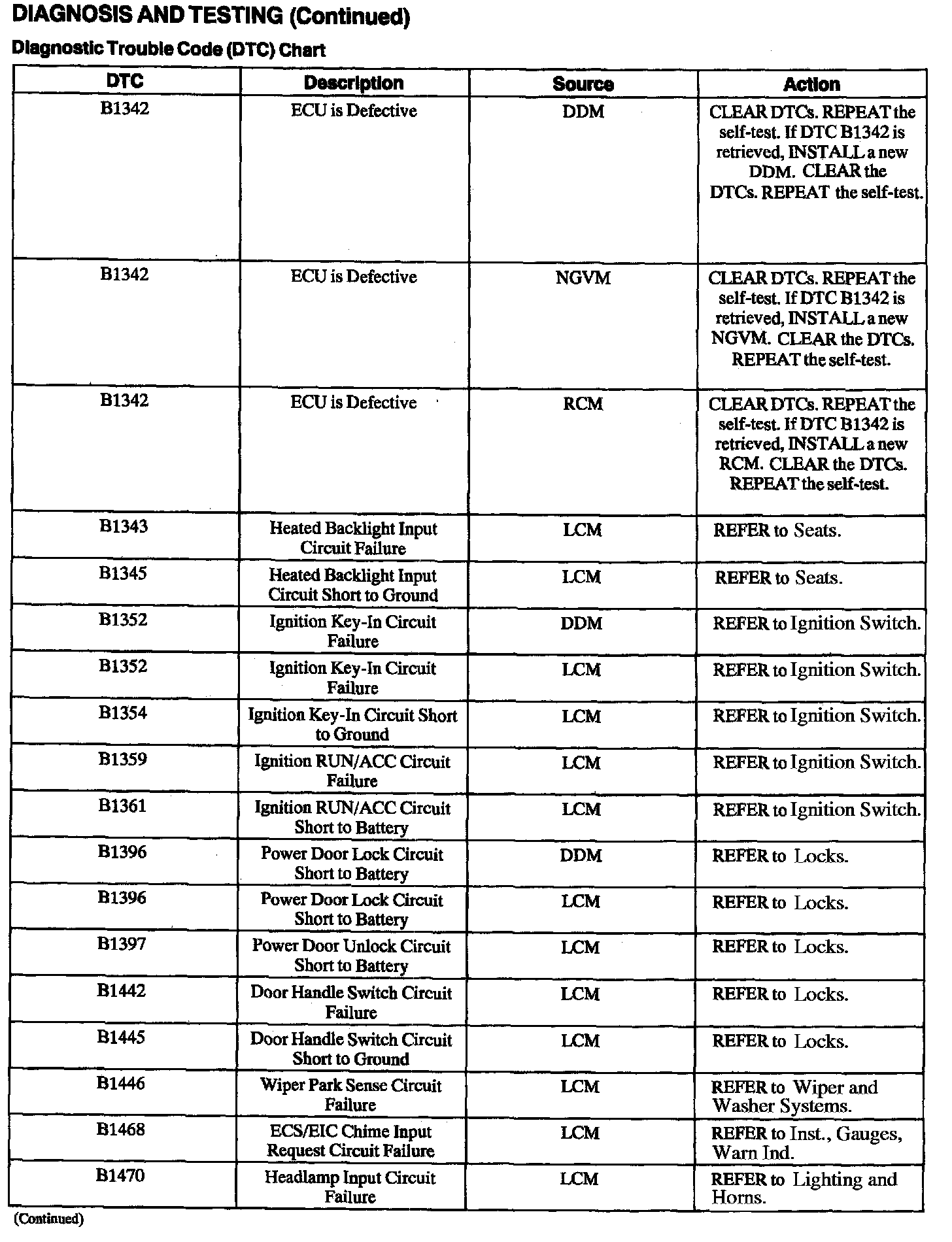

DTC Chart B1342 - B1470:

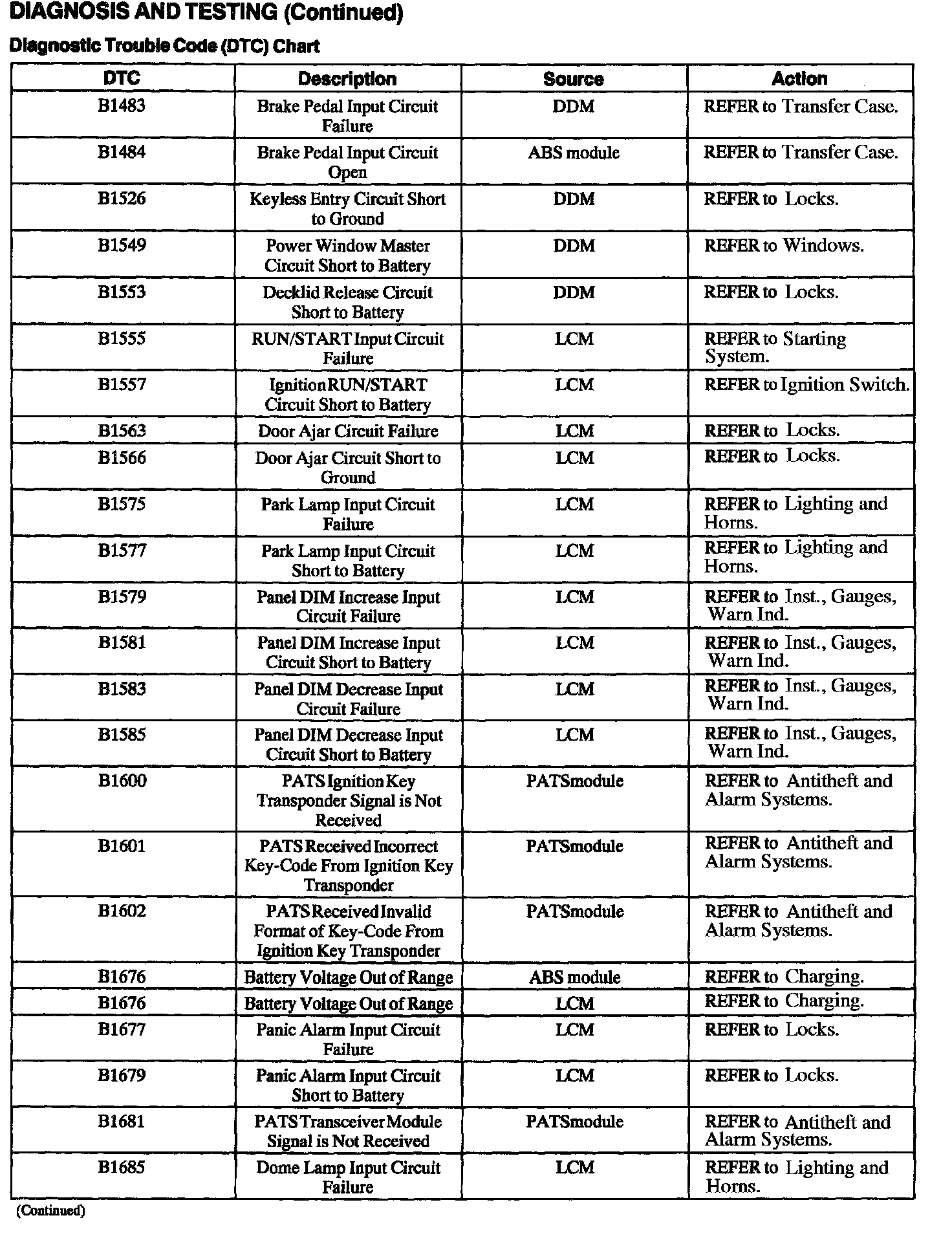

DTC Chart B1483 - B1685:

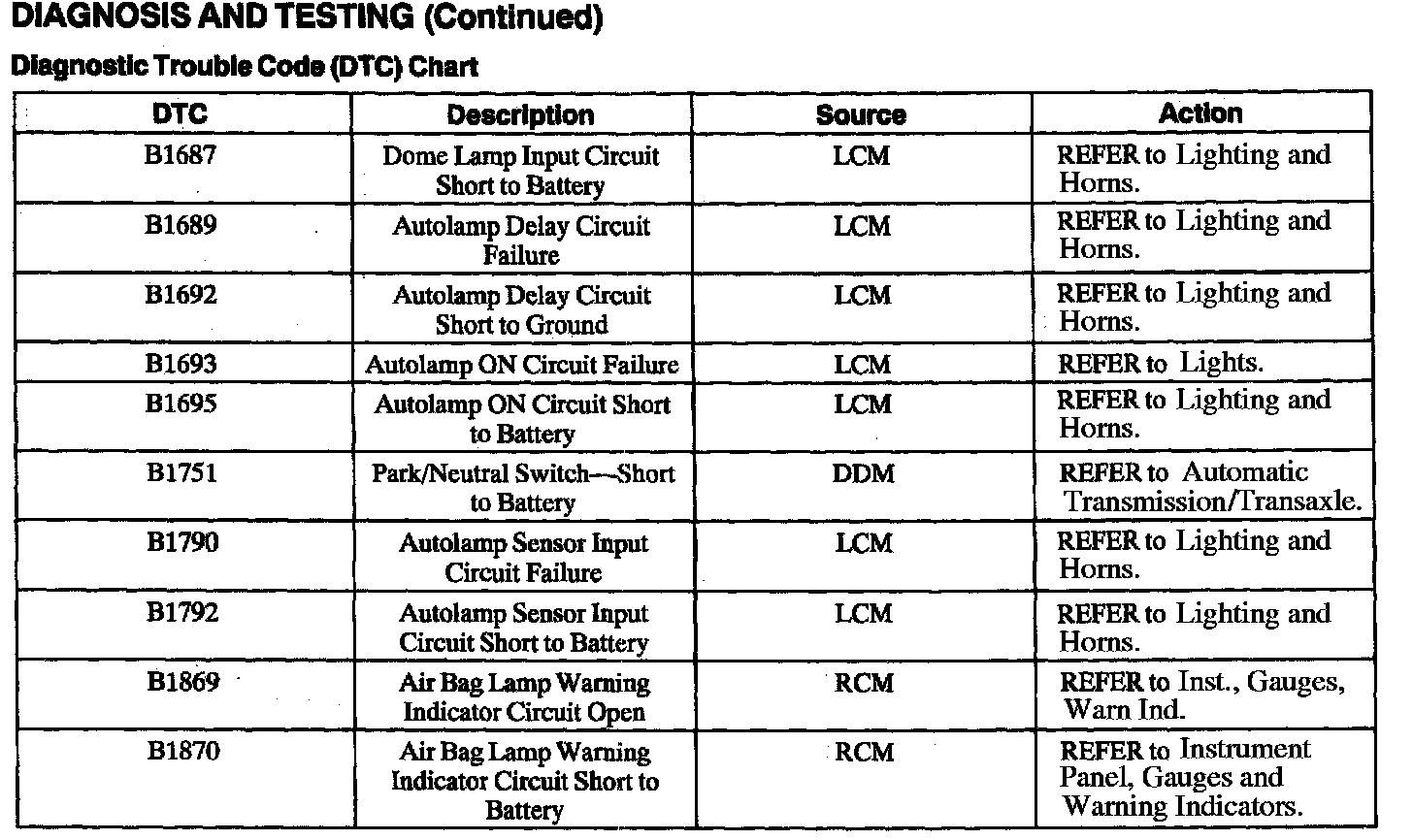

DTC Chart B1687 - B1870:

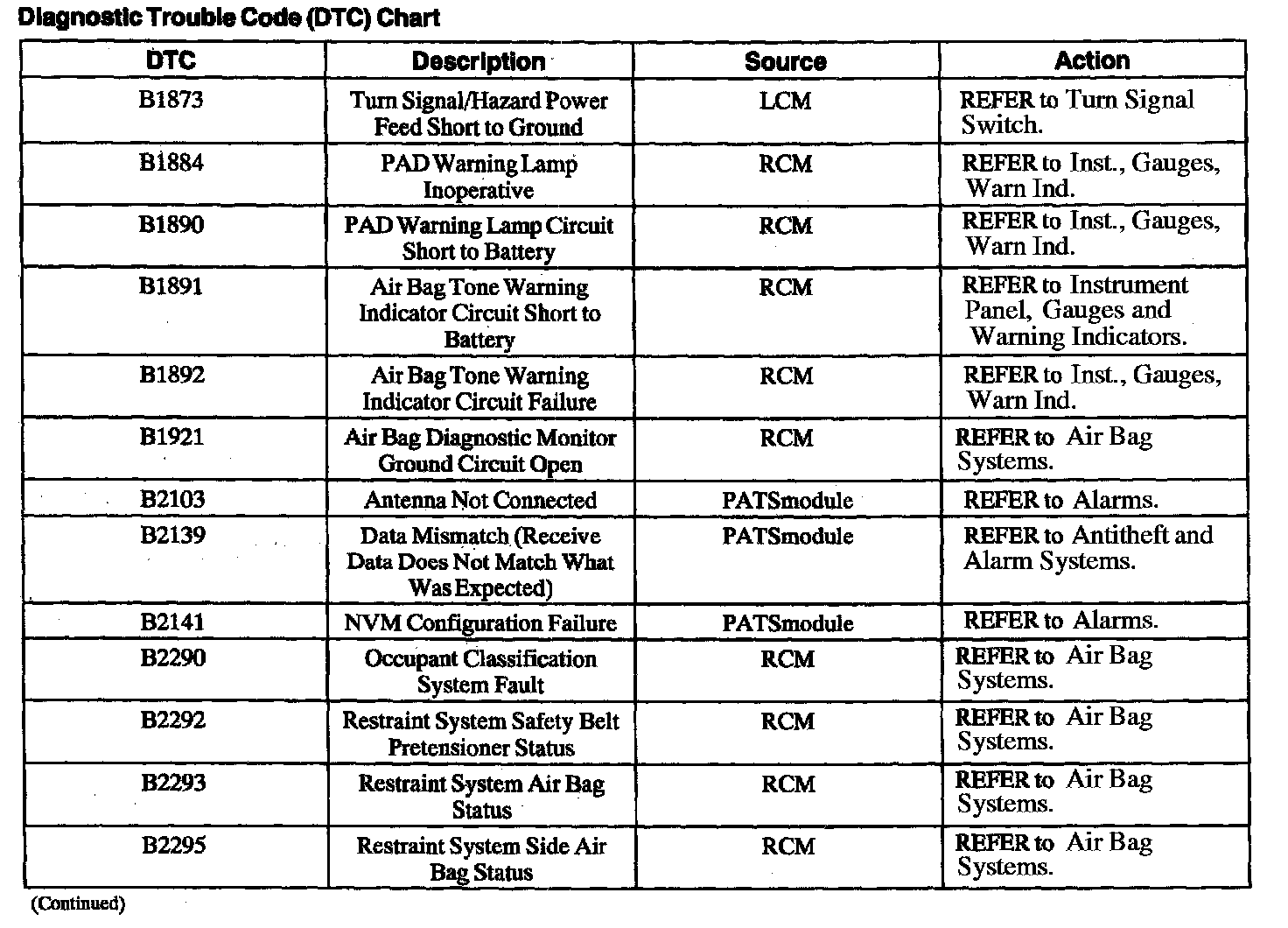

DTC Chart B1873 - B2295:

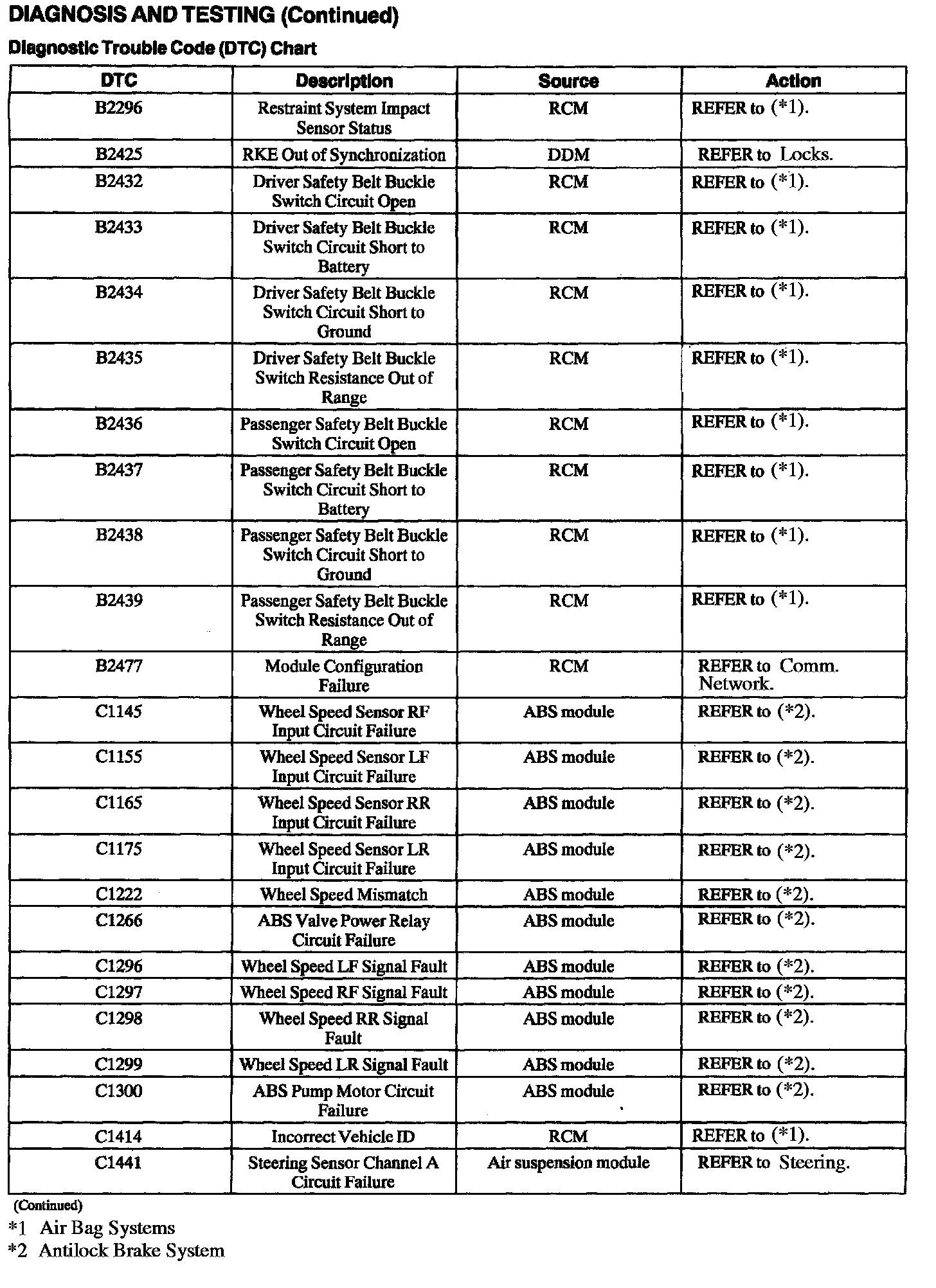

DTC Chart B2296 - C1441:

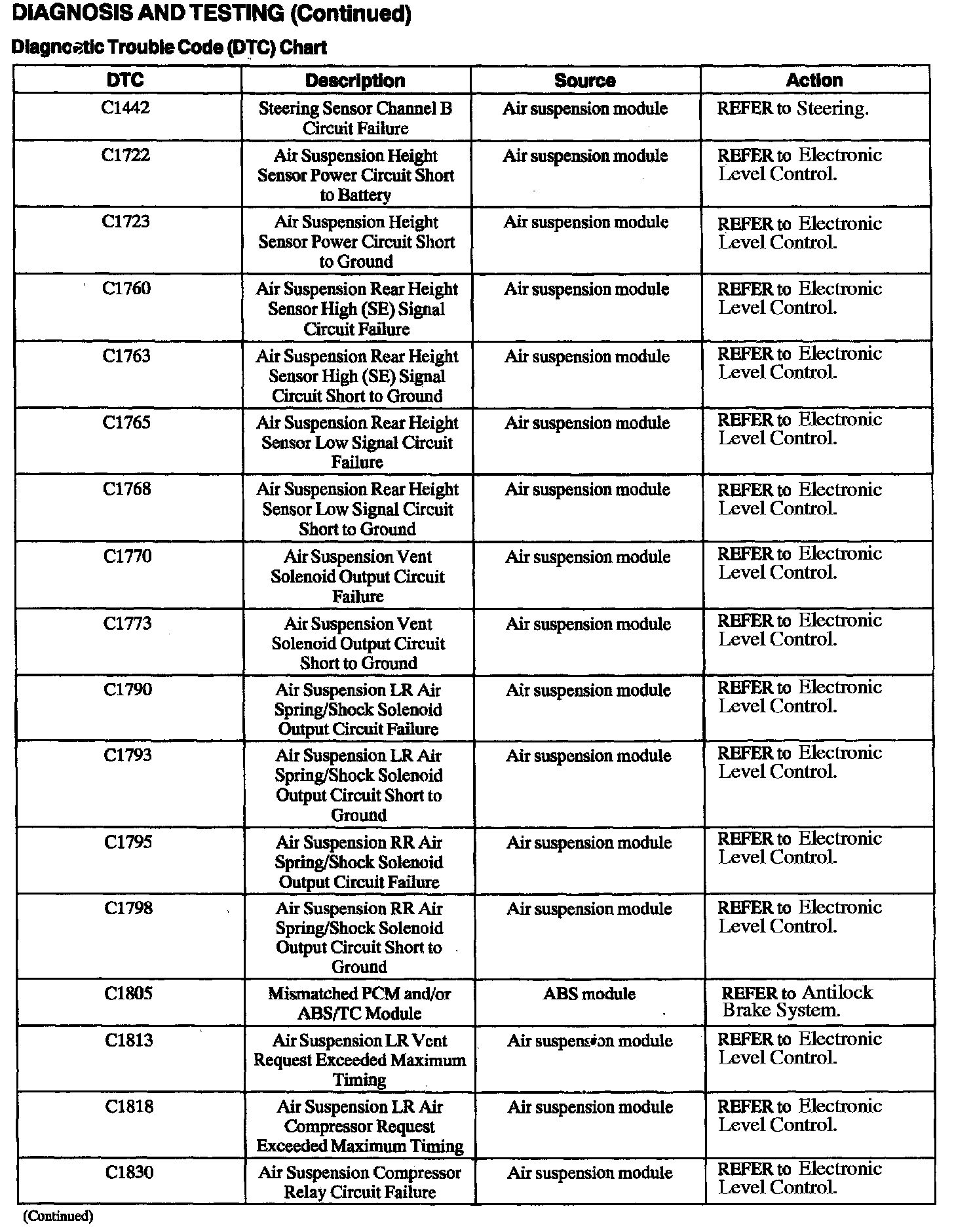

DTC Chart C1442 - C1830:

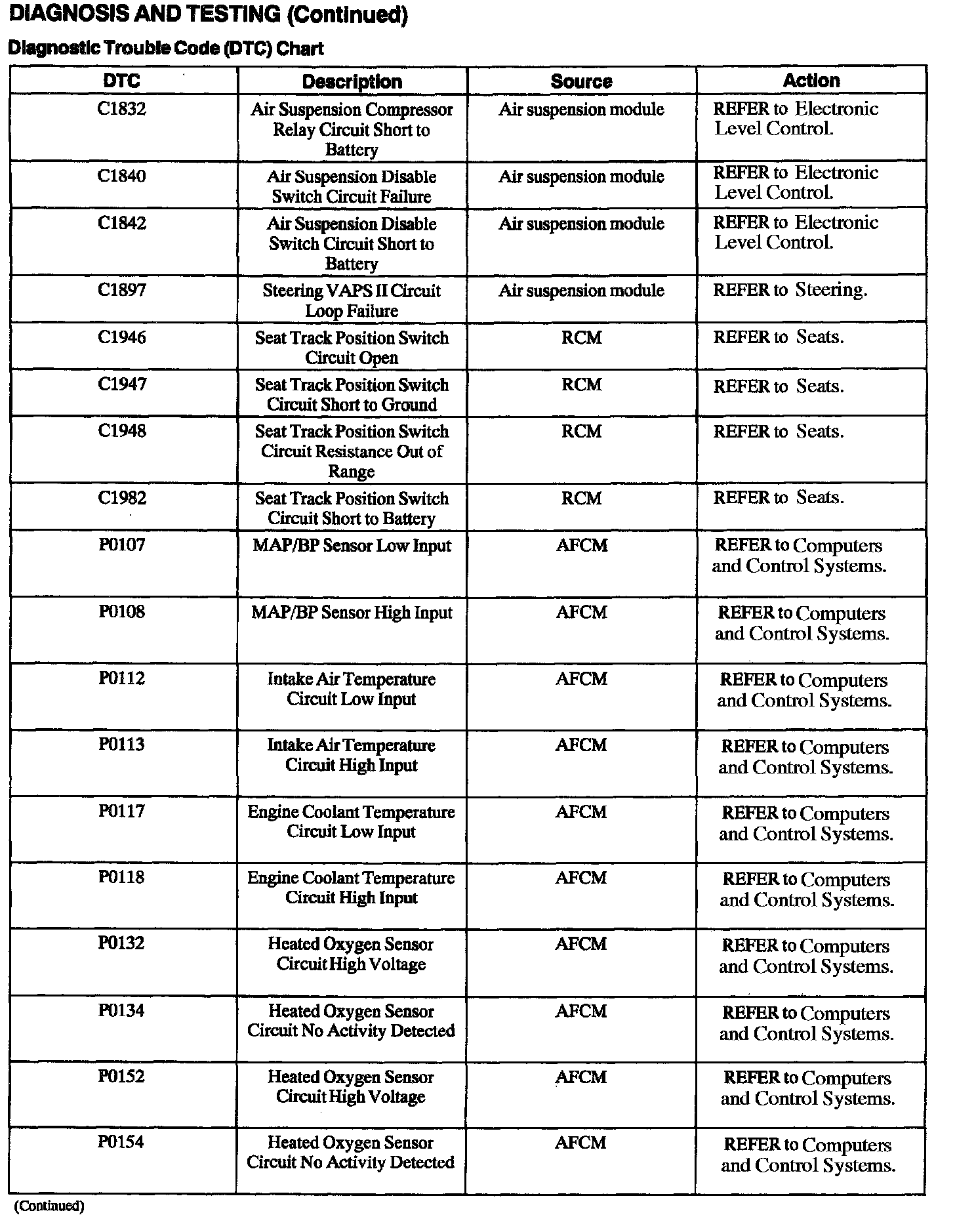

DTC Chart C1832 - P0154:

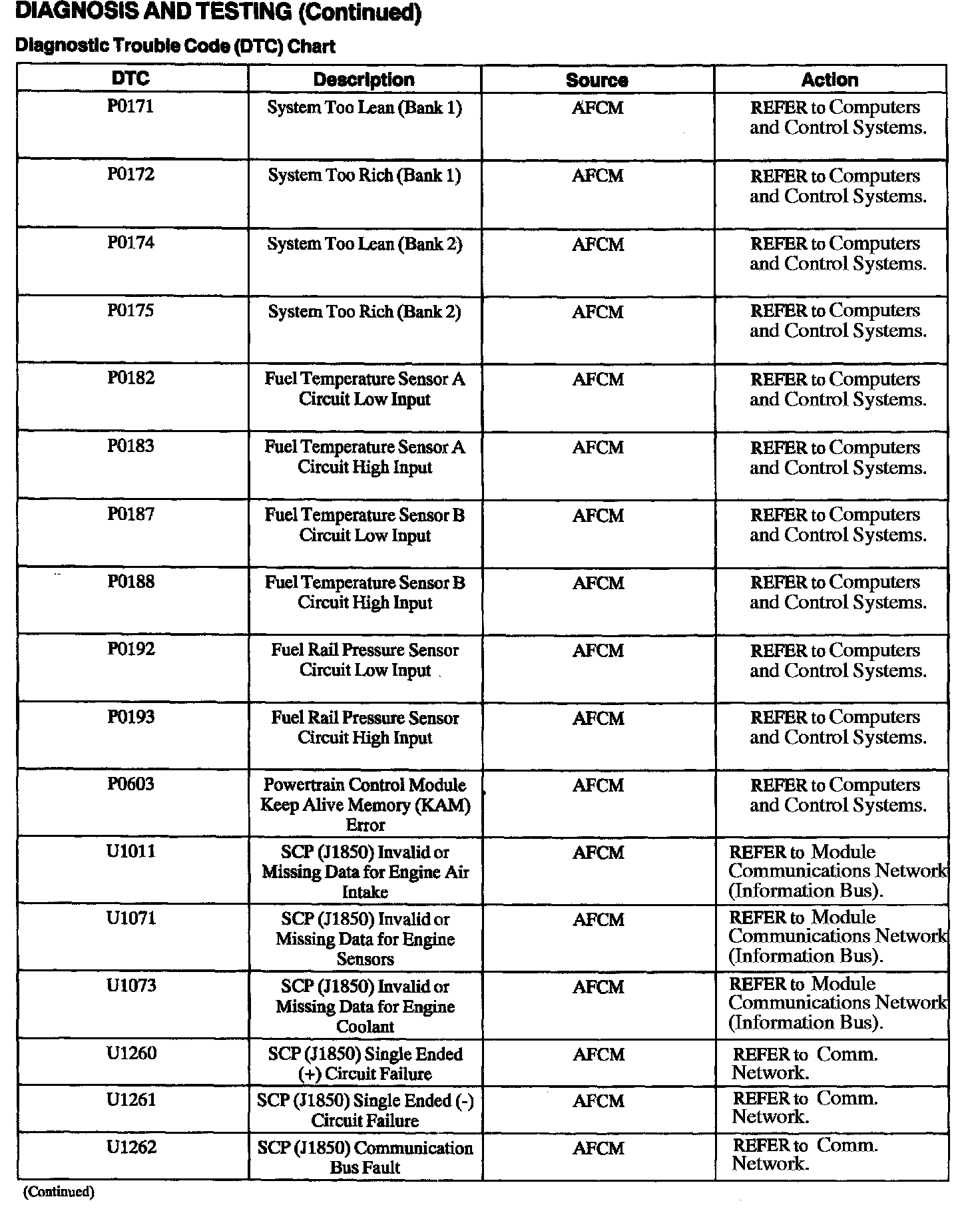

DTC Chart P0171 - U1262:

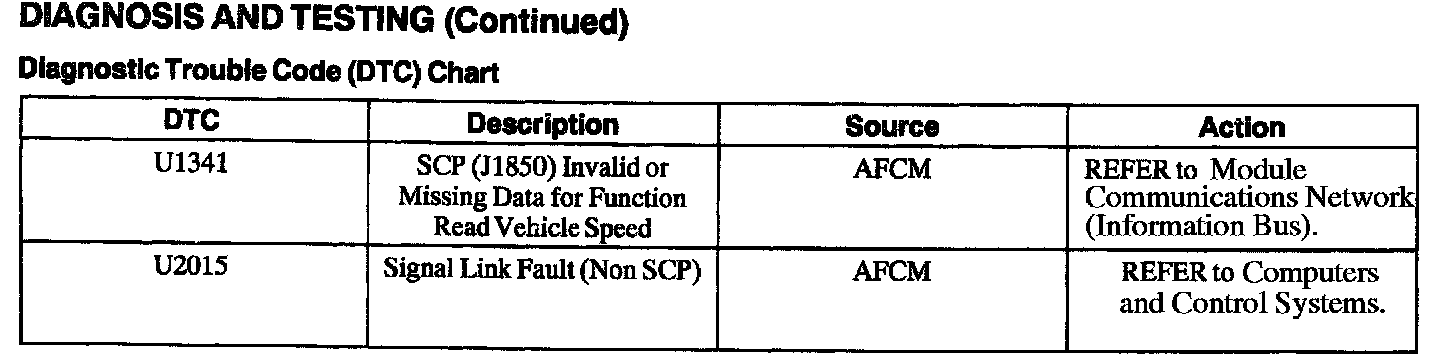

DTC Chart U1341 - U2015:





..
