Initial Inspection and Diagnostic Overview

Inspection and Verification
1. Verify the customer concern by running the engine.

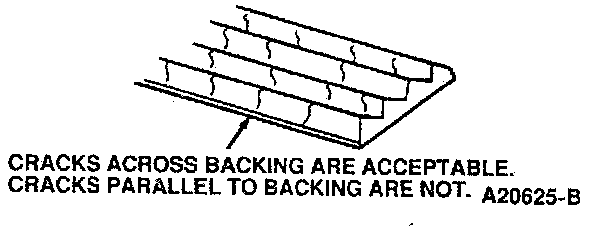

V-Ribbed Serpentine Drive Belt With Cracks Across Ribs

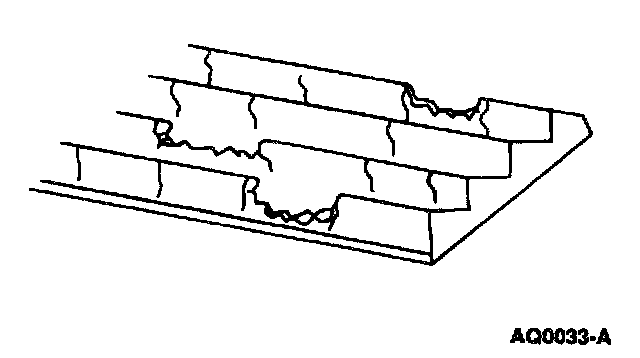

V-Ribbed Belt With Chunks of Rib Missing

2. Inspect the drive belt for chunking, fraying and wear.
3. Check the drive belt for correct routing.
