Air Cleaner Housing: Service and Repair

REMOVAL
1. Remove the air cleaner outlet tube.

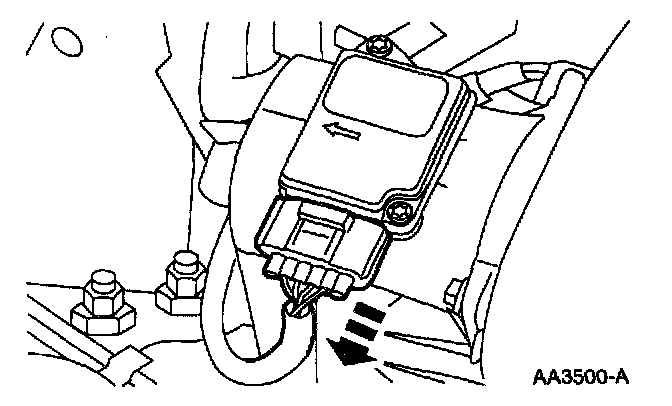

2. Disconnect the connector from the Mass Air Flow (MAF) sensor.

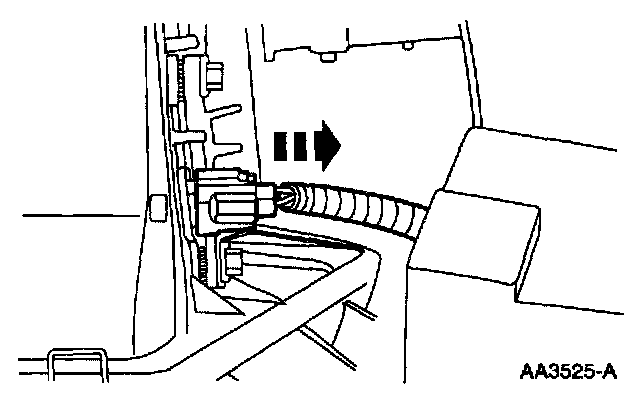

3. Disconnect the Intake Air Temperature sensor (IAT) electrical connector.

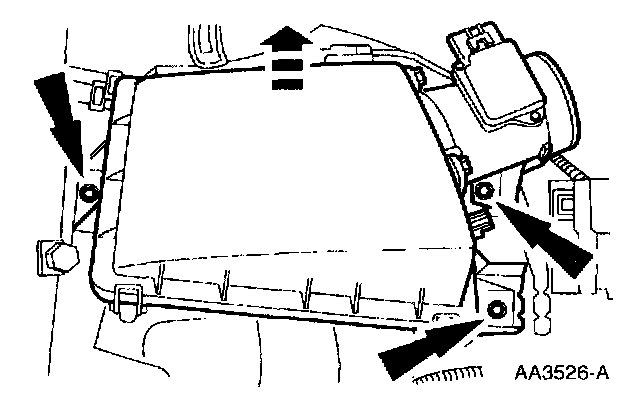

4. Remove the bolts and the Air Cleaner (ACL).

INSTALLATION
1. To install, reverse the removal procedure.
