Micrometer Method

Camshaft Journal-Clearance, Push Rod Engines, Micrometer Method
1. NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.

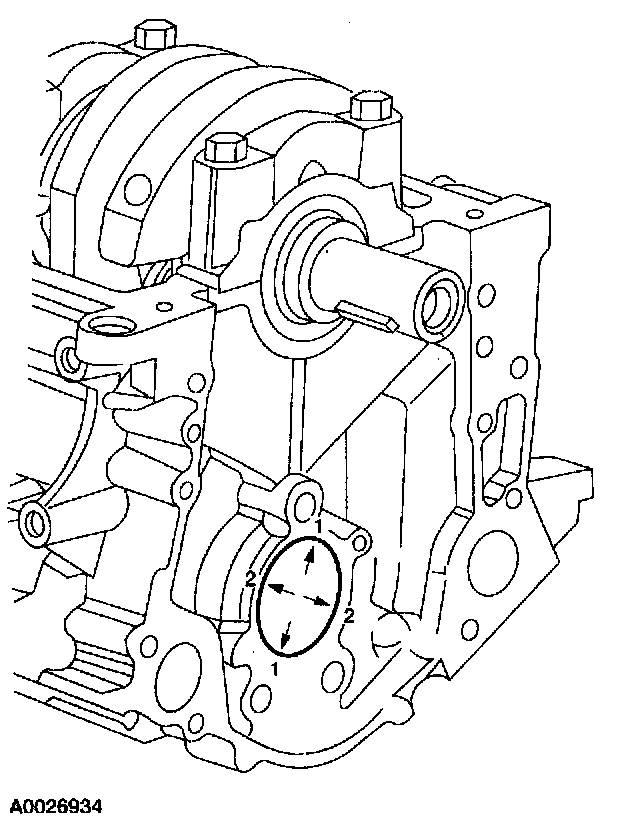

Measure each camshaft bearing in two directions.
- Subtract the camshaft journal diameter from the camshaft bearing diameter.
