Camshaft Runout

Camshaft-Runout

Special Tools:

Special Tool(s)

NOTE: Camshaft journals must be within specifications before checking runout.

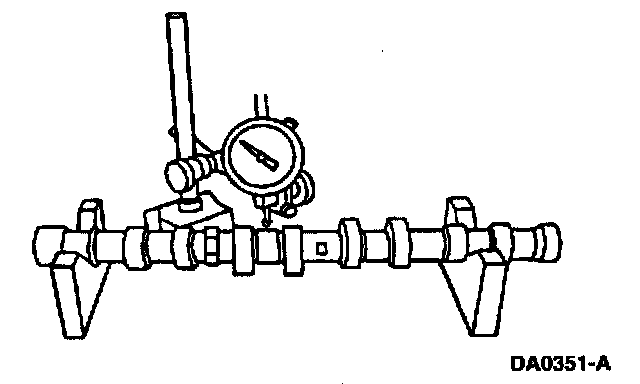

Use a Dial Indicator with Bracketry to measure the camshaft runout.
- Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading.
- If out of specification, install new components as necessary.
