Crankshaft Main Bearing Journal Clearance

Crankshaft Main Bearing Journal-Clearance

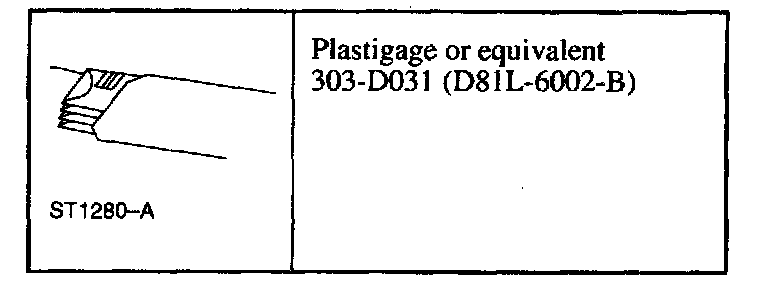

Special Tools:

Special Tool(s)

NOTE: Crankshaft main bearing journals must be within specifications before checking journal clearance.

1. Remove the crankshaft main bearing caps and crankshaft main bearing.

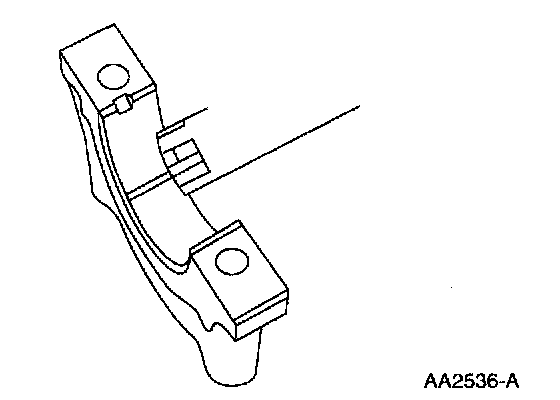

2. Lay a piece of Plastigage across the face of each crankshaft main bearing surface.

3. NOTE: Do not turn the crankshaft while carrying out this procedure.

Install and remove the crankshaft main bearing cap.

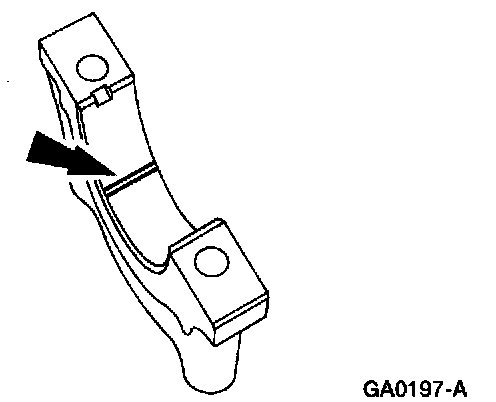

4. Verify the crankshaft journal clearance.
- If out of specification, install new components as necessary.
