Piston Pin Bore Diameter

Piston-Pin to Bore Diameter

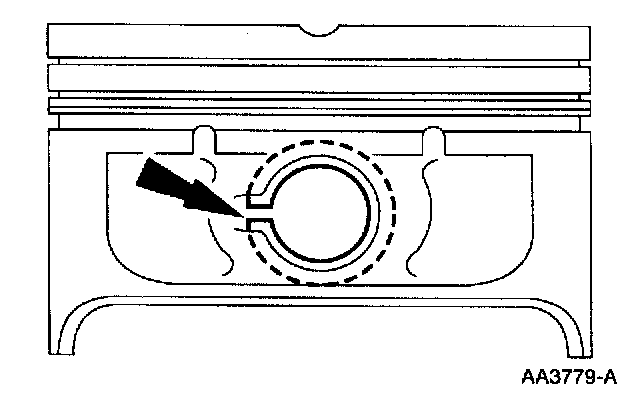

WARNING: Cover the end of the pin bore with a hand or shop rag when removing the retainer ring, since it has a tendency to spring out. Wear eye protection.





NOTE: Piston and piston pins are a matched set and should not be interchanged.

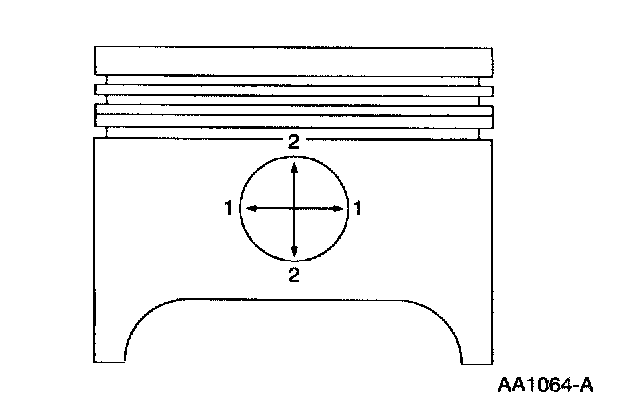

Measure the piston pin bore diameter in two directions on each side. Verify the diameter is within specification.





- If out of specification, install new components as necessary.
