Piston Ring to Groove Clearance

Piston-Ring-to-Groove Clearance

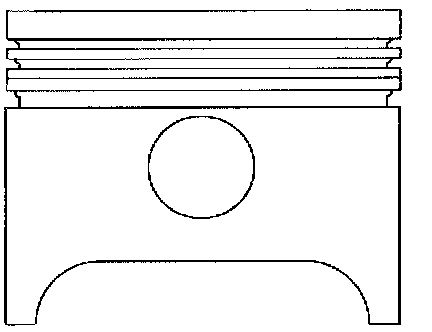

1. Inspect the piston for ring land damage or accelerated wear.

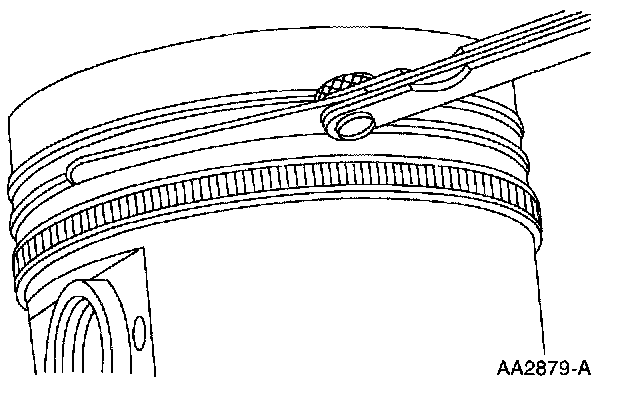

2. Measure the piston ring-to-groove clearance.
- If out of specification, install new components as necessary.
