Exhaust System - Single Exhaust






Part 1 of 3





Part 2 of 3





Part 3 of 3

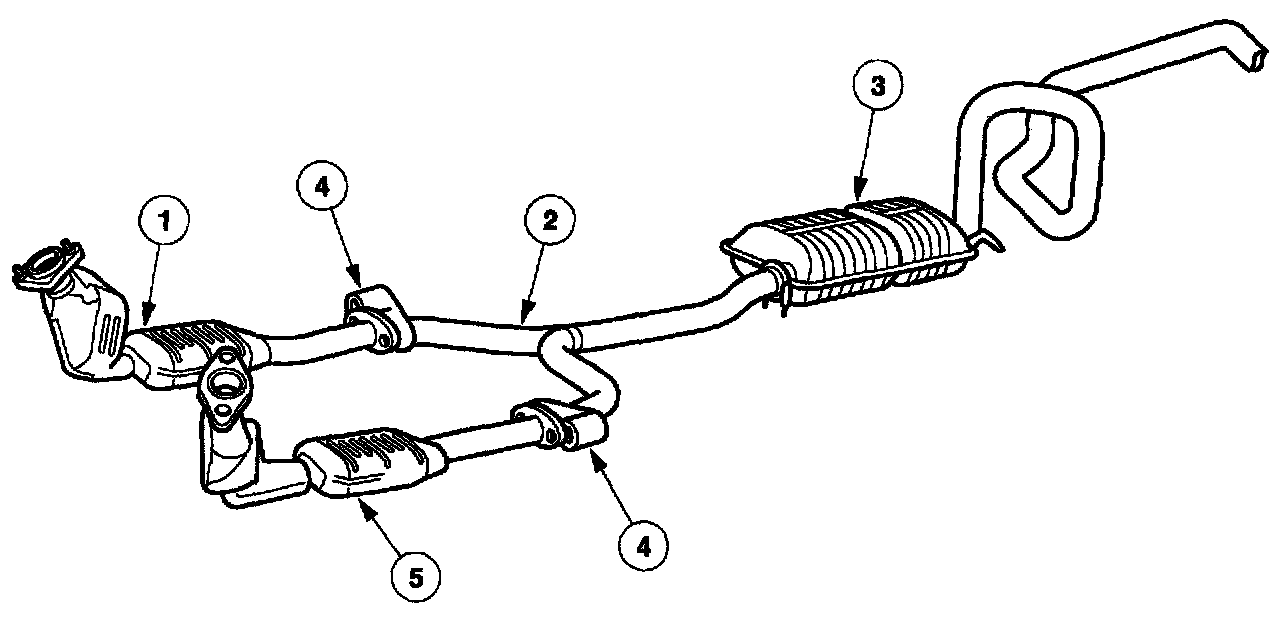

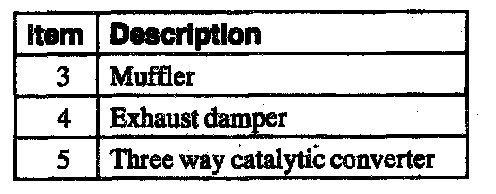

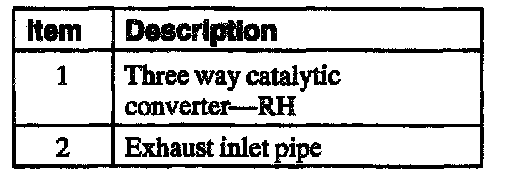

Exhaust System-Single Exhaust
