Test C: Reference Voltage
Test C: Reference Voltage

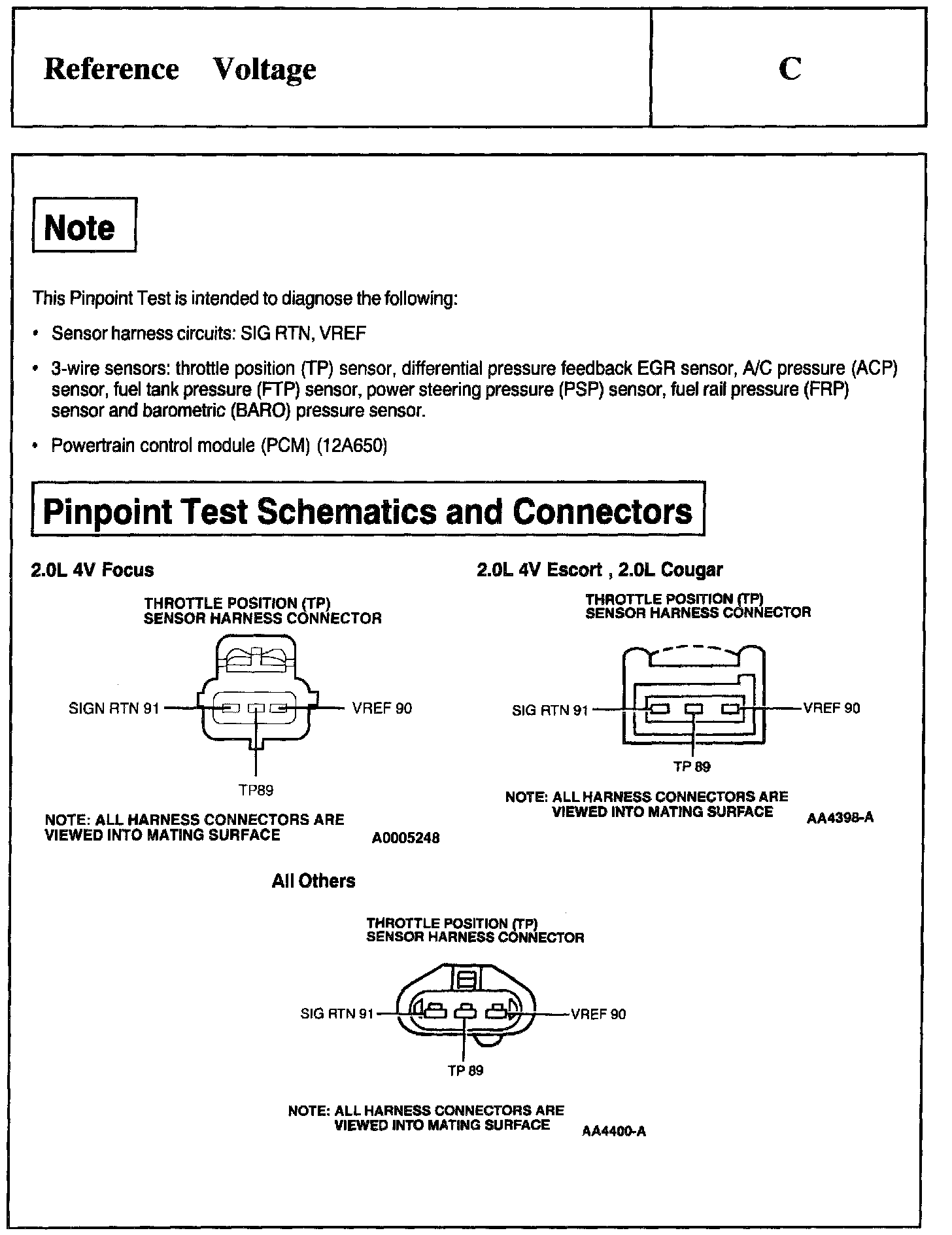

Note, Schematics and Connectors:

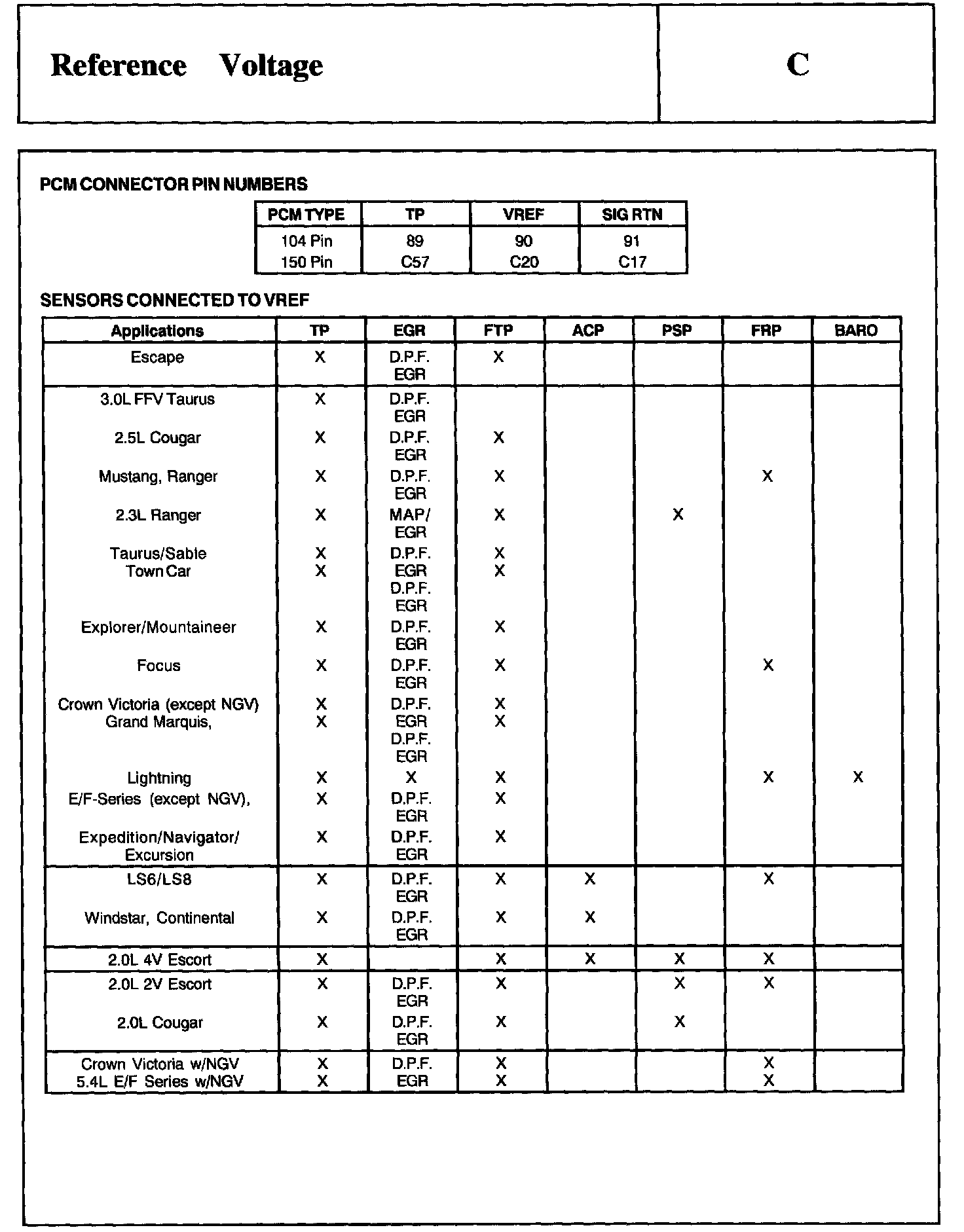

Test Chart:

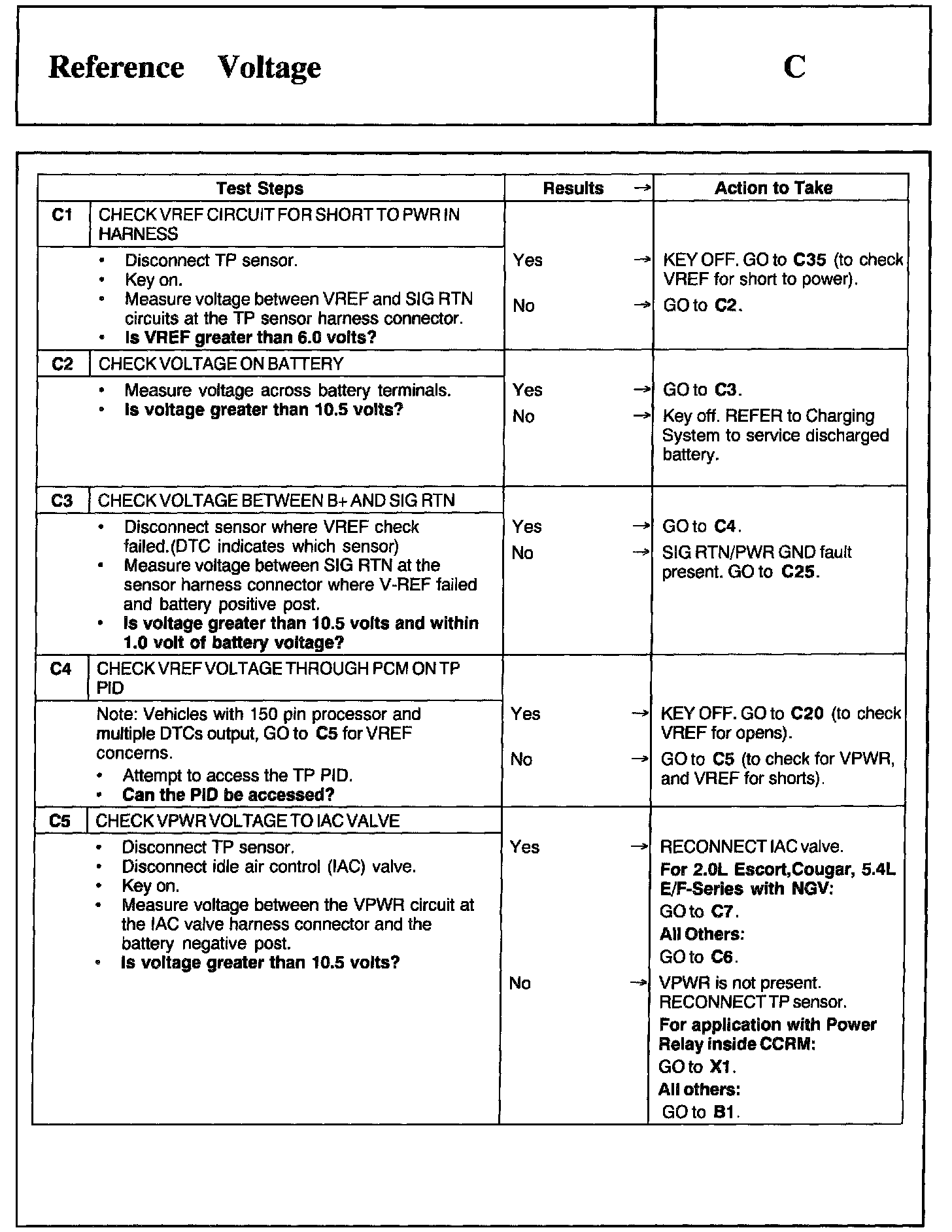

C1 - C5:

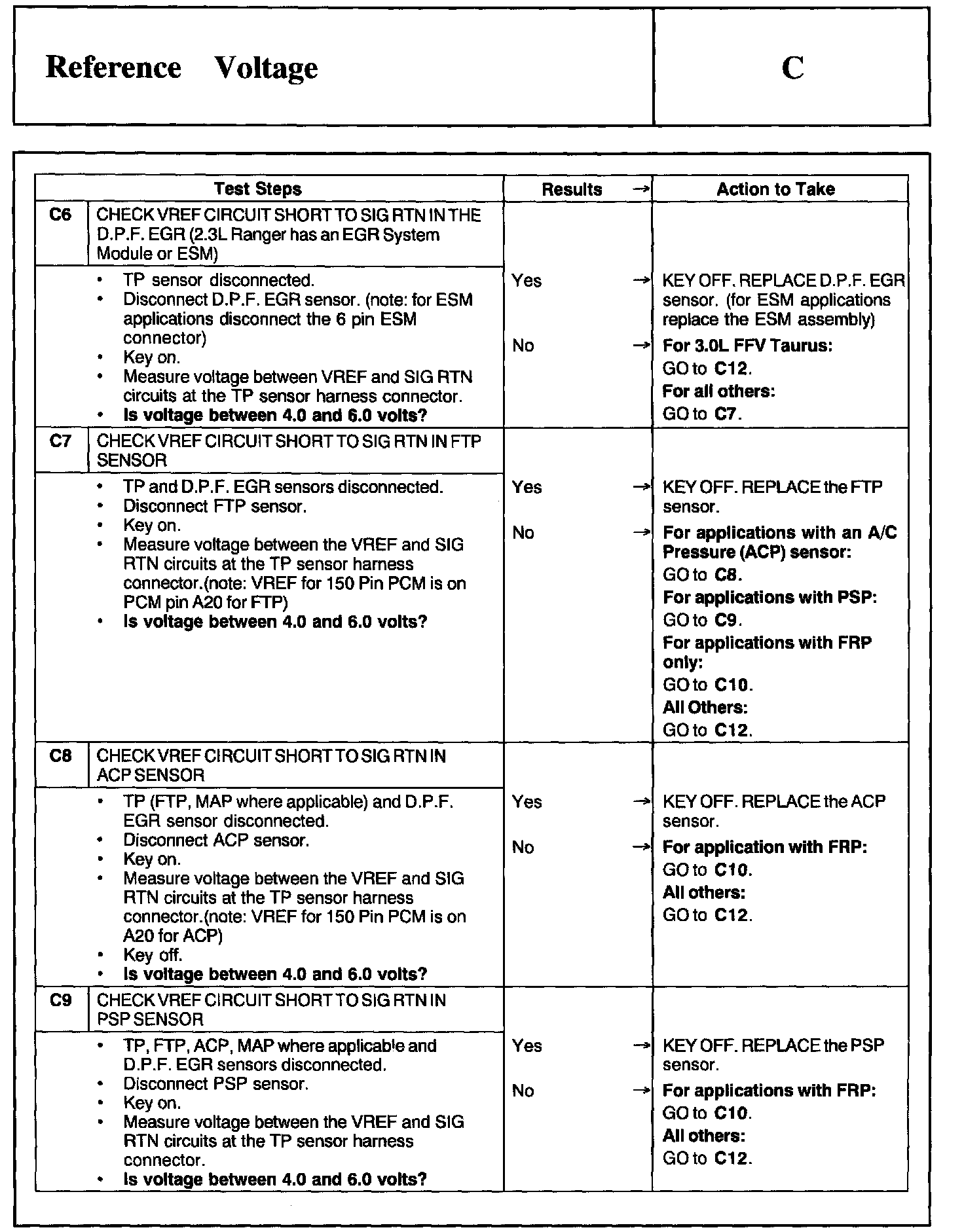

C6 - C9:

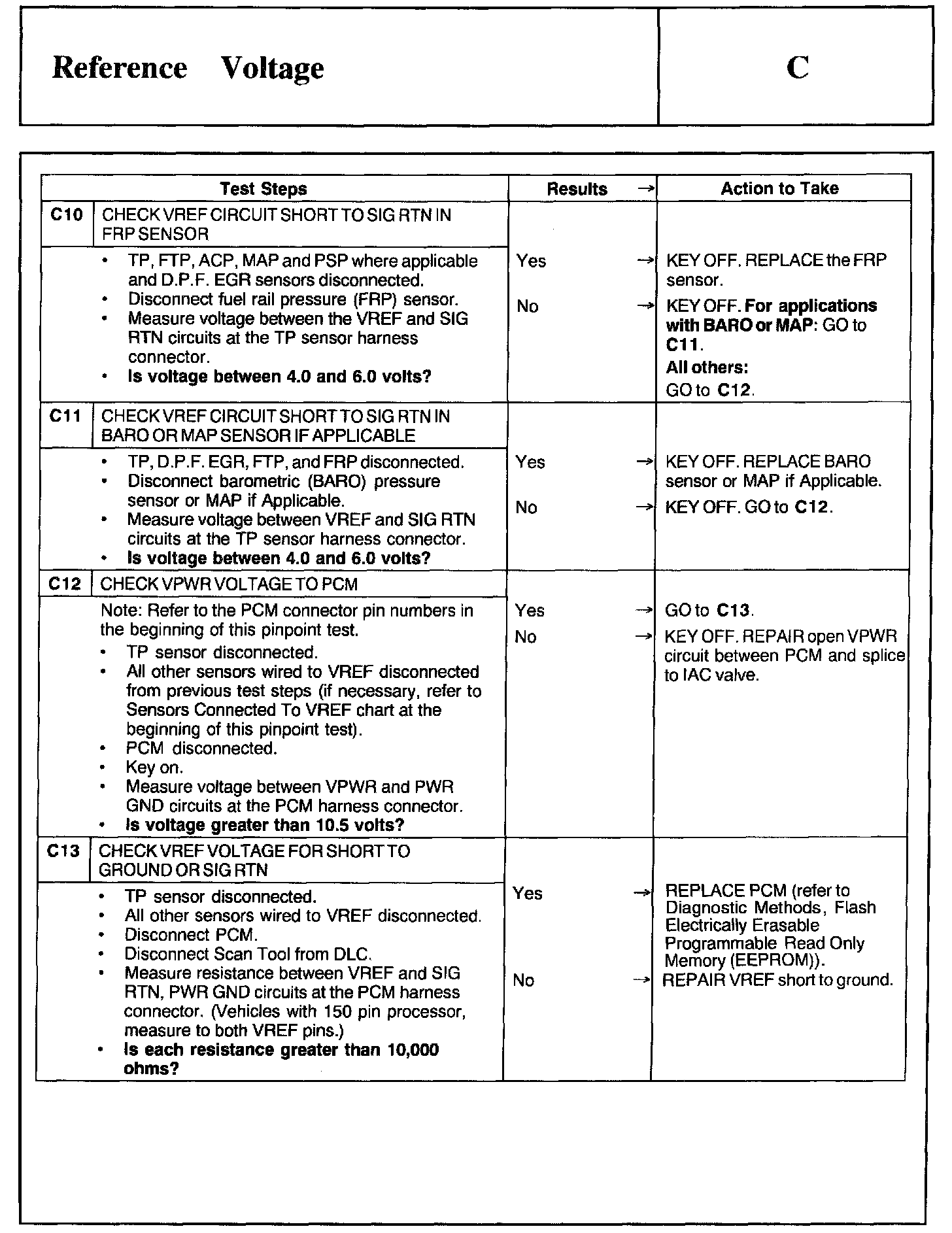

C10 - C13:

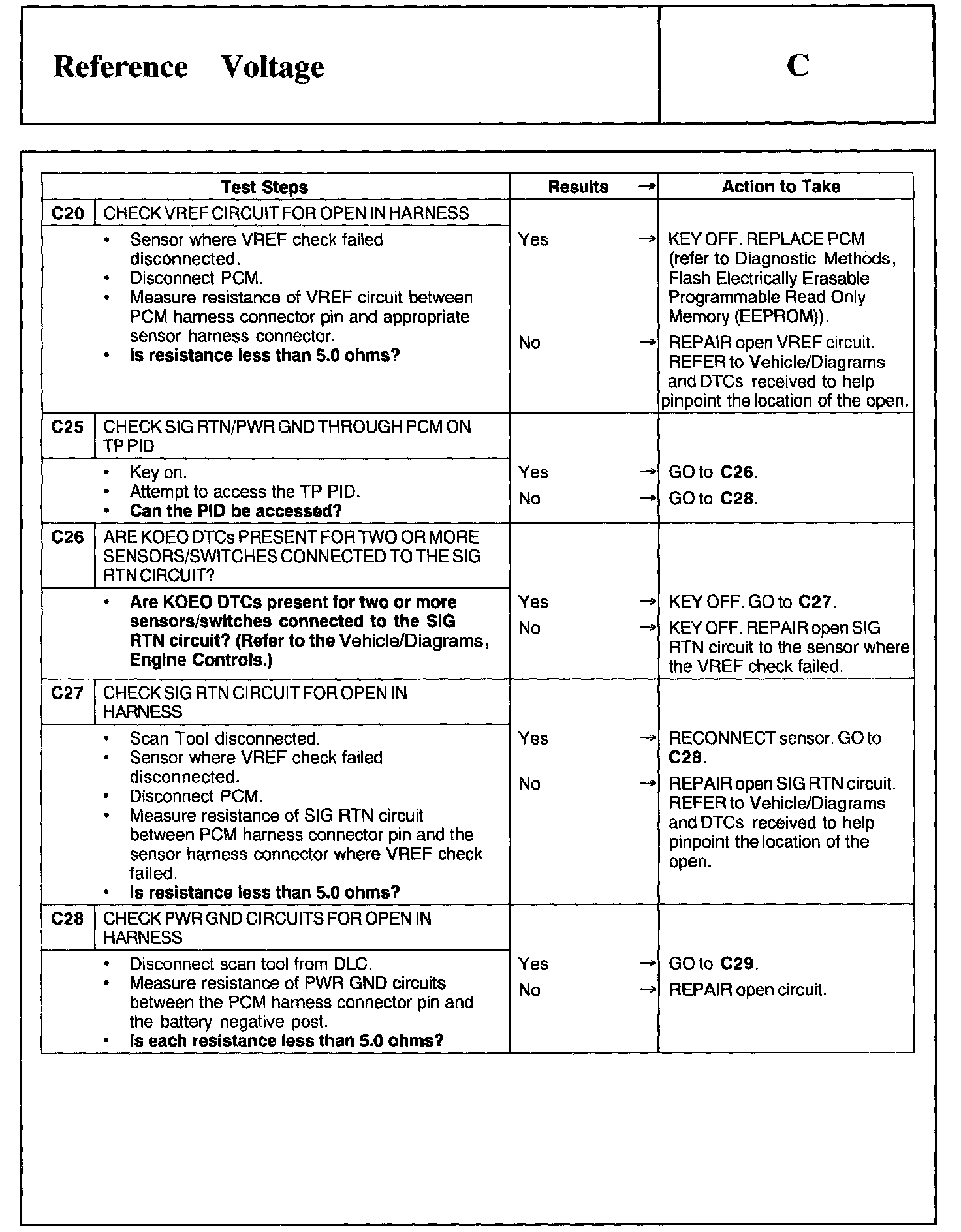

C20 - C28:

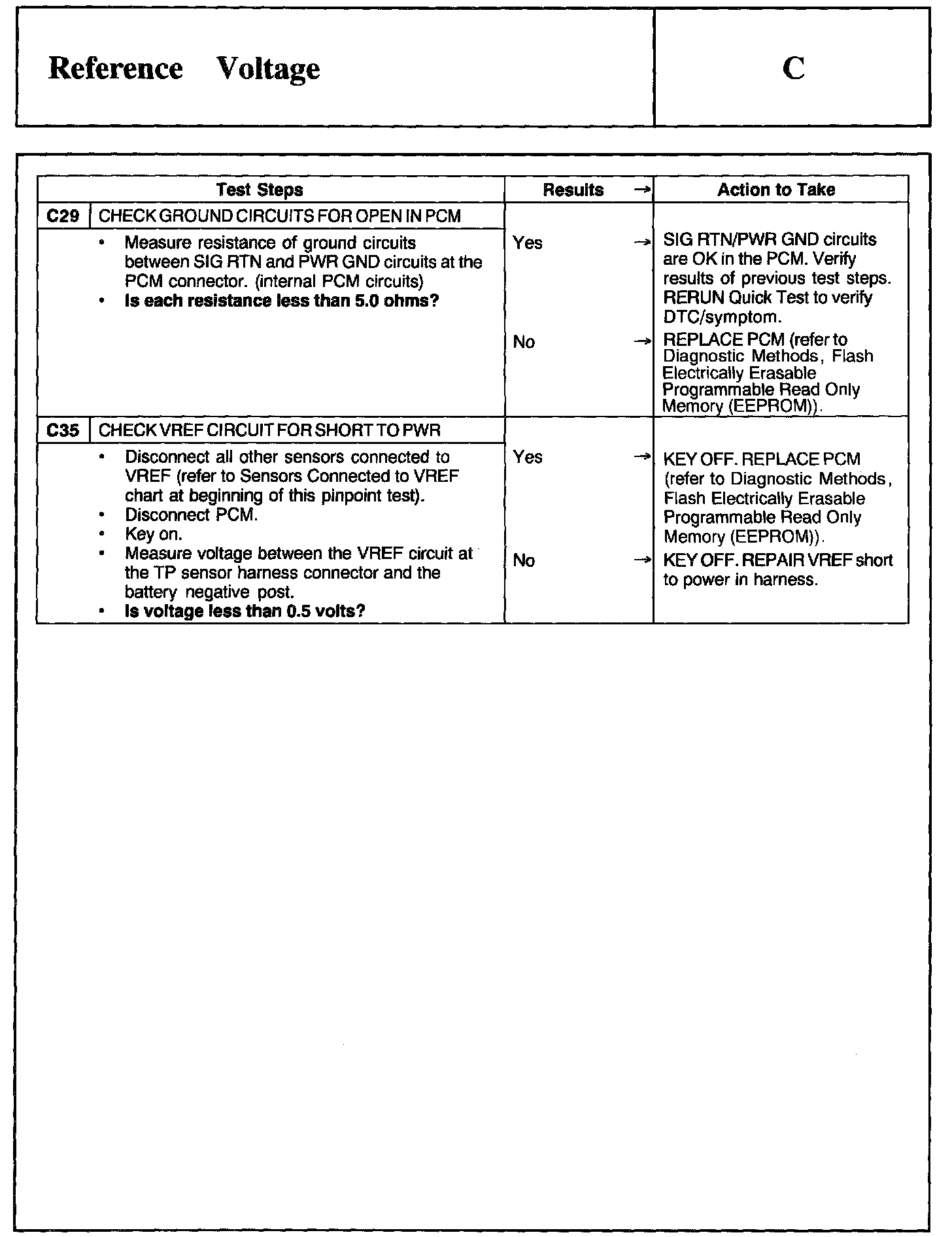

C29 - C35:
