Tests DA: Intake Air Temp. (IAT)/Engine Coolant Temp. (ECT) Sensors

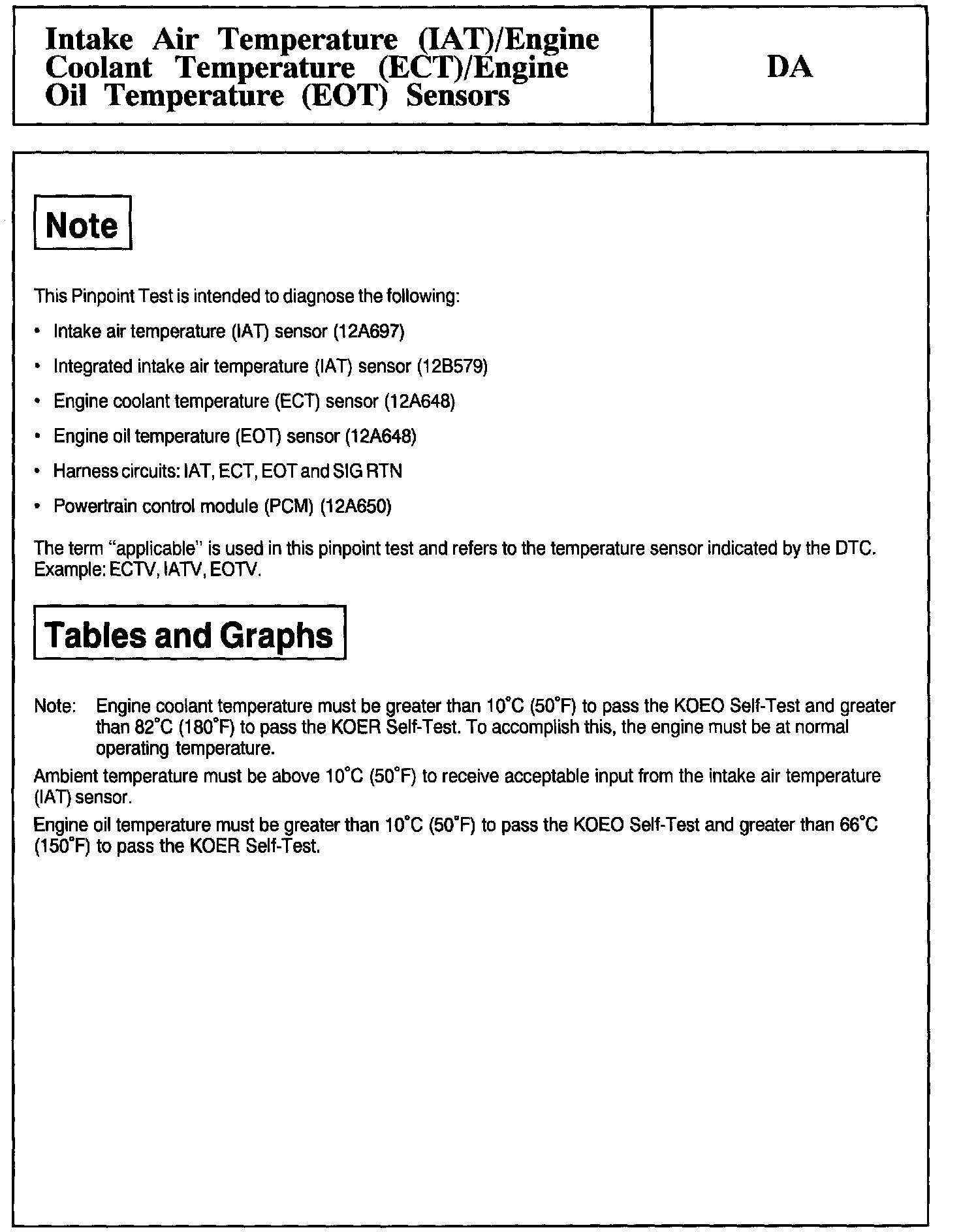

Note, Description:

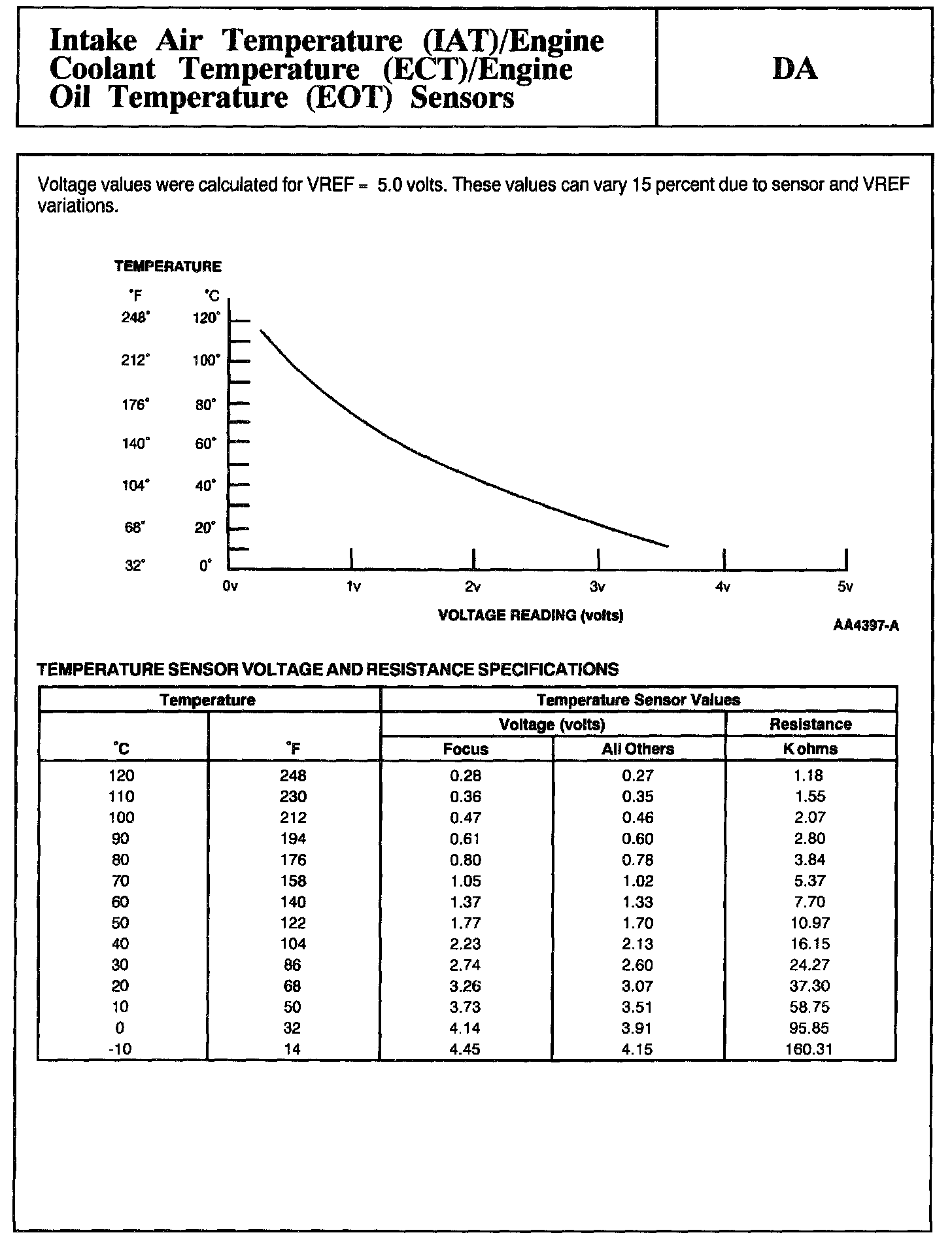

Tables and Graphs:

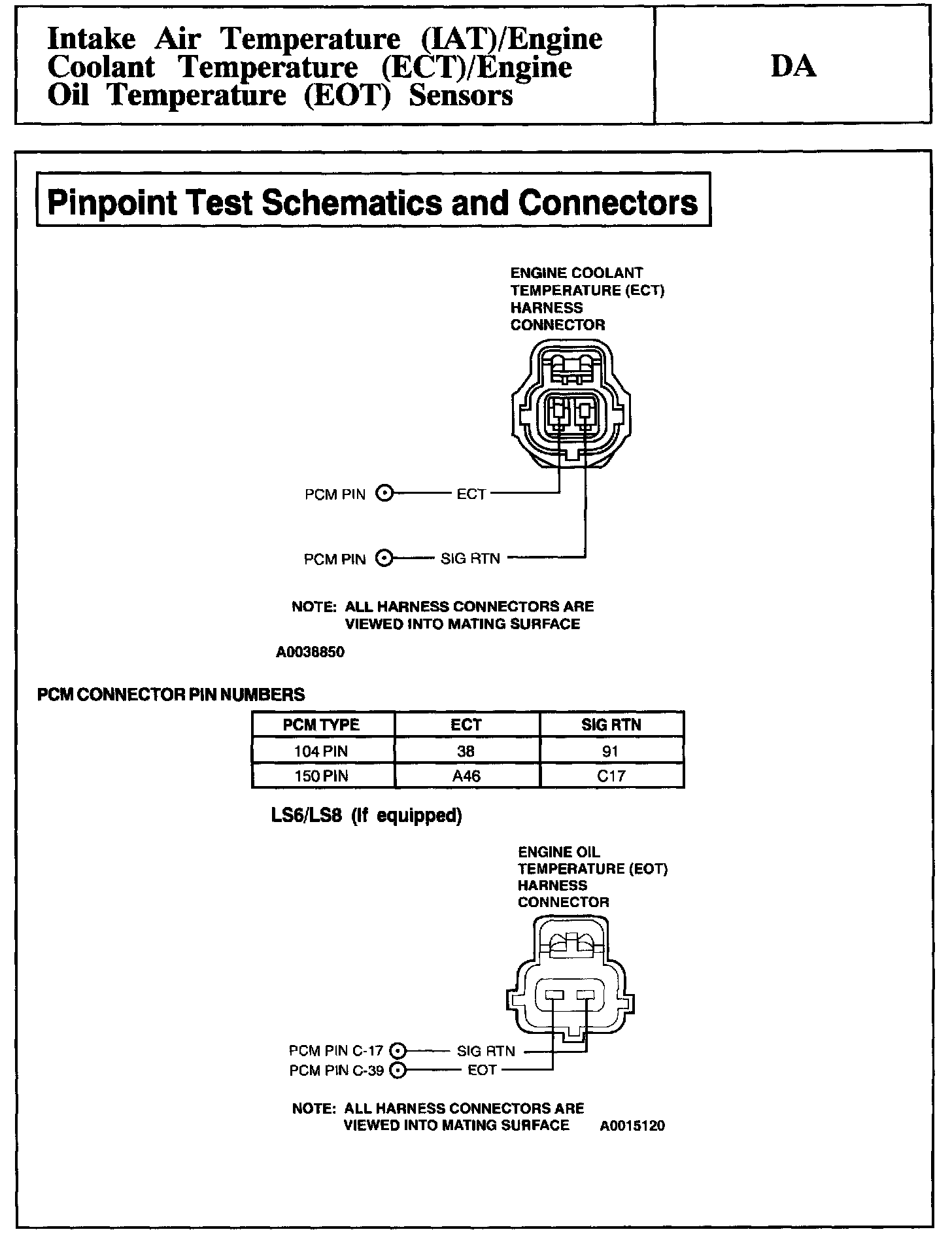

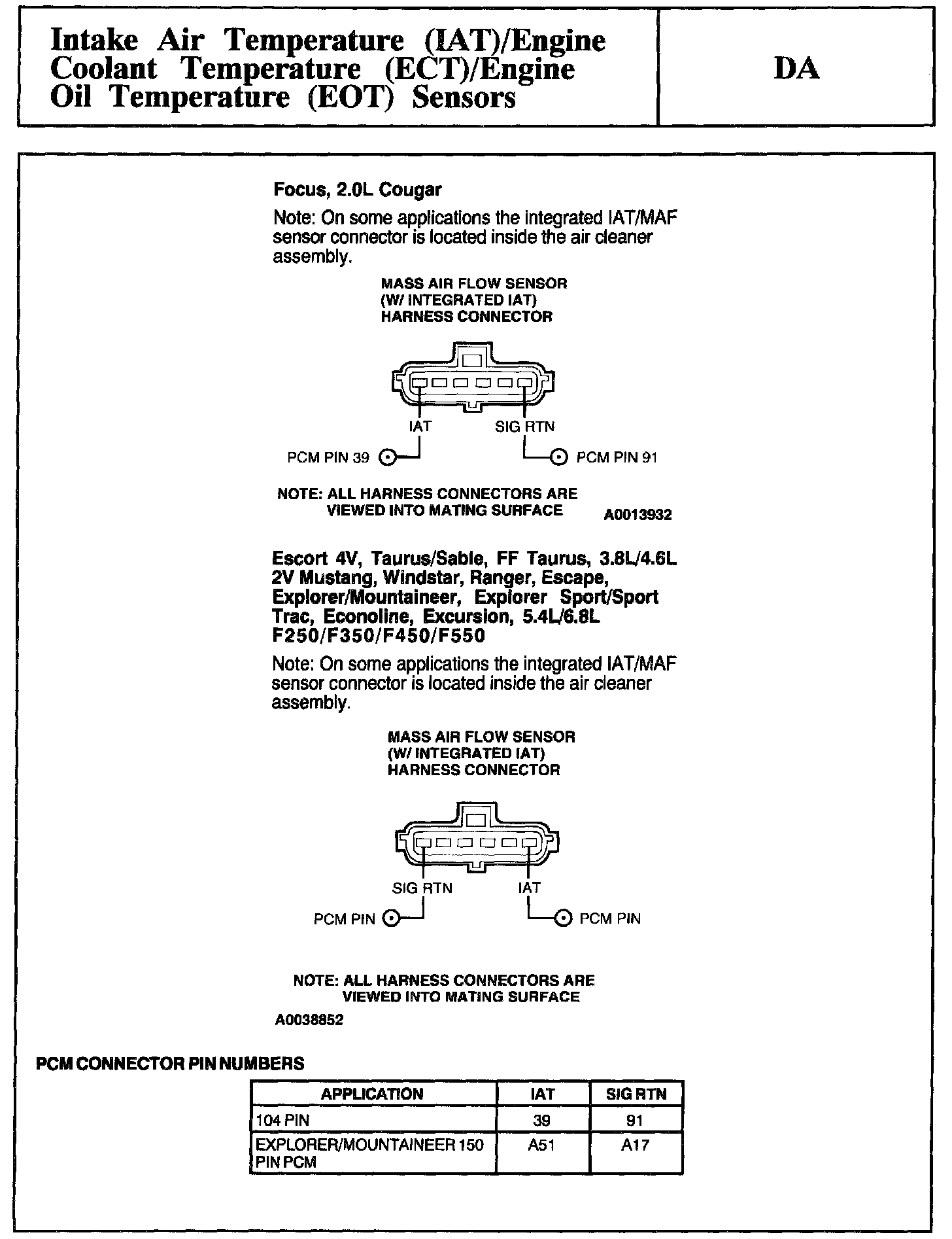

Schematics and Connectors:

Test Schematic:

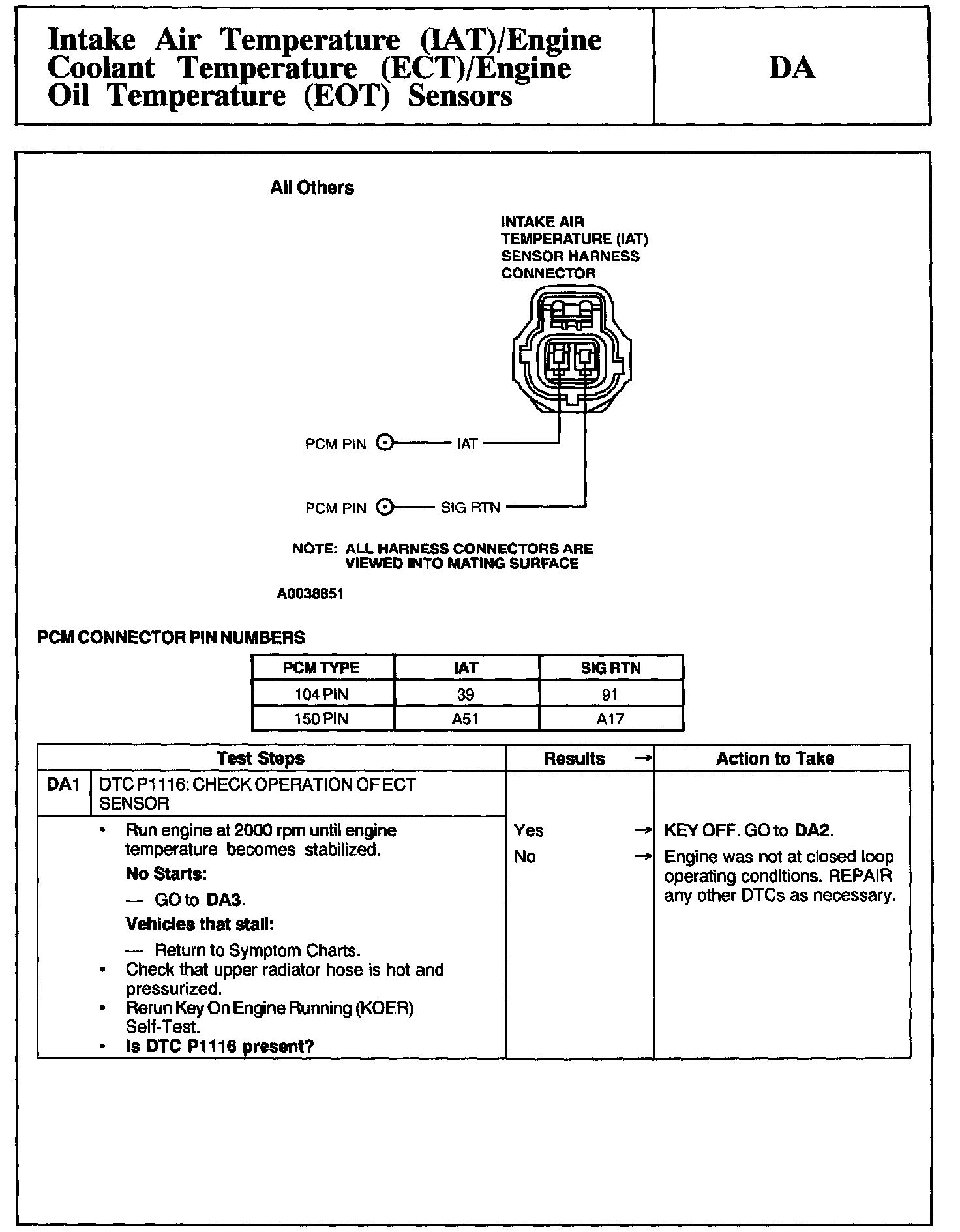

Schematic, Test DA1:

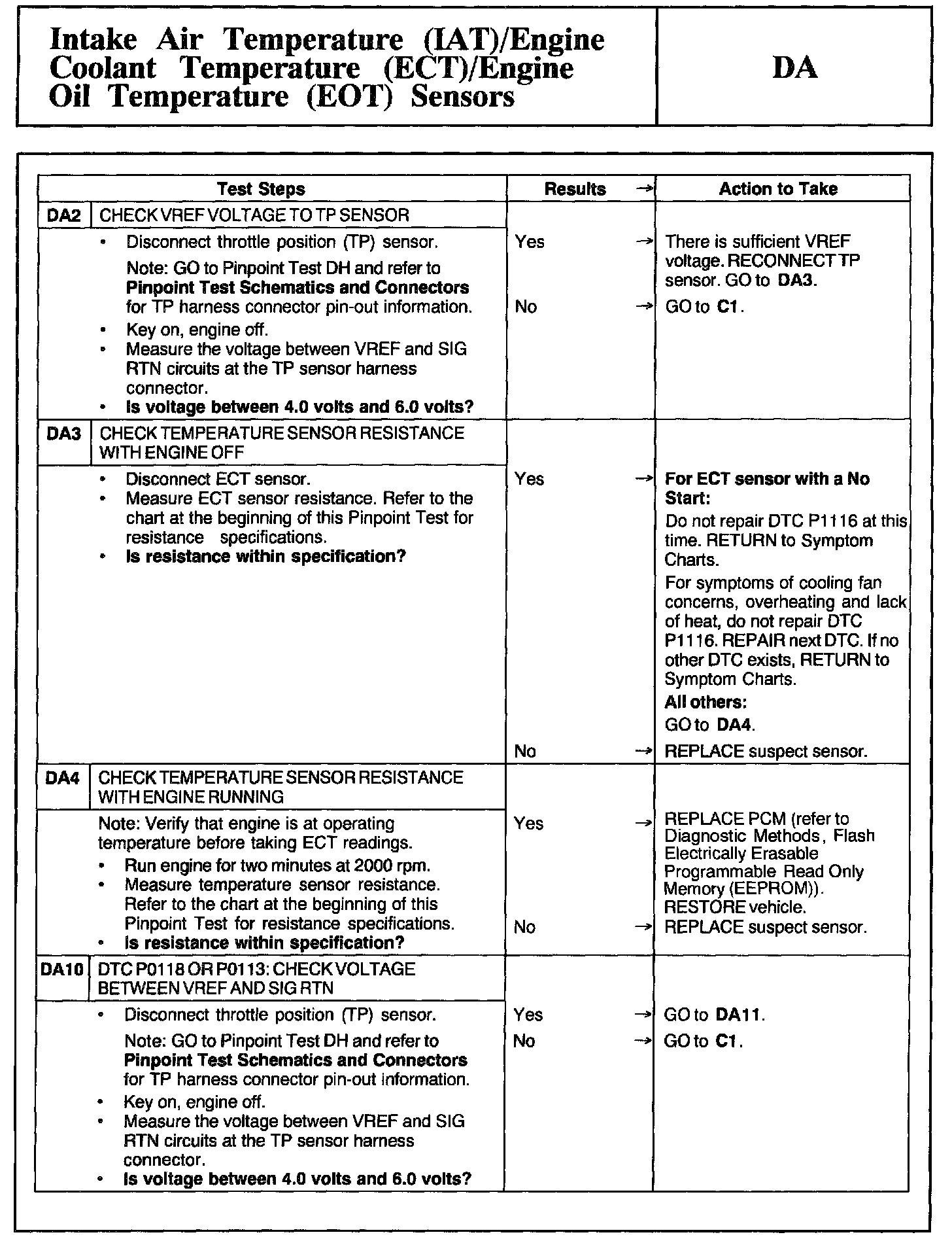

DA2 - DA10:

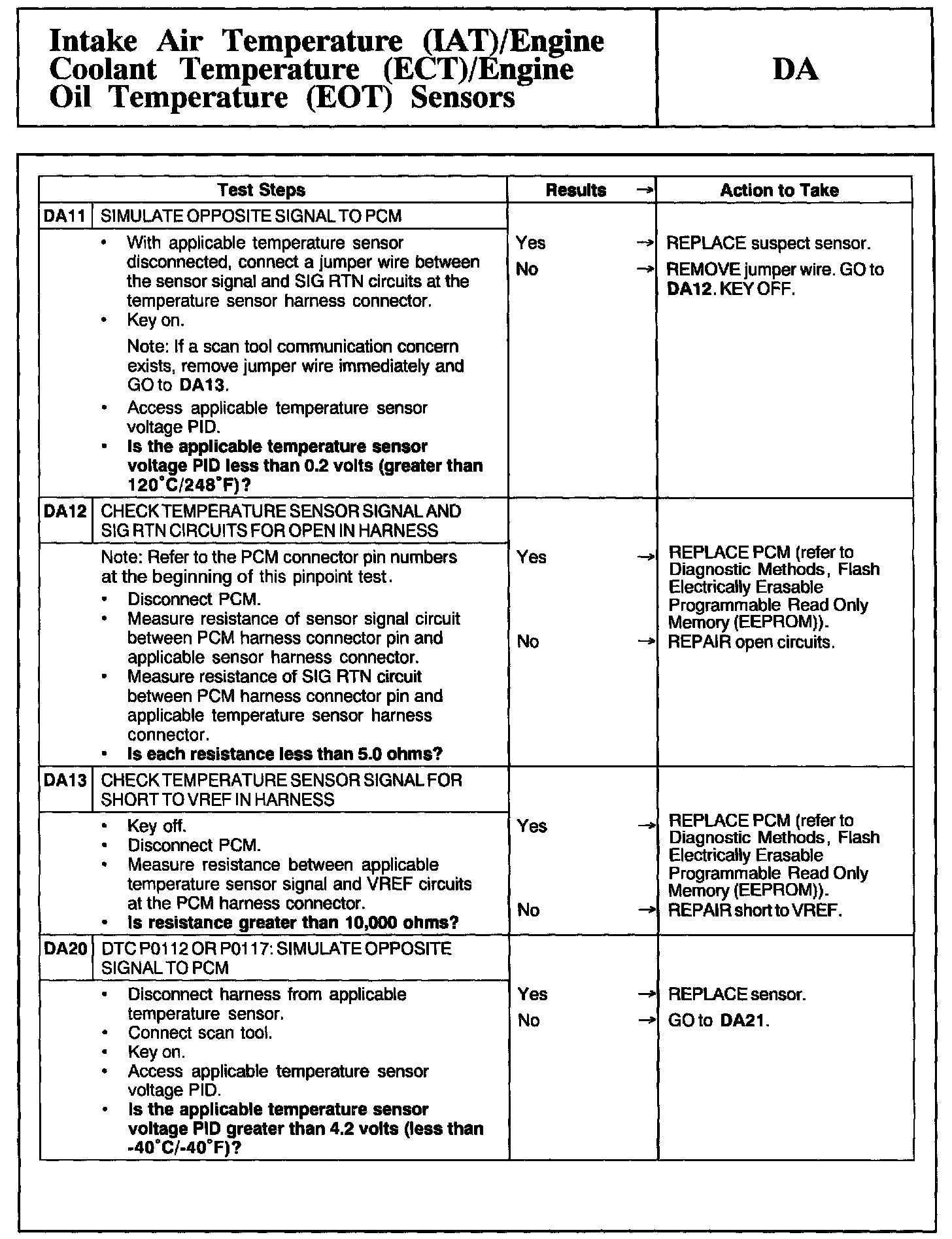

DA11 - DA20:

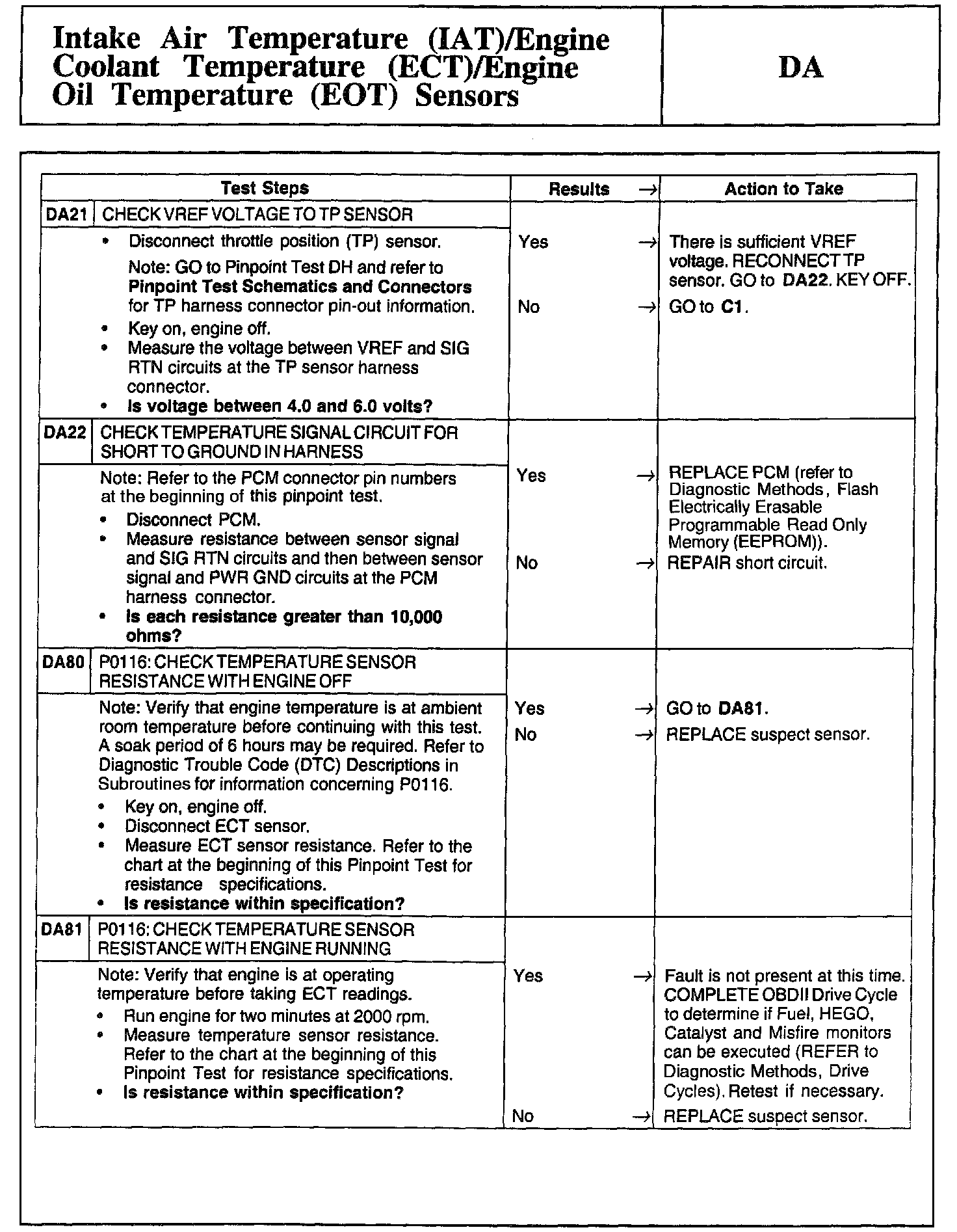

DA21 - DA81:

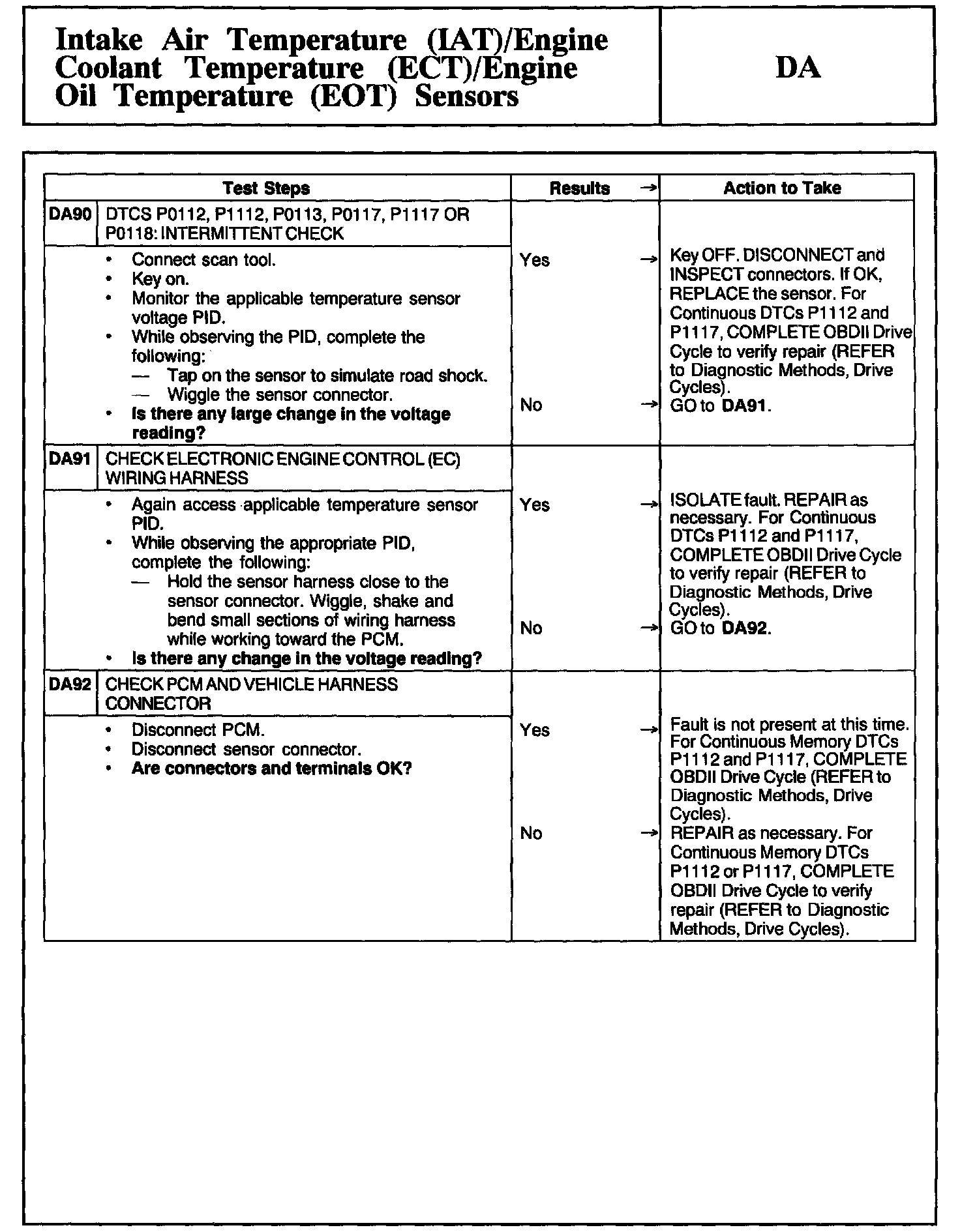

DA90 - DA92:

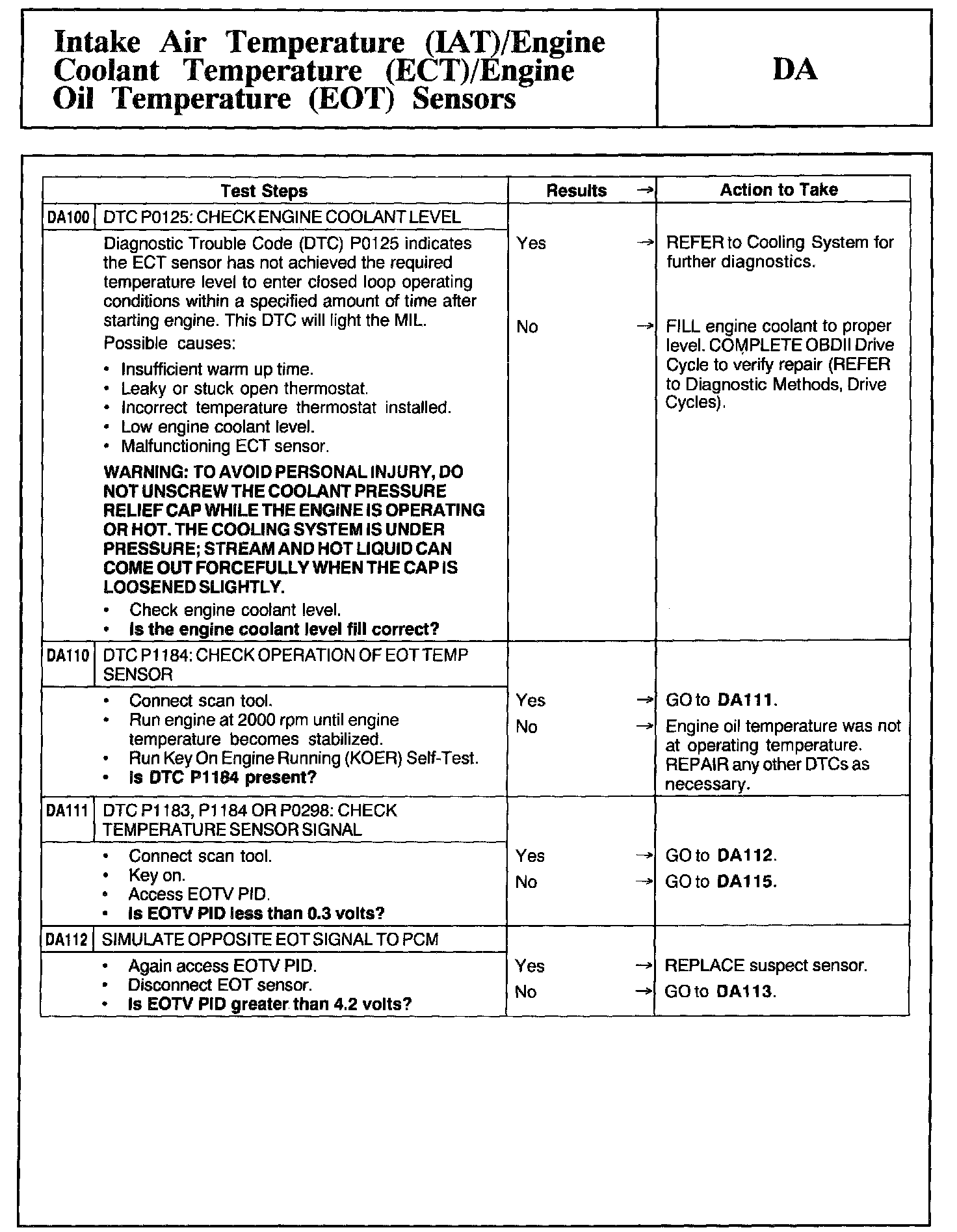

DA100 - DA112:

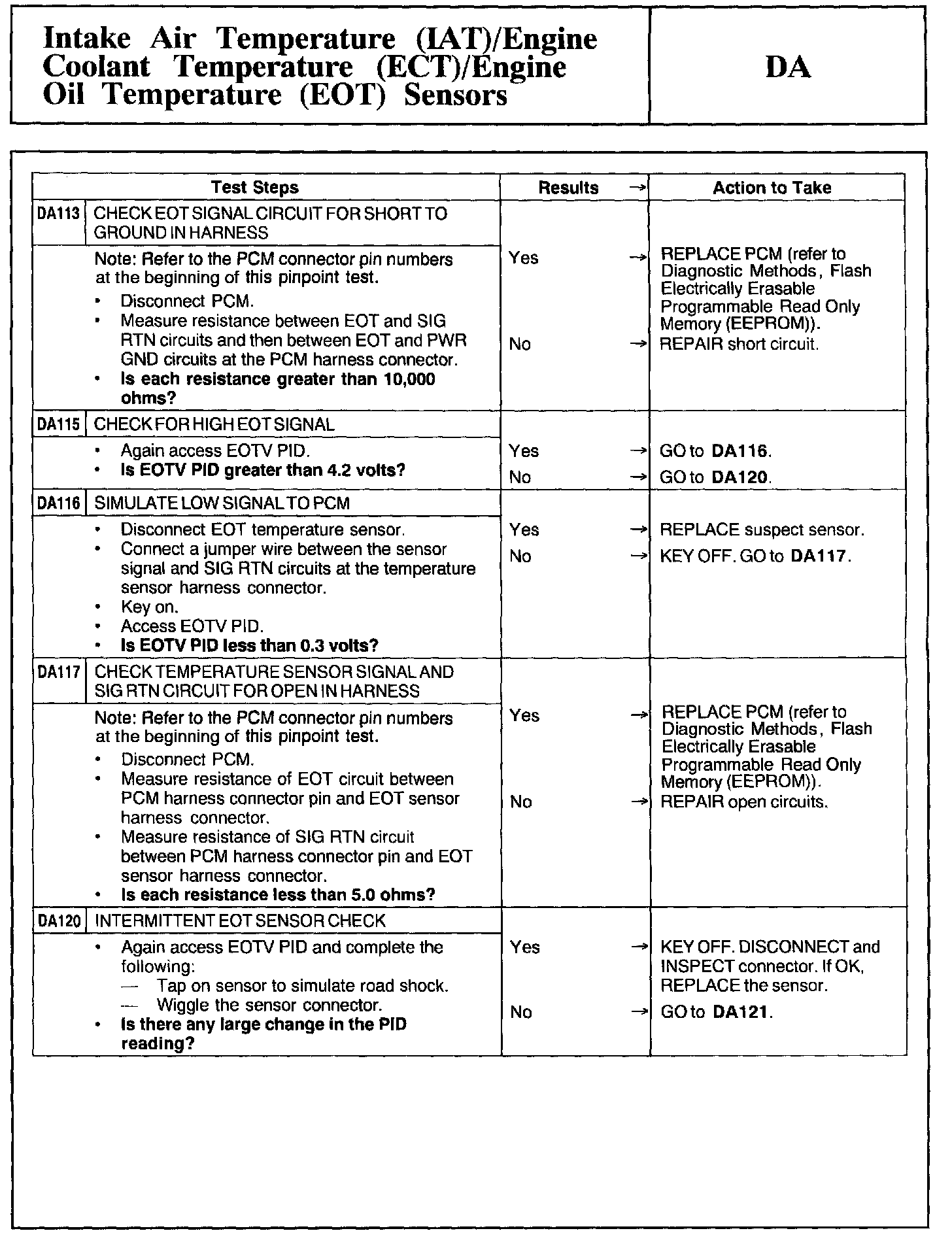

DA113 - DA120:

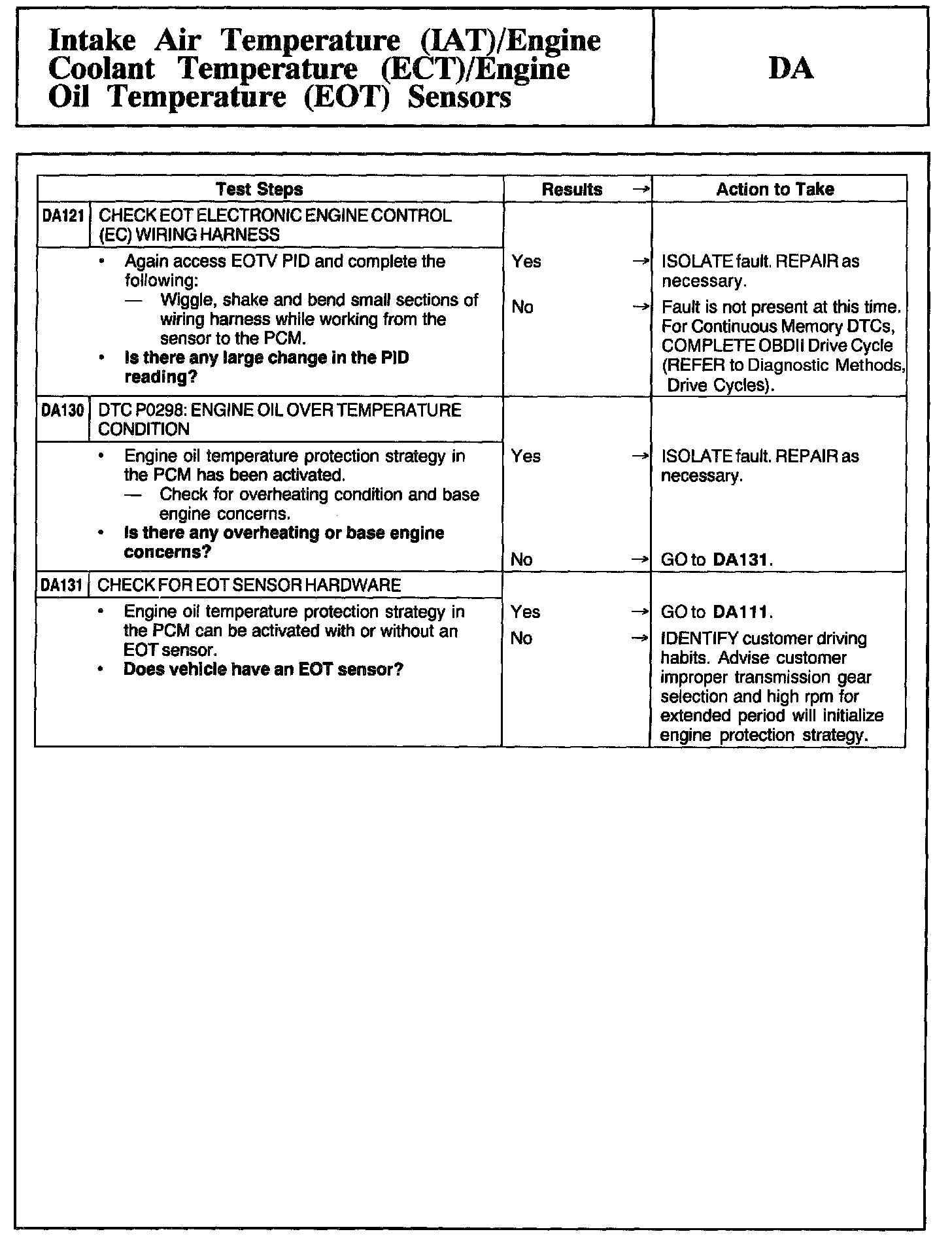

DA121 - DA131:
