Tests DG: Knock Sensor (KS)

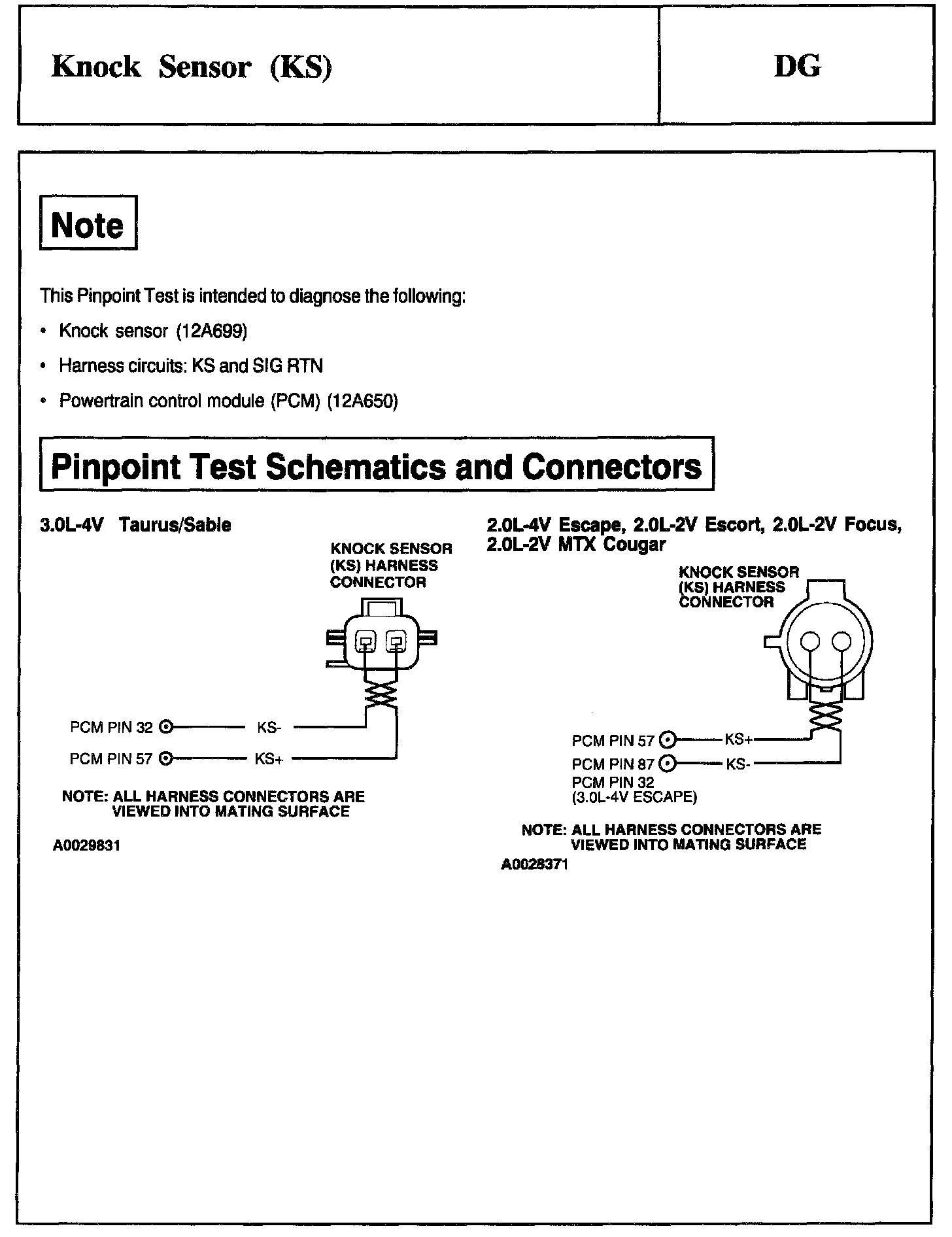

Note, Schematics and Connectors:

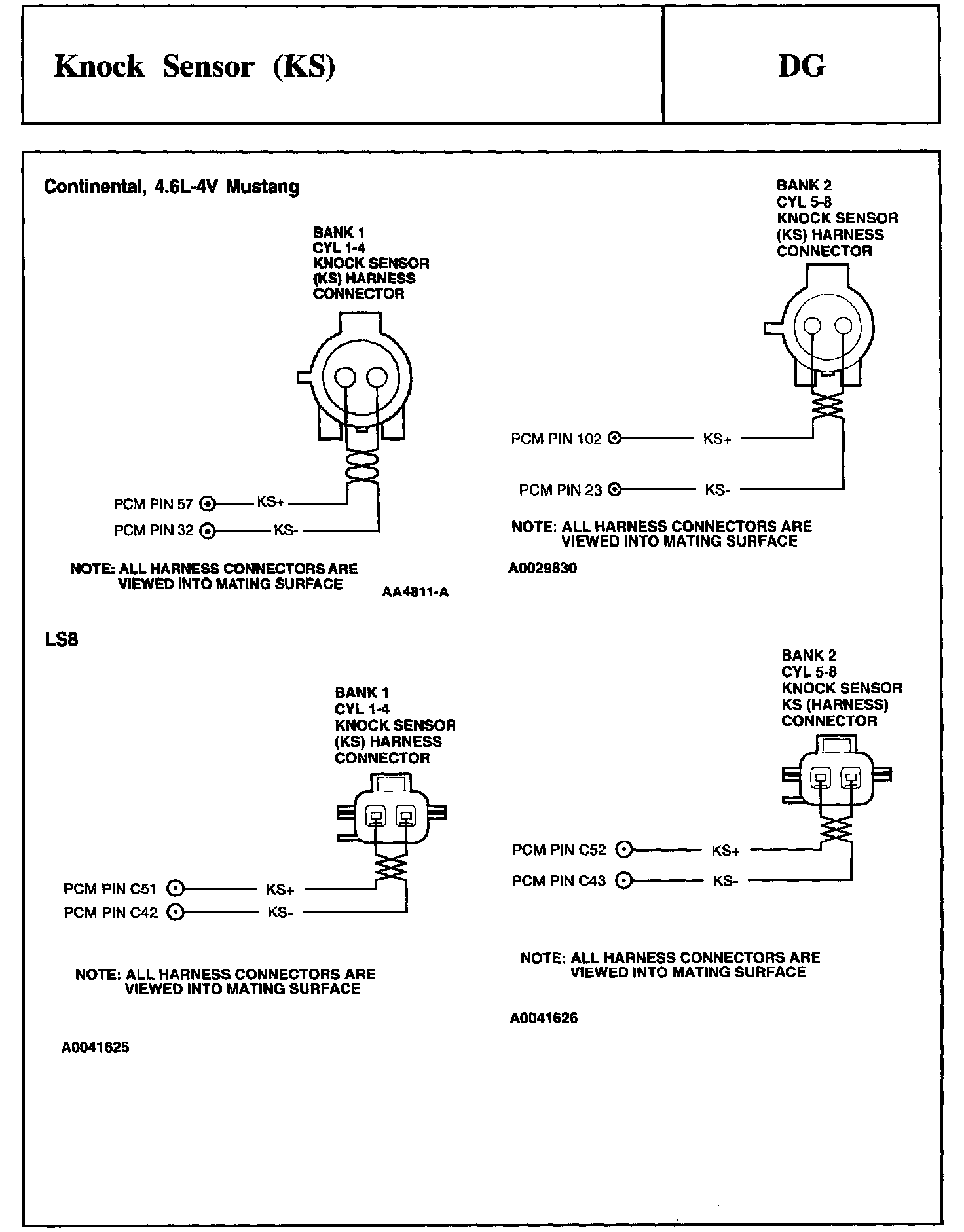

Test Schematic:

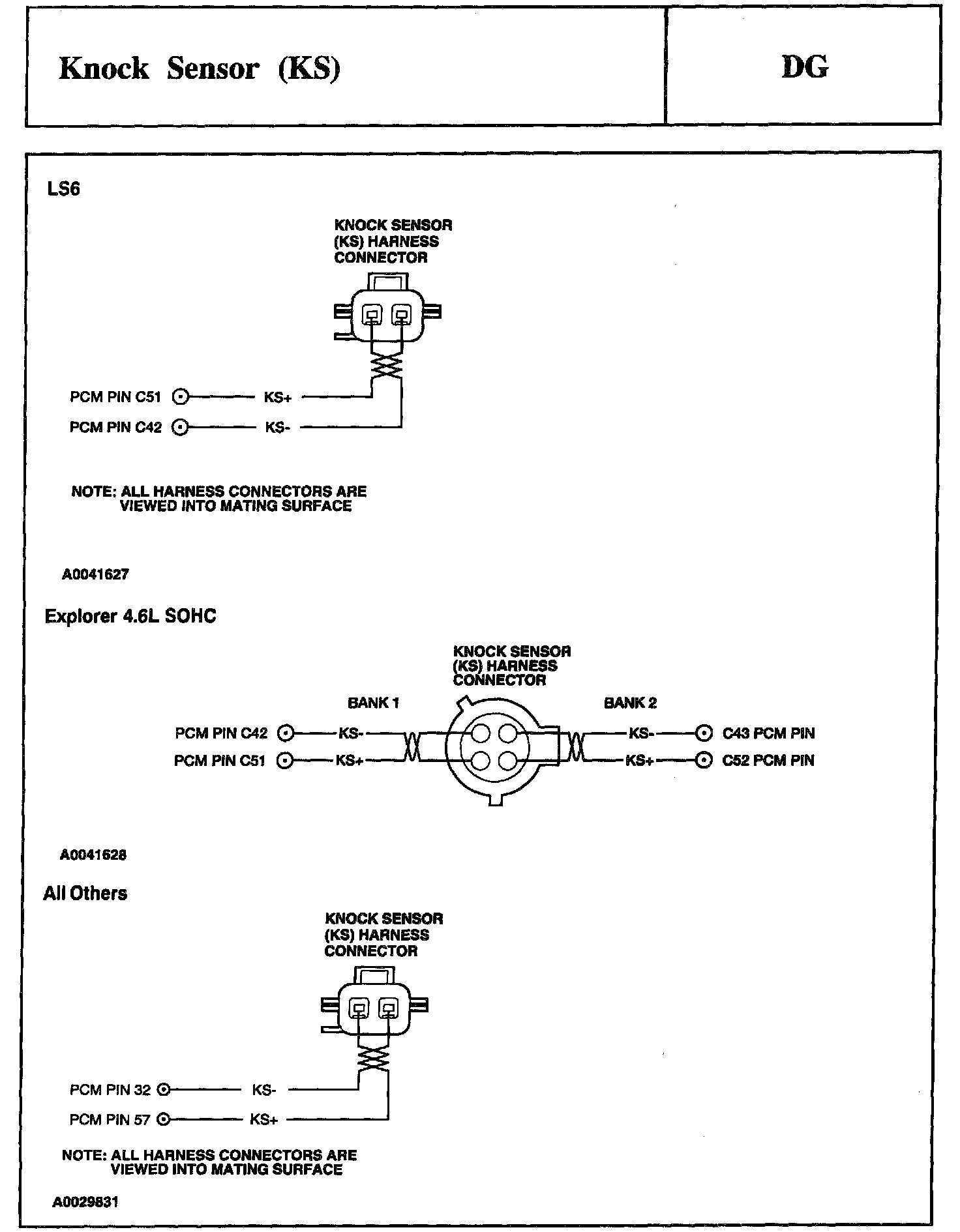

Test Schematic:

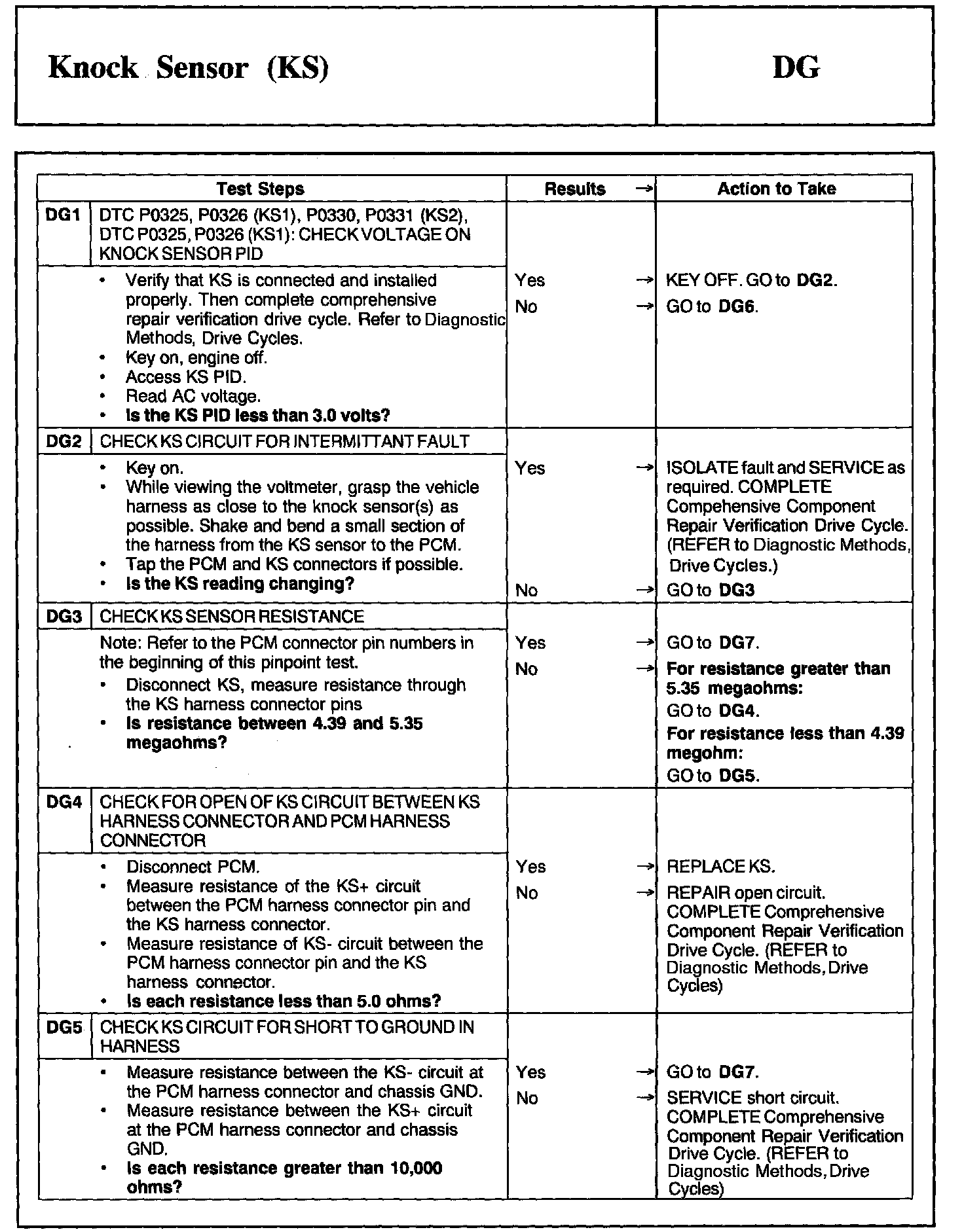

DG1 - DG5:

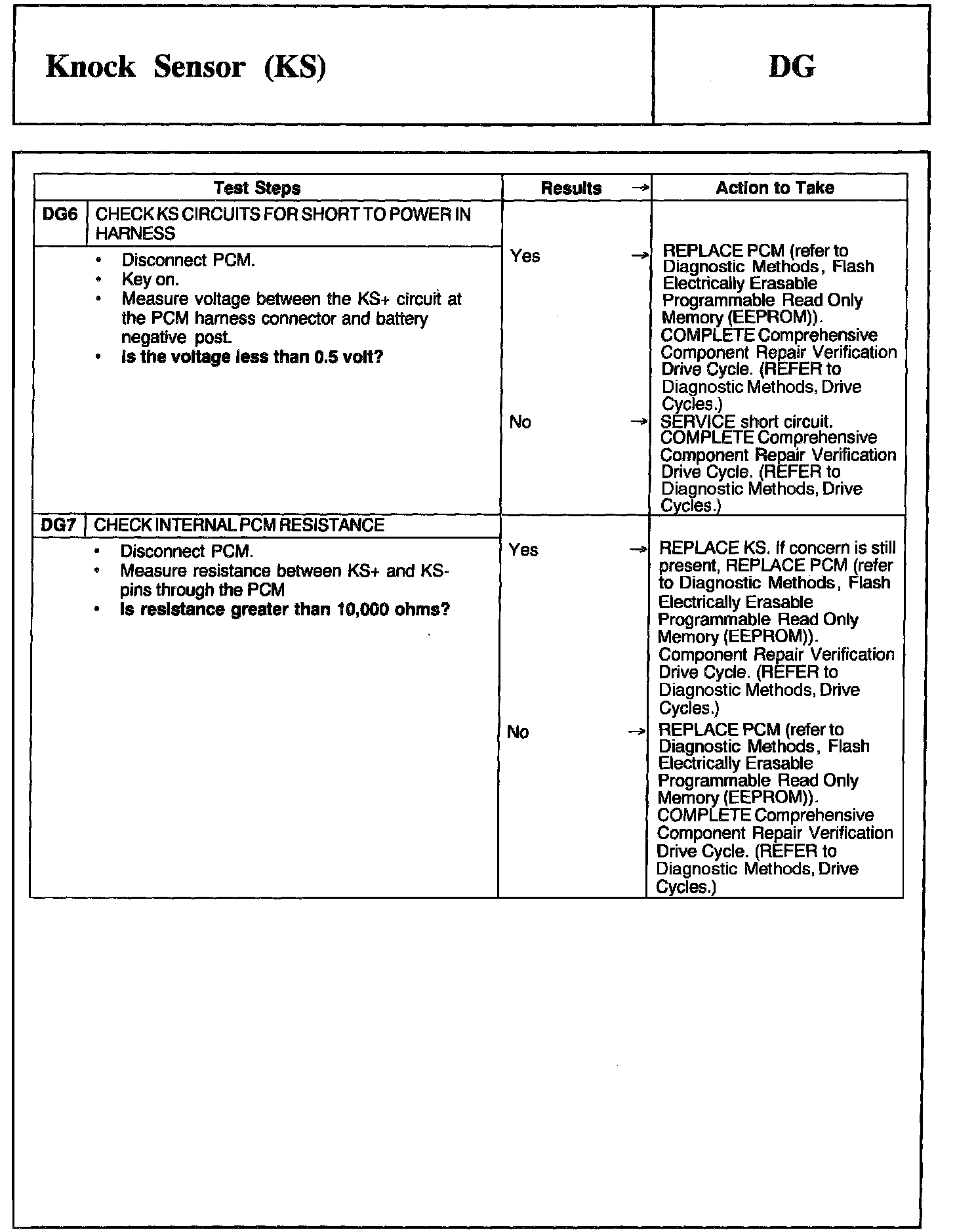

DG6 - DG7:
