Tests DM: Thermal Manifold Absolute Pressure (TMAP) Sensor

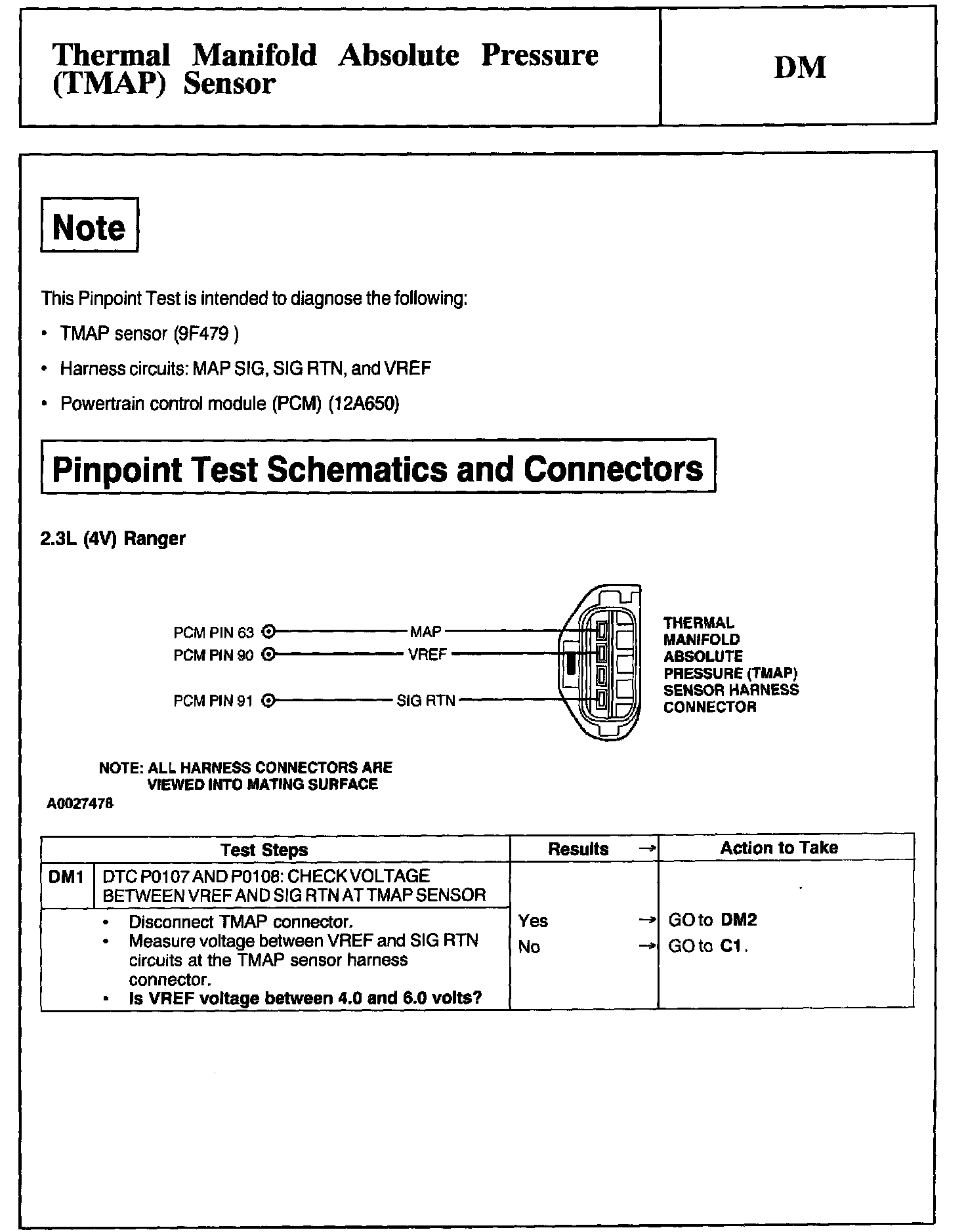

Note, Schematics and Connectors and Test DM1:

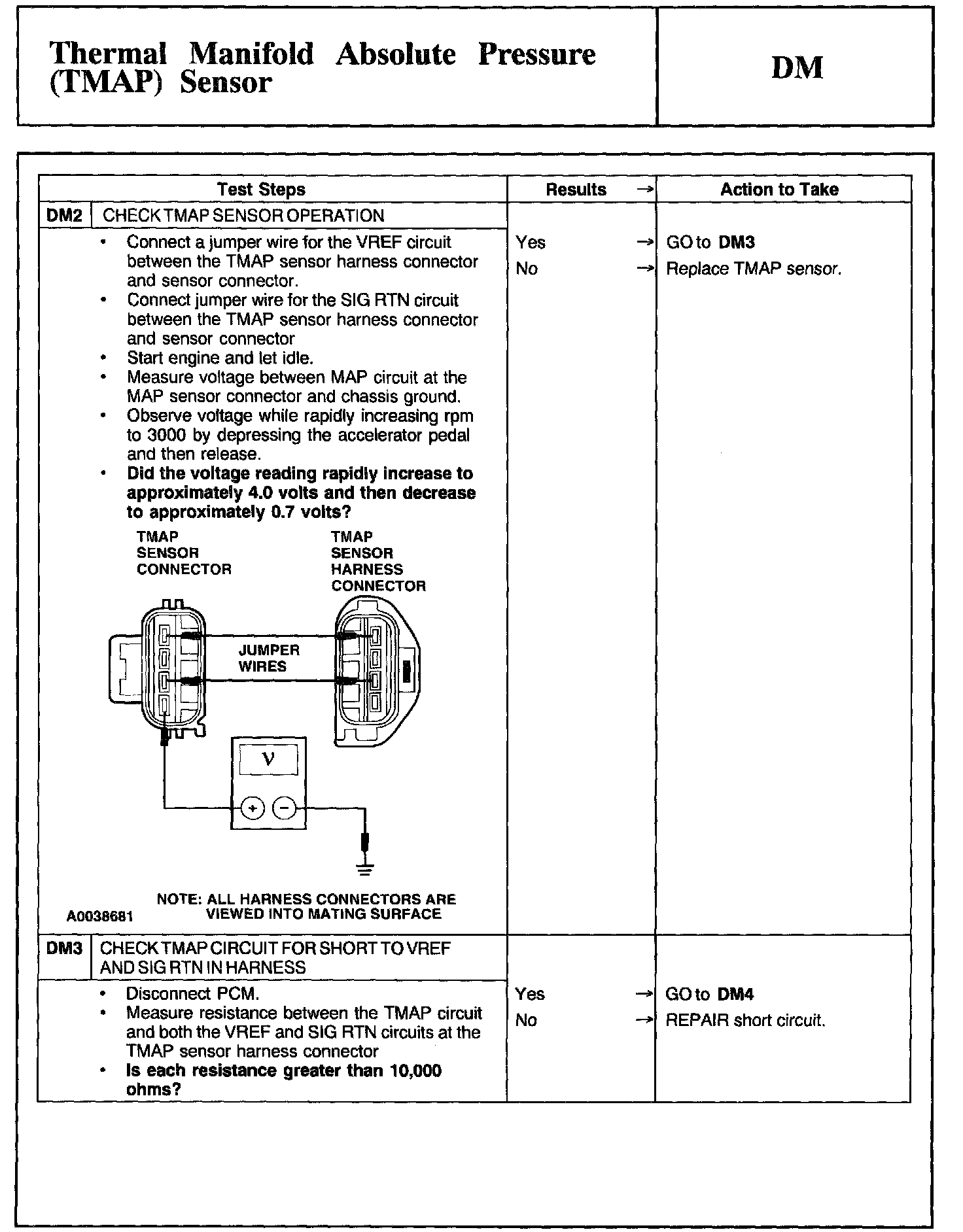

DM2 - DM3:

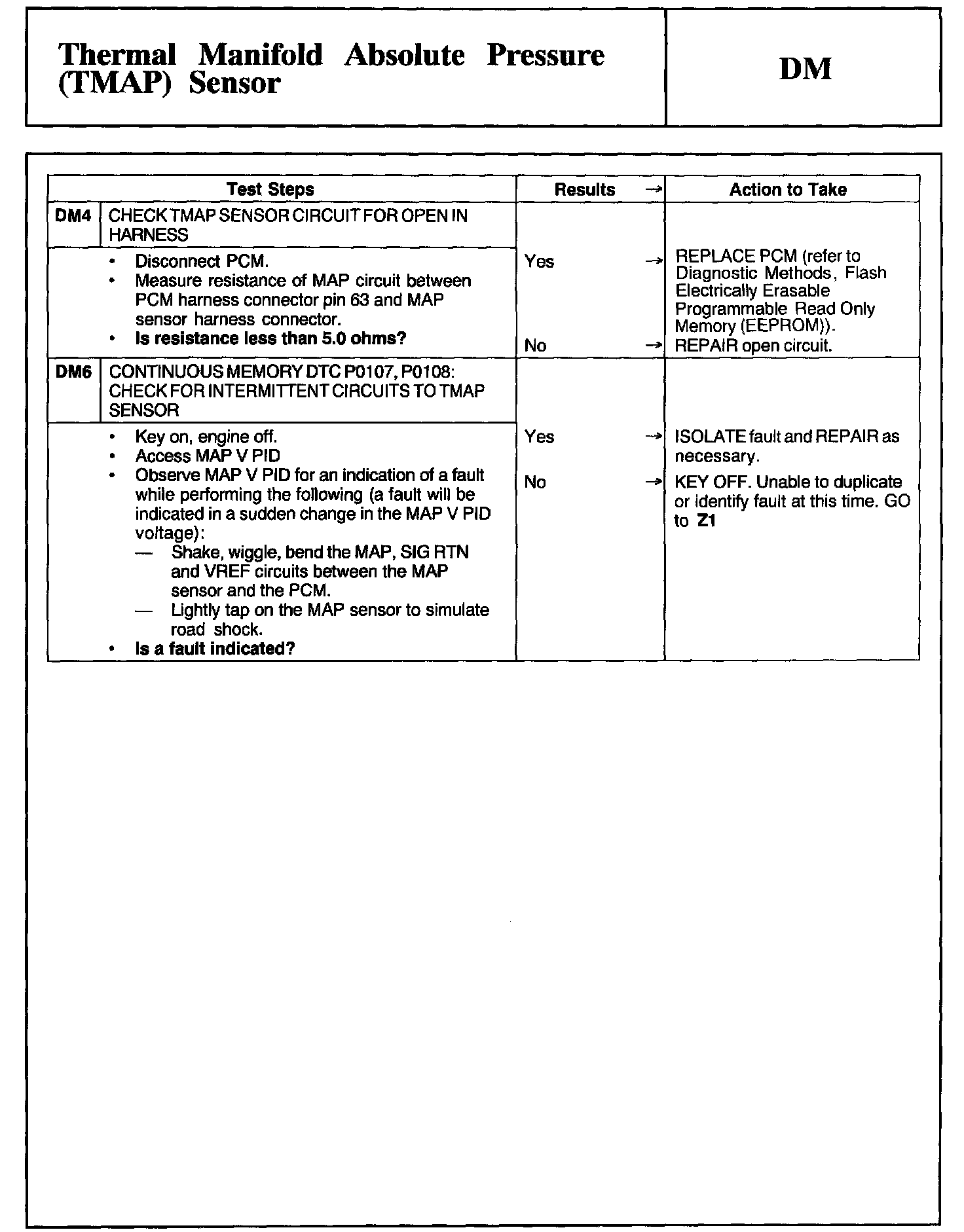

DM4 - DM6:
