Tests DQ: Barometric Pressure (BARO) Sensor

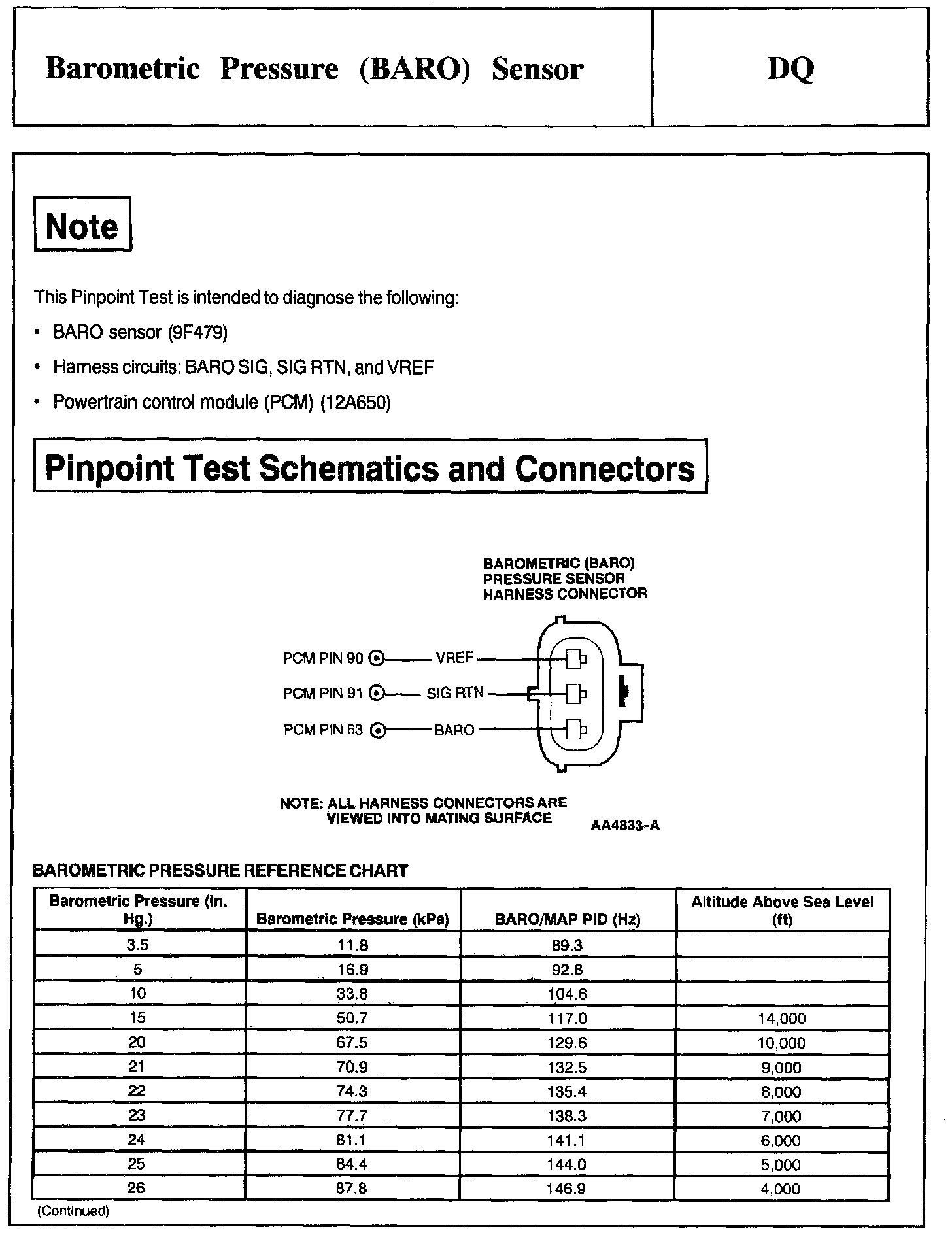

Note, Schematics and Connectors and Chart:

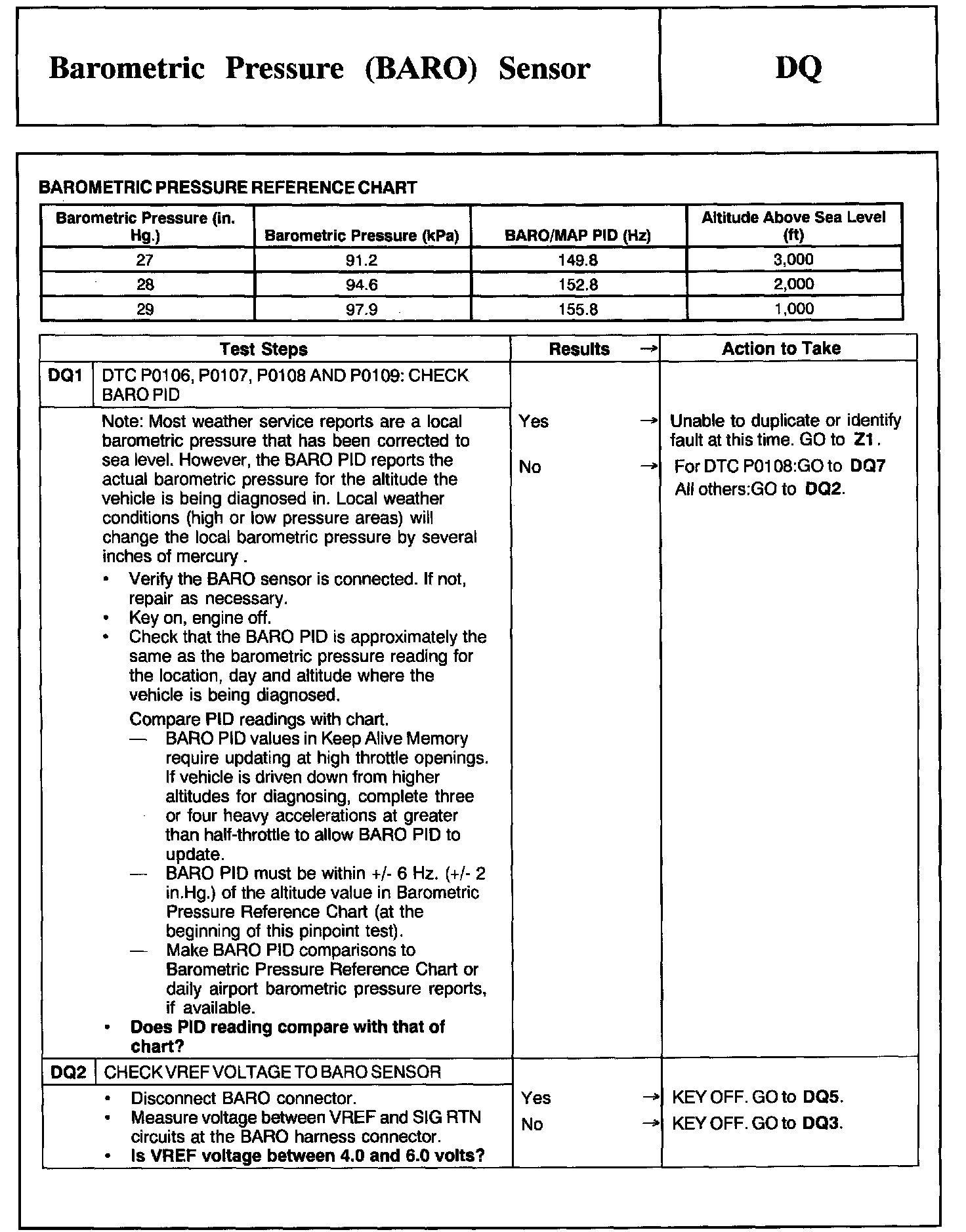

Chart, Test DQ1 - DQ2:

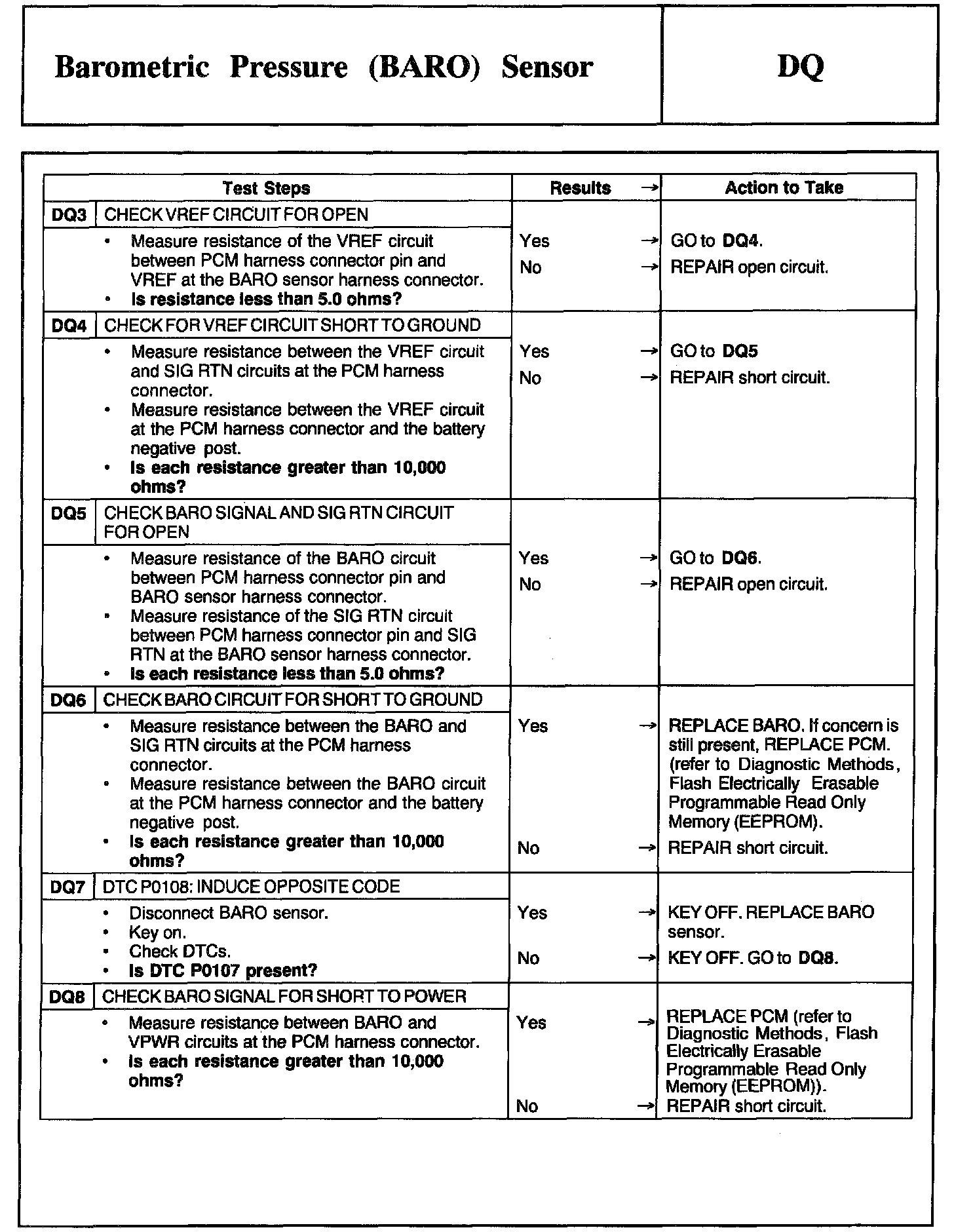

DQ3 - DQ8:
